  • Deck Capacity
    20,000 lbs. or 30,000 lbs.
  • Material
    Steel
  • Winch Capacity
    12,000 lbs. or 20,000 lbs.

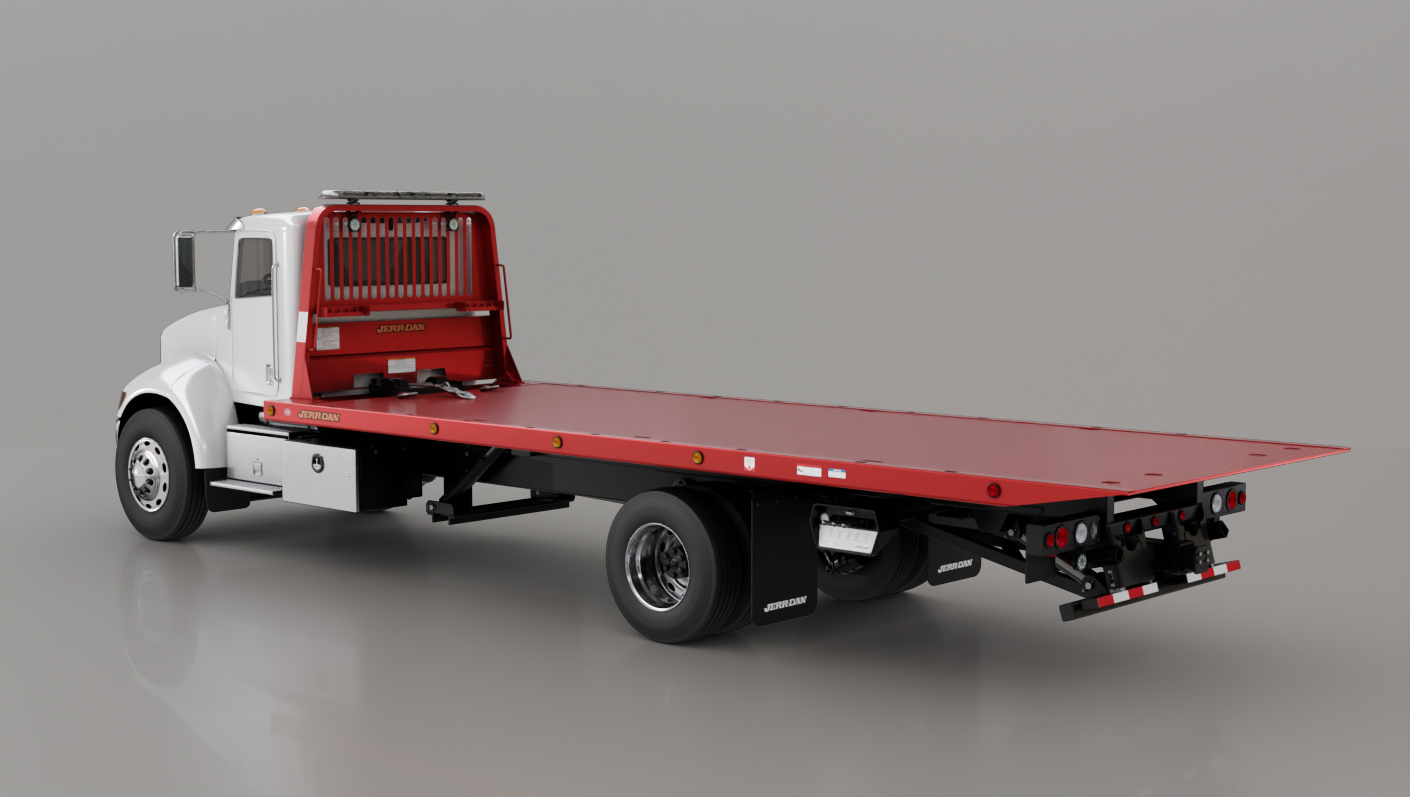

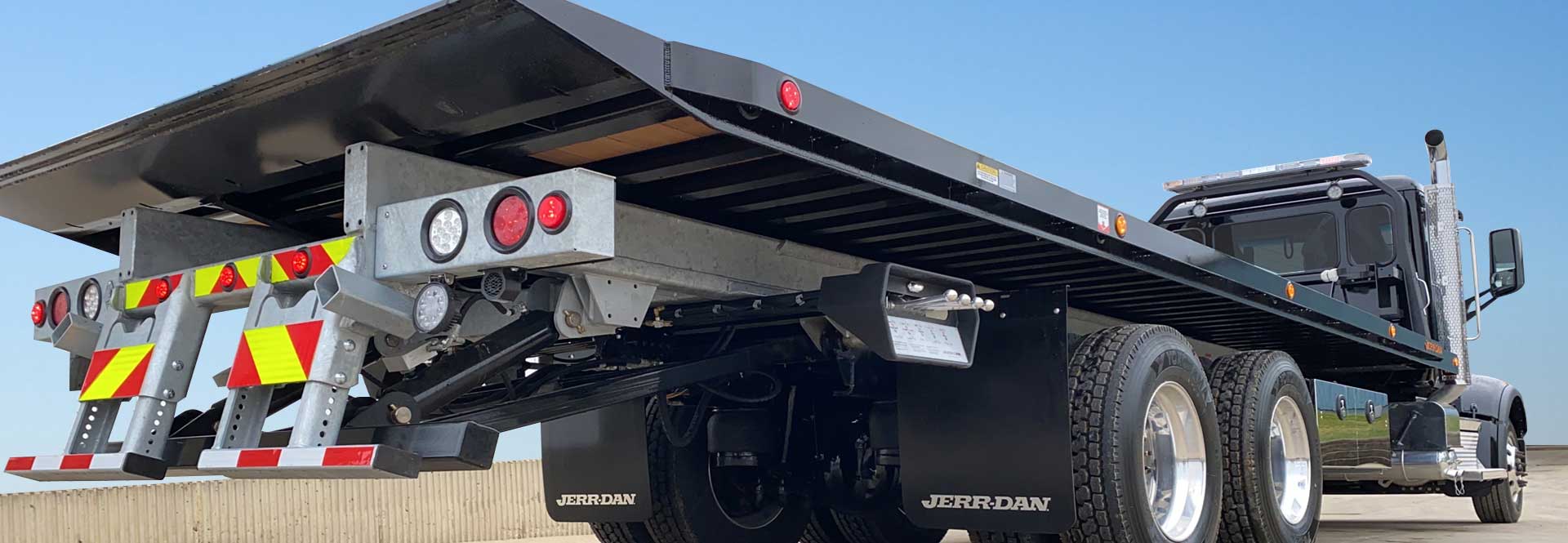

HIGH-STRENGTH STEEL FOR THE TOUGHEST JOBS

Heavy Duty
Carriers

These durable Jerr-Dan carriers feature powerful payload capacity, impressive load angles and years of reliable use.

Models

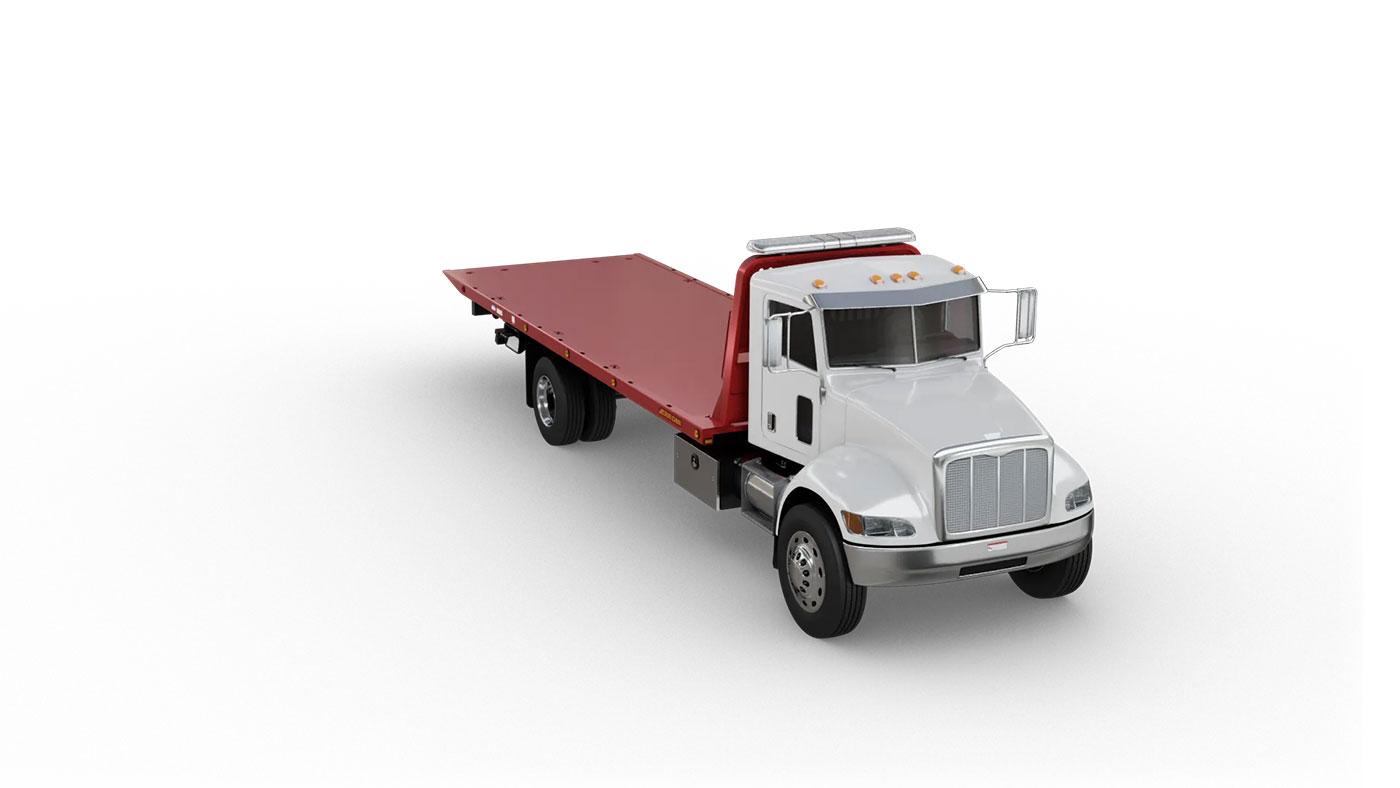

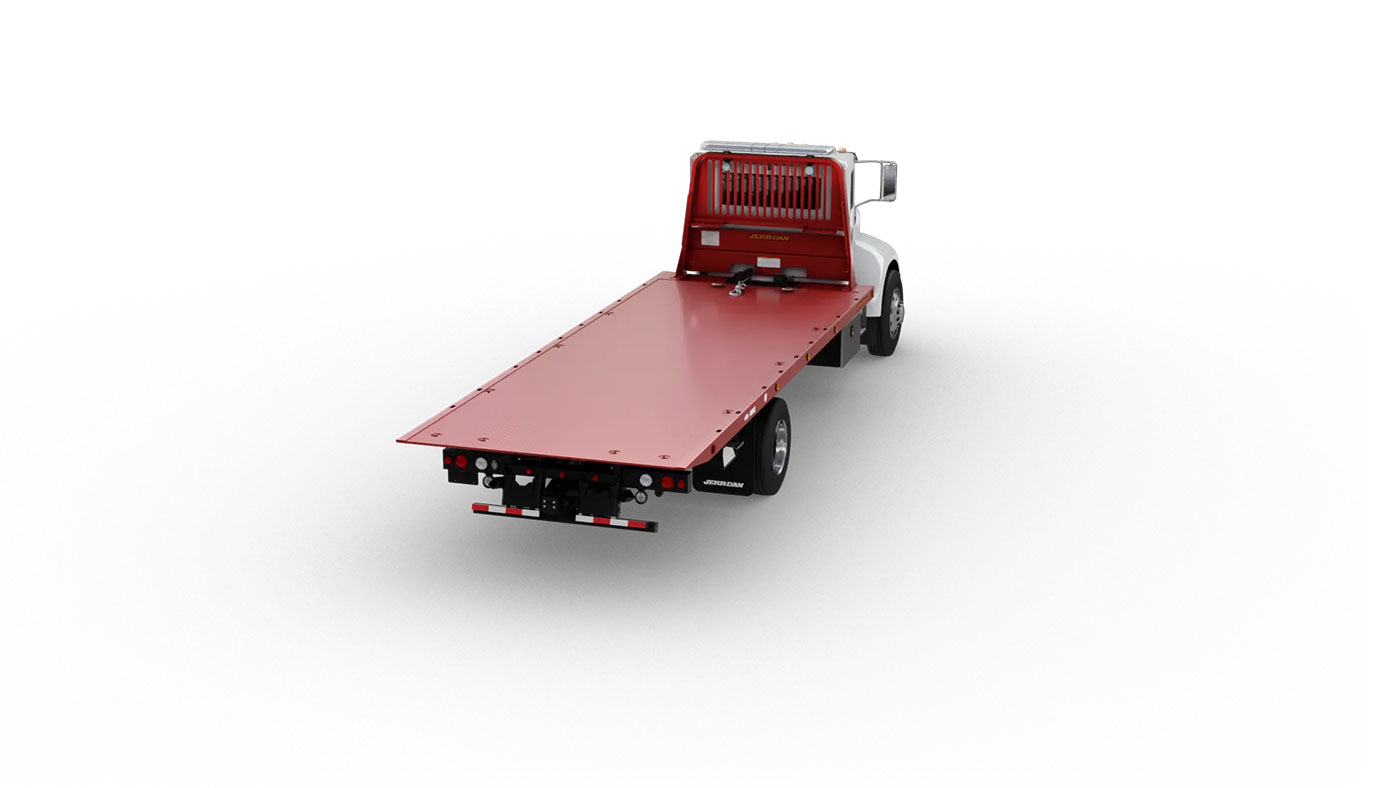

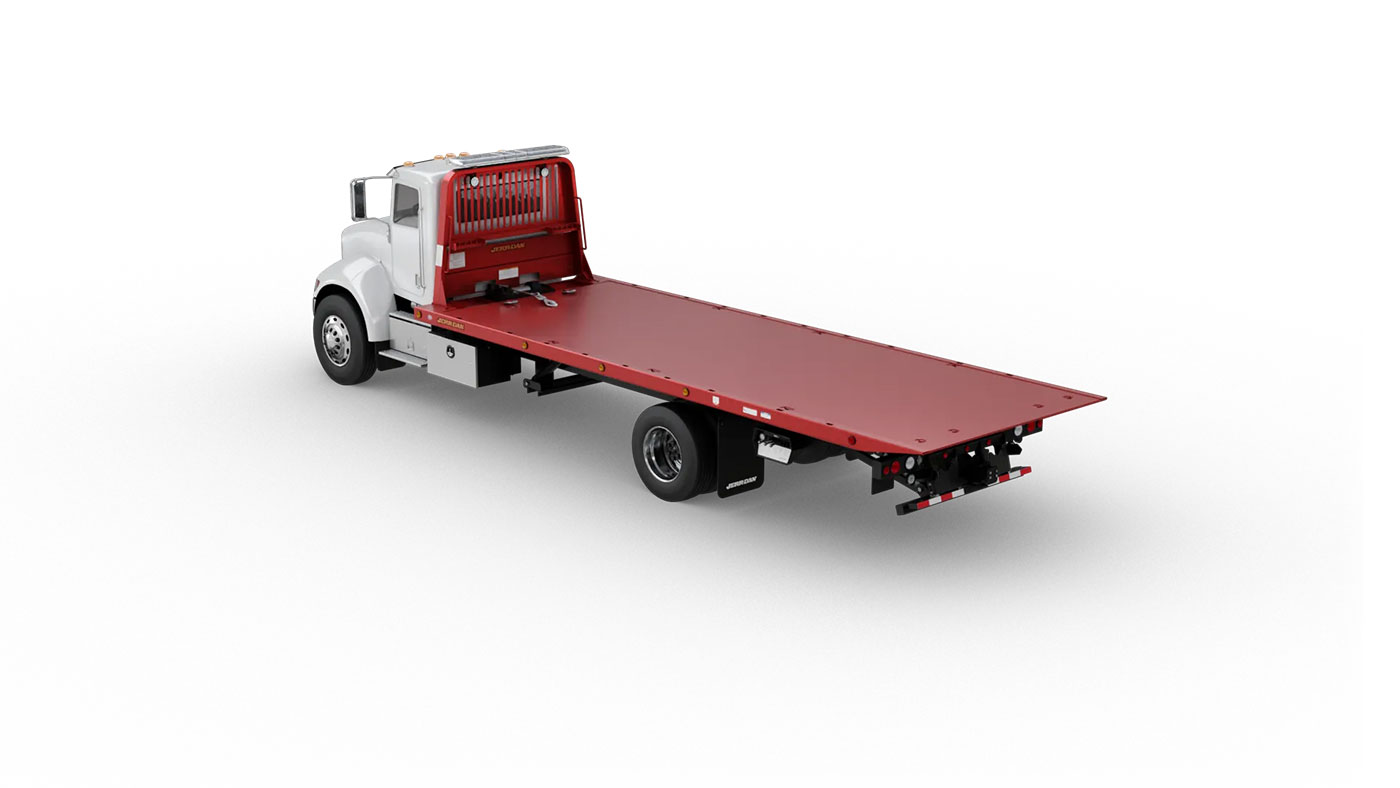

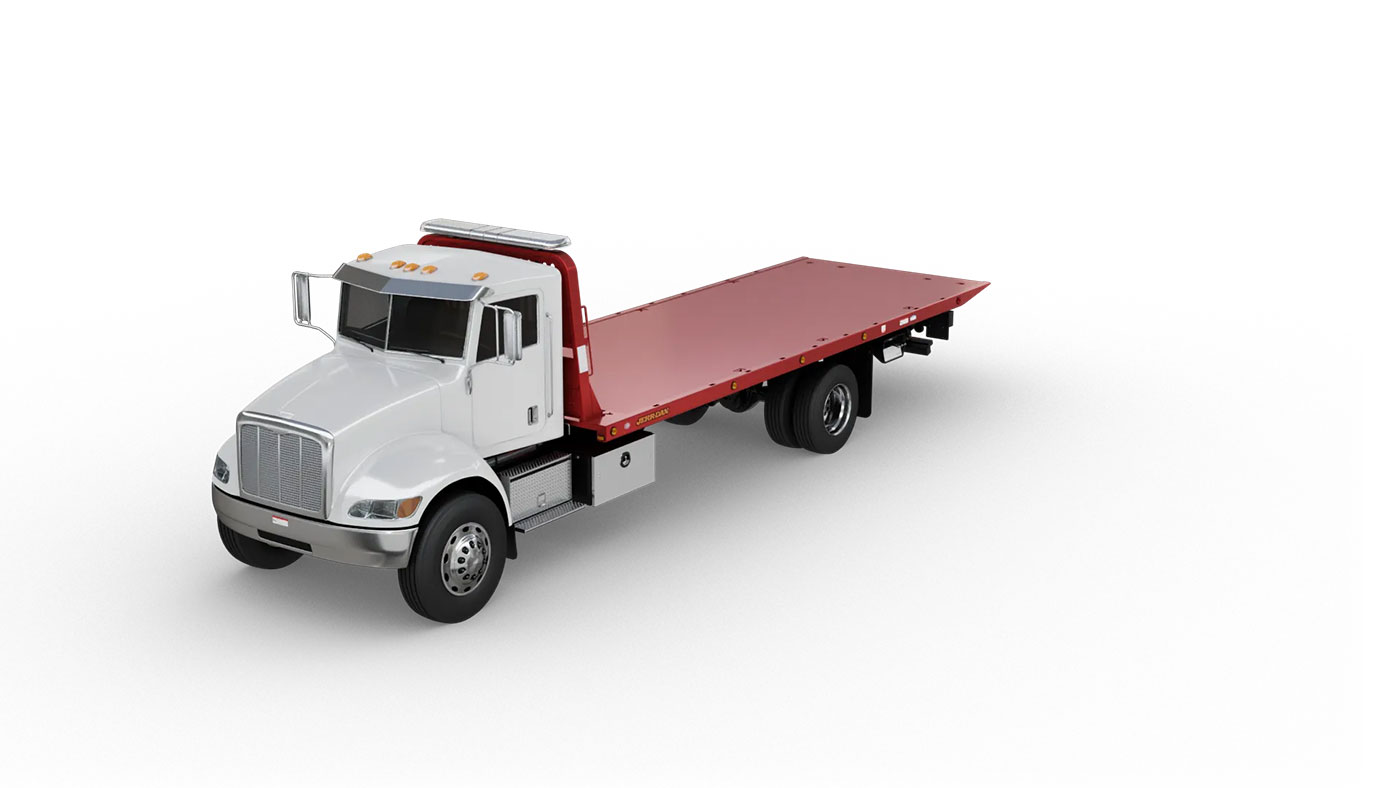

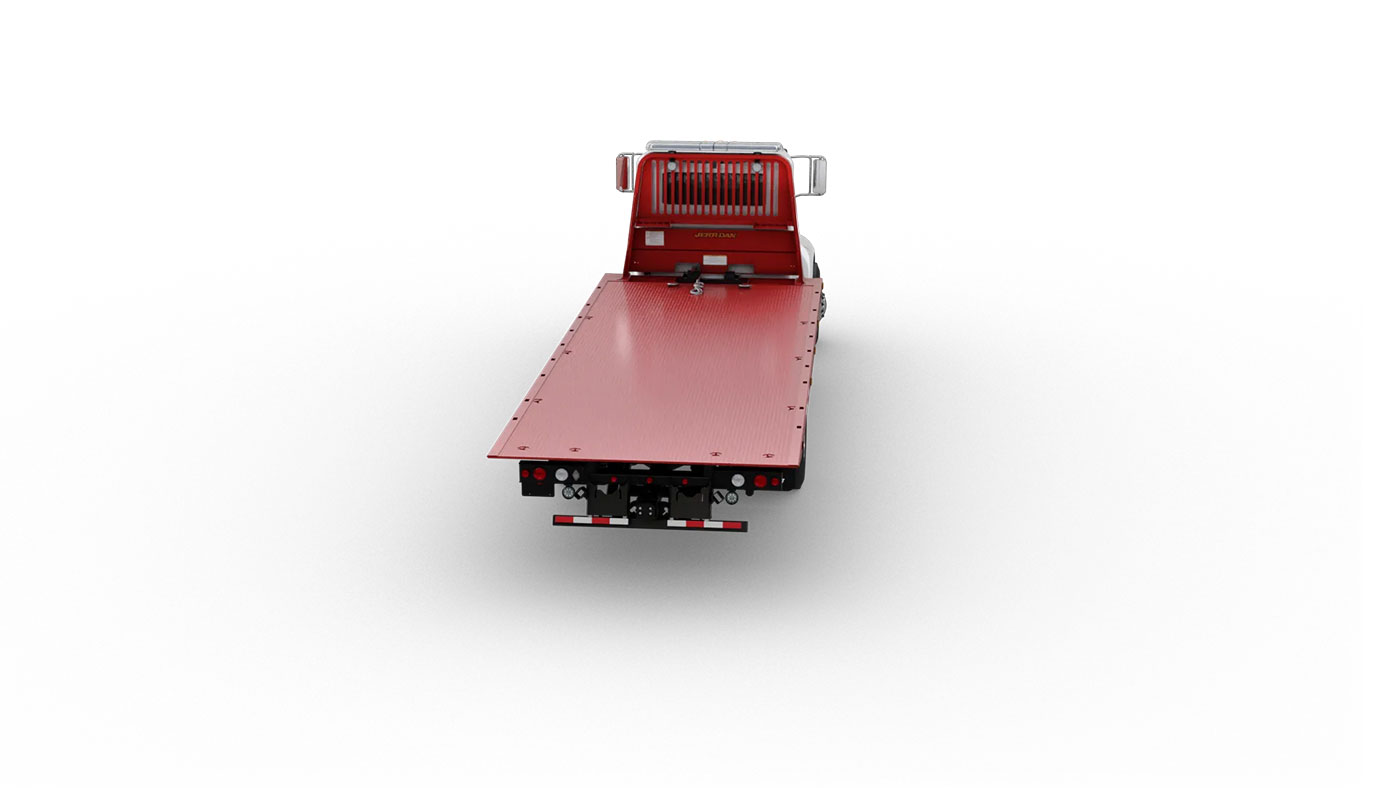

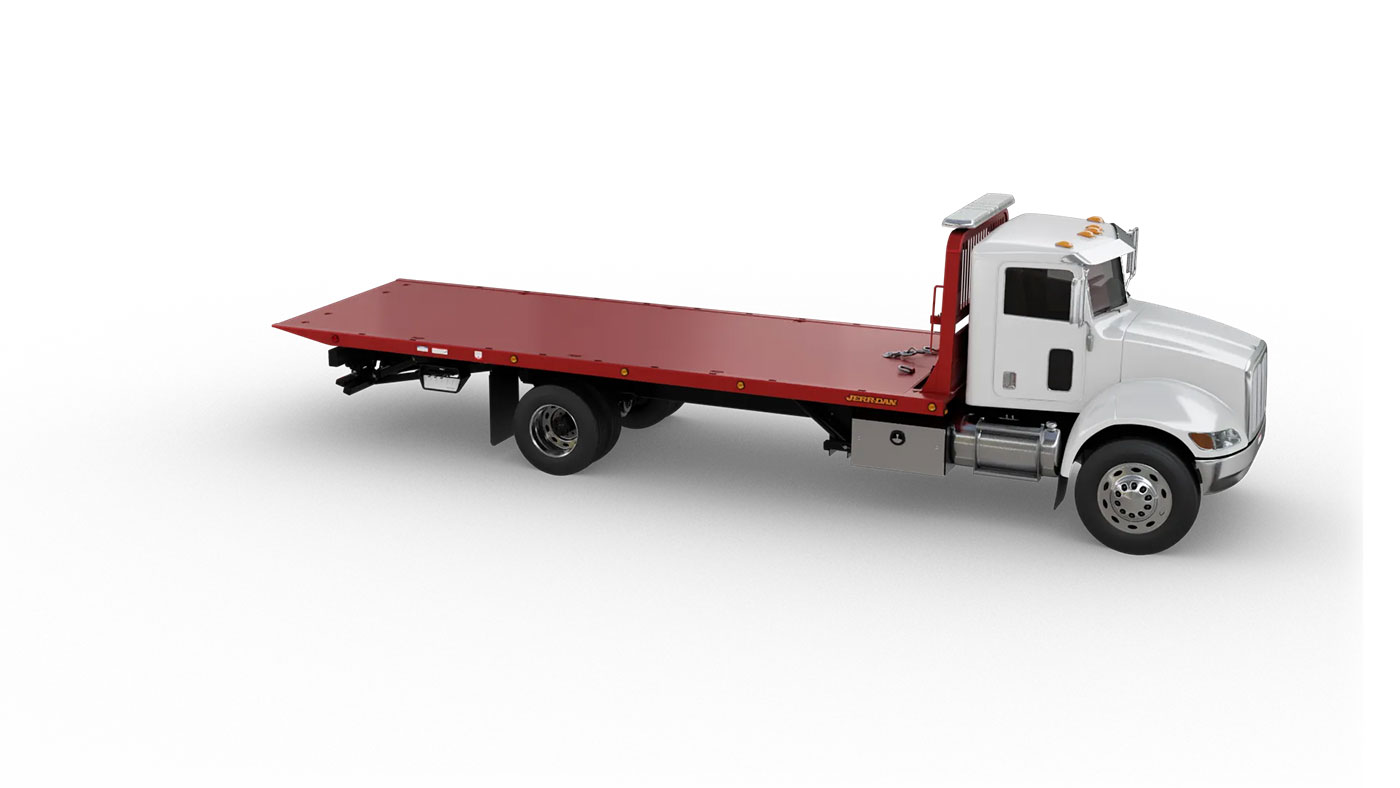

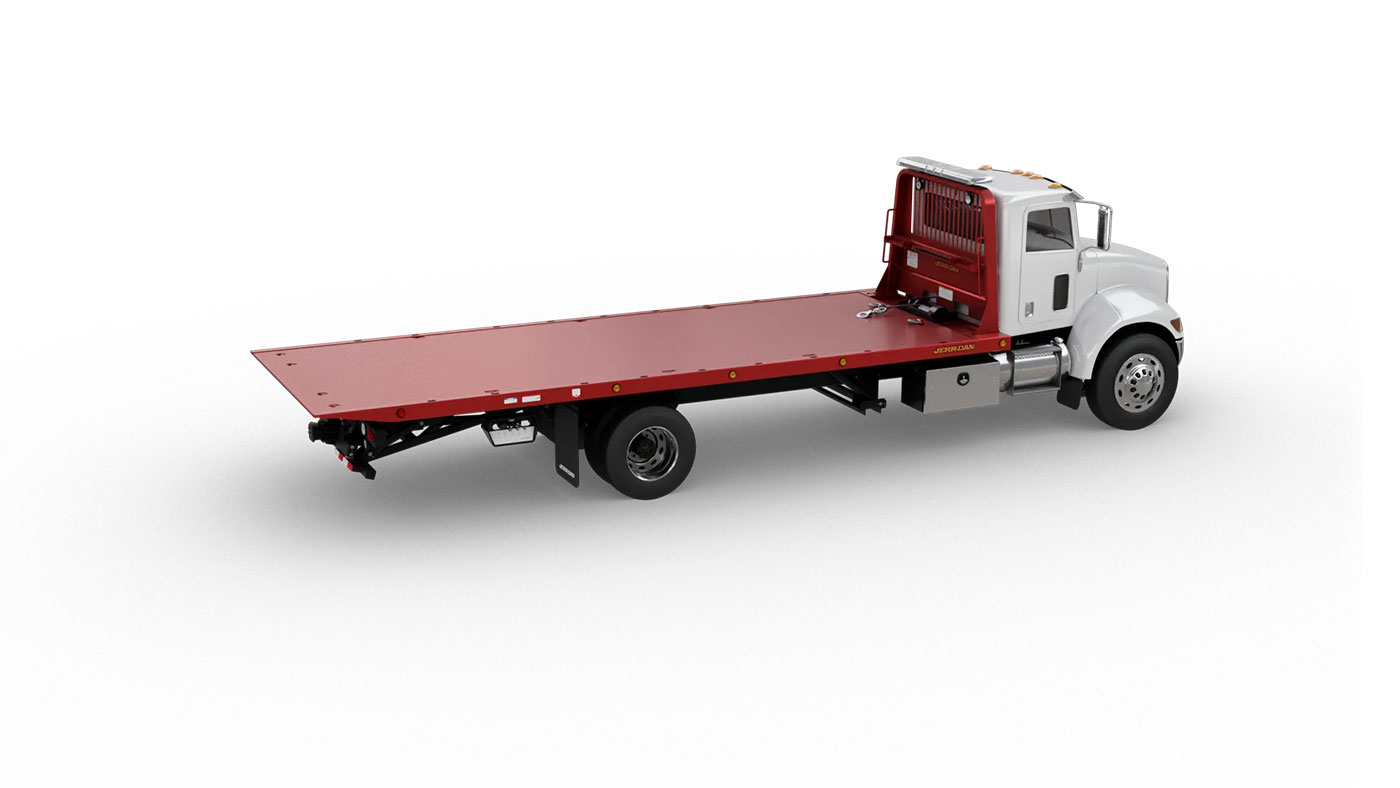

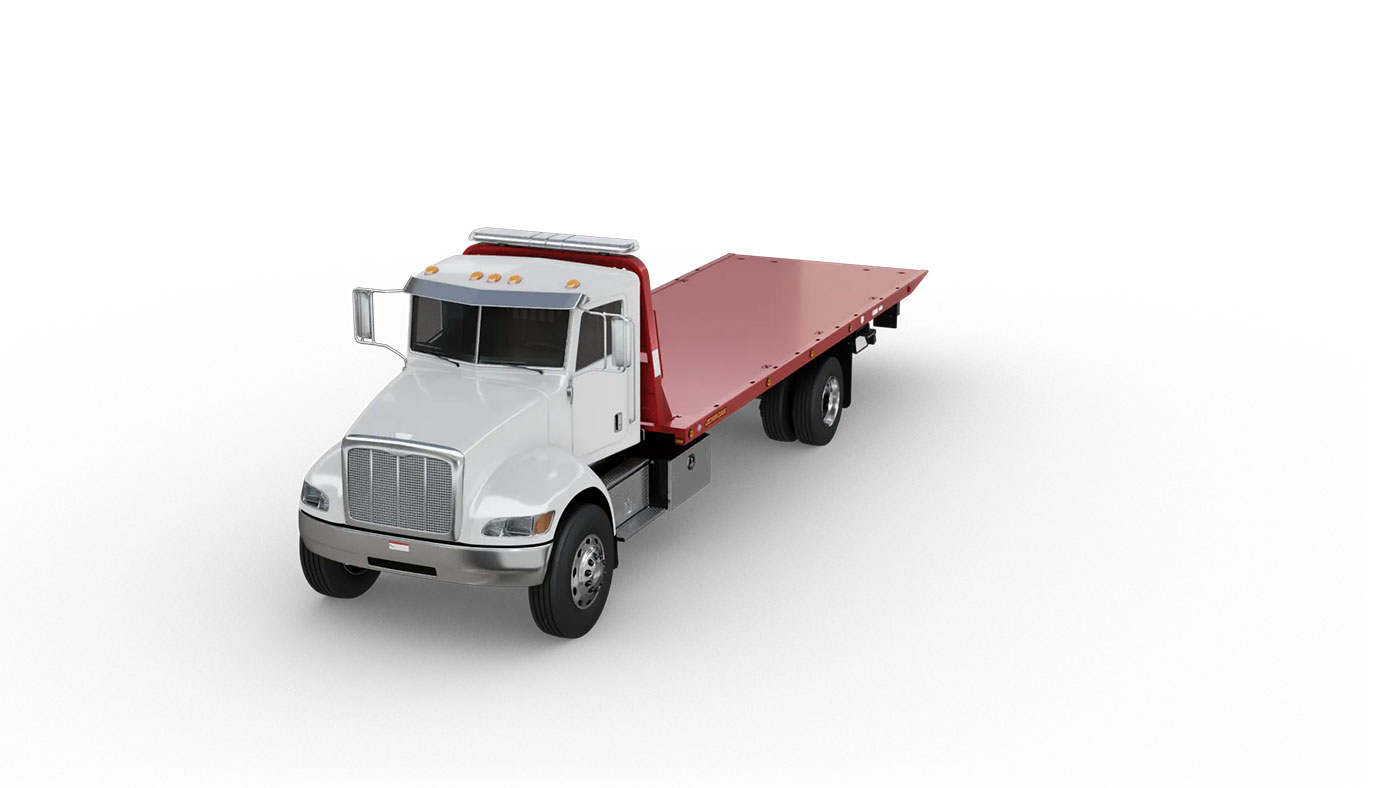

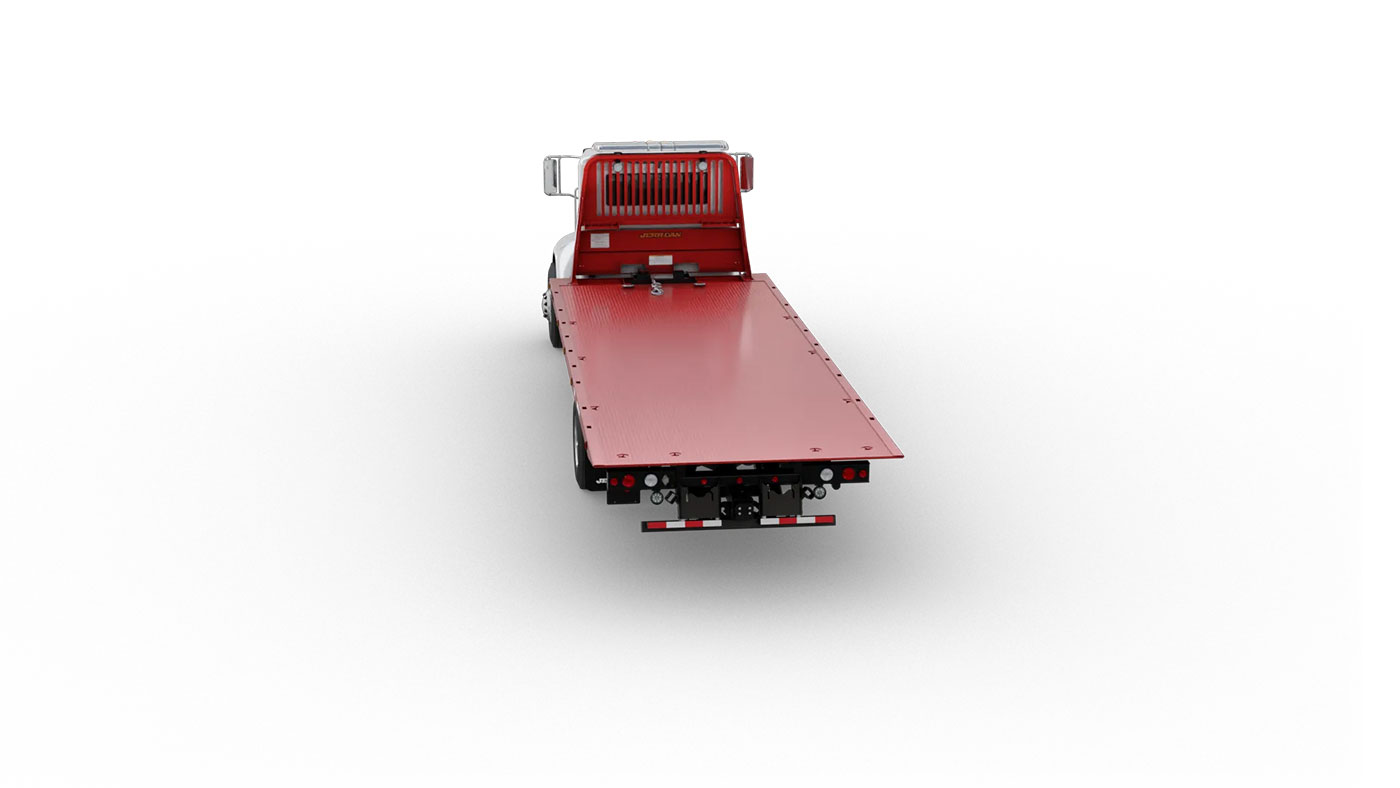

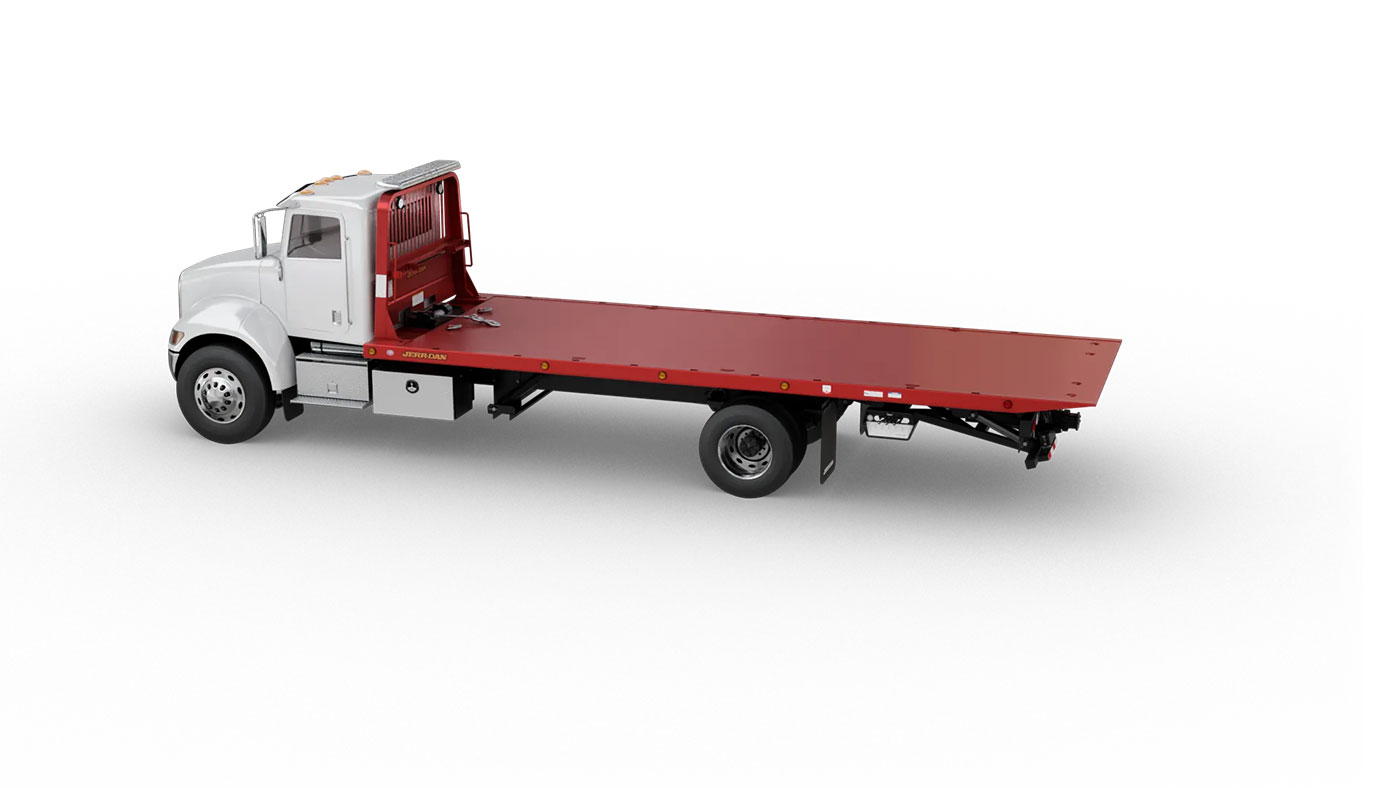

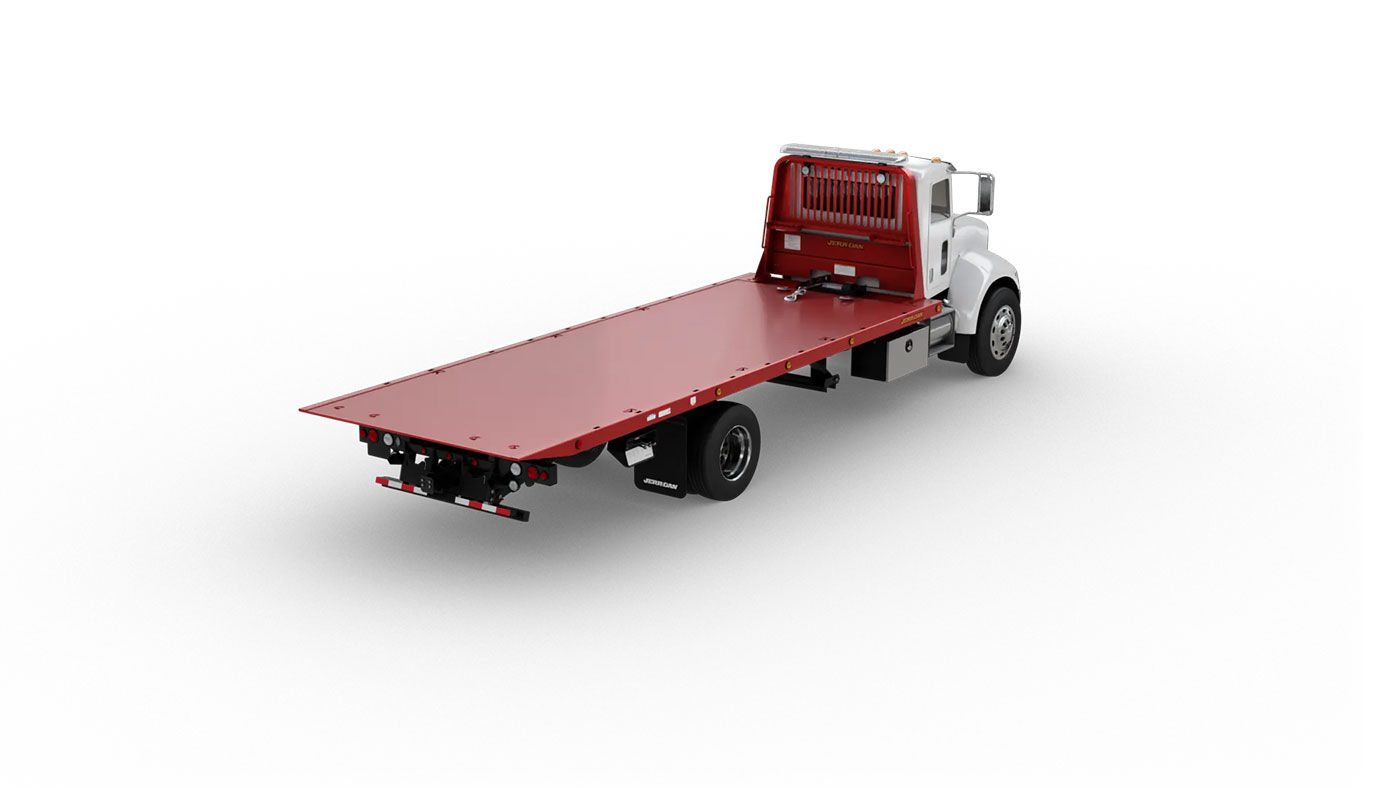

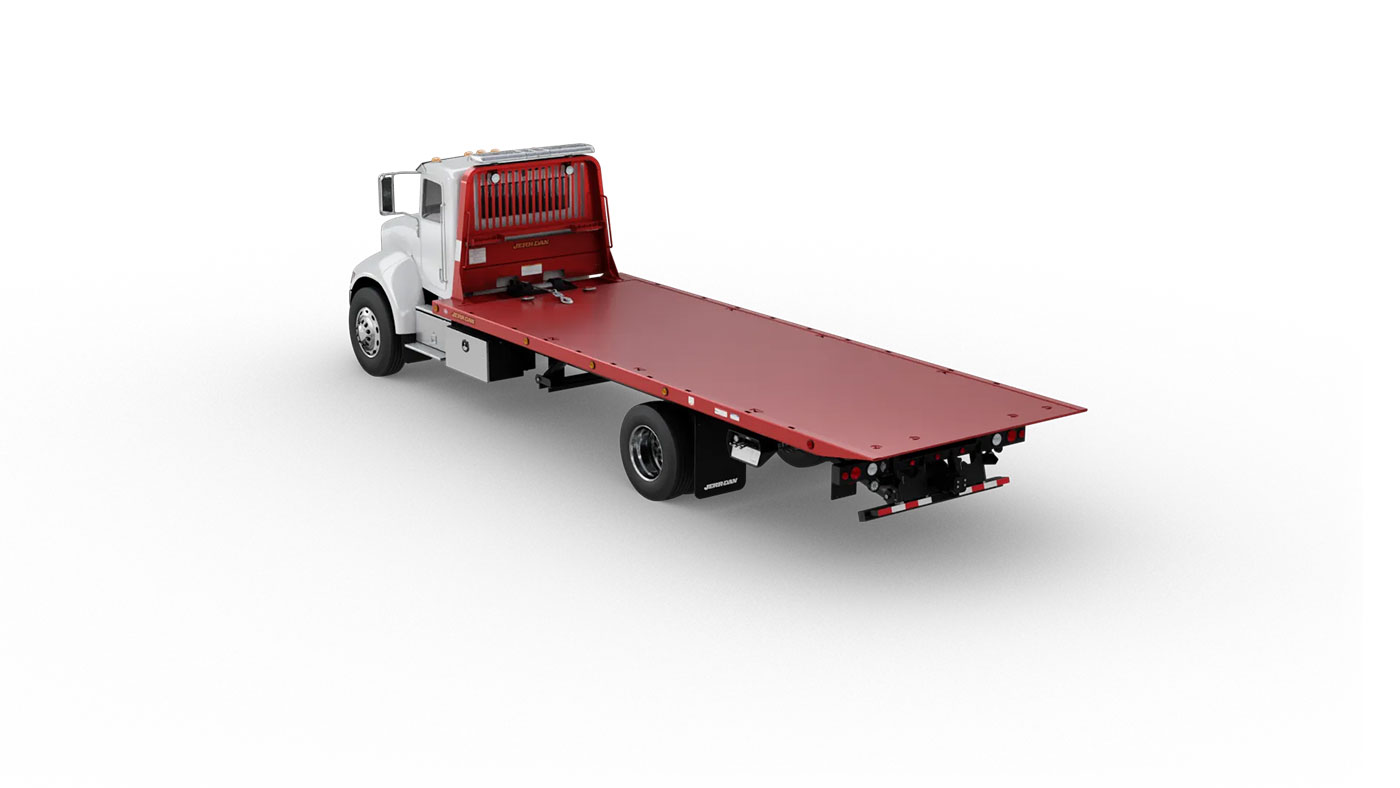

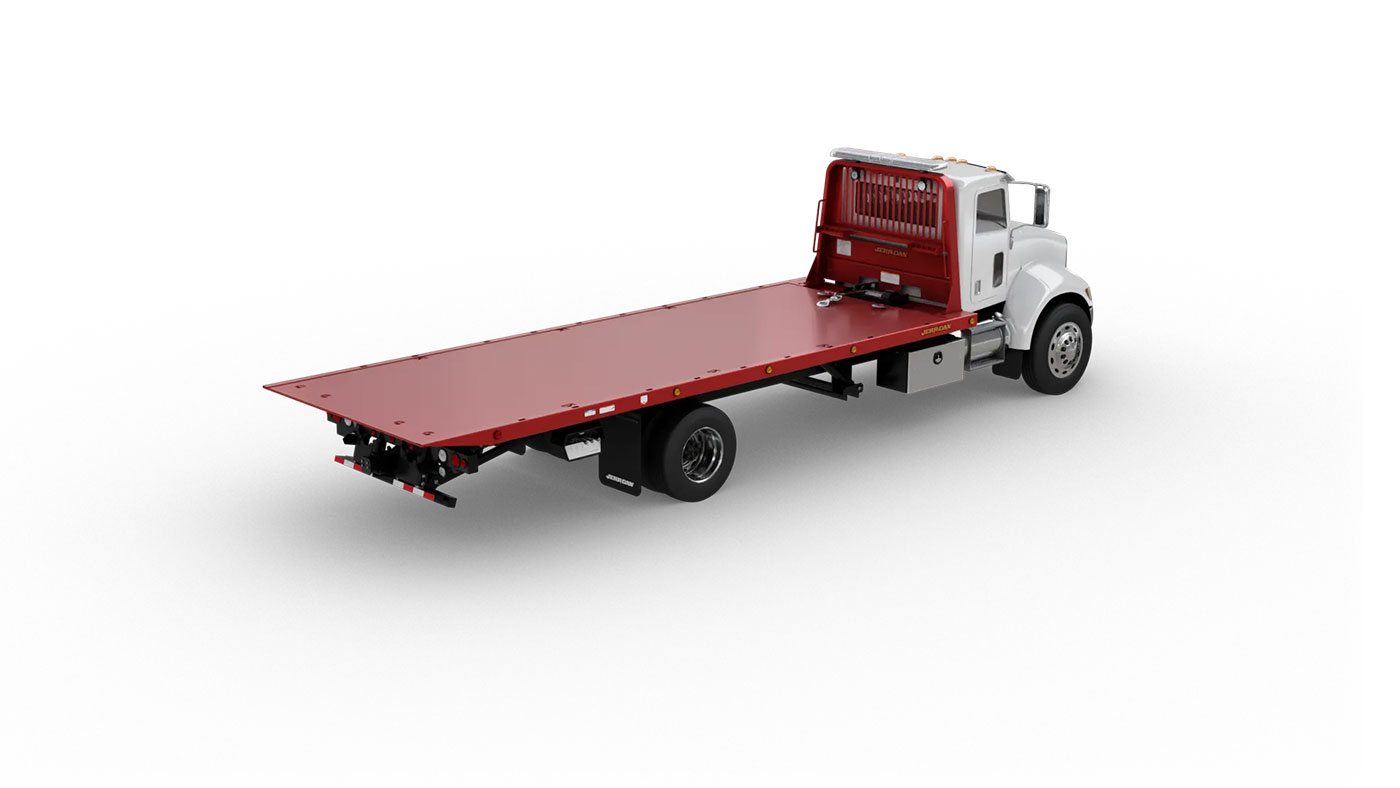

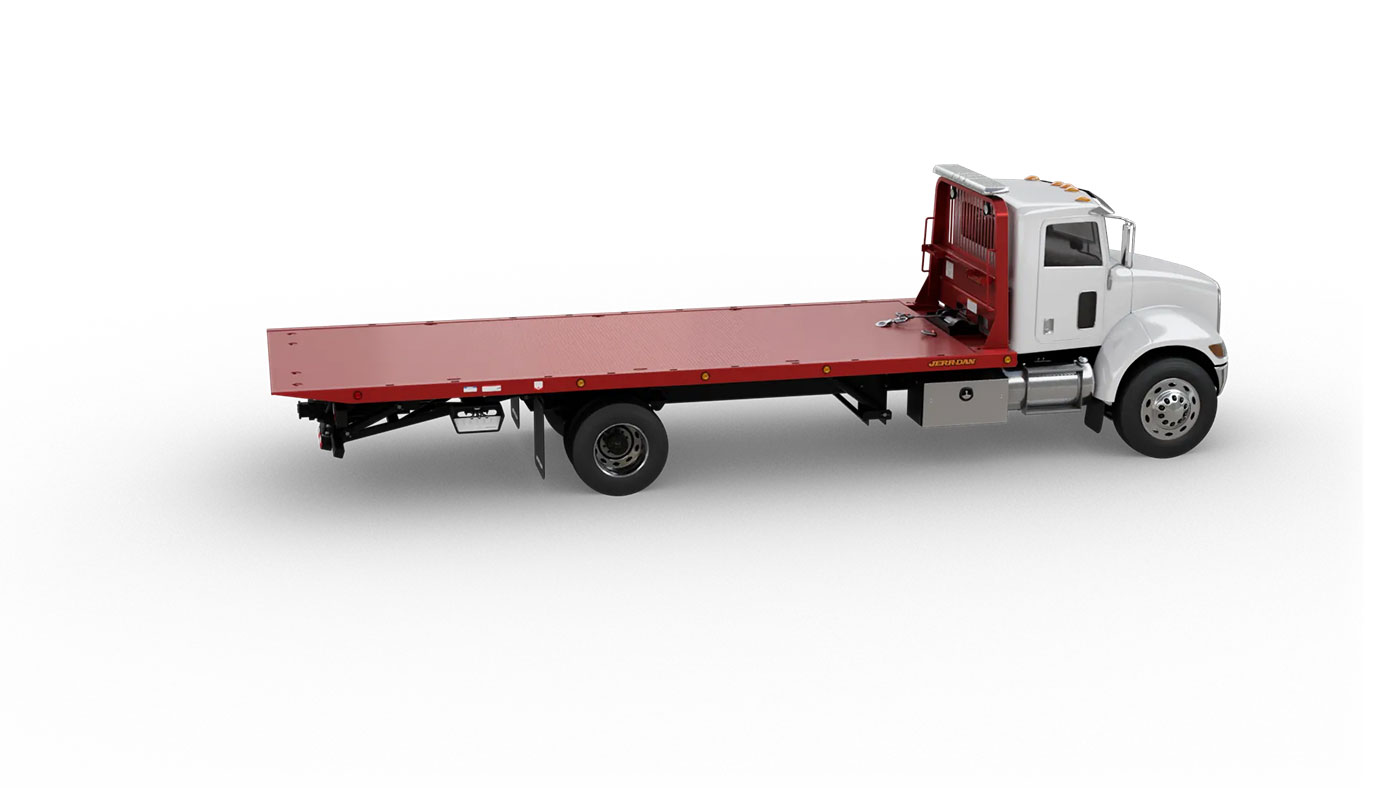

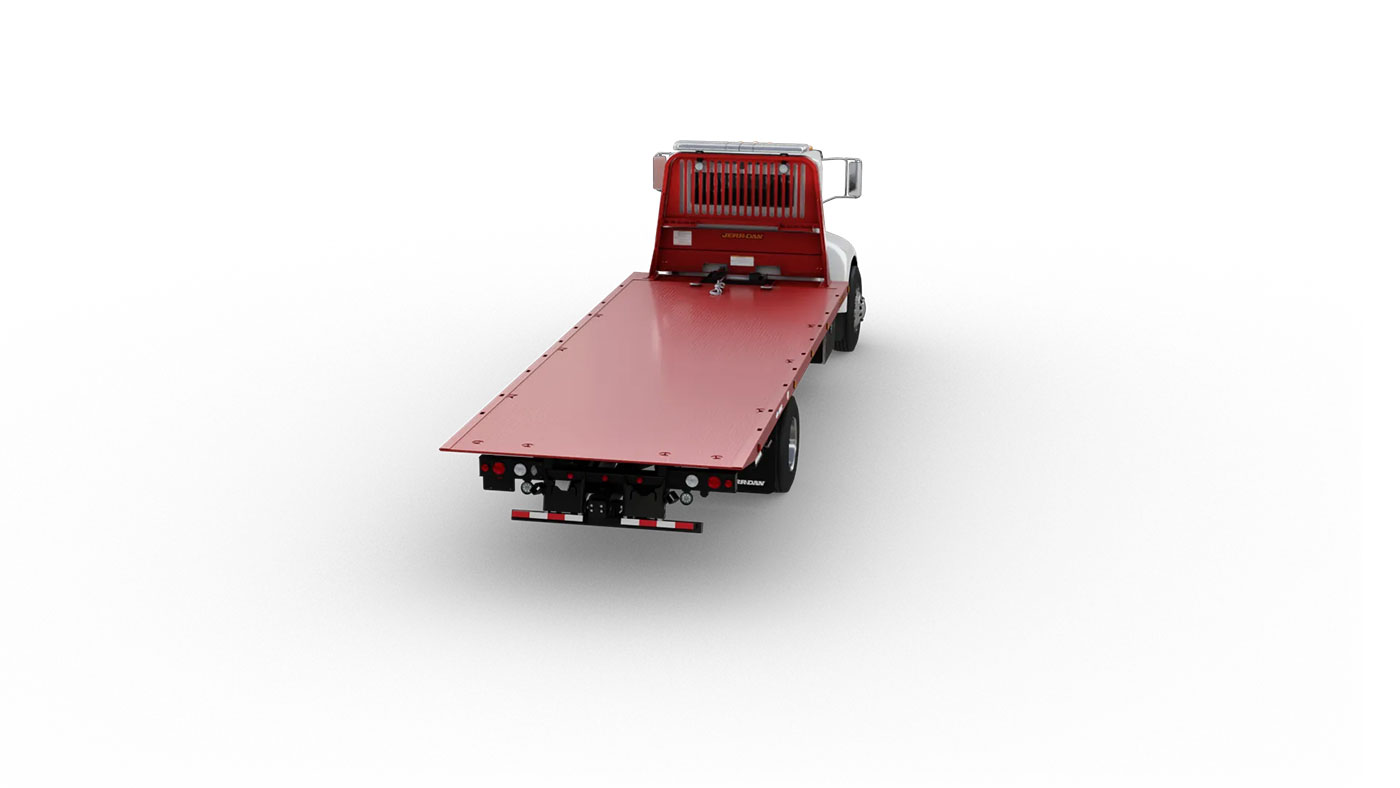

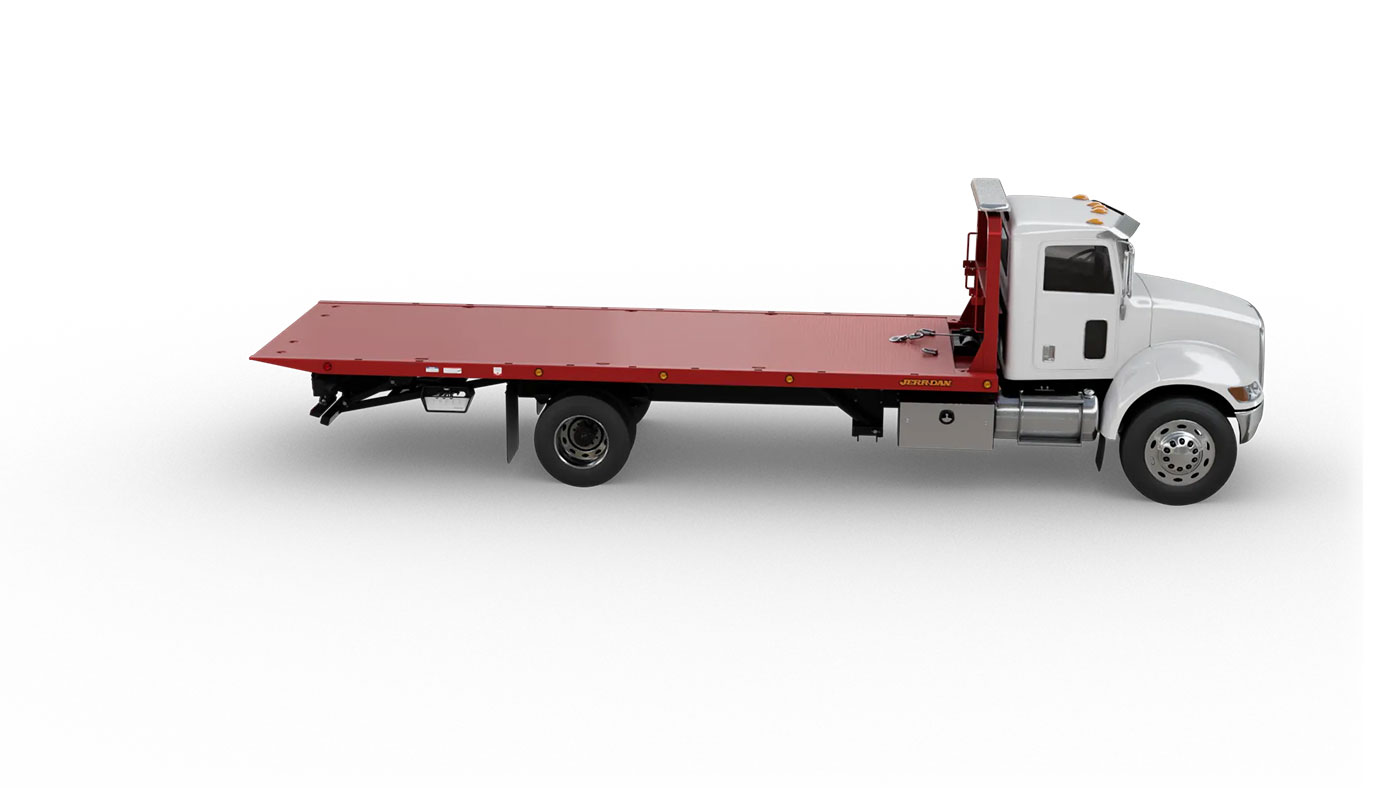

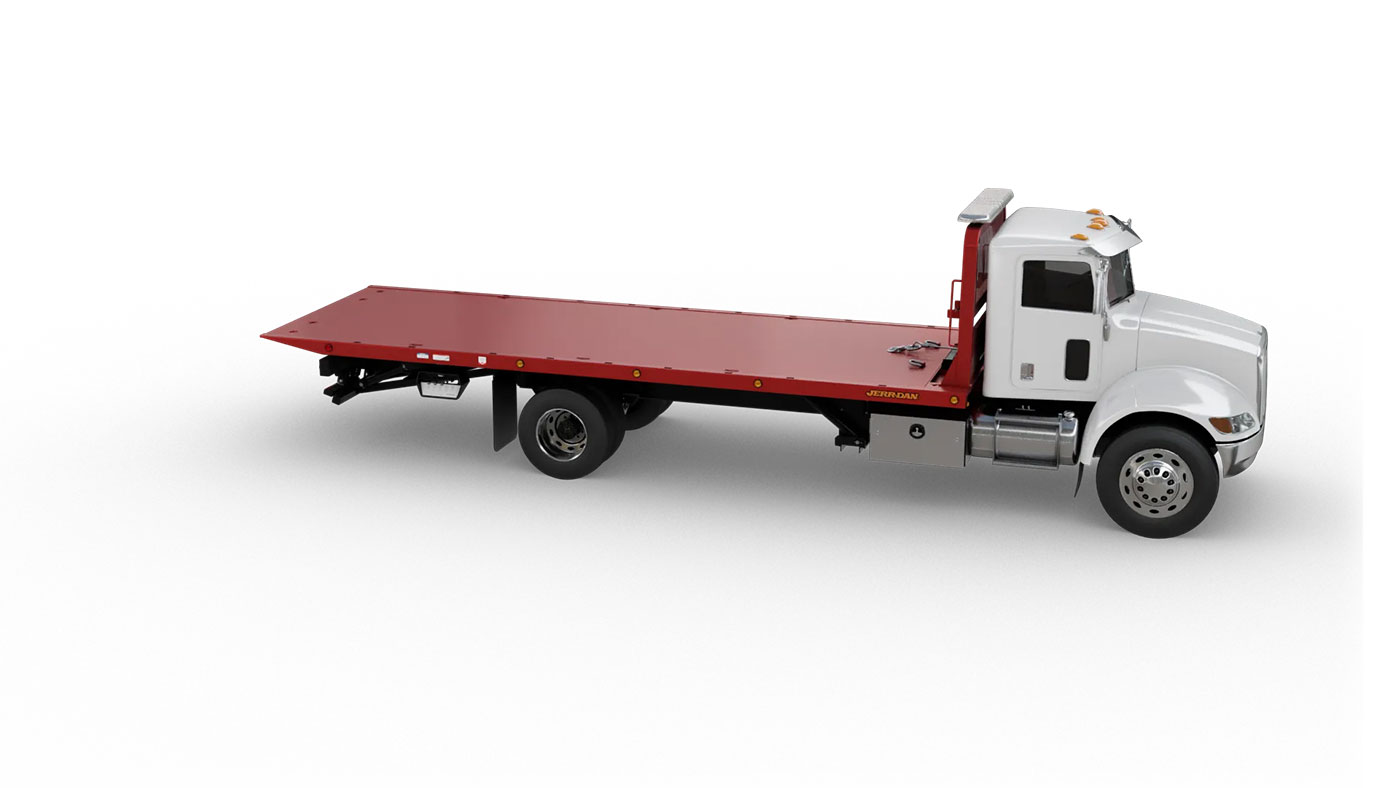

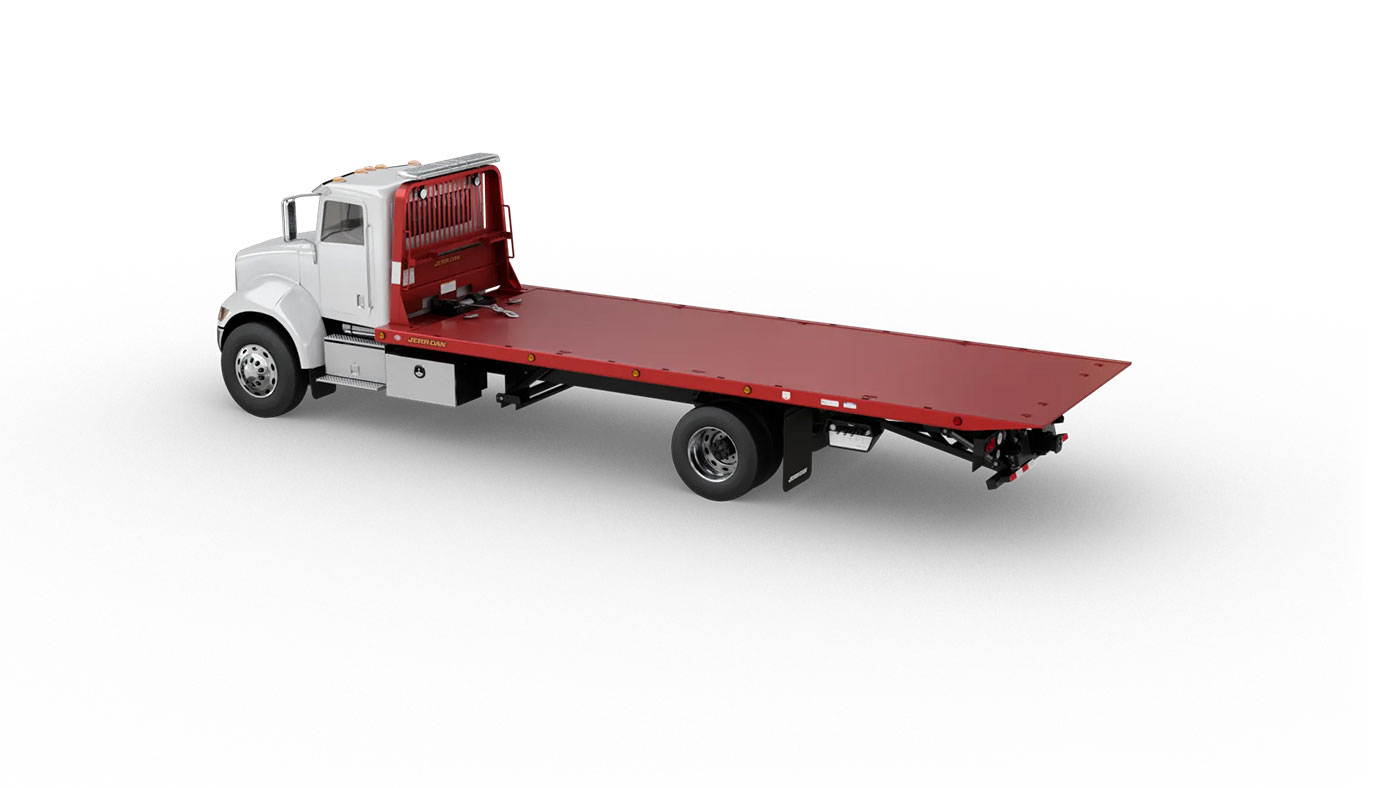

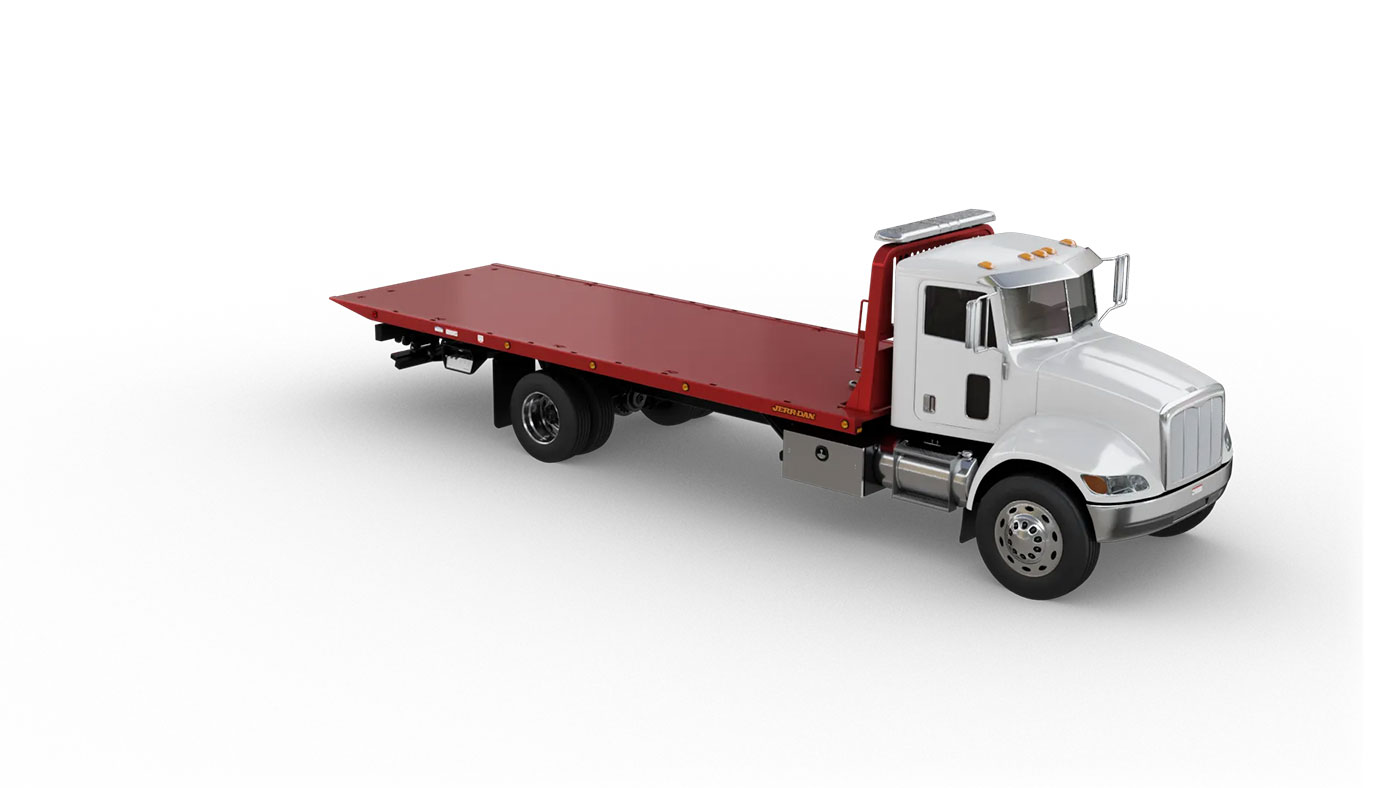

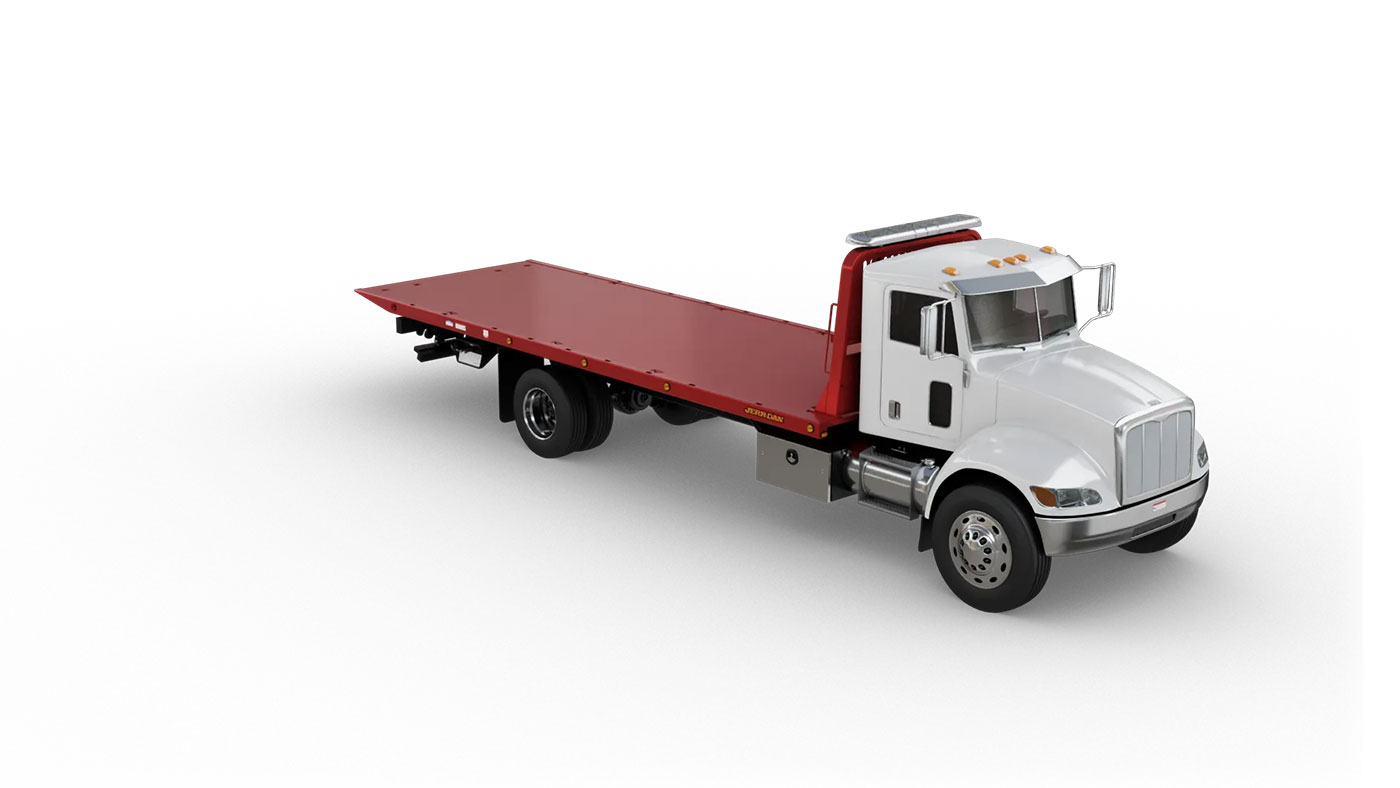

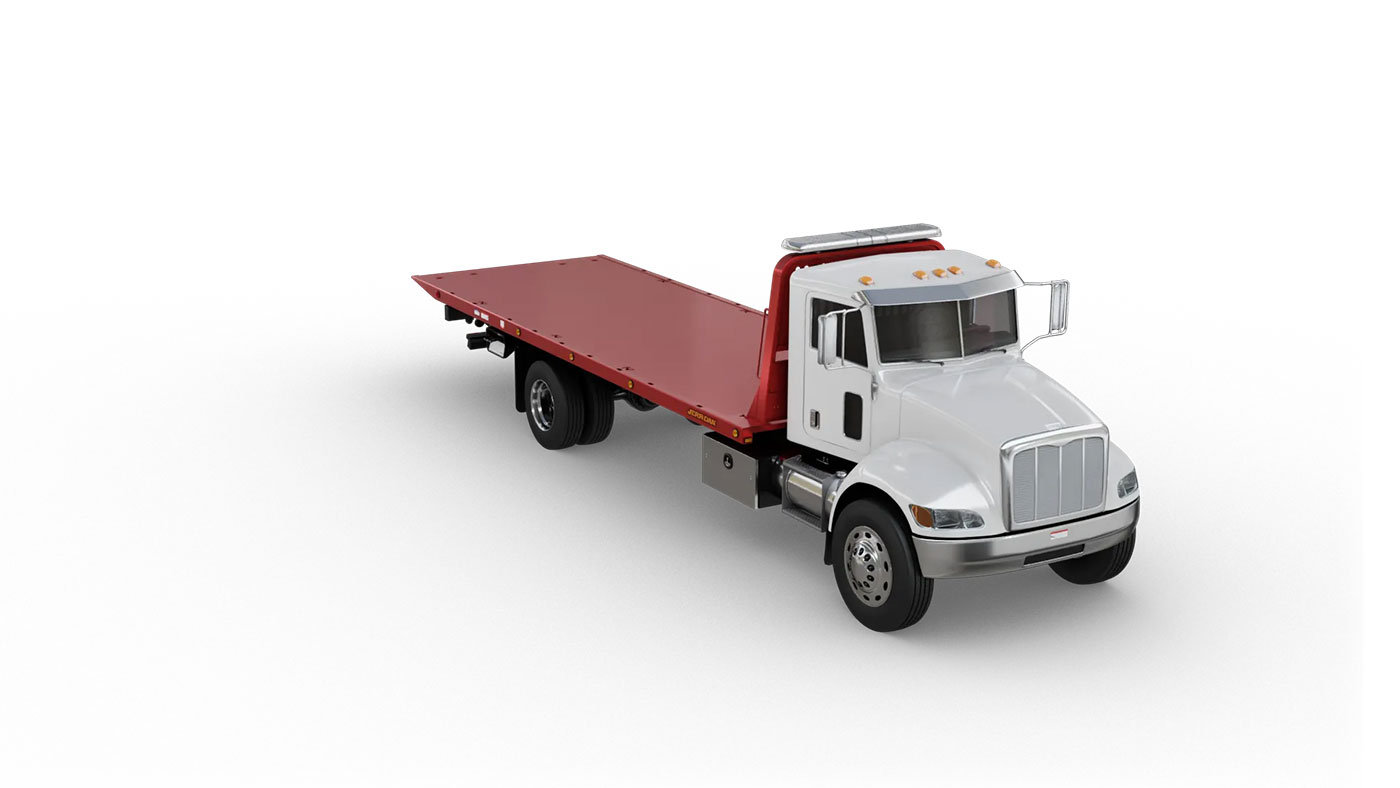

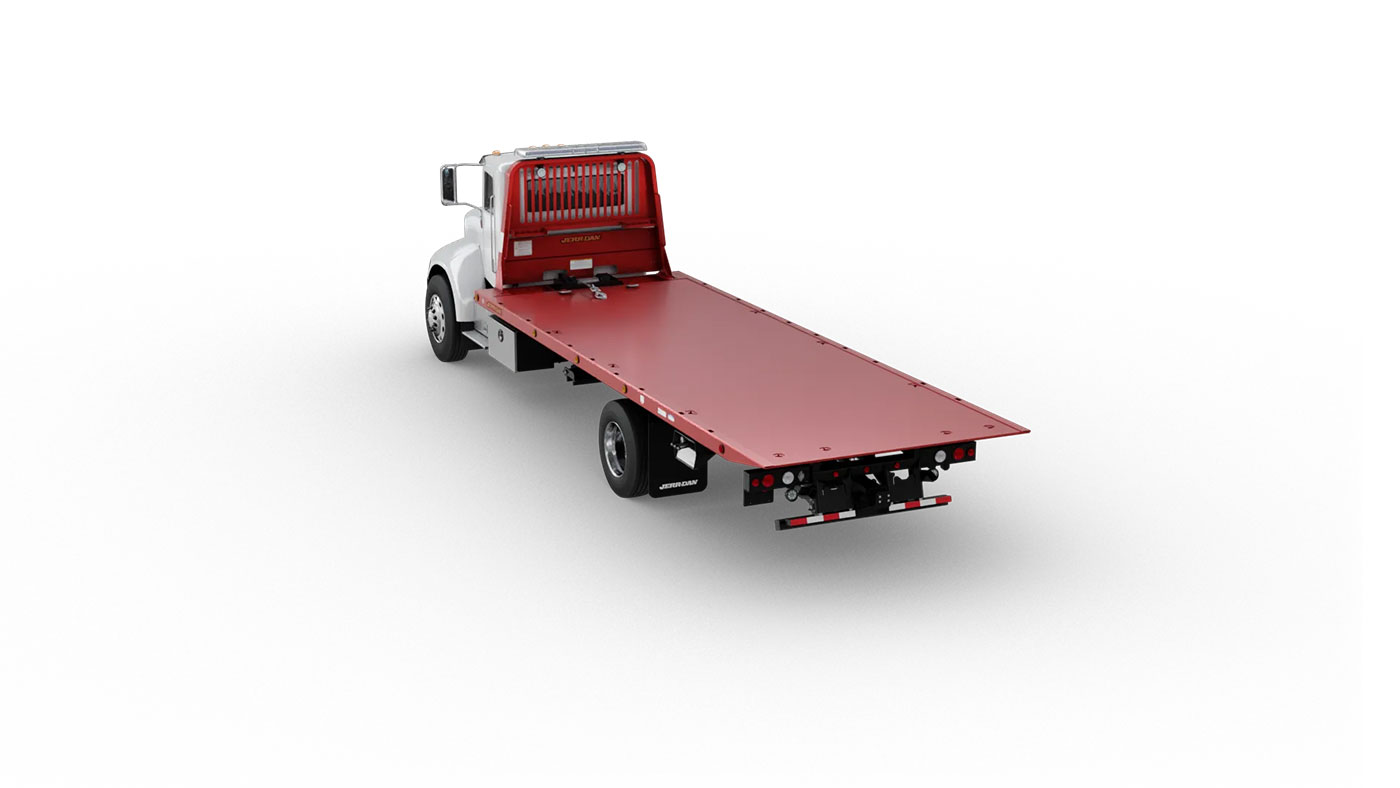

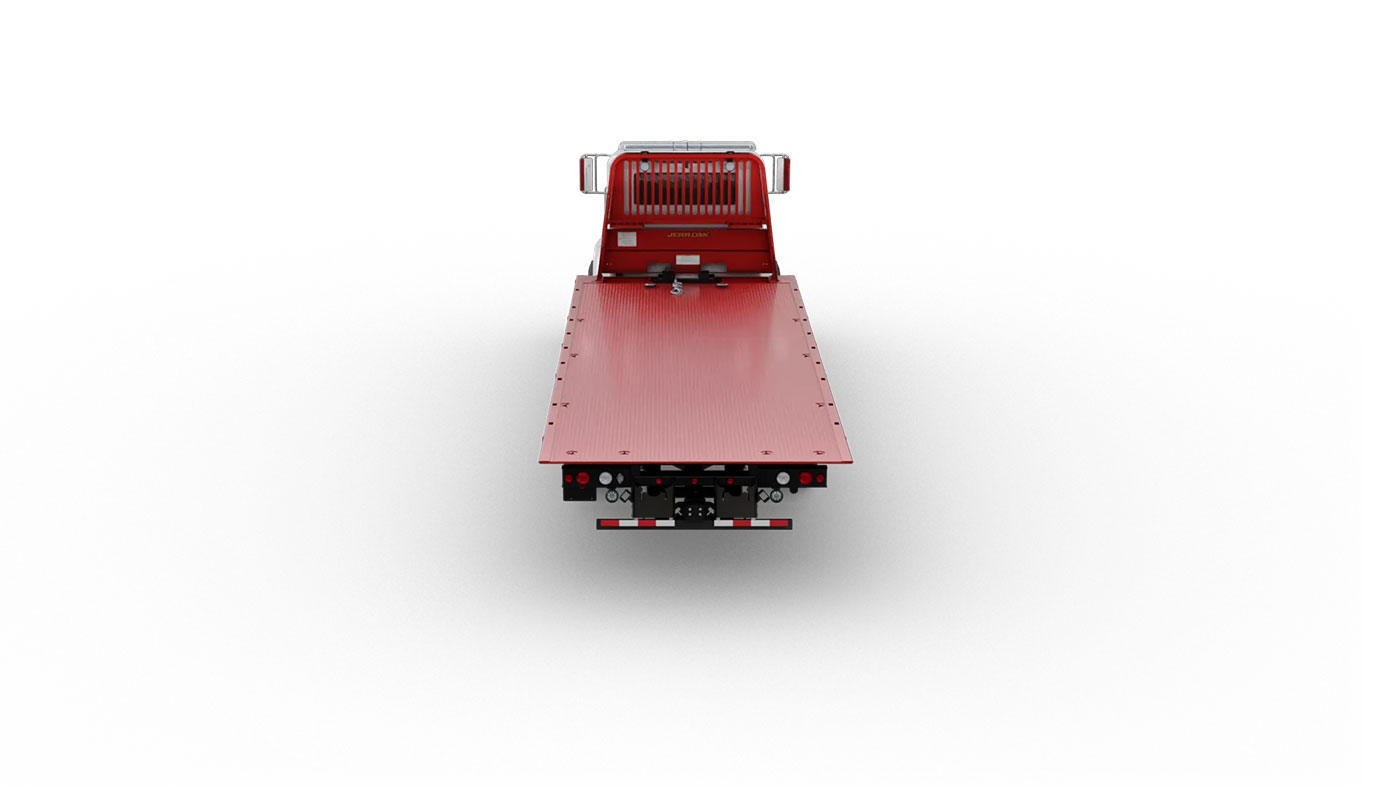

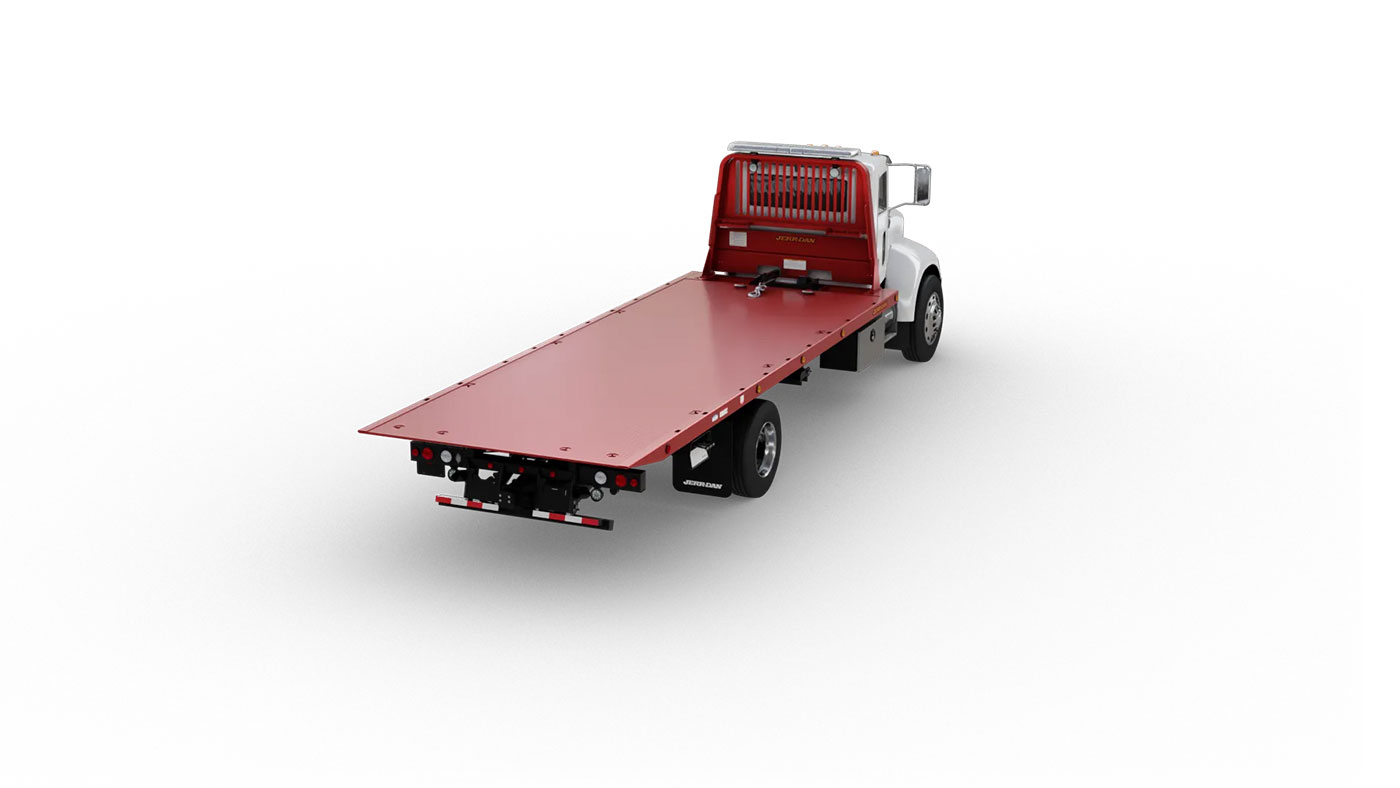

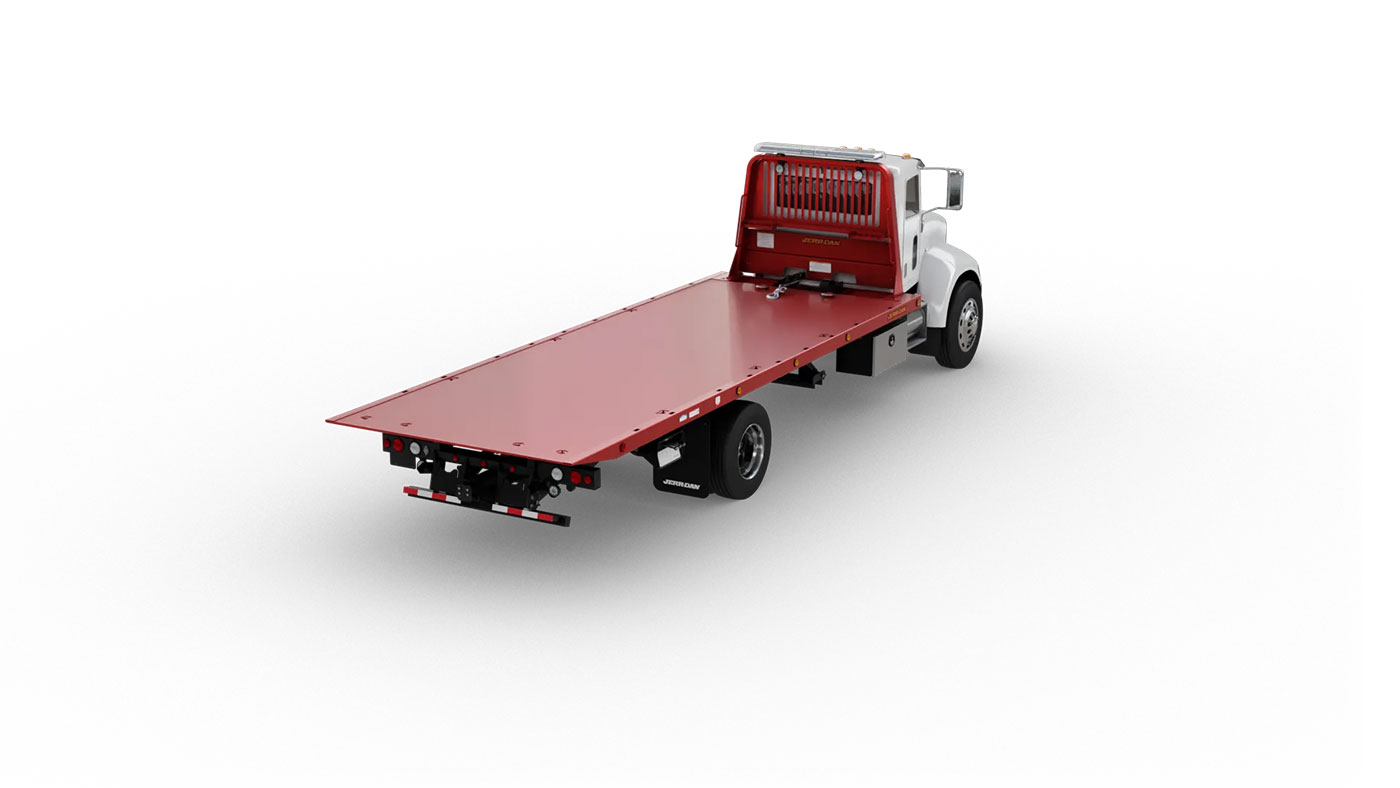

10 TON STEEL

With a 20,000 lbs. structural capacity, 12,000 lbs. or 20,000 lbs. winch, available in deck lengths from 24' to 30' long, 96" or 102" wide, with optional dock stabilizer or wheel lift options of 3,000 lbs. , 4,000 lbs. or 5,000 lbs.

Deck Capacity 10 ton = 20,000 lbs.
Deck Width 96 in. or 102 in.
Deck Length 24 ft. or 30 ft.

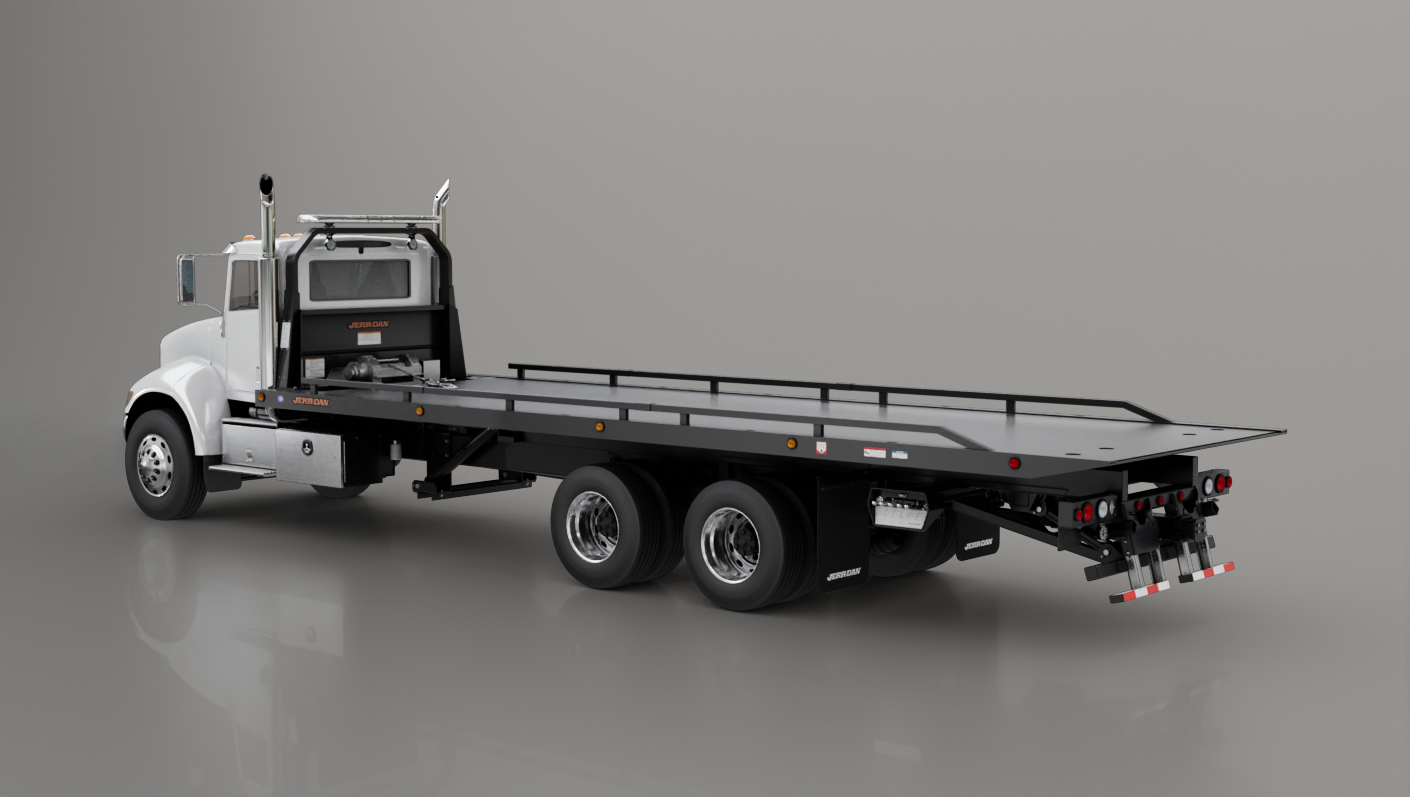

15 TON STEEL

With a 30,000 lbs. structural capacity, 12,000 lbs. or 20,000 lbs. winch, available in deck lengths from 24' to 30' long, 96" or 102" wide, with optional dock stabilizer or wheellift options of 3,000 lbs. , 4,000 lbs. or 5,000 lbs.

Deck Capacity 15 ton = 30,000 lbs.
Deck Width 96 in. or 102 in.
Deck Length 24 ft. or 30 ft.
Compare models
Sell Sheets
15_TON_STEEL_SPEC_SHEET_8_5x11_VHO_WEB (.pdf)

360 View

X

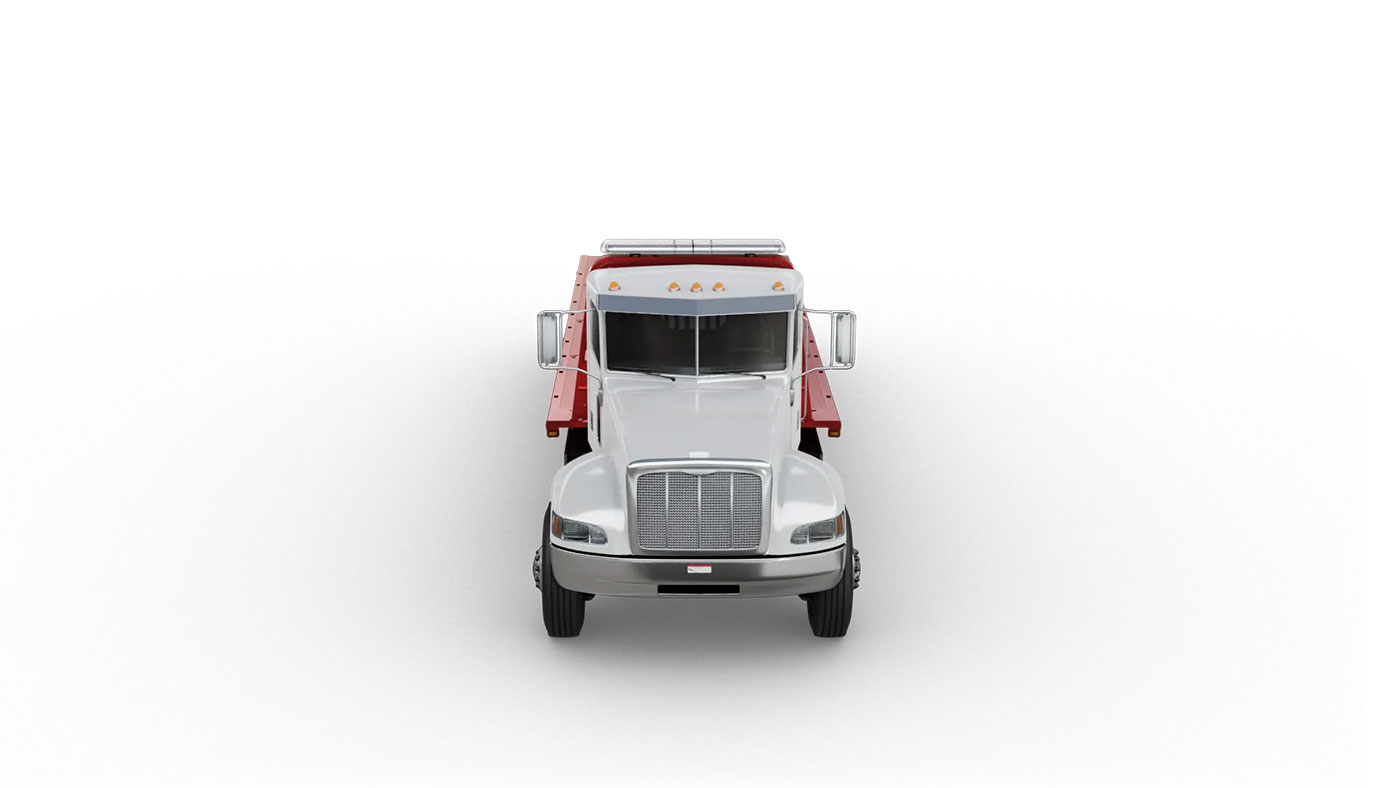

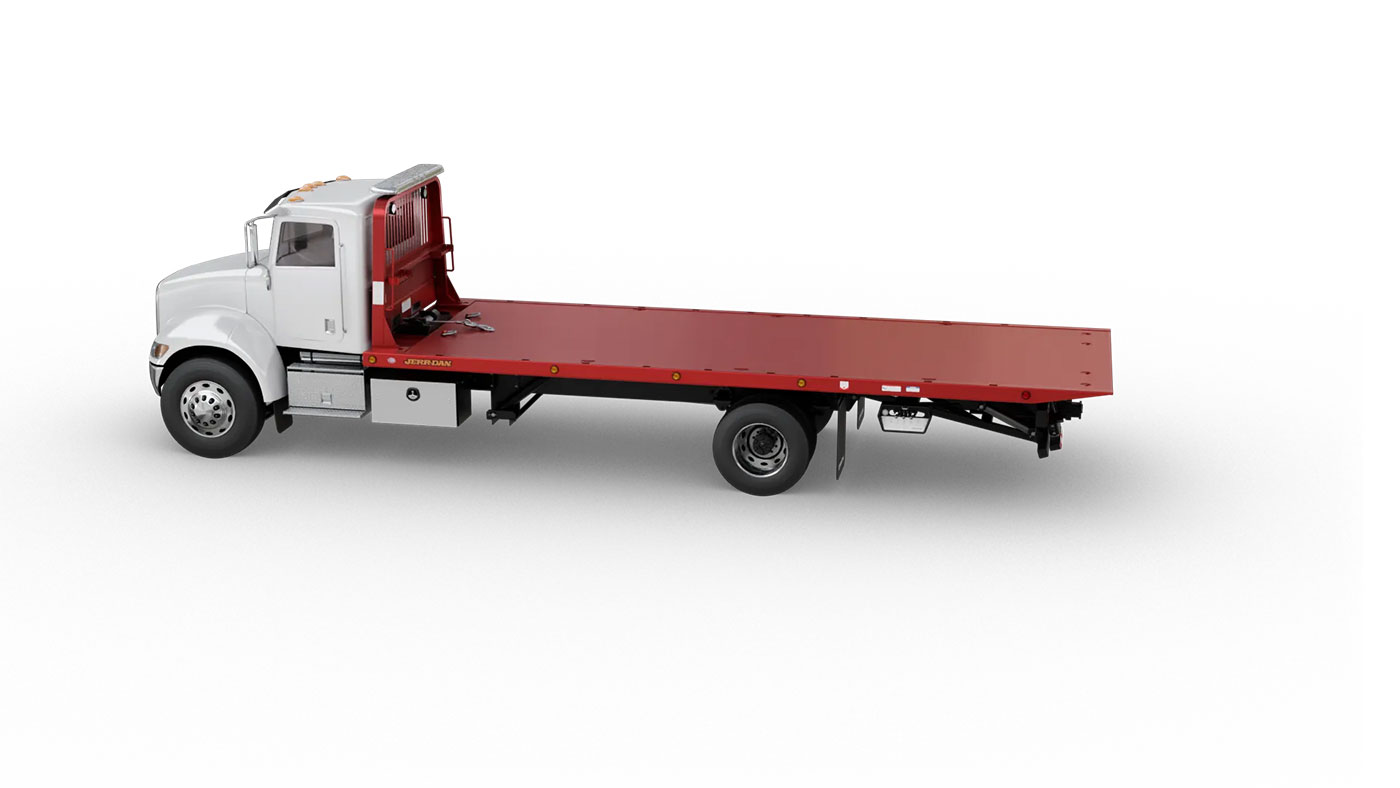

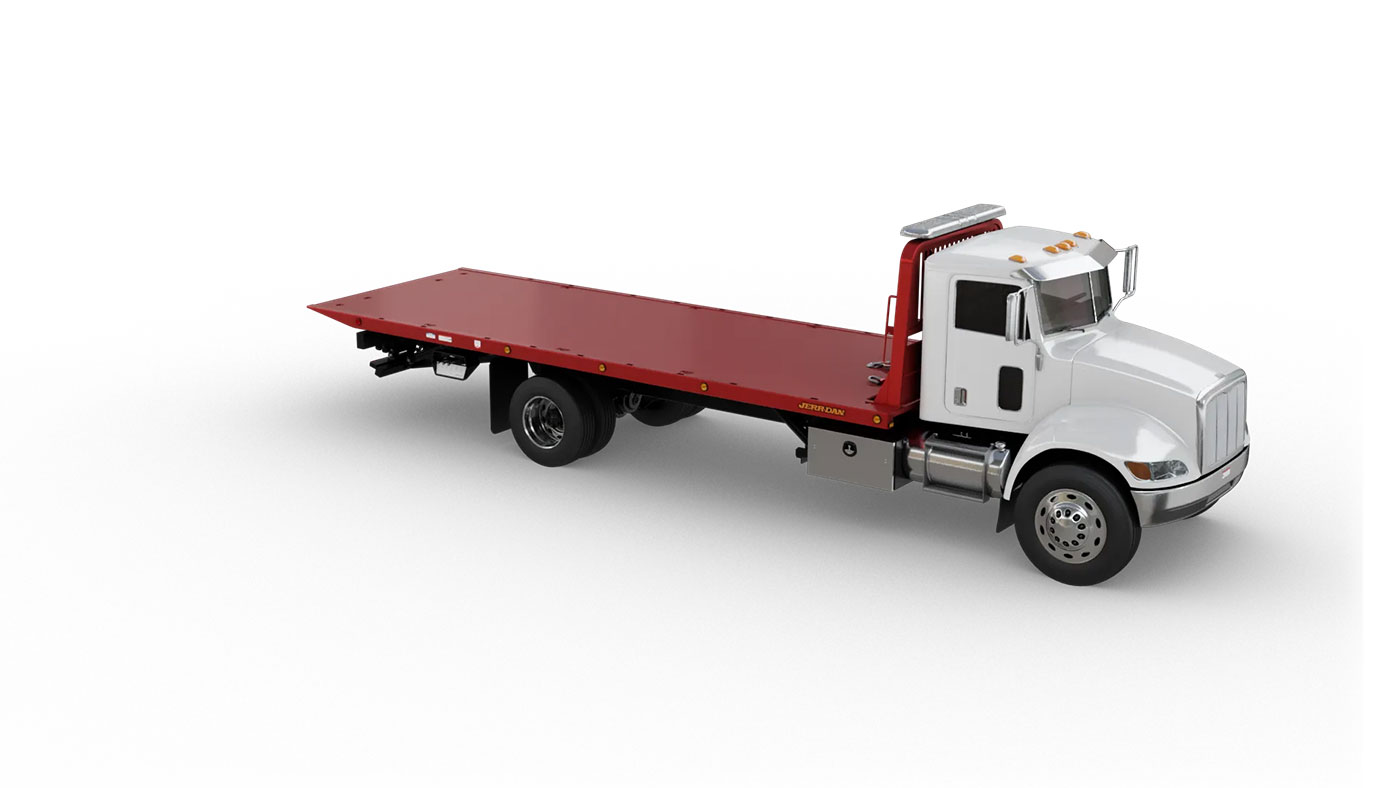

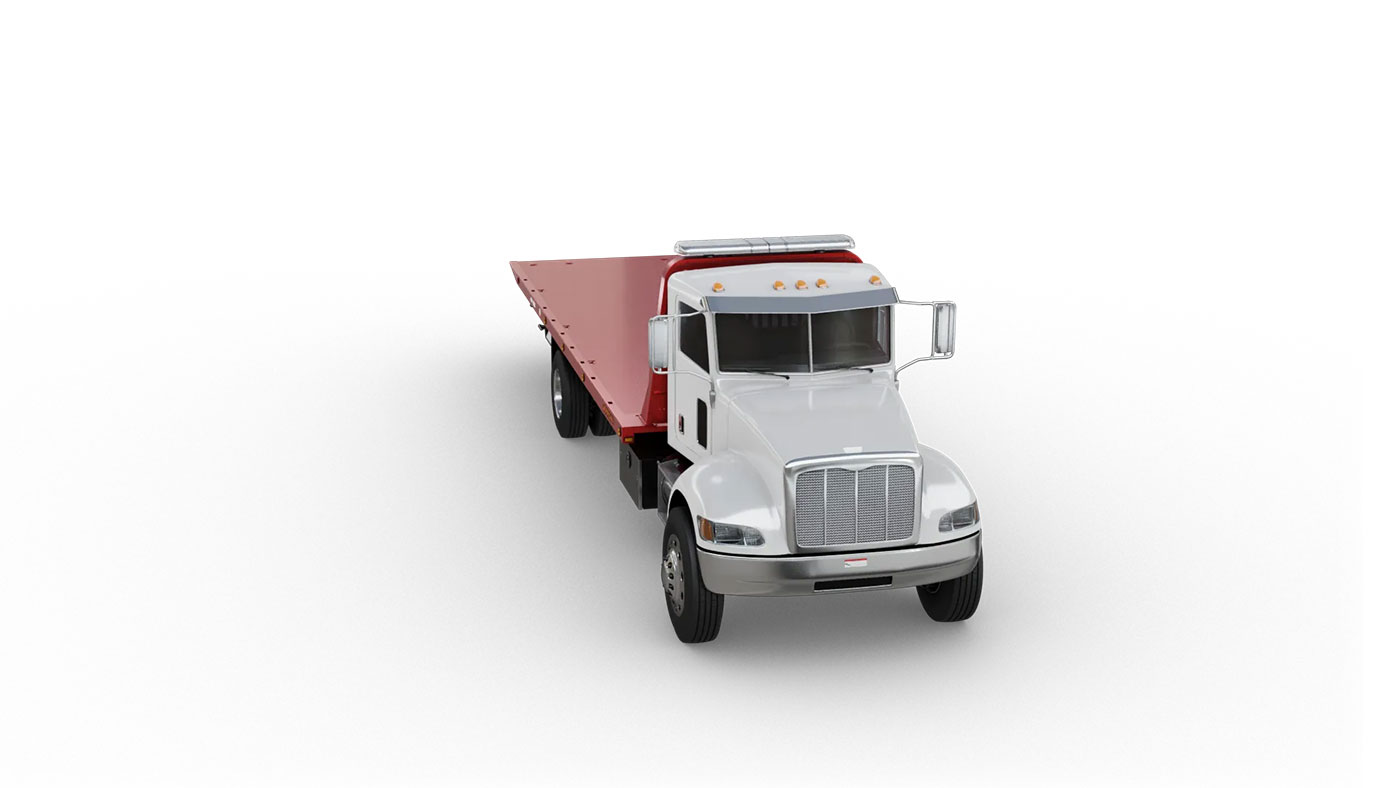

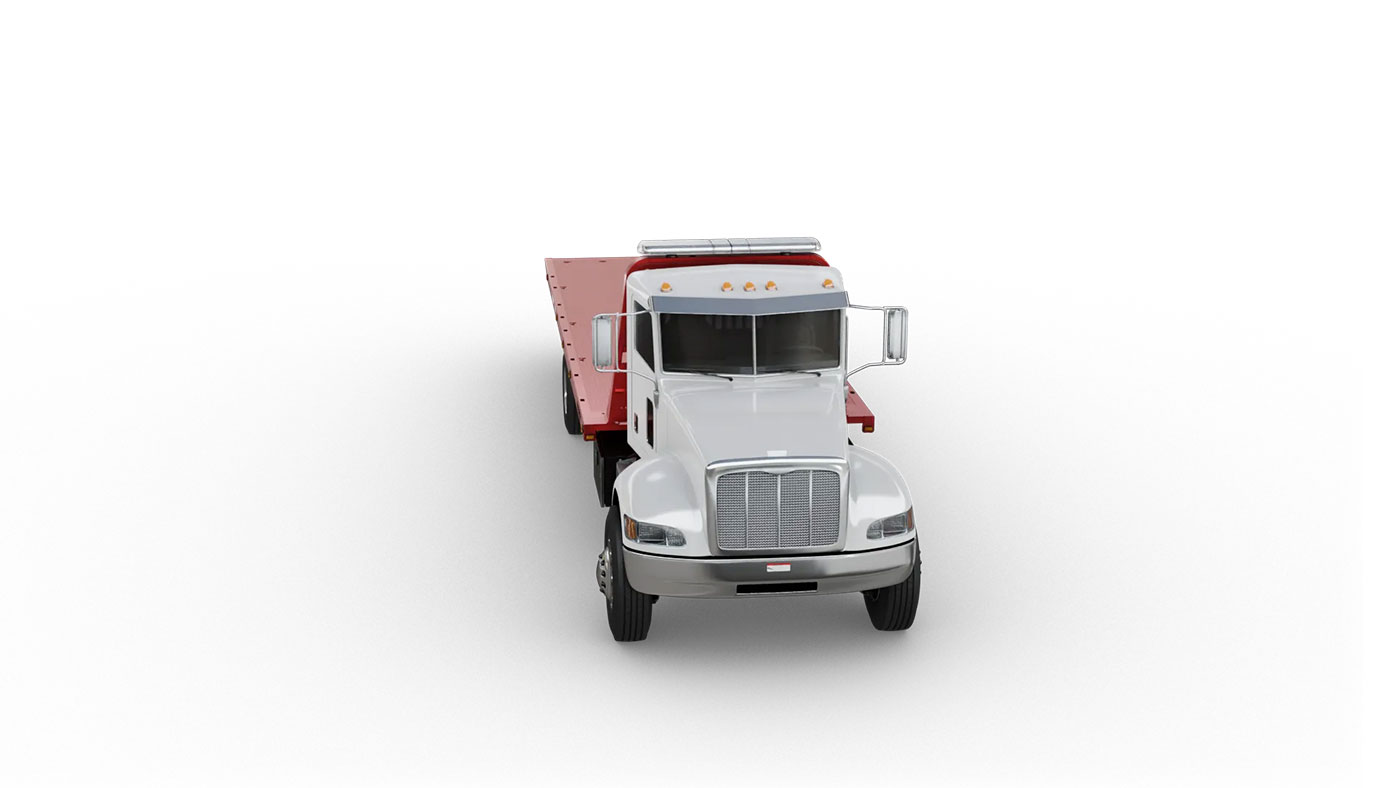

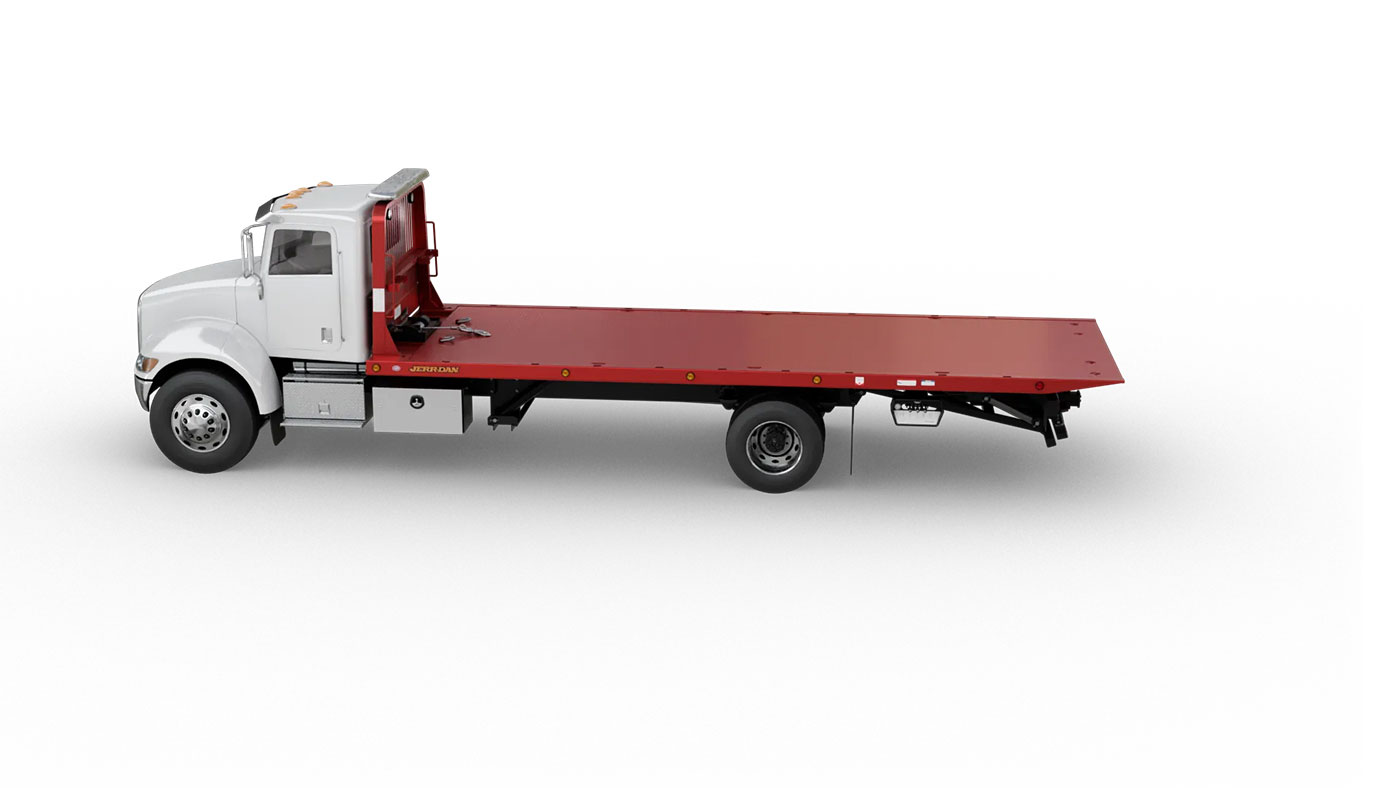

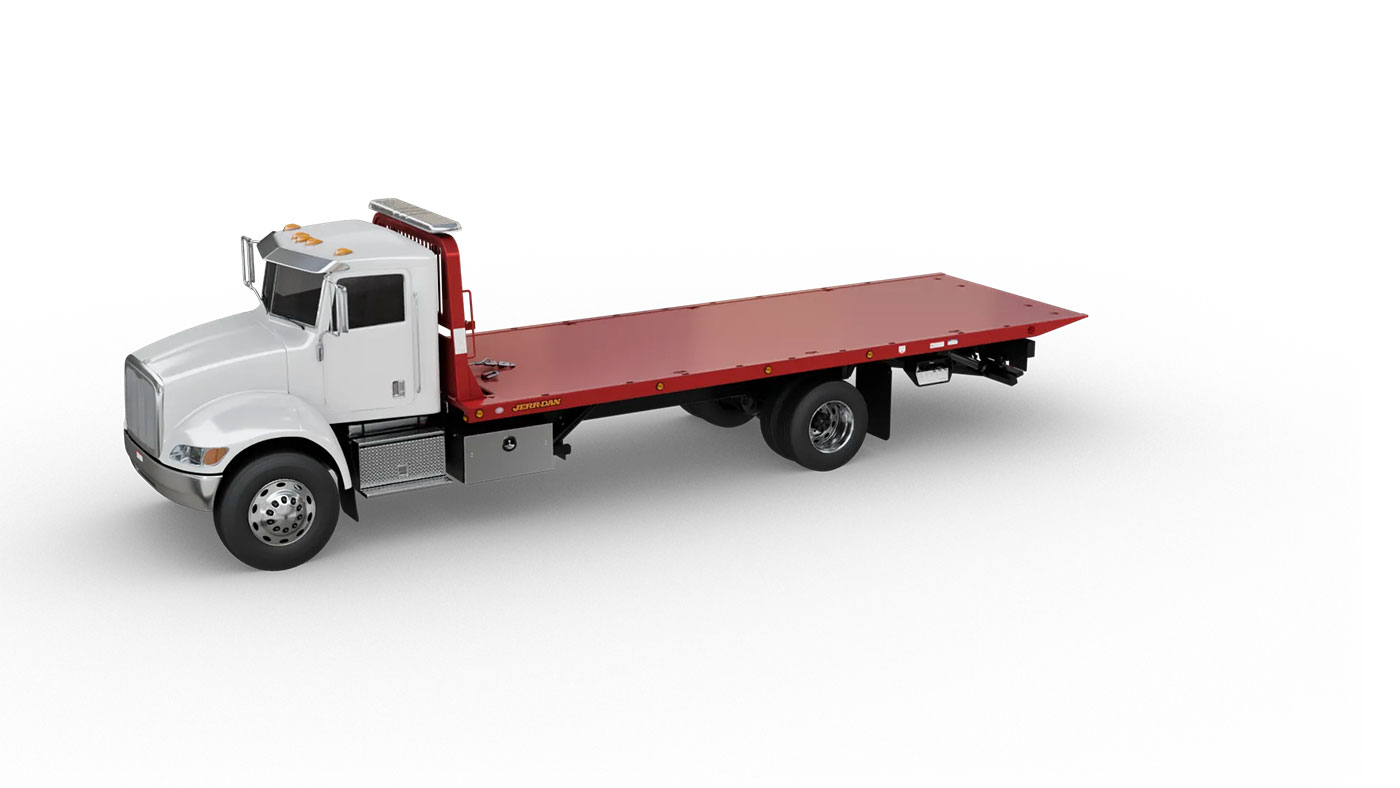

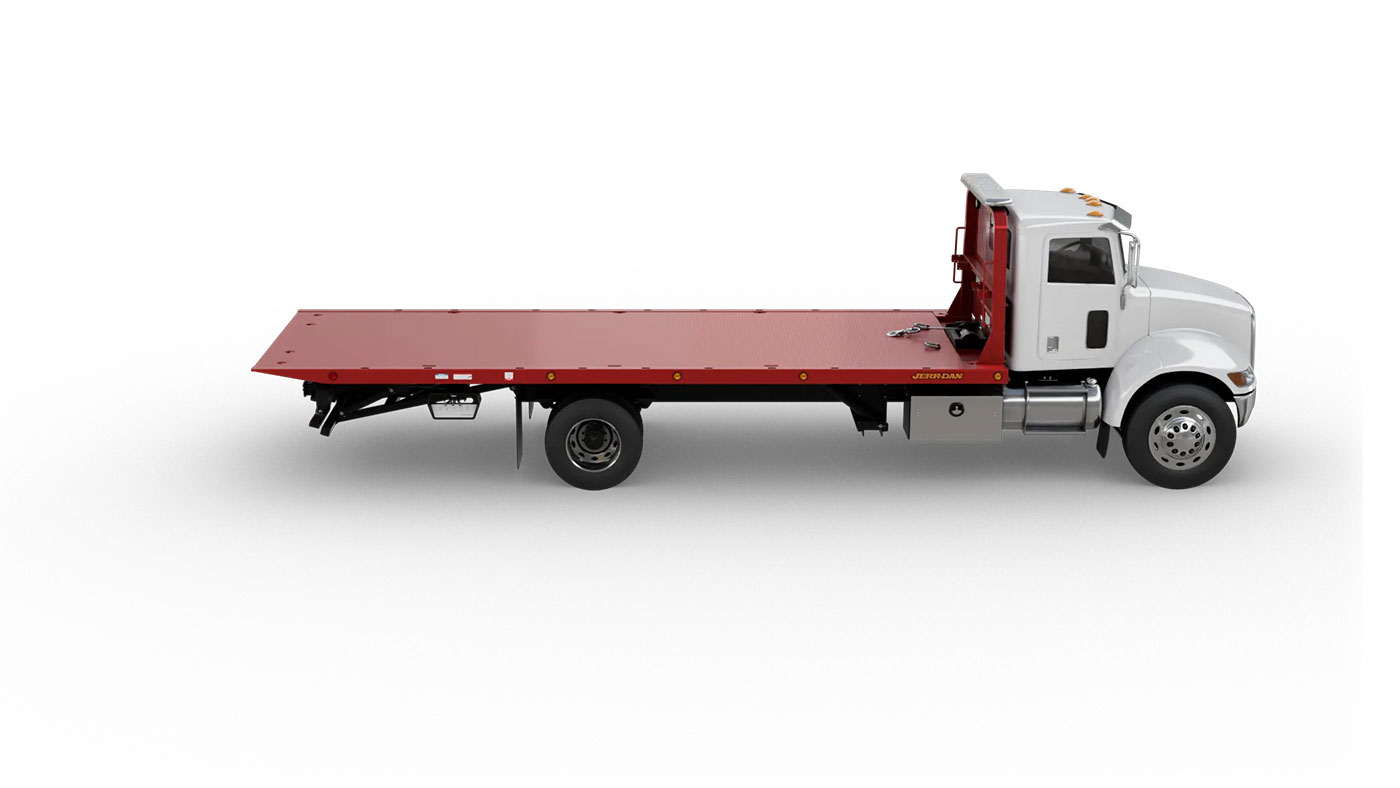

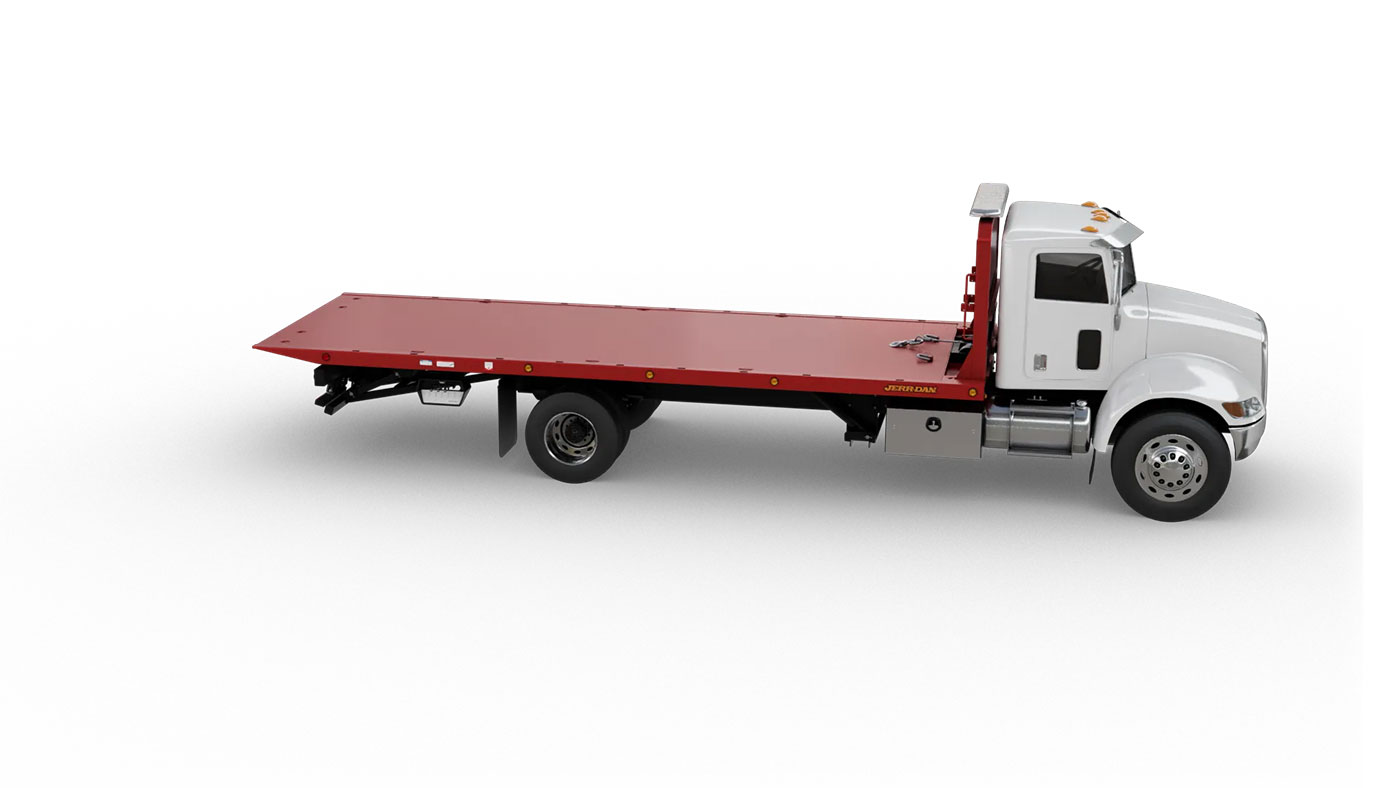

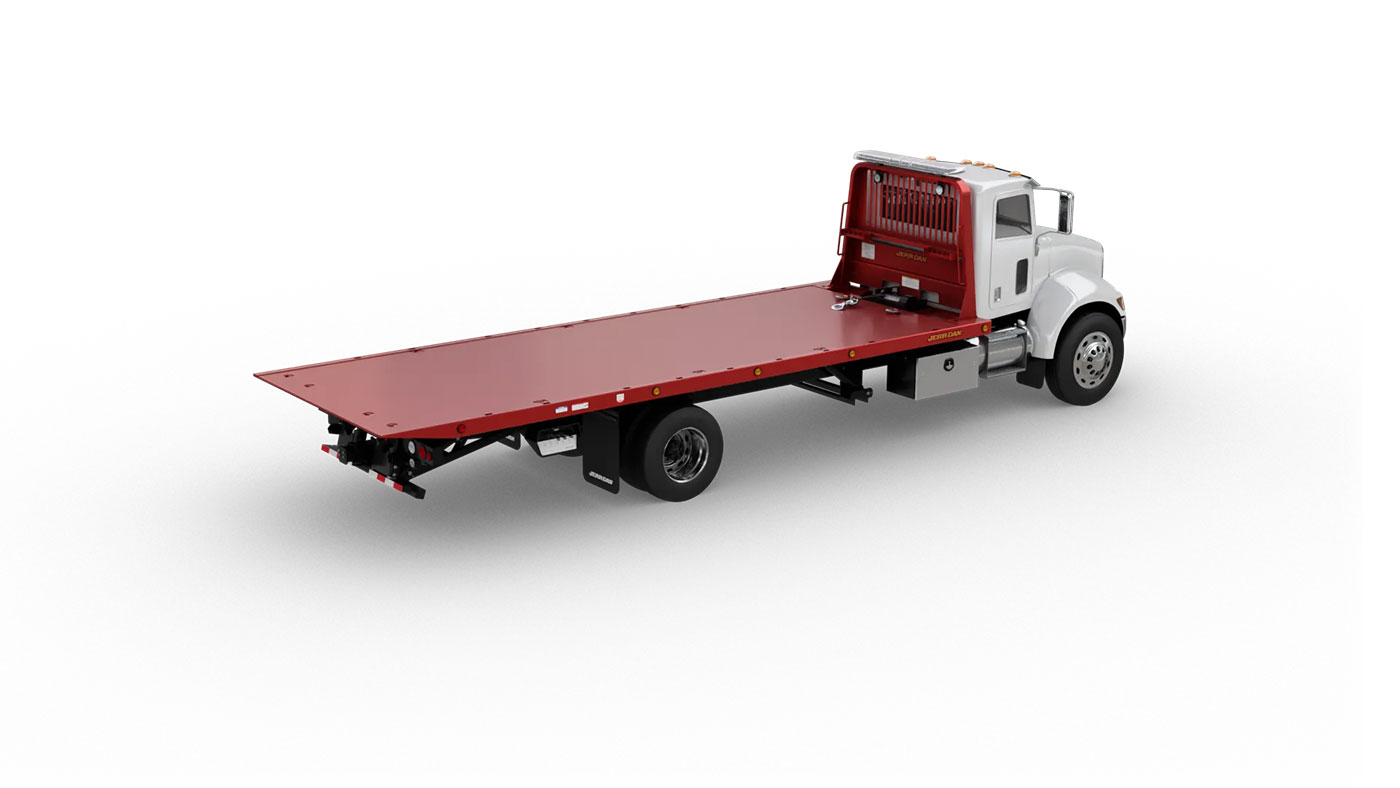

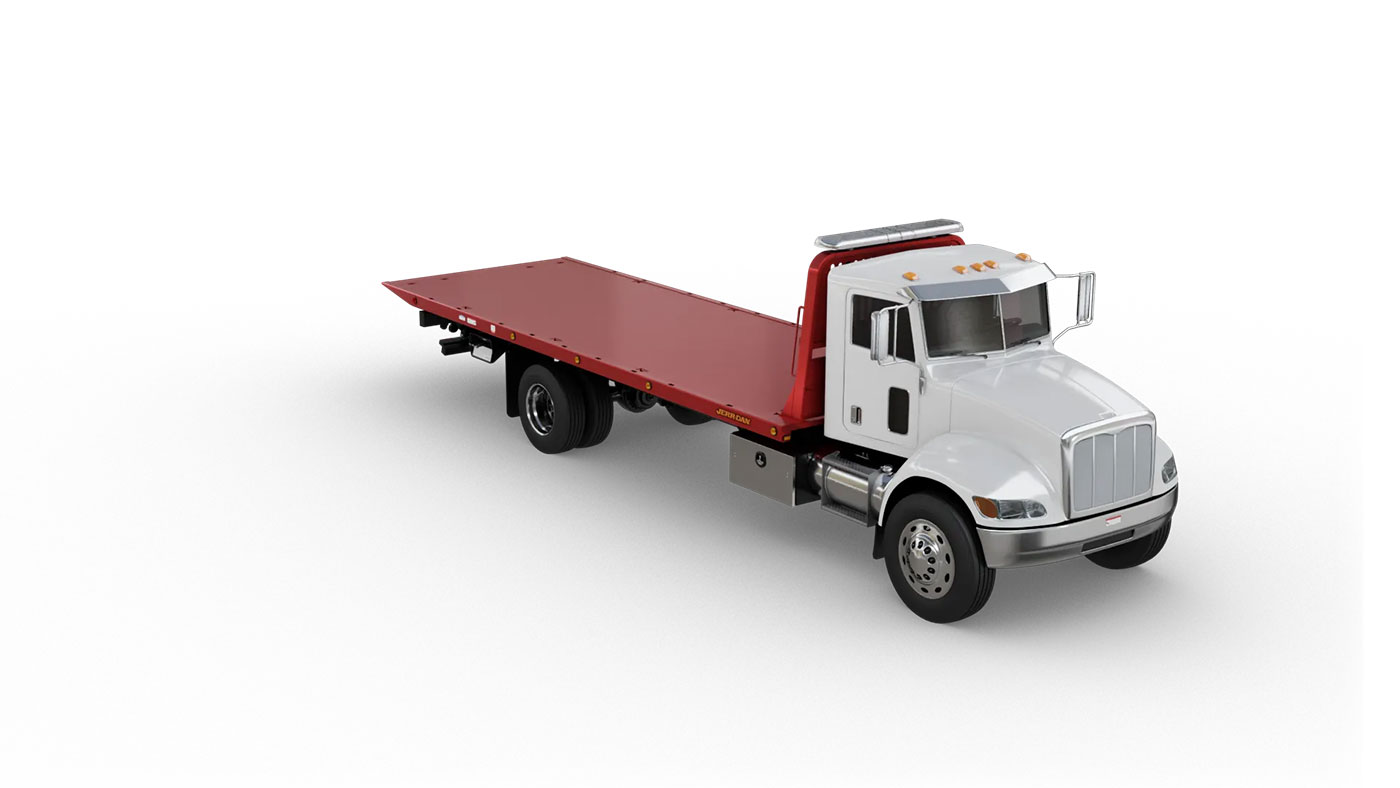

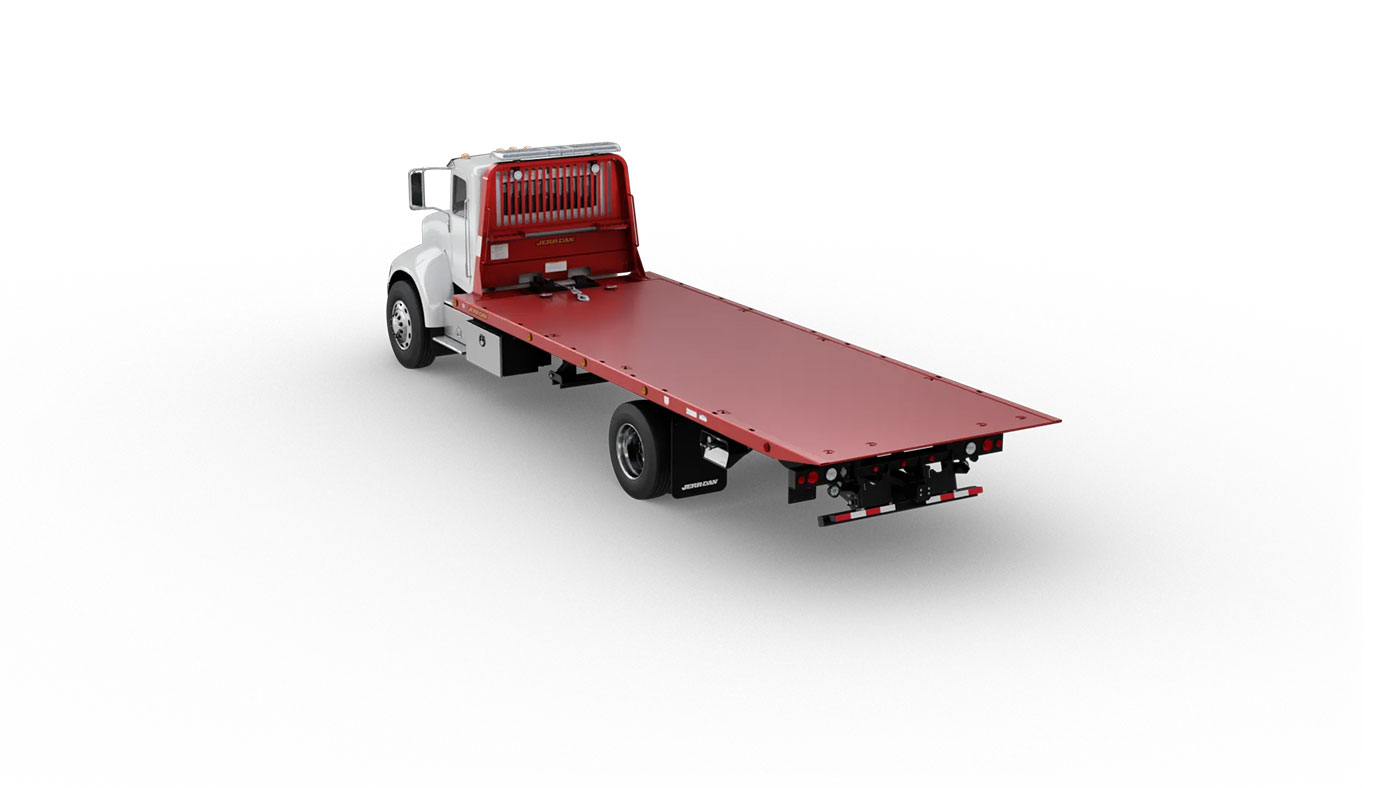

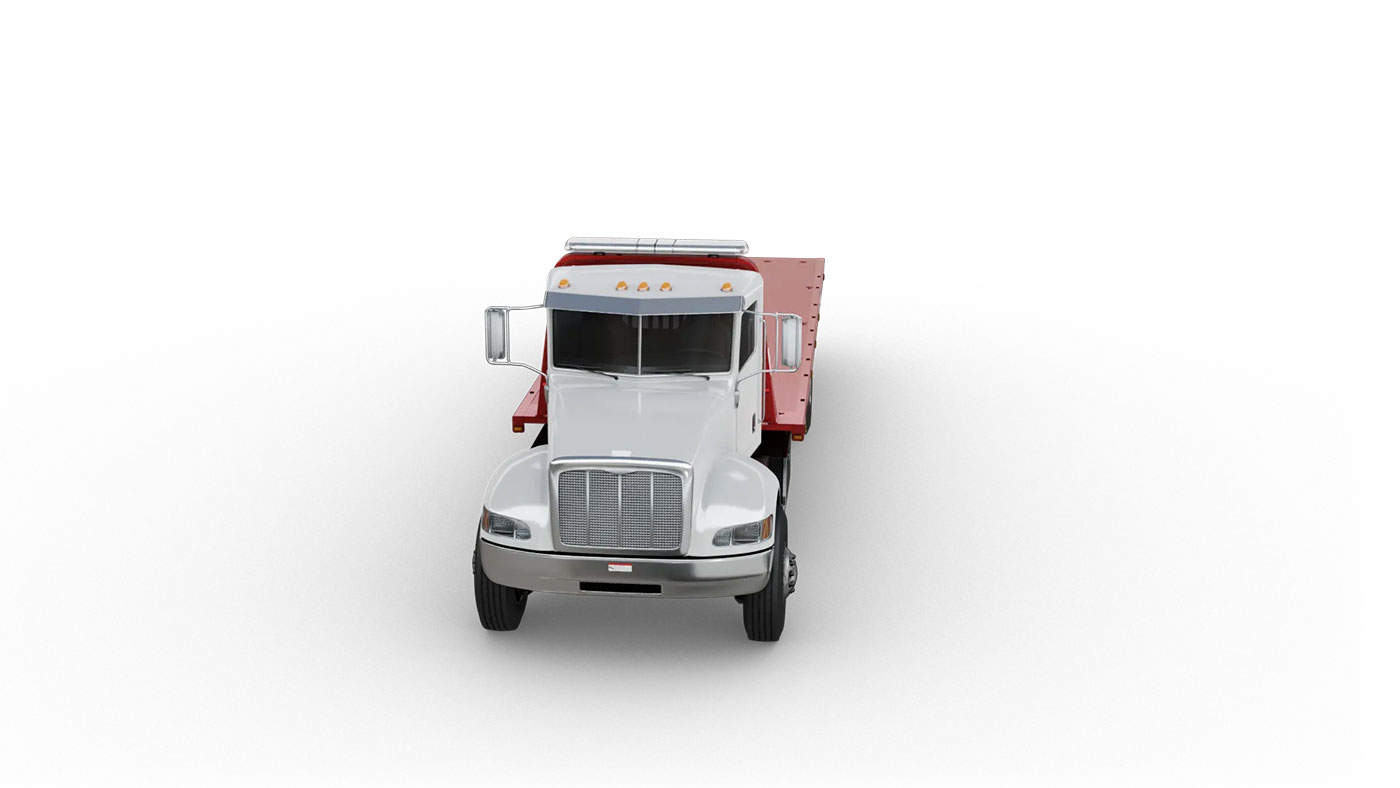

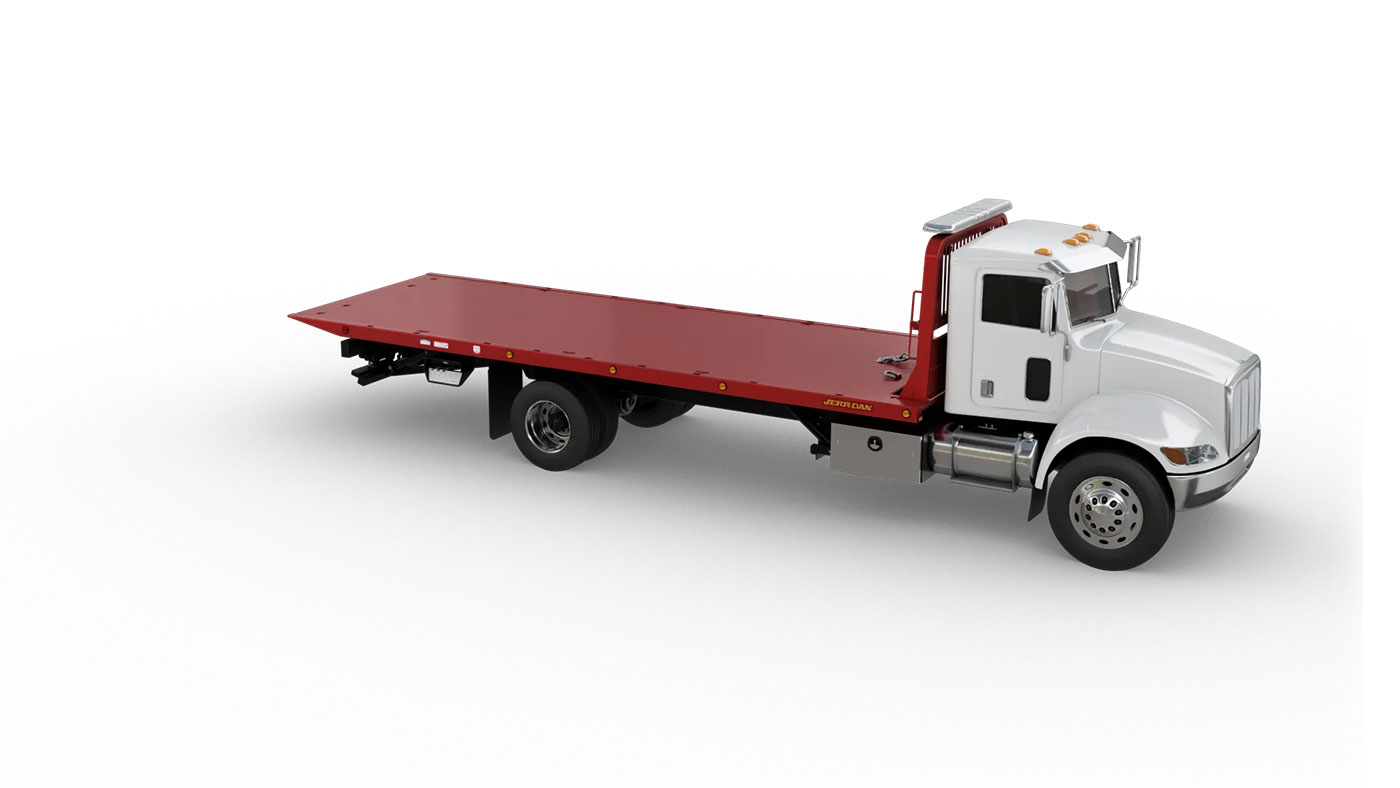

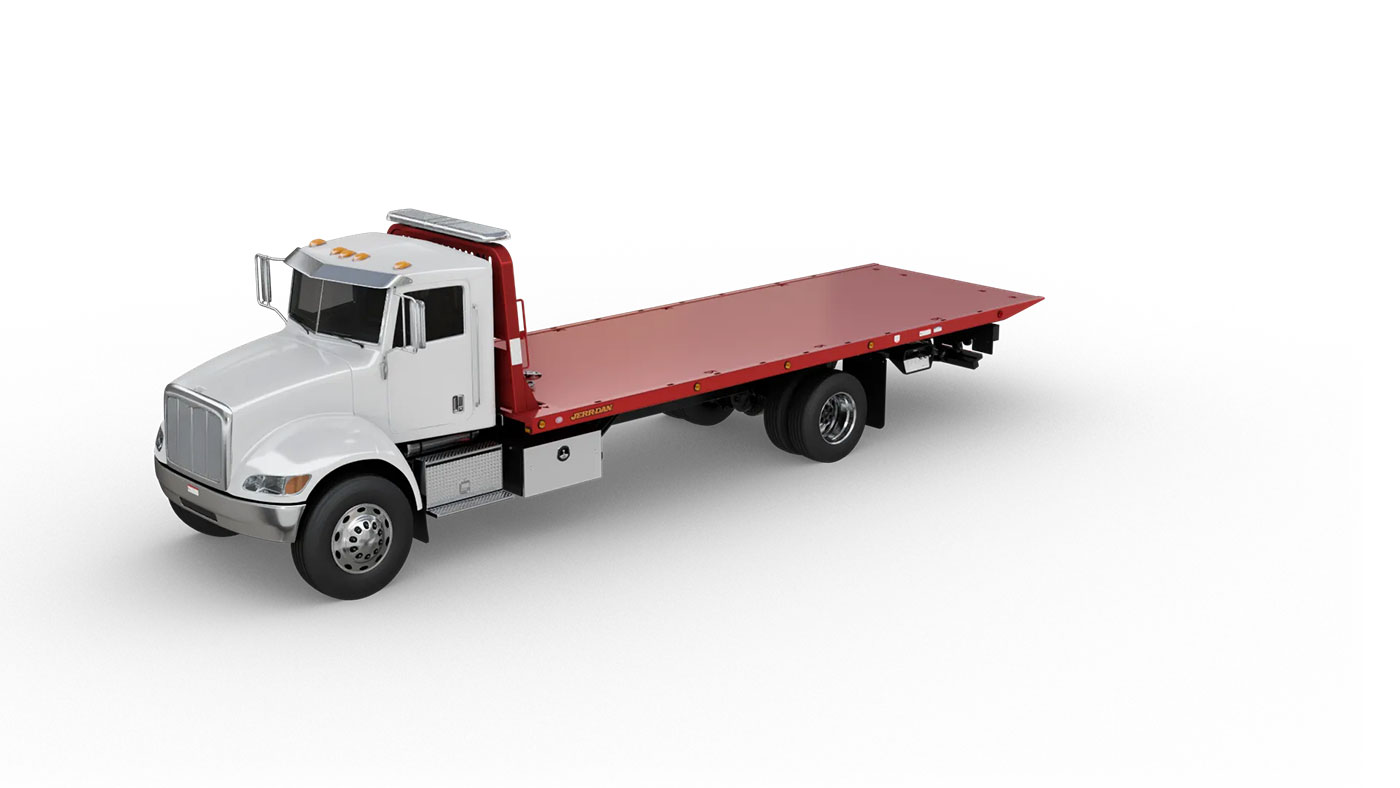

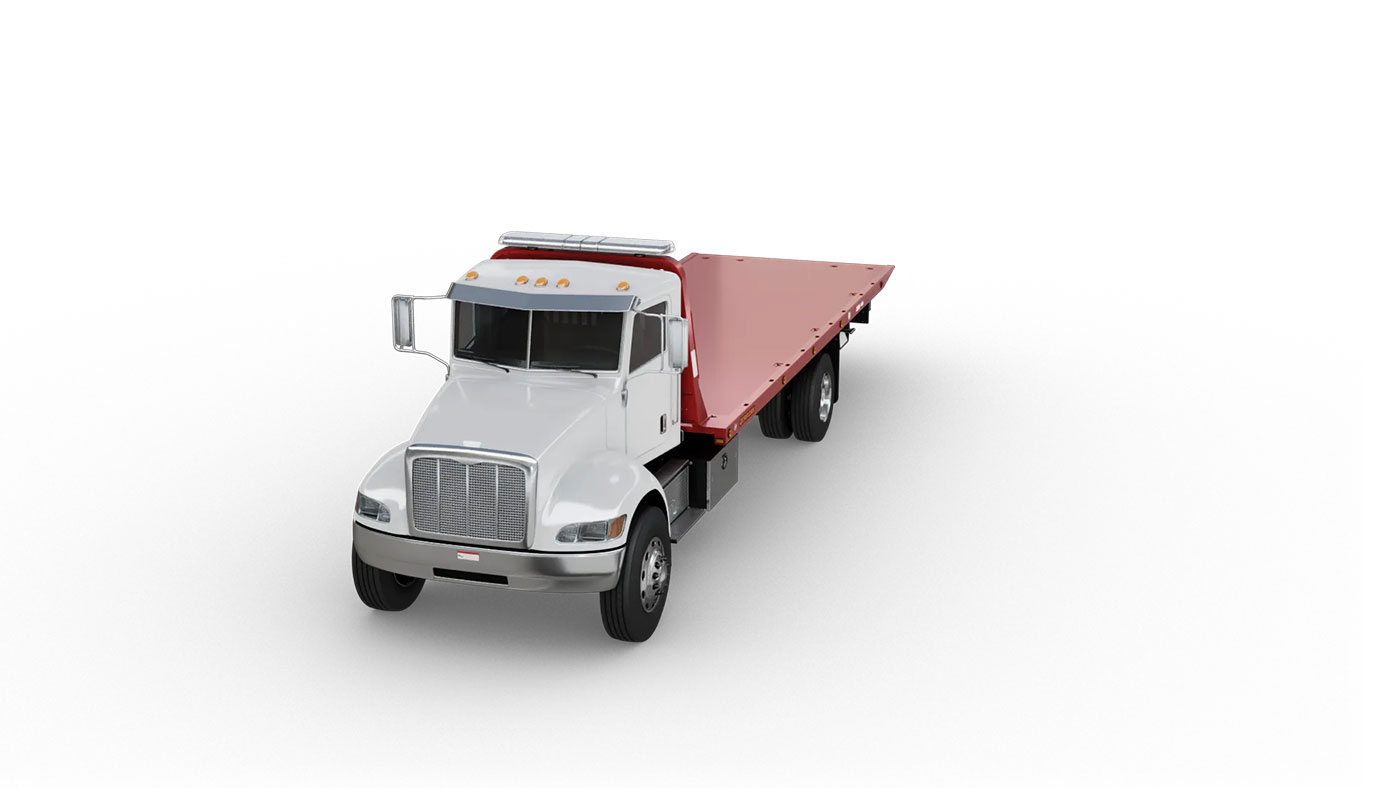

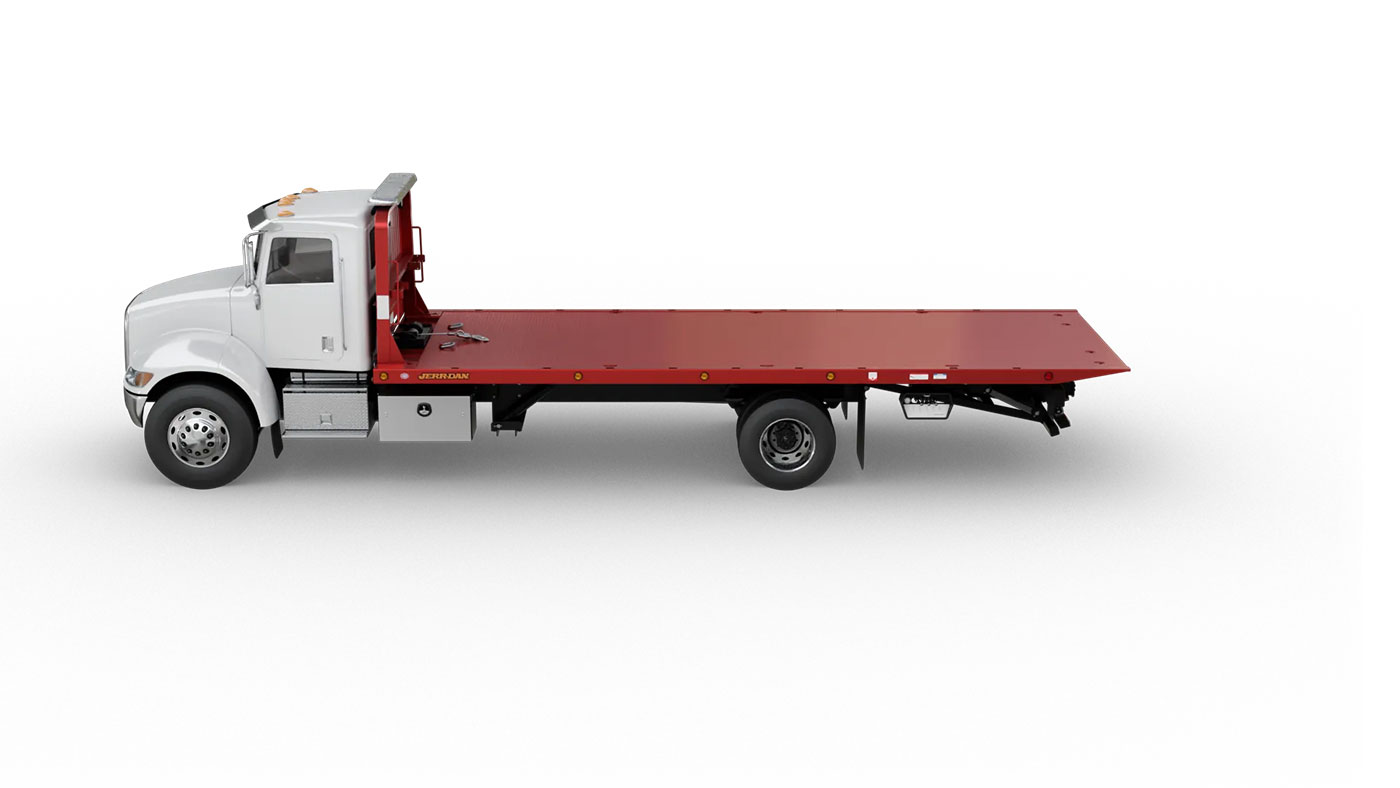

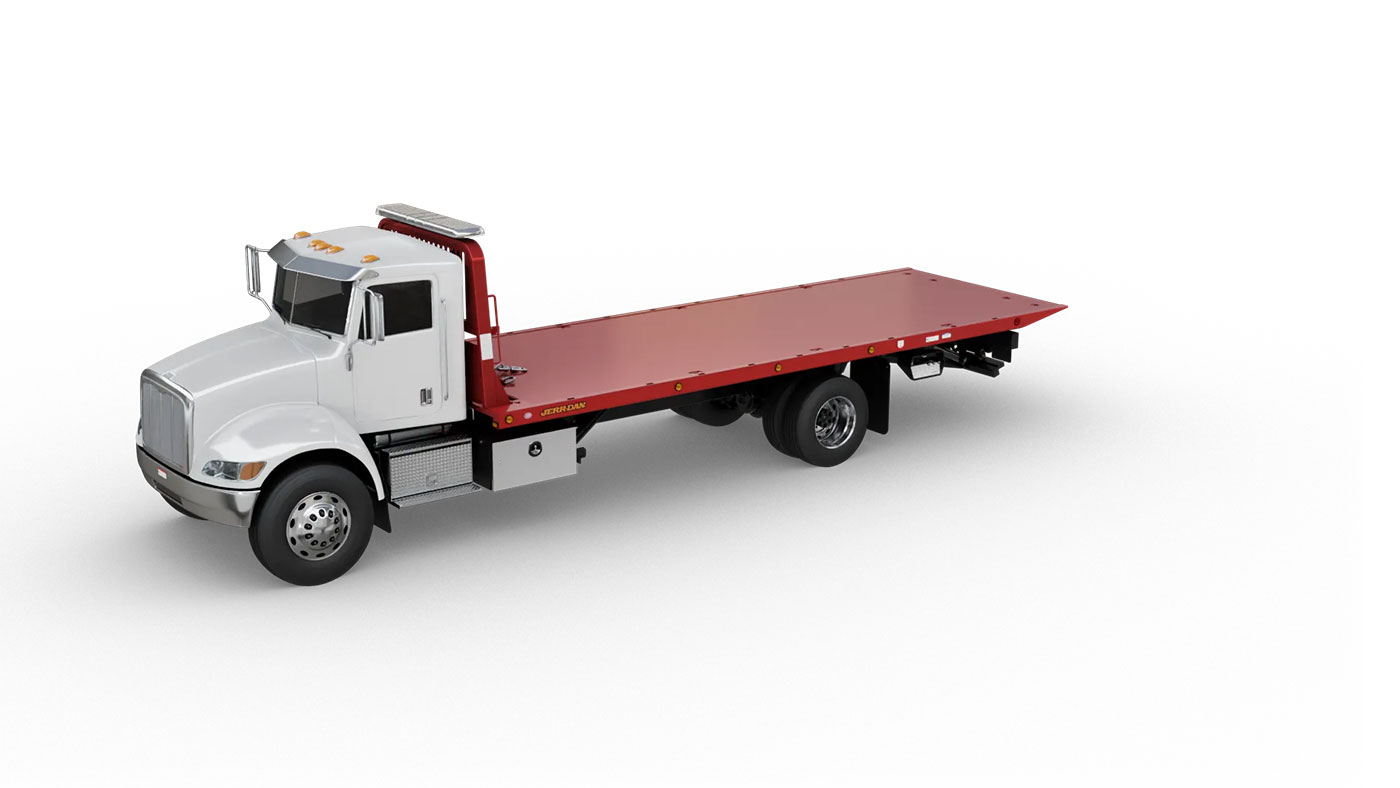

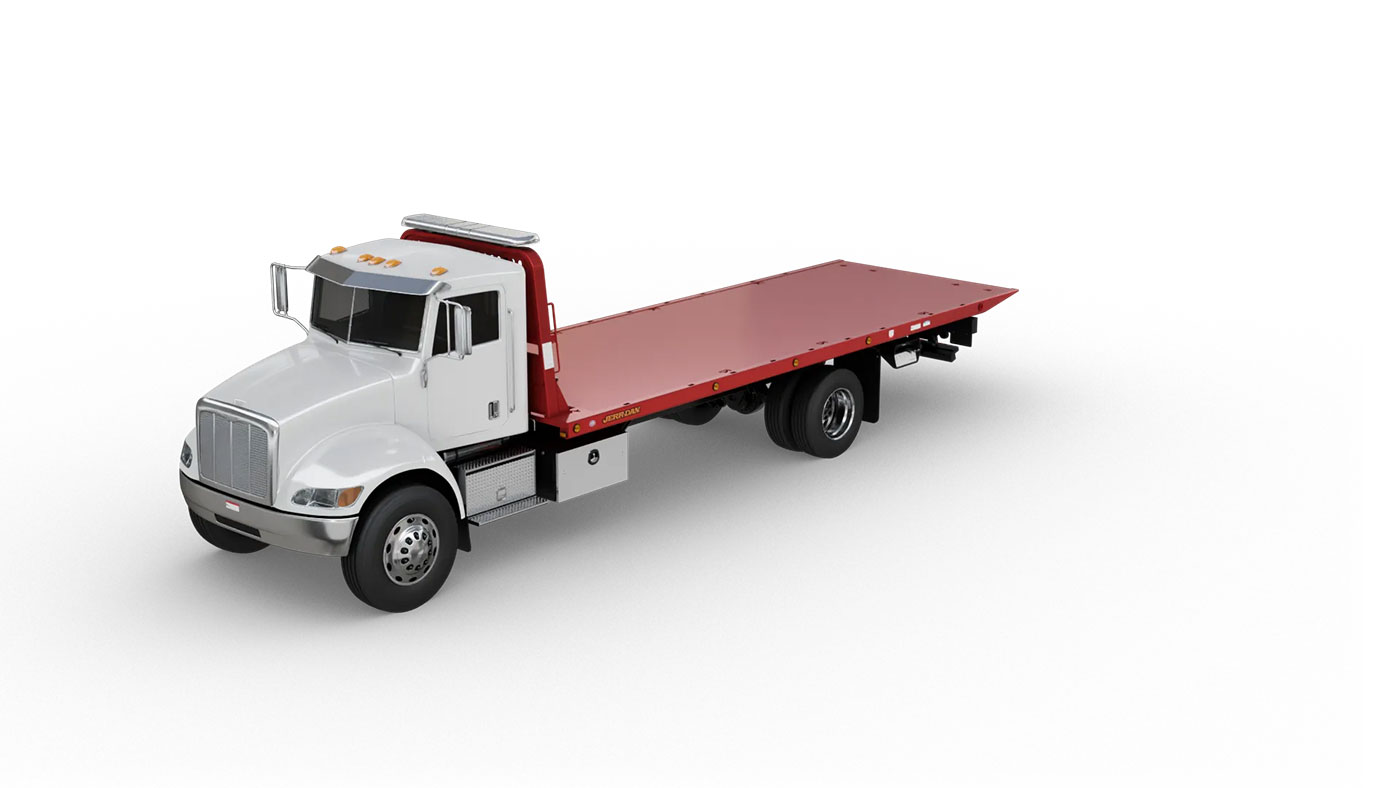

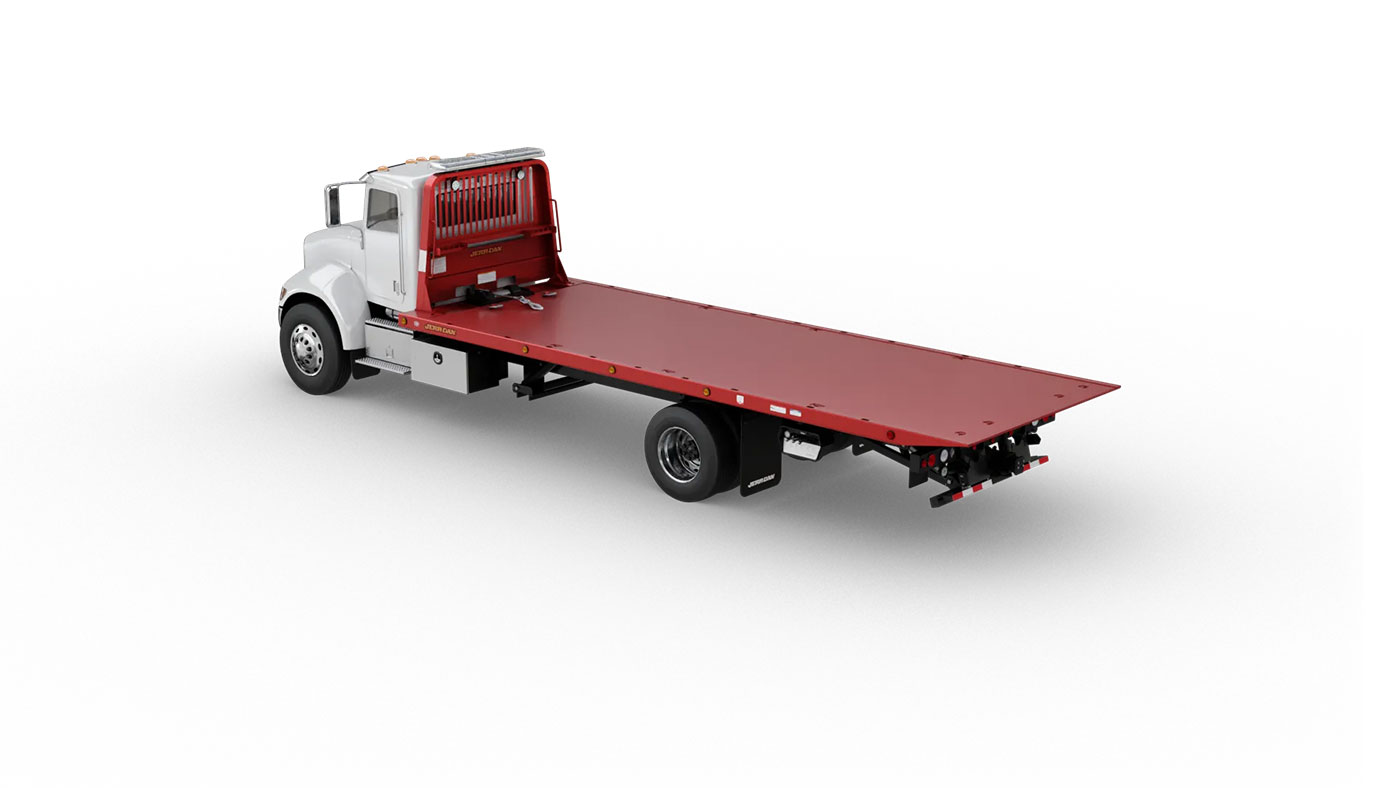

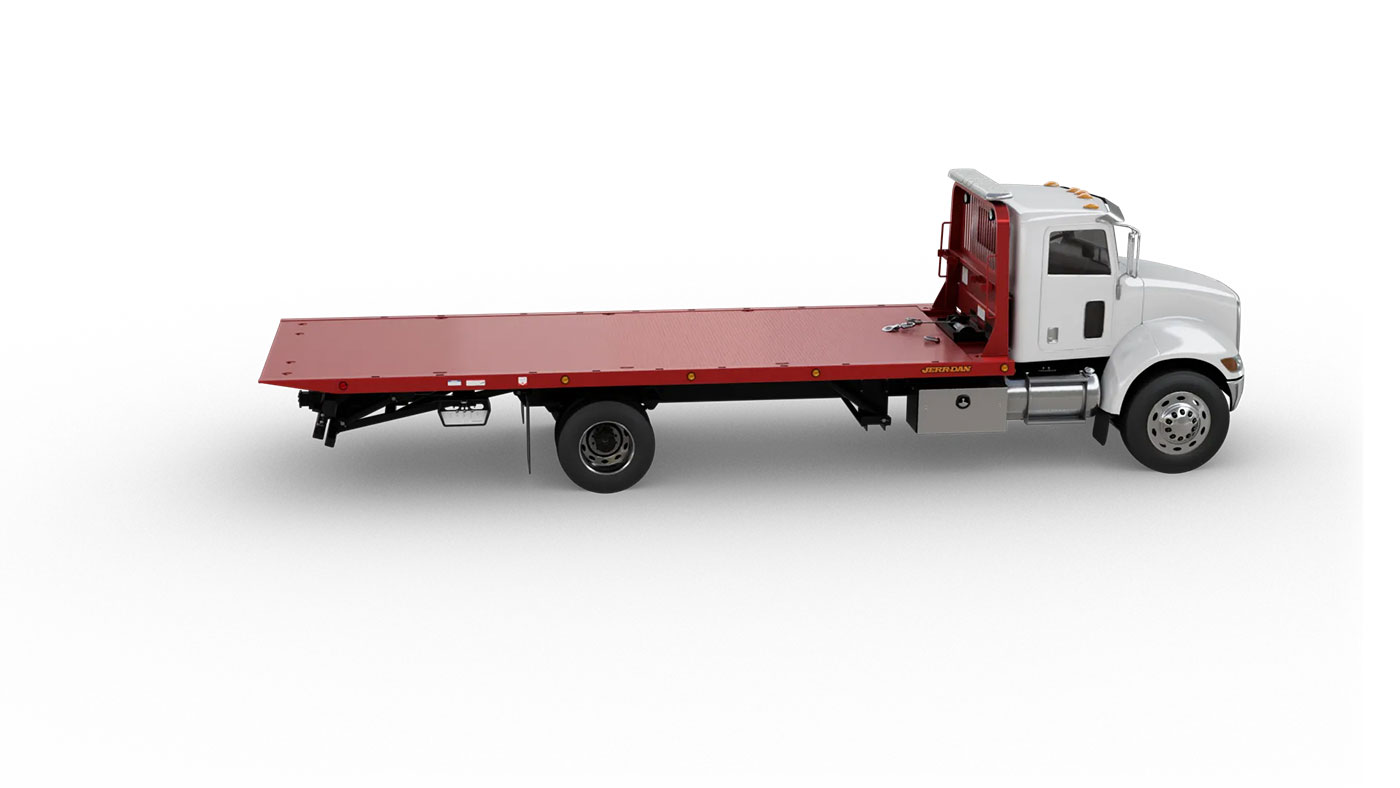

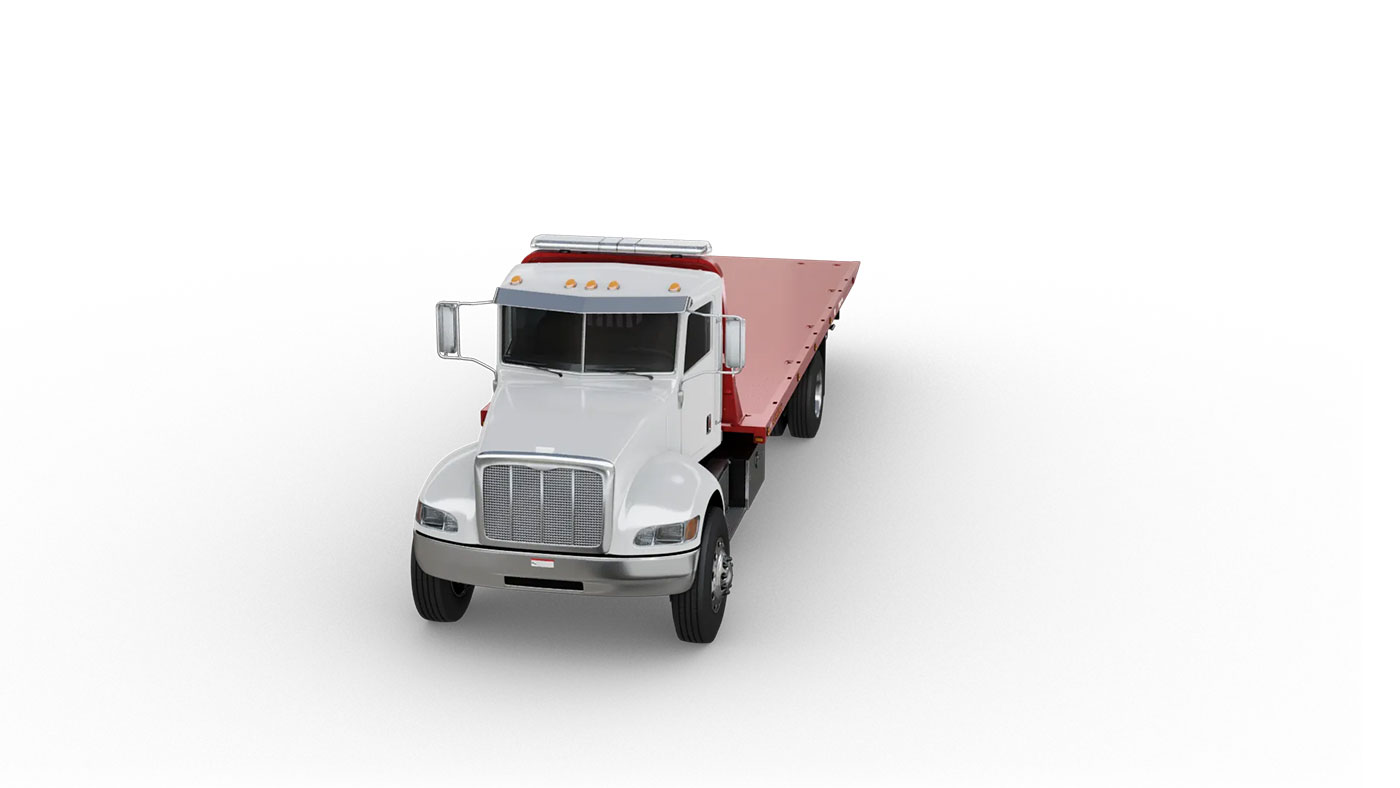

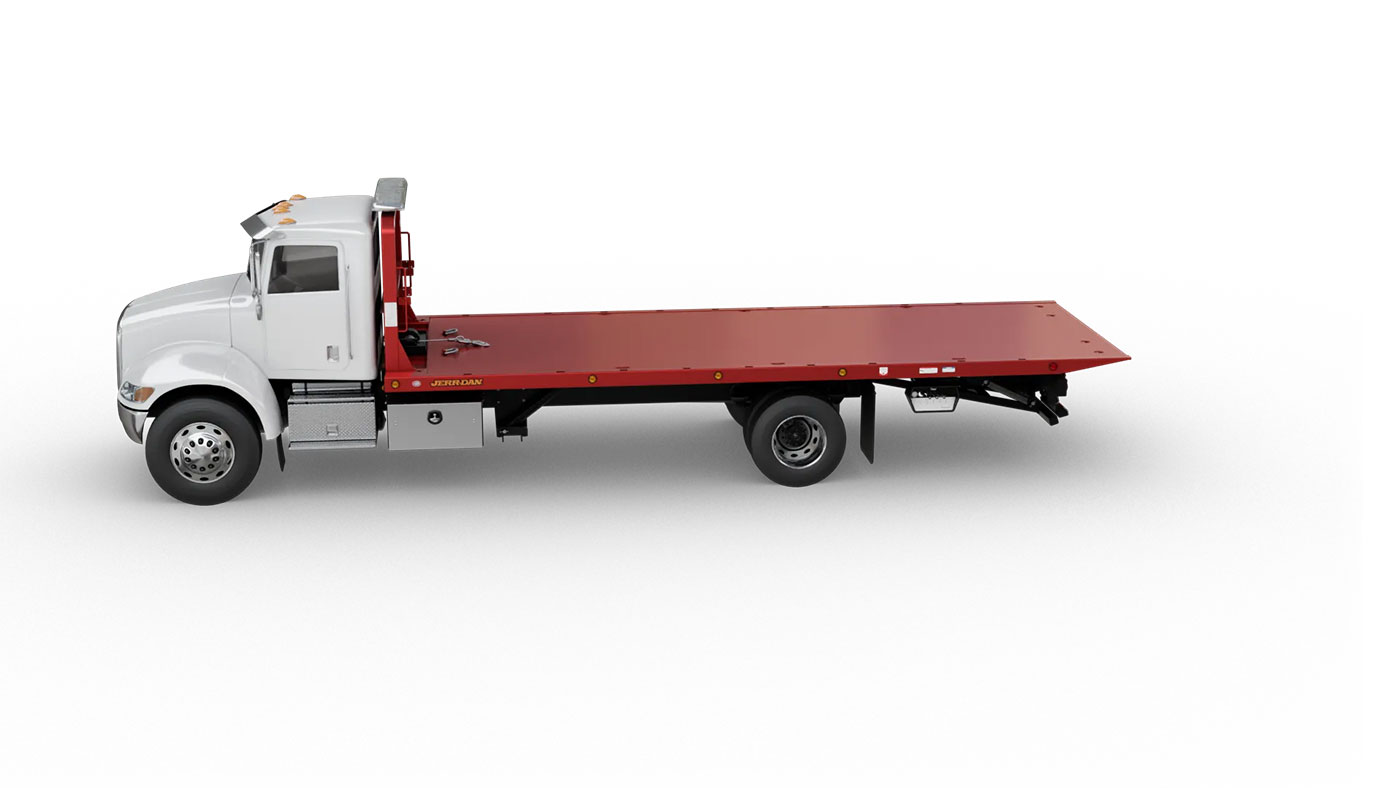

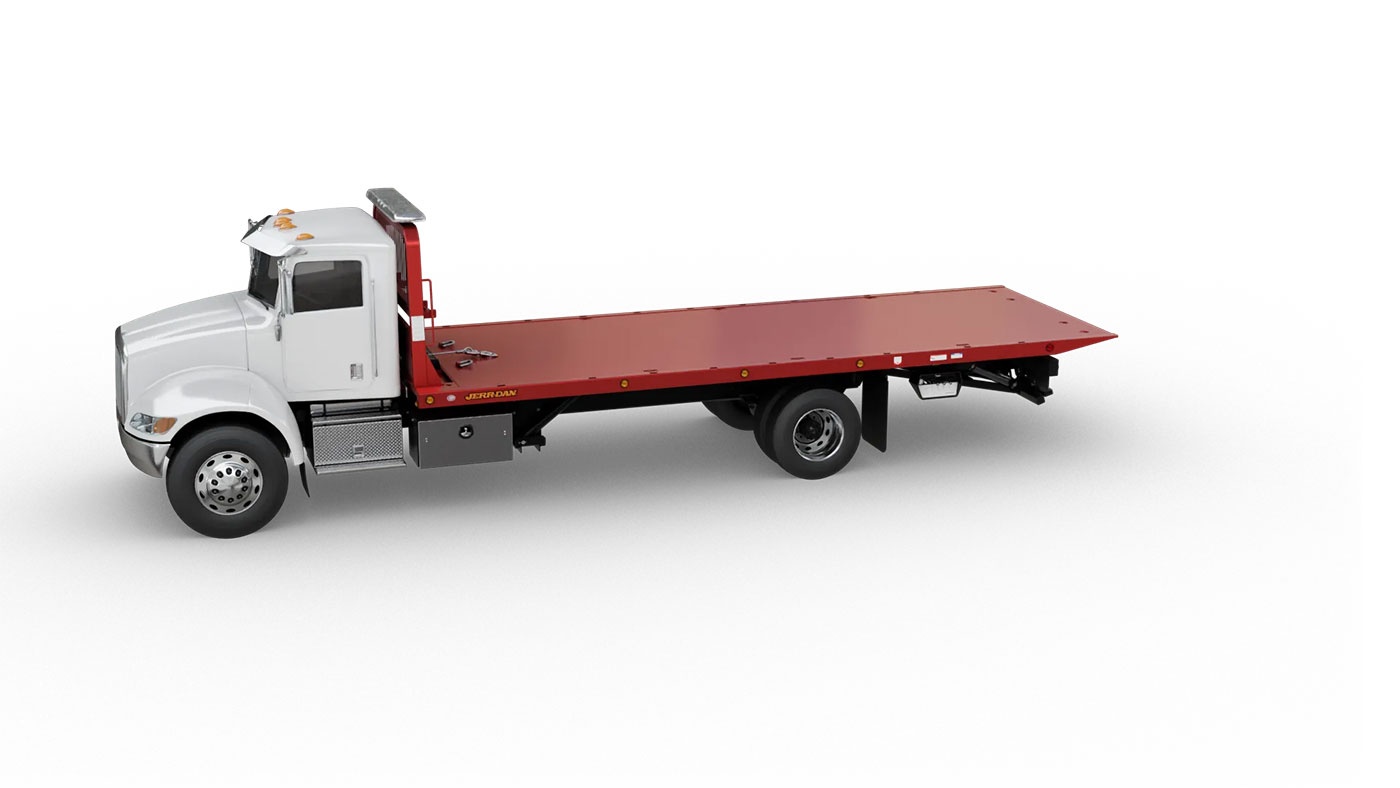

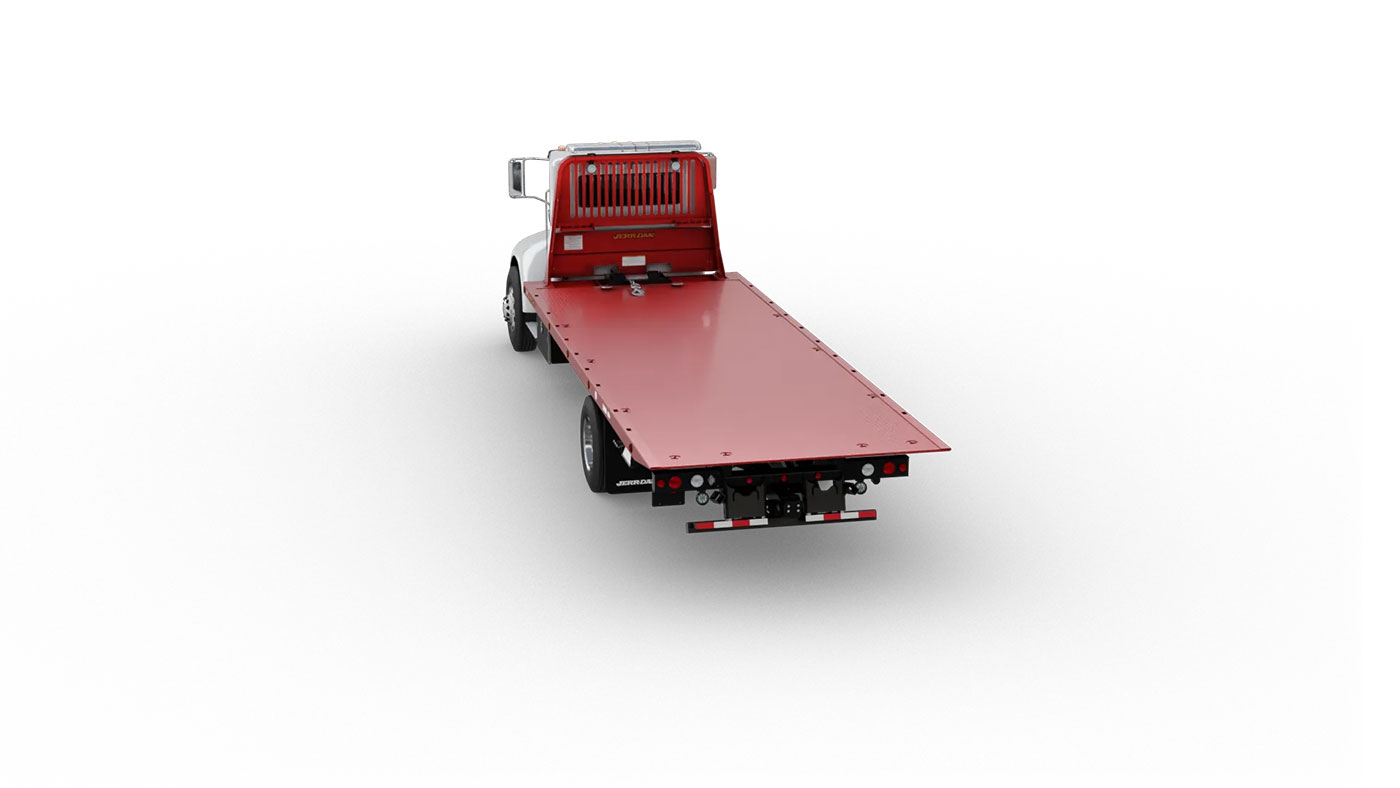

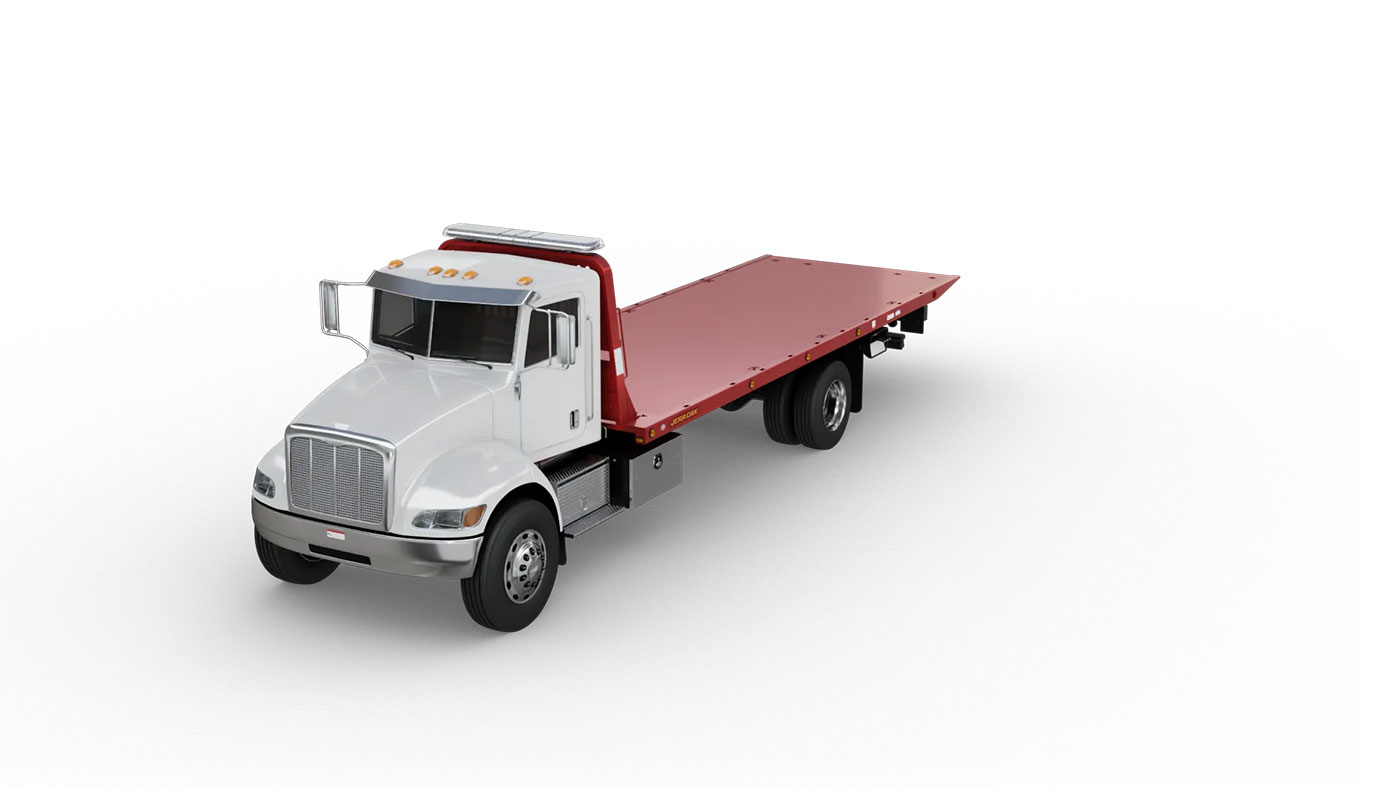

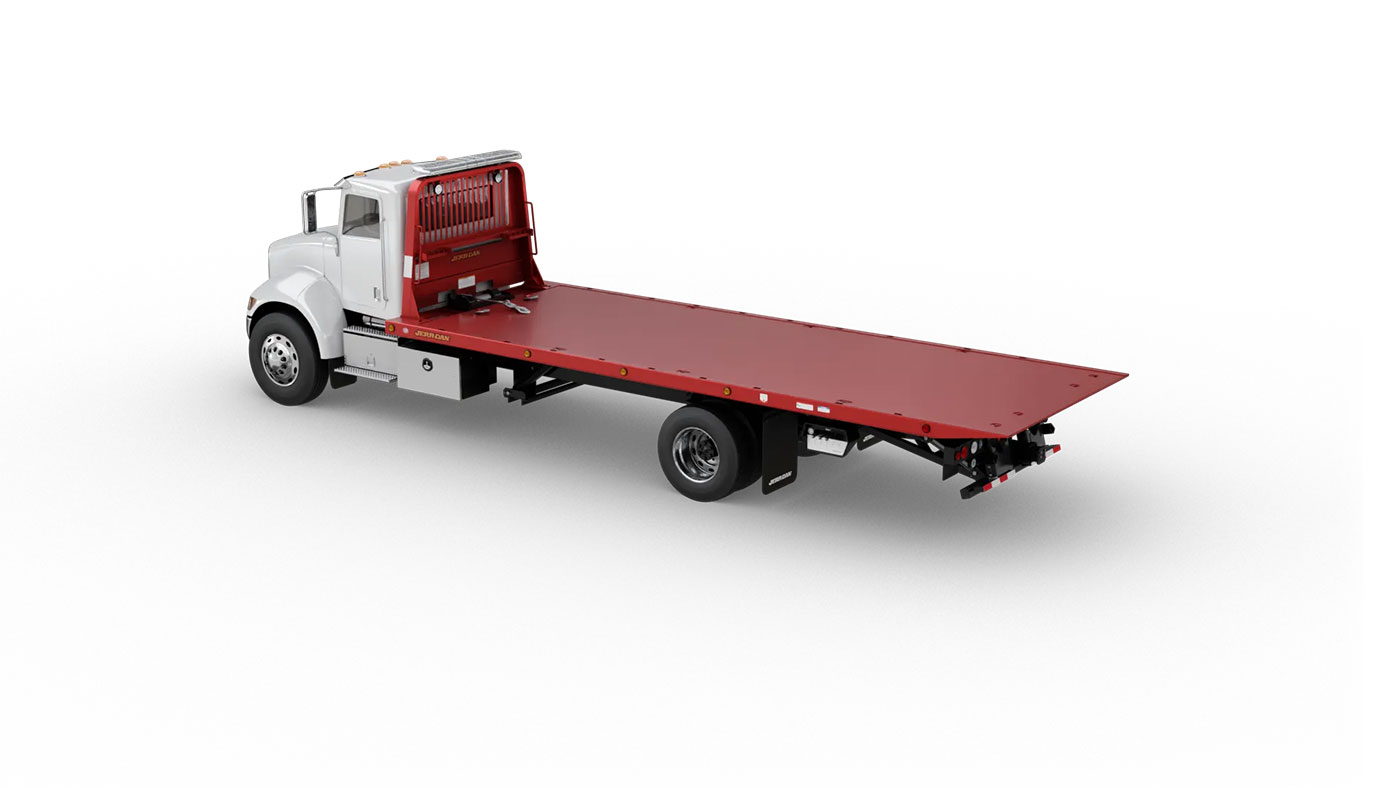

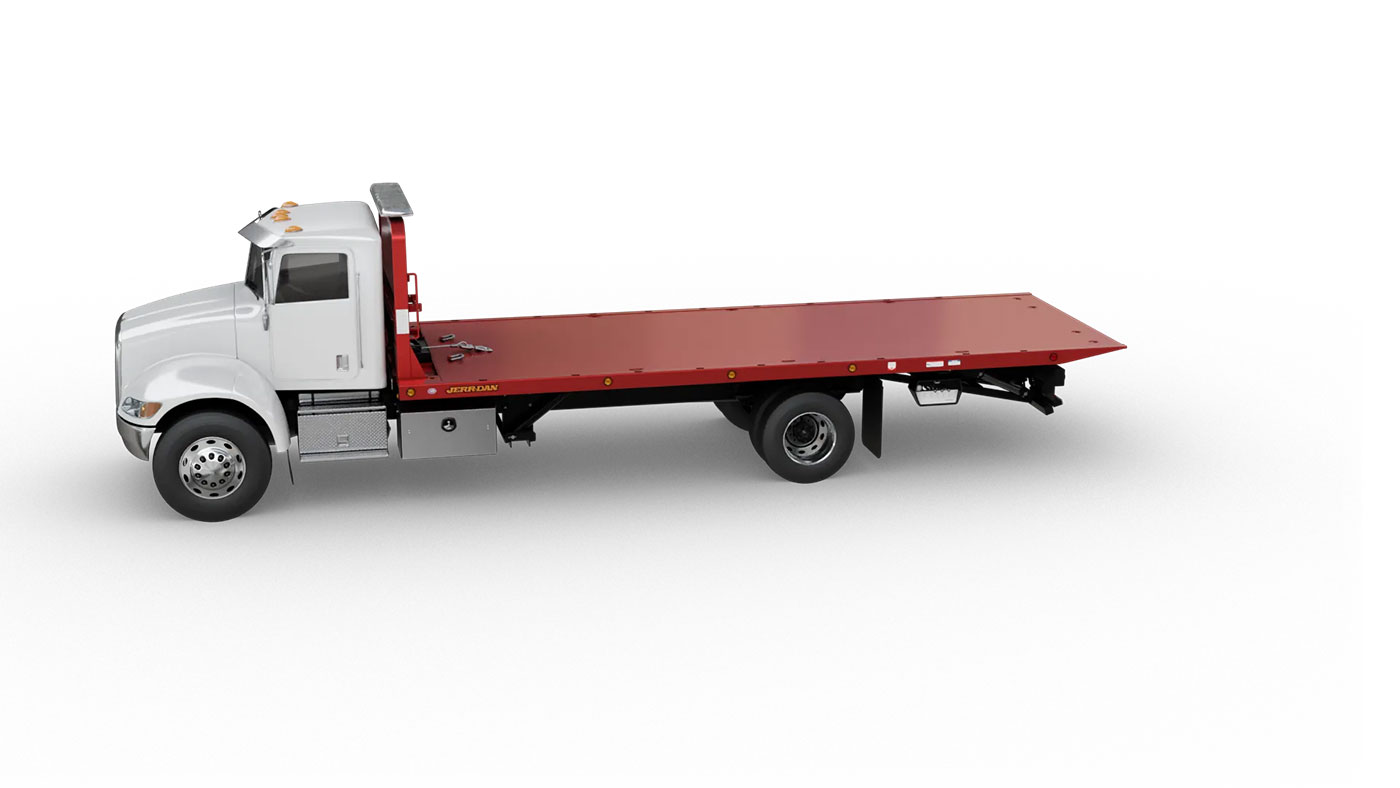

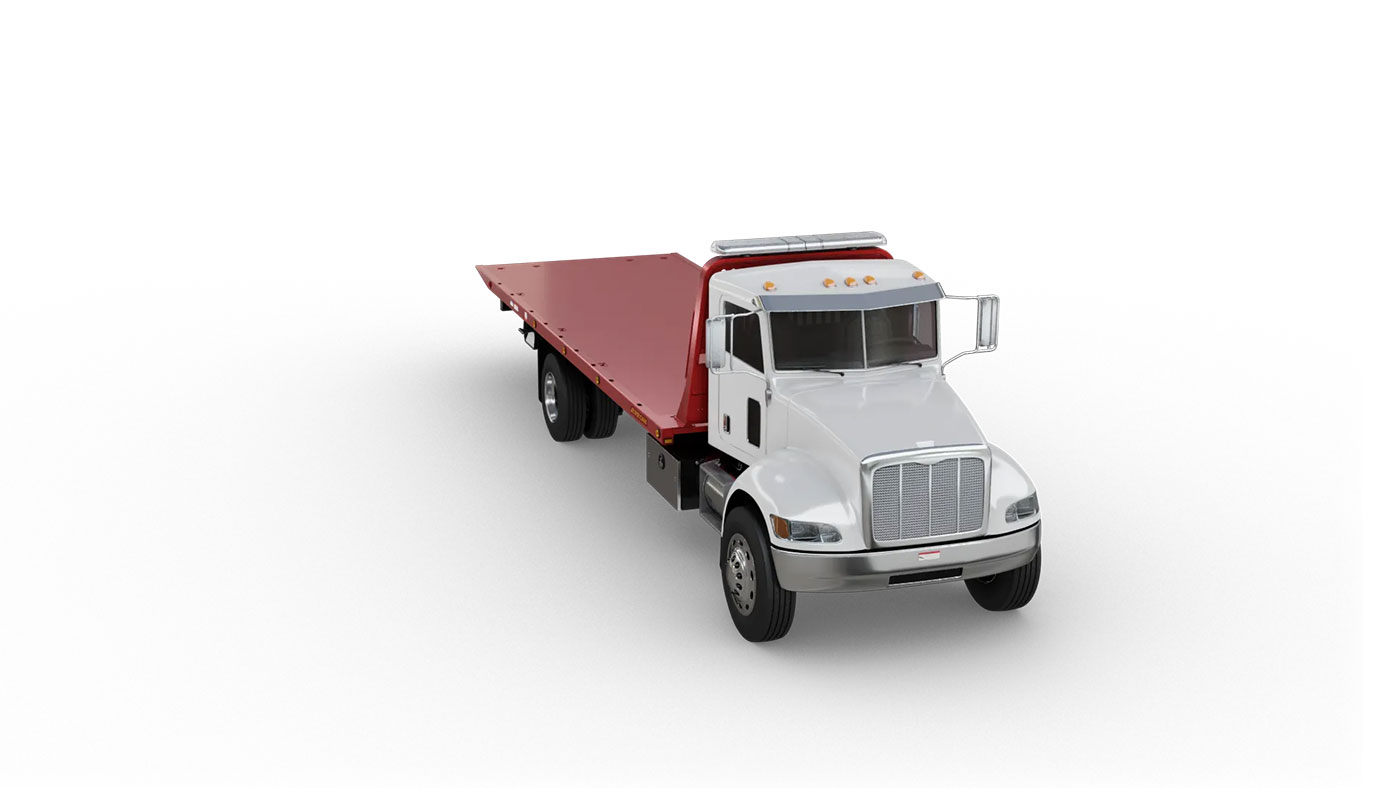

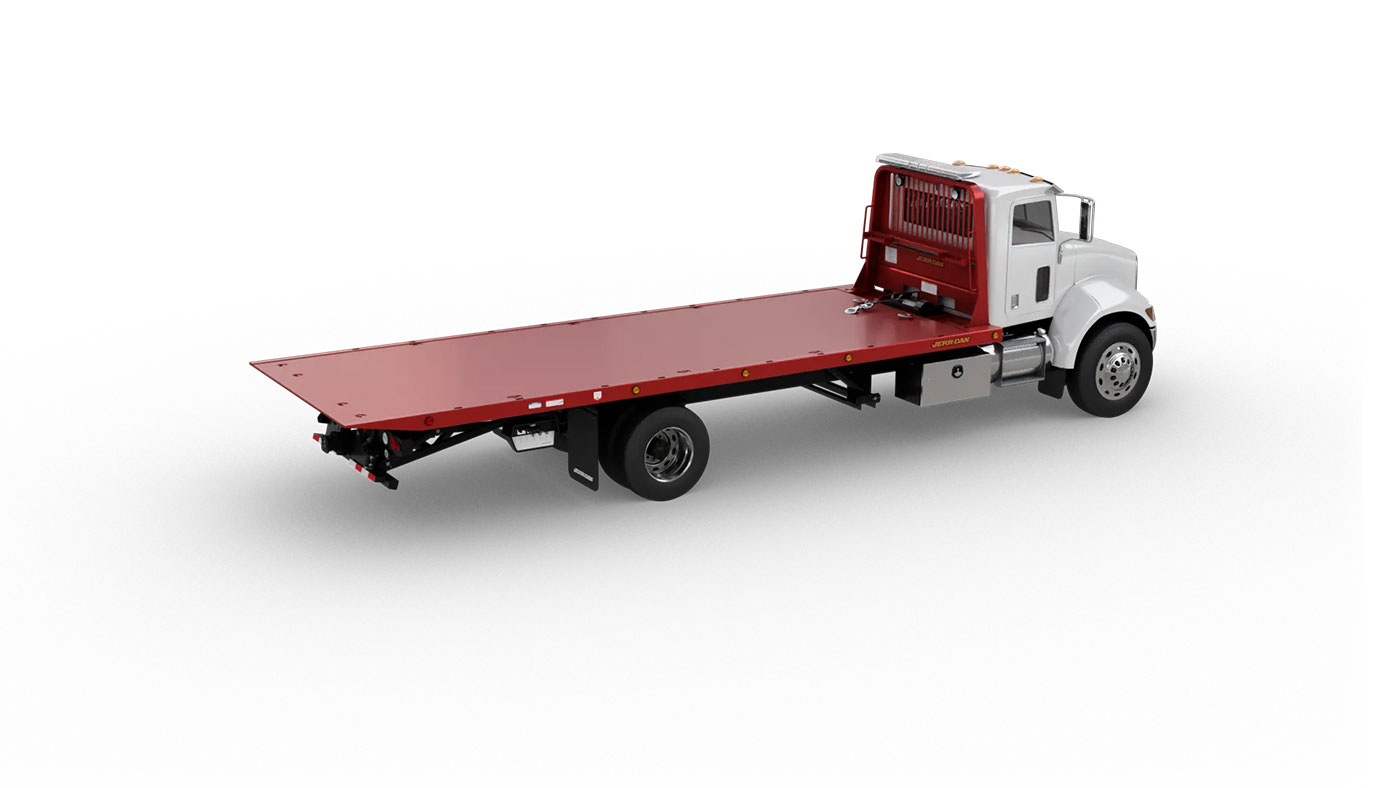

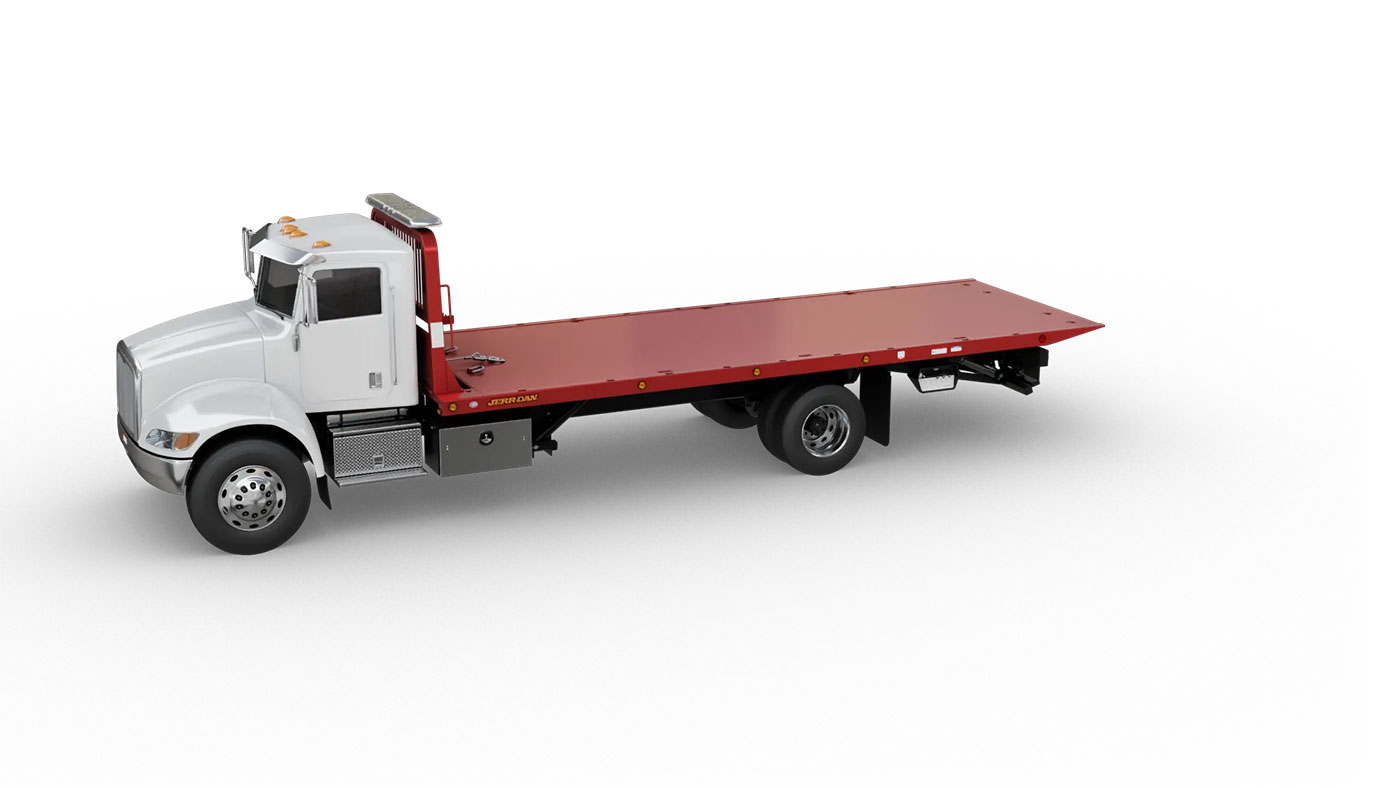

10 Ton Steel

10 Ton Steel

Features

Features

Controls
Cylinder
Deck
Winch

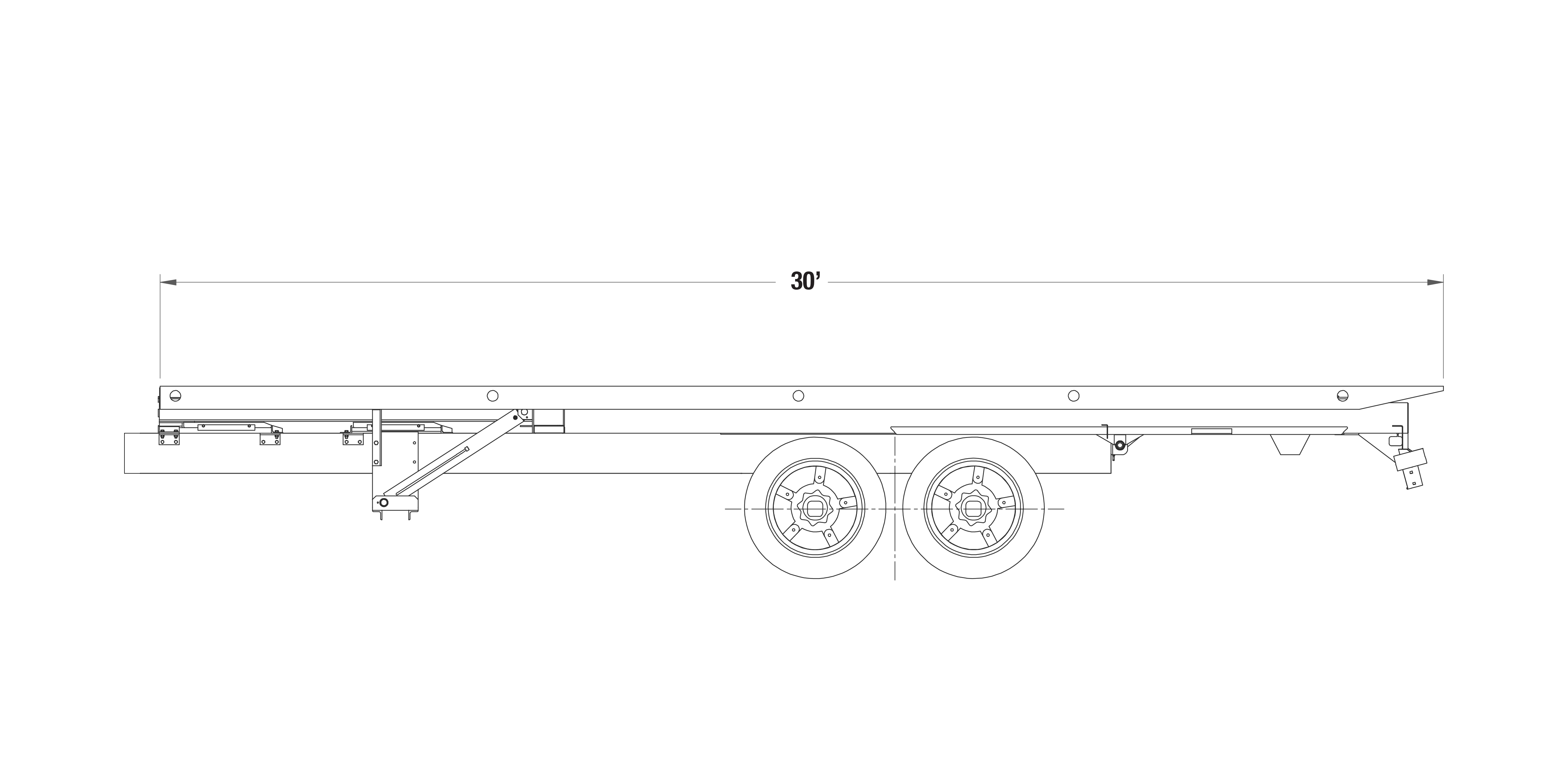

Dimensions

24' Single Axle
Bed Length Cab to Axle Overall Width Option
24' Tandem Axle
Bed Length Centerline to Tandem Overall Width Option
26' Single Axle
Bed Length Cab to Axle Overall Width Option

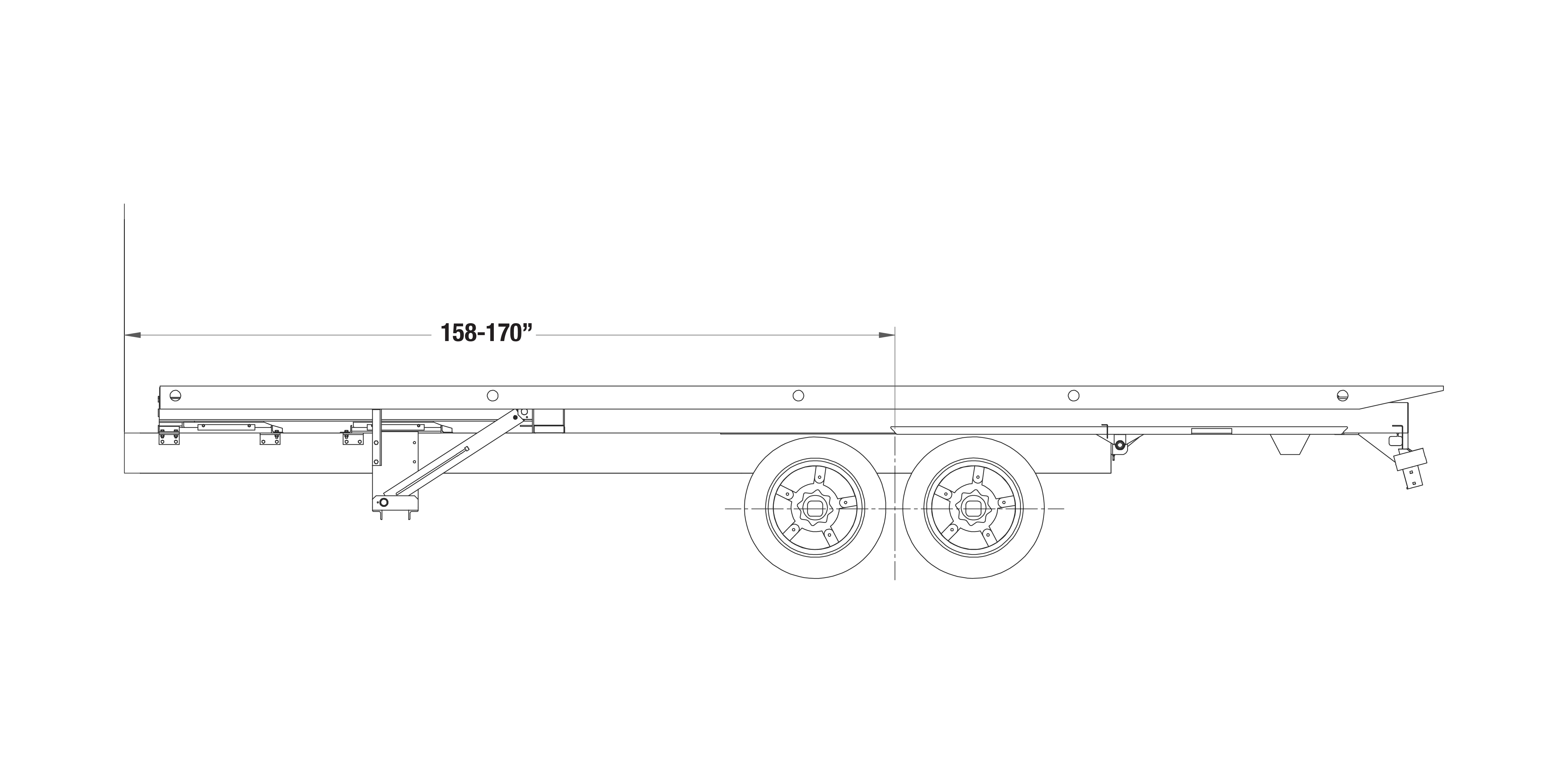

26' Tandem Axle
Bed Length Centerline to Tandem Overall Width Option

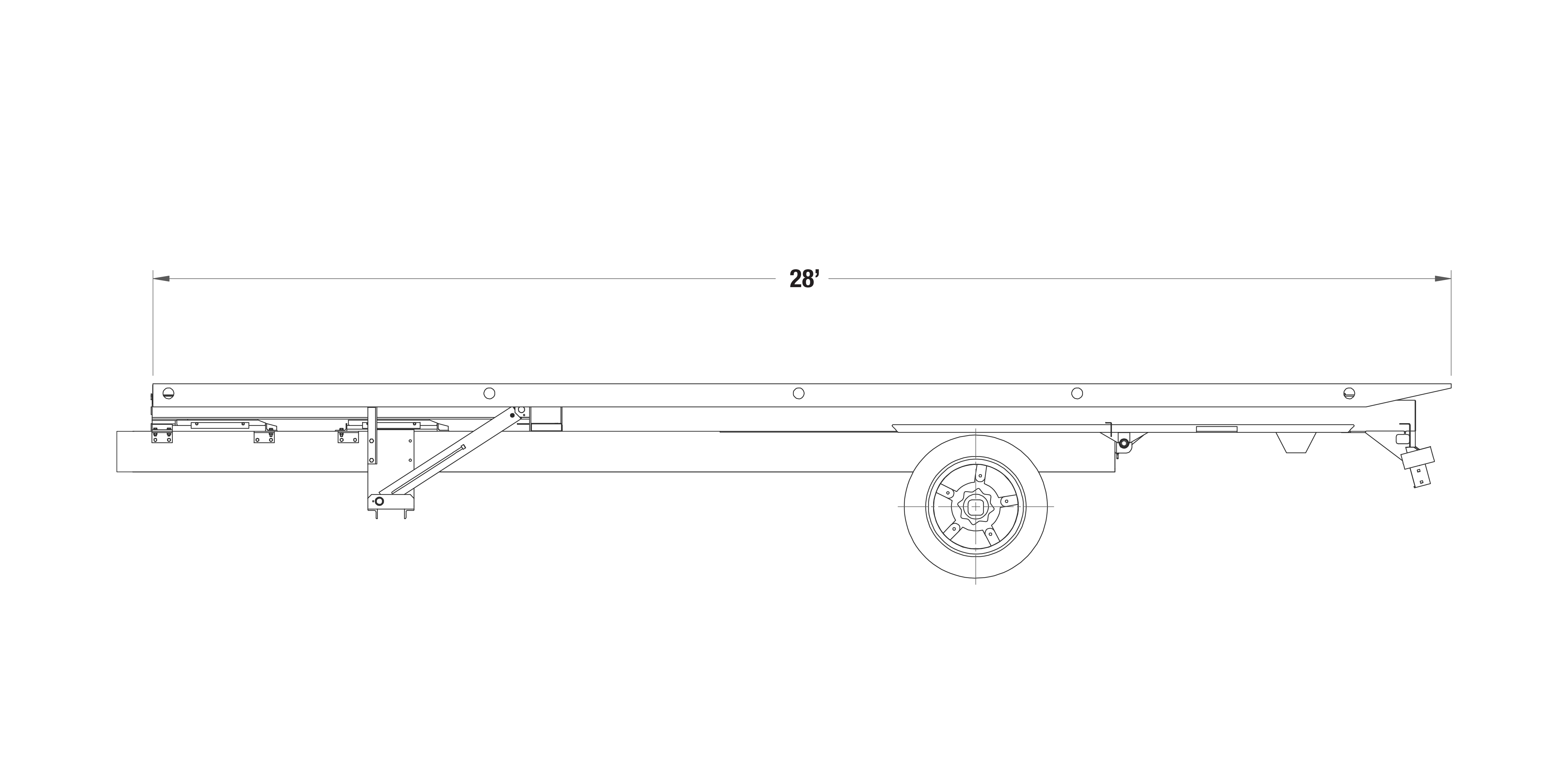

28' Single Axle
Bed Length Cab to Axle Overall Width Option
28' Tandem Axle
Bed Length Centerline to Tandem Overall Width Option

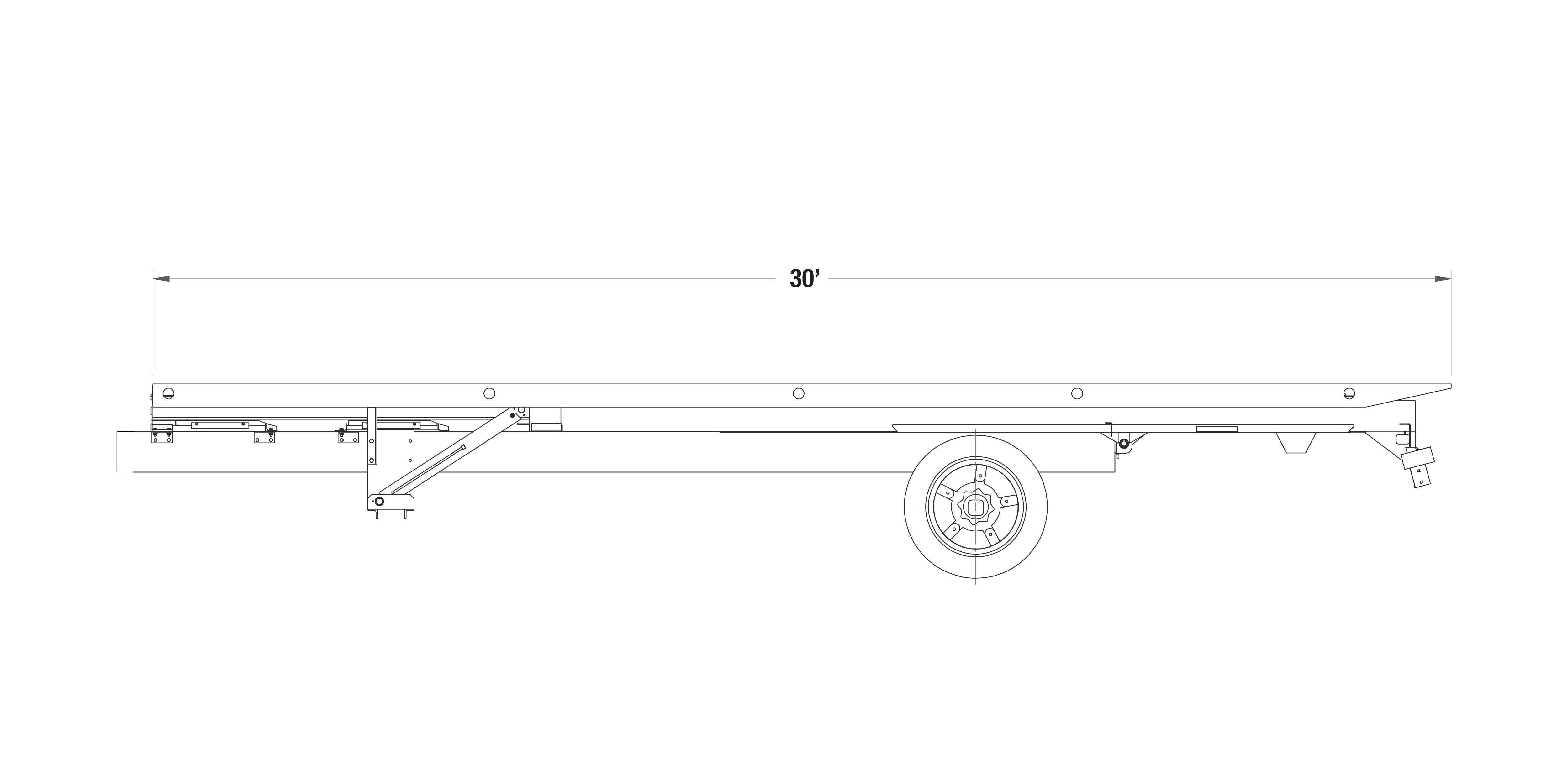

30' Single Axle
Bed Length Cab to Axle Overall Width Option
30' Tandem Axle
Bed Length Centerline to Tandem Overall Width Option

Options for Every Size Business

Jerr-Dan Financial Solutions (JDFS) offers quick, professional financing and competitive rates for leases and loans on new and used Jerr-Dan equipment. Whether you’re a one-unit operator or the owner of a large fleet, we can help you find a solution that works for you.

Learn more

10 Ton Steel
15 Ton Steel
Key Features
Key Features
Steel Deck available in multiple length and width configurations
Steel Deck available in multiple length and width configurations
20,000 lb. Structural Deck Capacity
30,000 lb. Structural Deck Capacity
12,000 lb. Worm Gear Winch
20,000 lb. Worm Gear Winch
Deck
Deck
Structural Capacity
Structural Capacity
20,000 lbs.
30,000 lbs.
Width
Width
96 in.,102 in.
96 in.,102 in.
Deck Length
Deck Length
24', 26', 28', 30'
24', 26', 28', 30'
Material
Material
Steel
Steel
Usable CA
Usable CA
156"-168"(24') ; 180"-192"(26') ; 204"-218" (28') ; 228"-242"(30')

Usable CT
Usable CT
134"-146"(24') ; 158"-170"(26') ; 182"-196" (28') ; 206"-220"(30')
134"-146"(24') ; 158"-170"(26') ; 182"-196" (28') ; 206"-220"(30')
3,000 lb. Wheel Lift
3,000 lb. Wheel Lift
Lift Capacity
Lift Capacity
3,000 lbs.
3,000 lbs.
Towing Capacity
Towing Capacity
7,500 lbs.
7,500 lbs.
Maximum Extended Reach
Maximum Extended Reach
56.2 in.
56.2 in (from tail of bed)
Minimum GVWR (Without Wheellift)
Minimum GVWR (Without Wheellift)
33,000 lbs.
46,000 lbs.
Maximum GVWR (With Wheellift)
Maximum GVWR (With Wheellift)
33,000 lbs.
46,000 lbs.
5,000 lb. Wheel Lift
5,000 lb. Wheel Lift
Lift Capacity
Lift Capacity
5,000 lbs.
5,000 lbs.
Towing Capacity
Towing Capacity
12,000 lbs.
12,000 lbs.
Maximum Extended Reach
Maximum Extended Reach
56.2 in.
56.2 in.
Winch
Winch
Winch Capacity
Winch Capacity
12,000 lbs. , 20,000 lbs.
20,000 lbs.
Winch Quantity
Winch Quantity
1
1
Chassis Recommendations
Chassis Recommendations
Minimum GVWR: Without Wheel Lift
Minimum GVWR: Without Wheel Lift
33,000 lbs.
46,000 lbs.
Maximum GVWR: With Wheel Lift
Maximum GVWR: With Wheel Lift
33,000 lbs.
46,000 lbs.

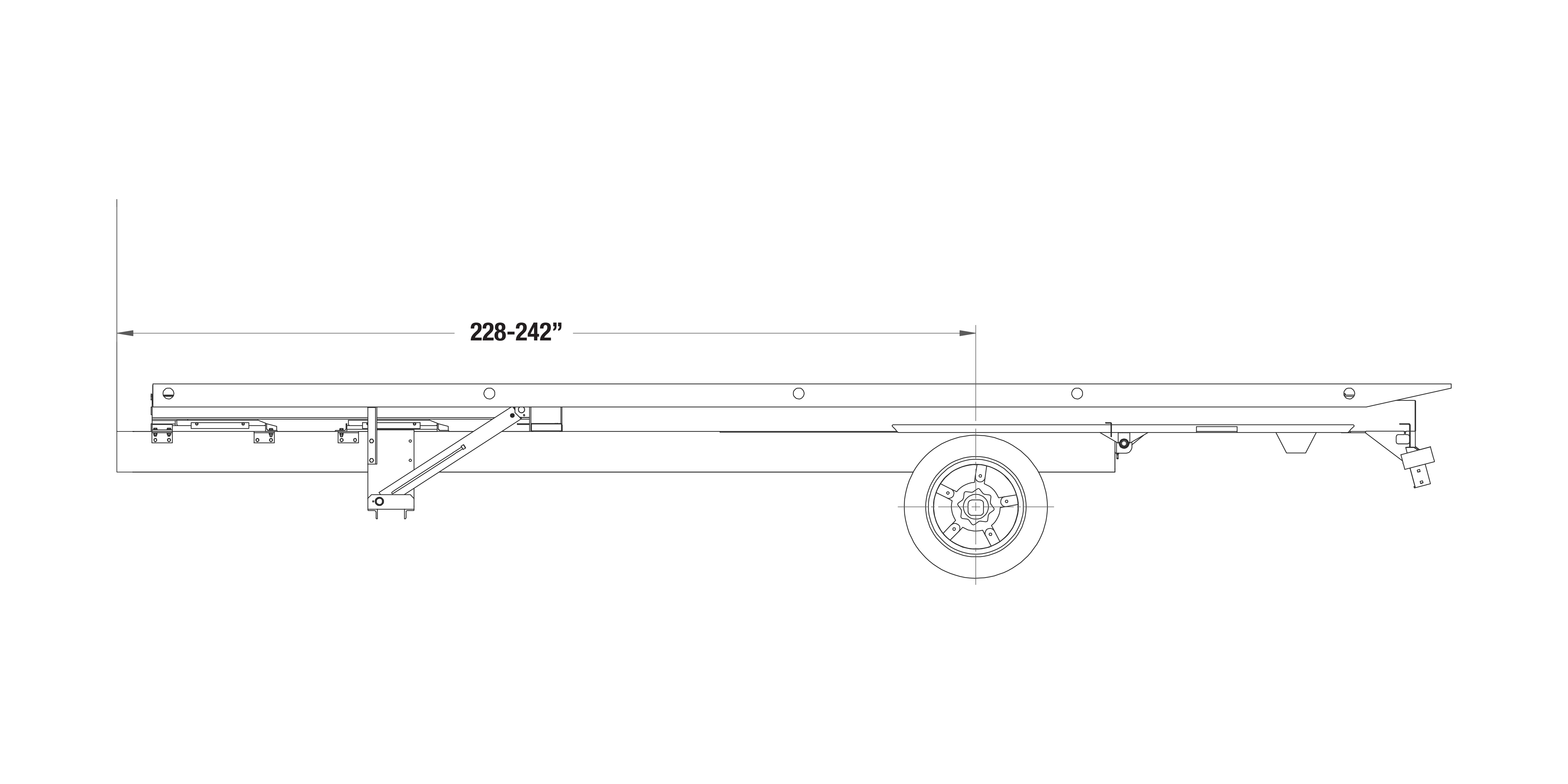

Cab to Axle (CA) Range
Cab to Axle (CA) Range
156"-168"(24') ; 180"-192"(26') ; 204"-218" (28') ; 228"-242"(30')

Cab to Tandem (CT) Range
Cab to Tandem (CT) Range
134 in. - 146 in. (24' deck); 158 in. -170 in. (26' deck); 182 in. - 196 in. (28' deck); 206 in. -220 in. (30' deck)
134 in. -146 in. (24' deck); 158 in. - 170 (26' deck); 182 in. - 196 in. (28' deck); 206 in. - 220 in. (30' deck)
Maximum Extended Reach
Maximum Extended Reach
56.2 in.
56.2 in
