Boom
70,000 lbs. or 120,000 lbs.
Winch Capacity
35,000 lbs. or 50,000 lbs.
Material
High strength steel

Engineered for Strength and Durability

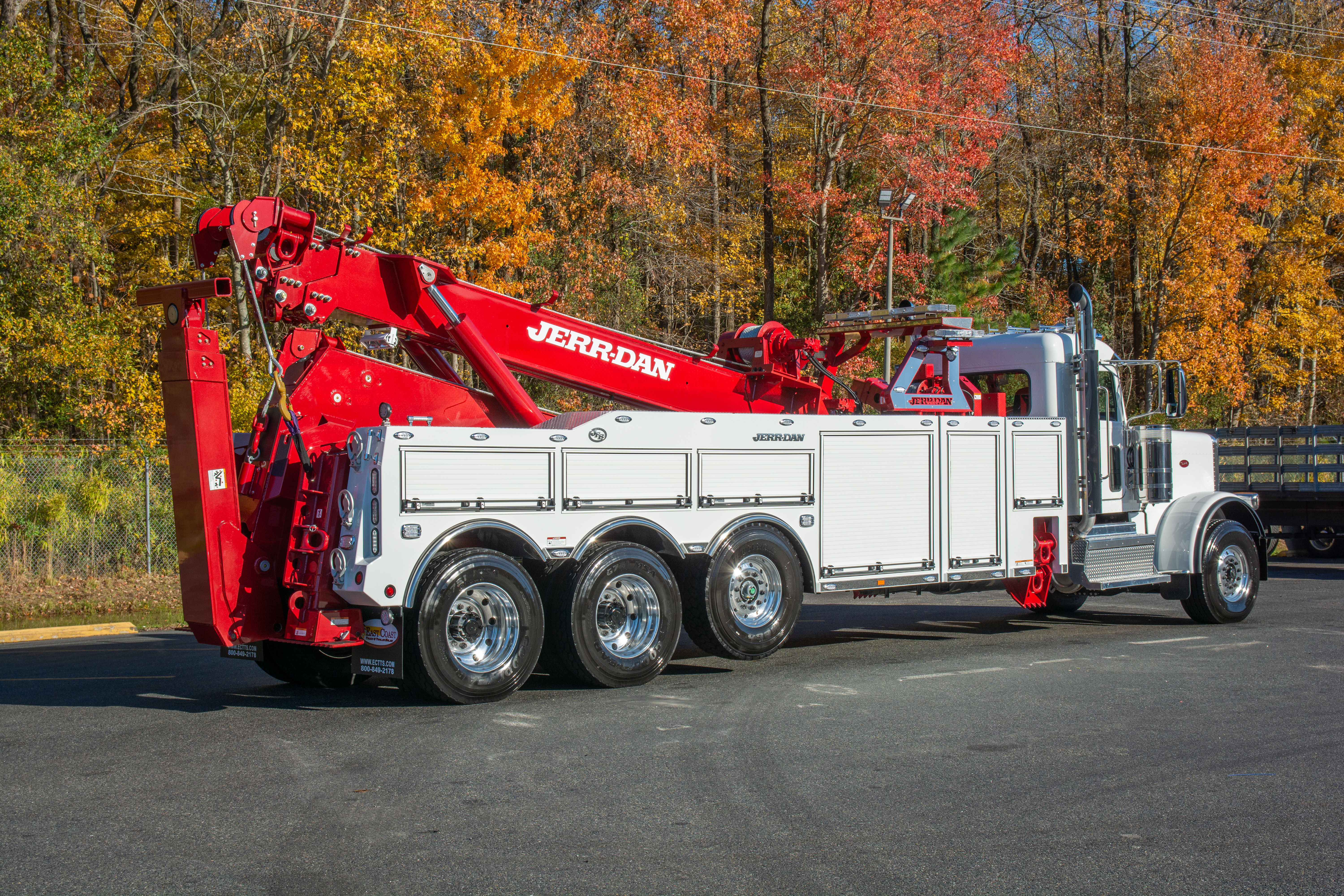

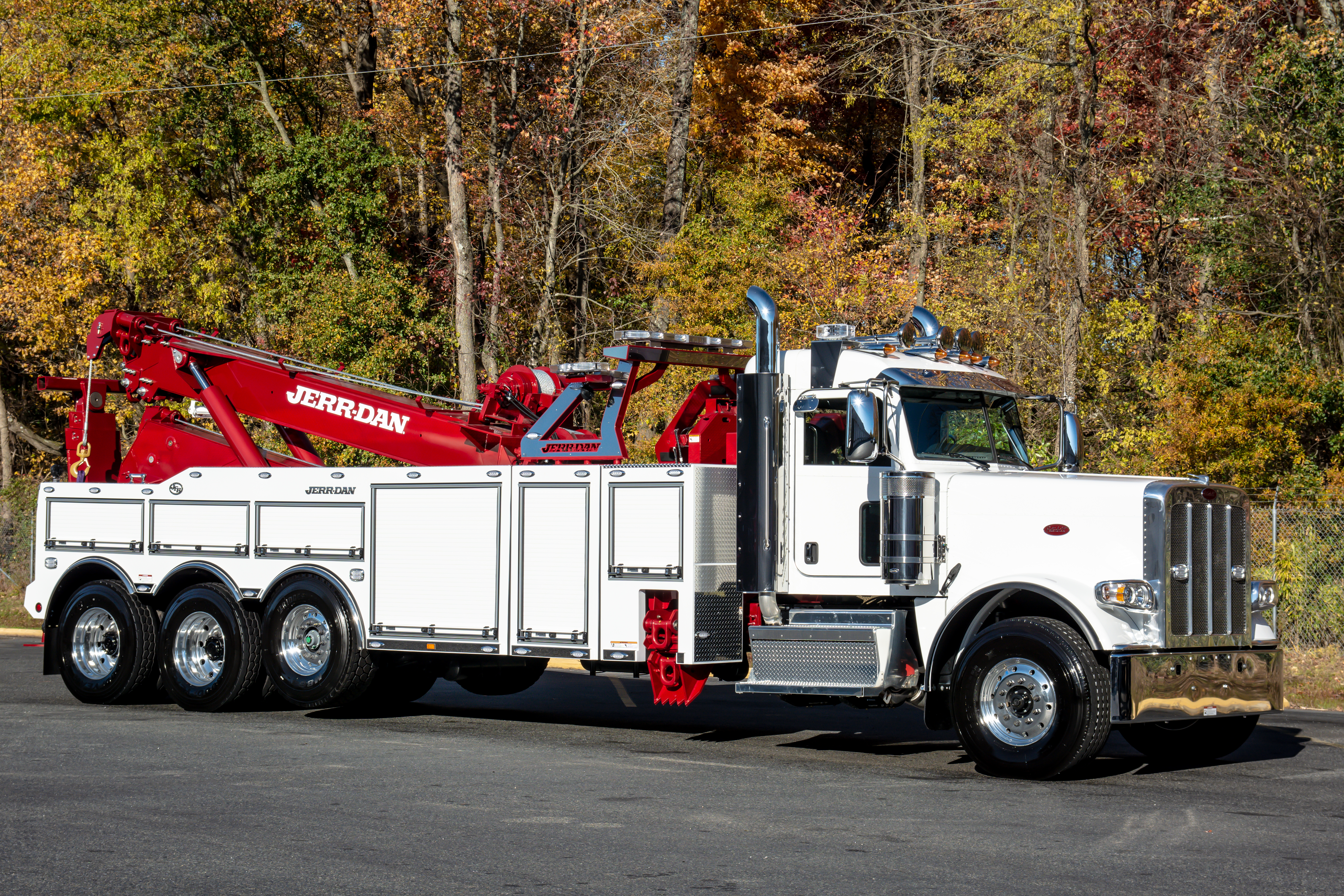

Heavy Duty Independent Wreckers

The JD35 IND and JD60 IND heavy duty independent wreckers are designed for strength, reliability, and durability with fully extended boom ratings of 22,000 lb., and 25,000 lb., each model is built with a polypropolene copolymer corrosion-free material.

Models

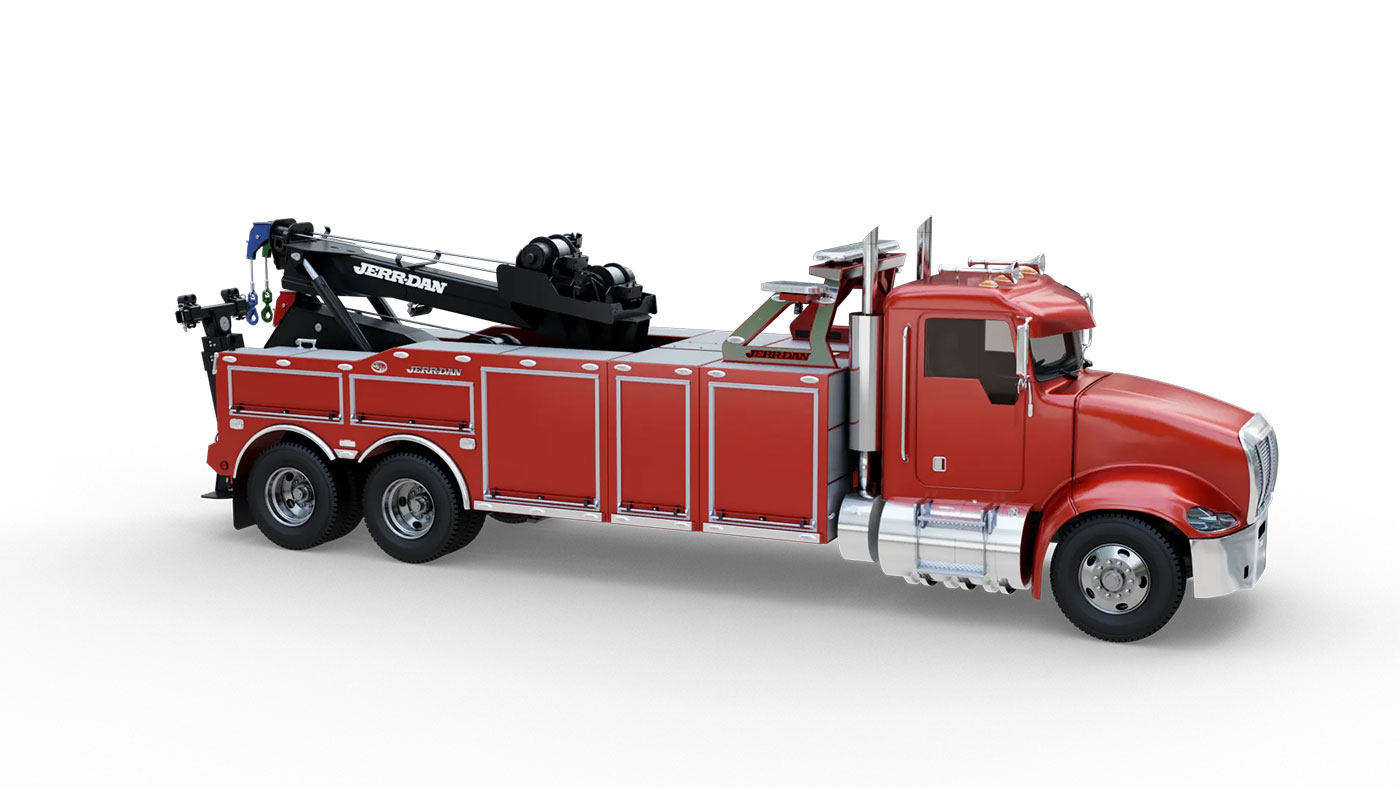

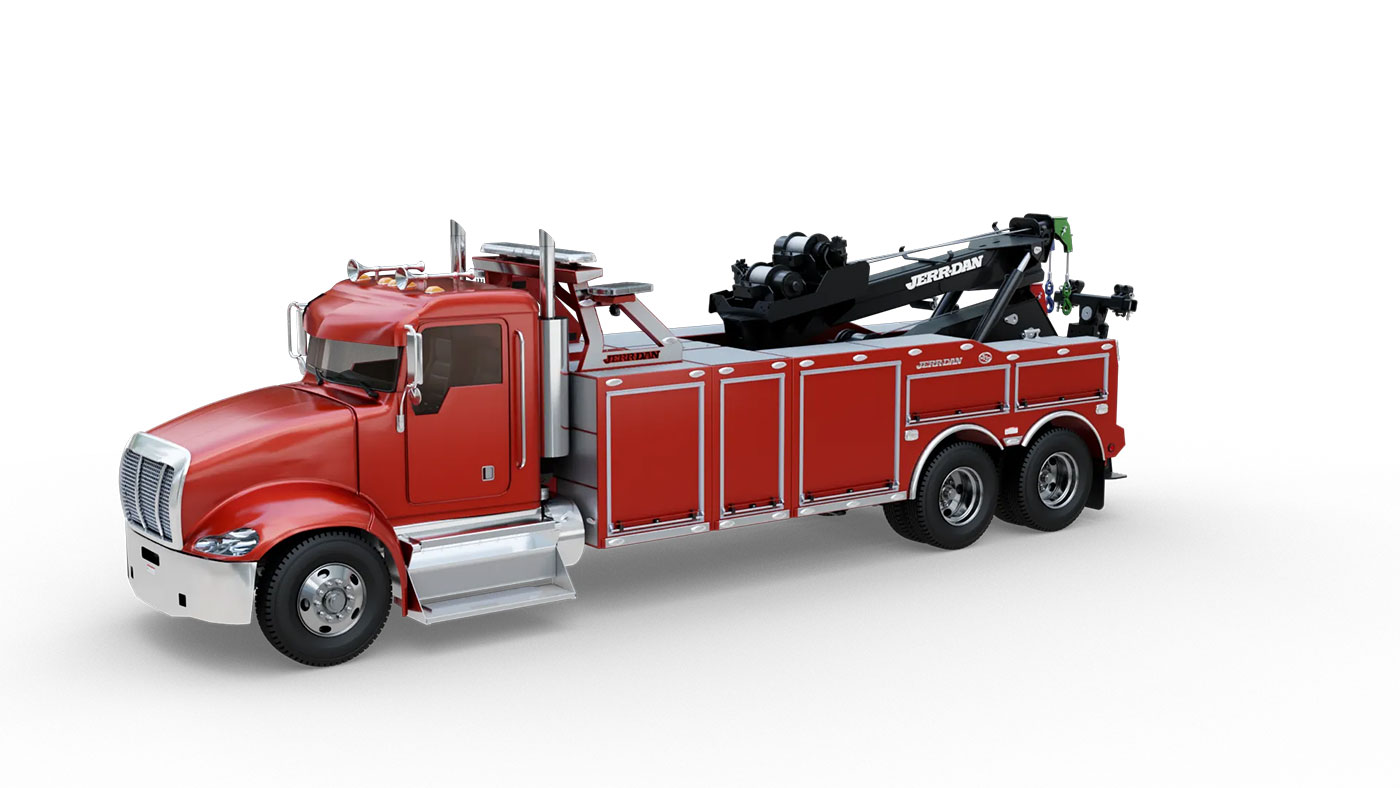

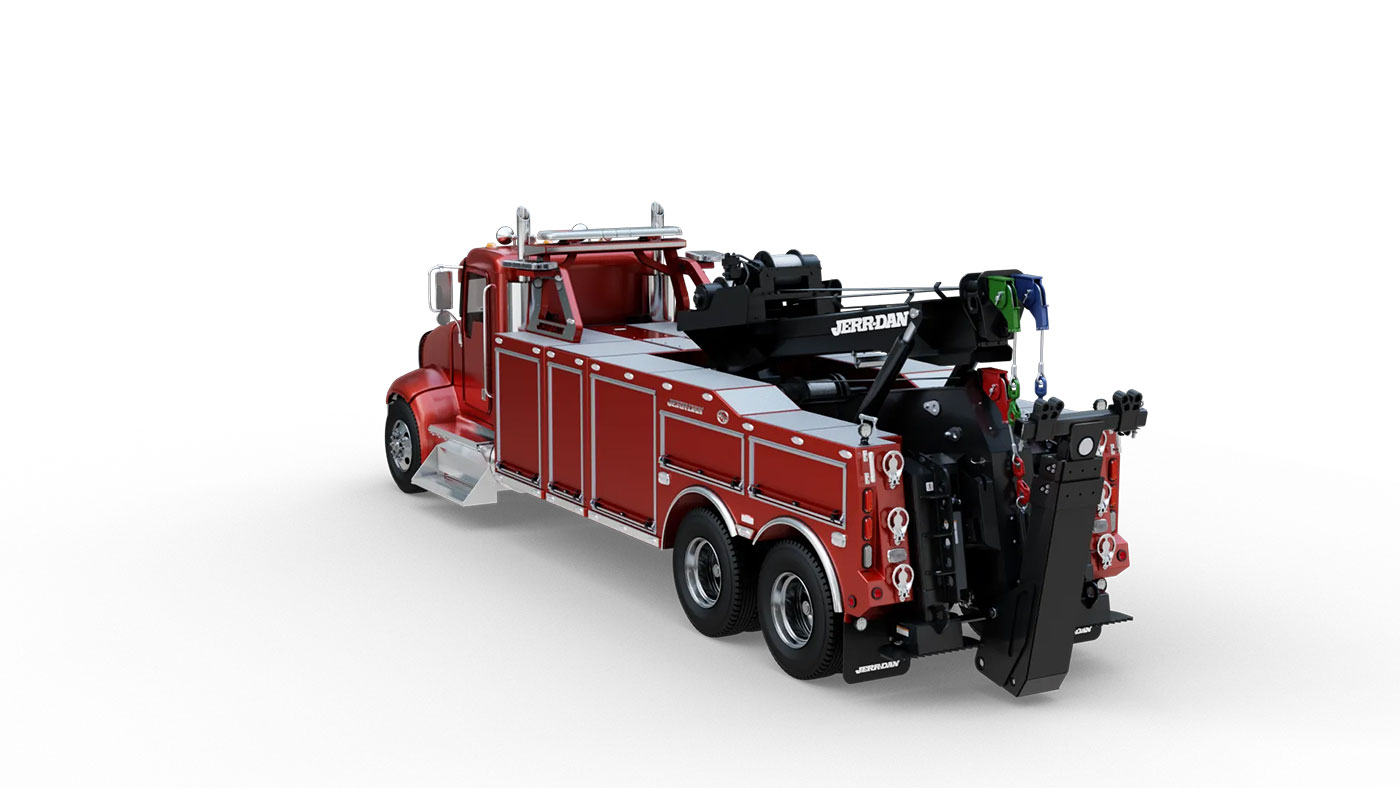

JD35 IND

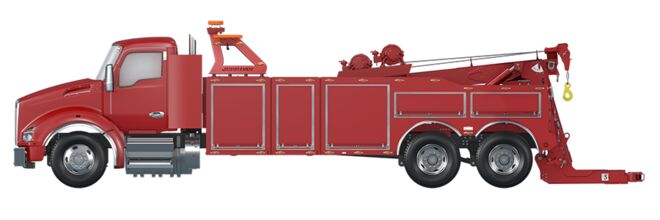

The JD35 IND is a Heavy Duty Independent Wrecker featuring a 70,000 lb. two-stage recovery boom, corrosion-resistant body, and optional 3- stage underlifts - all designed with strength and performance in mind.

Boom 70,000 lbs.

Winch Capacity 35,000 lbs.

Material High Strength Steel

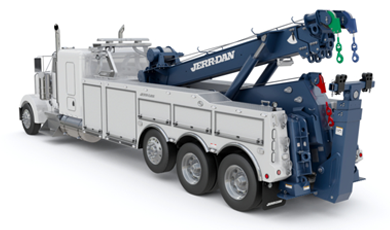

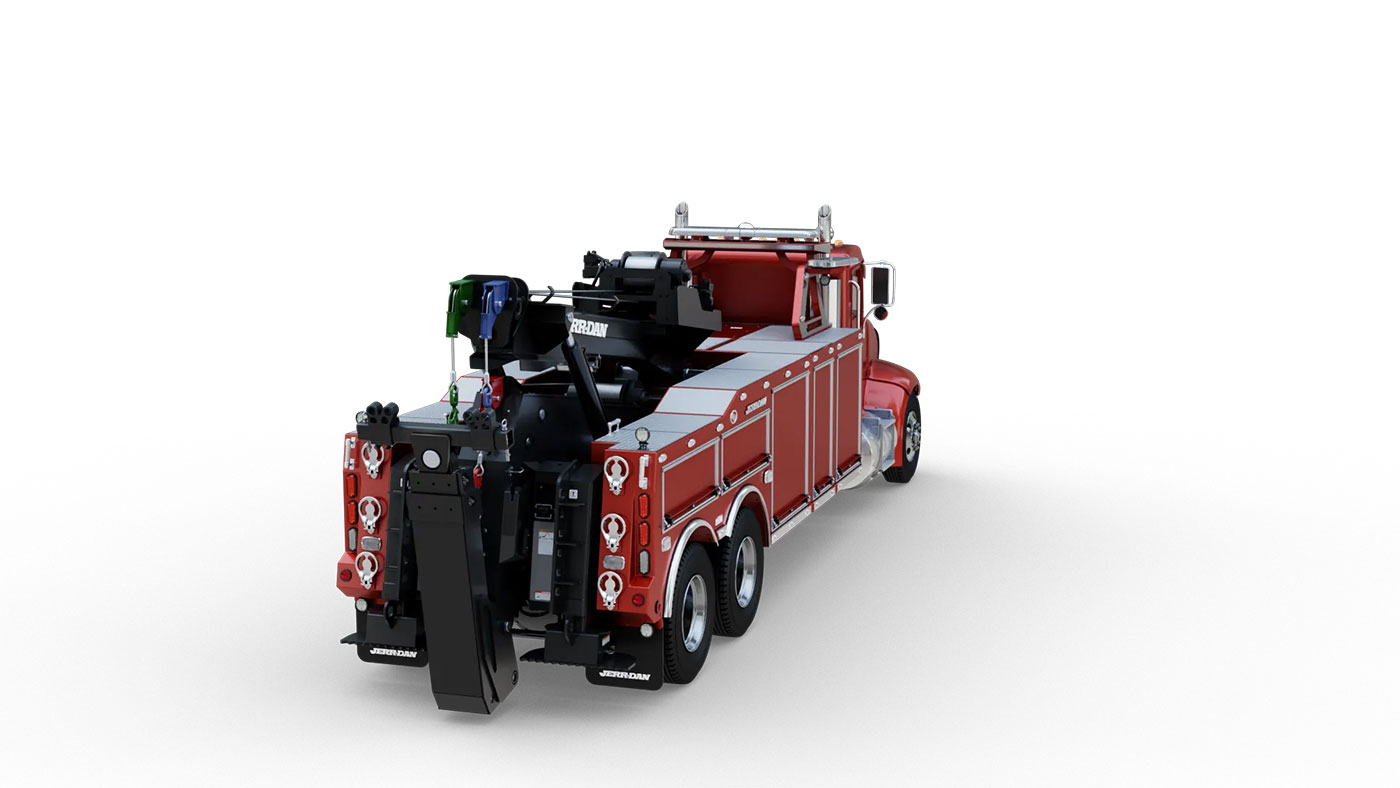

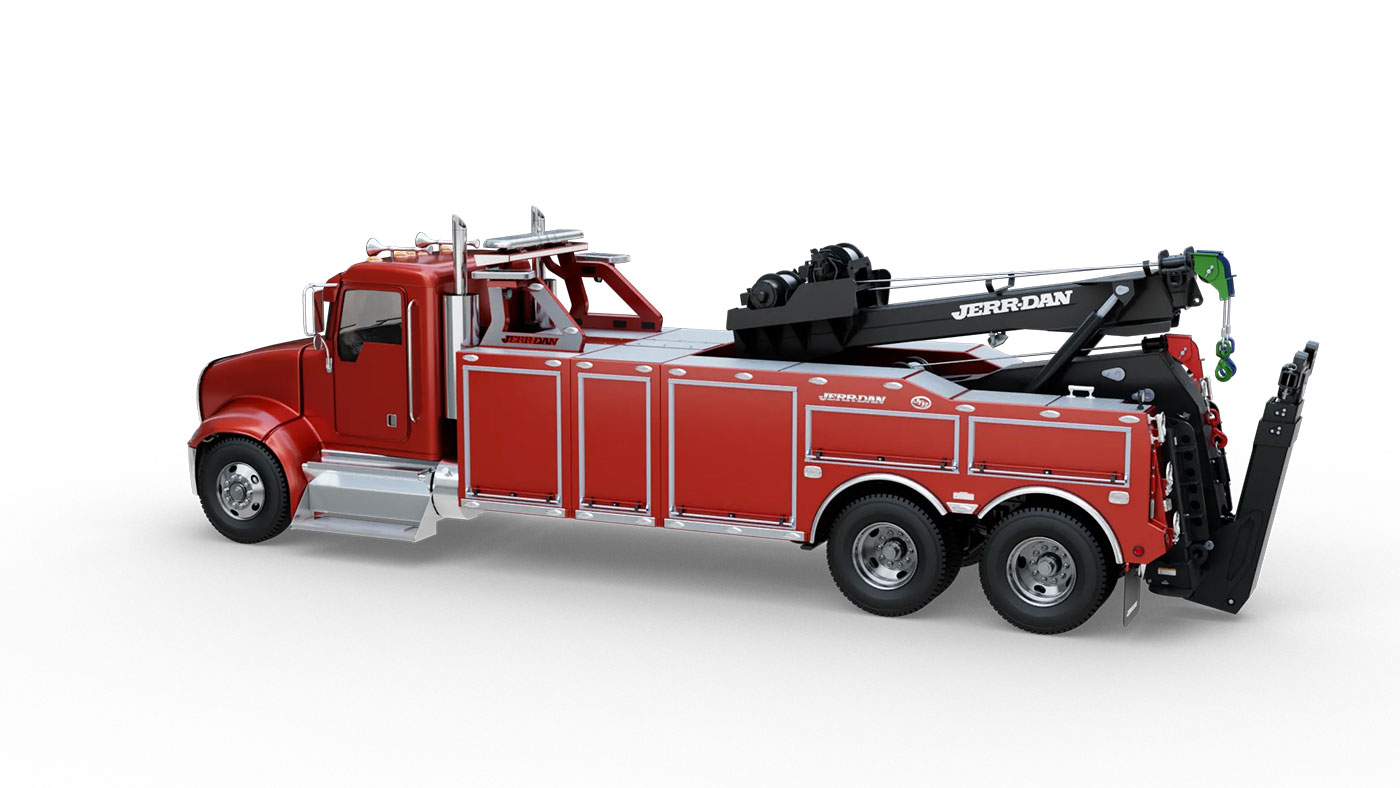

JD60 IND

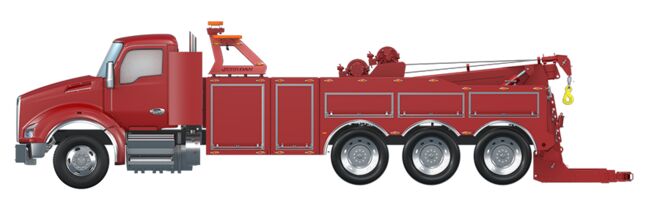

The JD60 IND is a Heavy Duty Independent Wrecker featuring a 120,000 lb. two or three-stage wrecker boom, corrosion-resistant body, and optional 3- or 4-stage underlifts - all designed with strength and performance in mind.

Boom 120,000 lbs.

Winch Capacity 50,000 lbs.

Material High Strength Steel

Compare models

JD35IND_Sell_Sheet_Final (.pdf) ROTATOR_Sell_Sheet_Final (.pdf) JD60 IND Sell Sheet (.pdf)

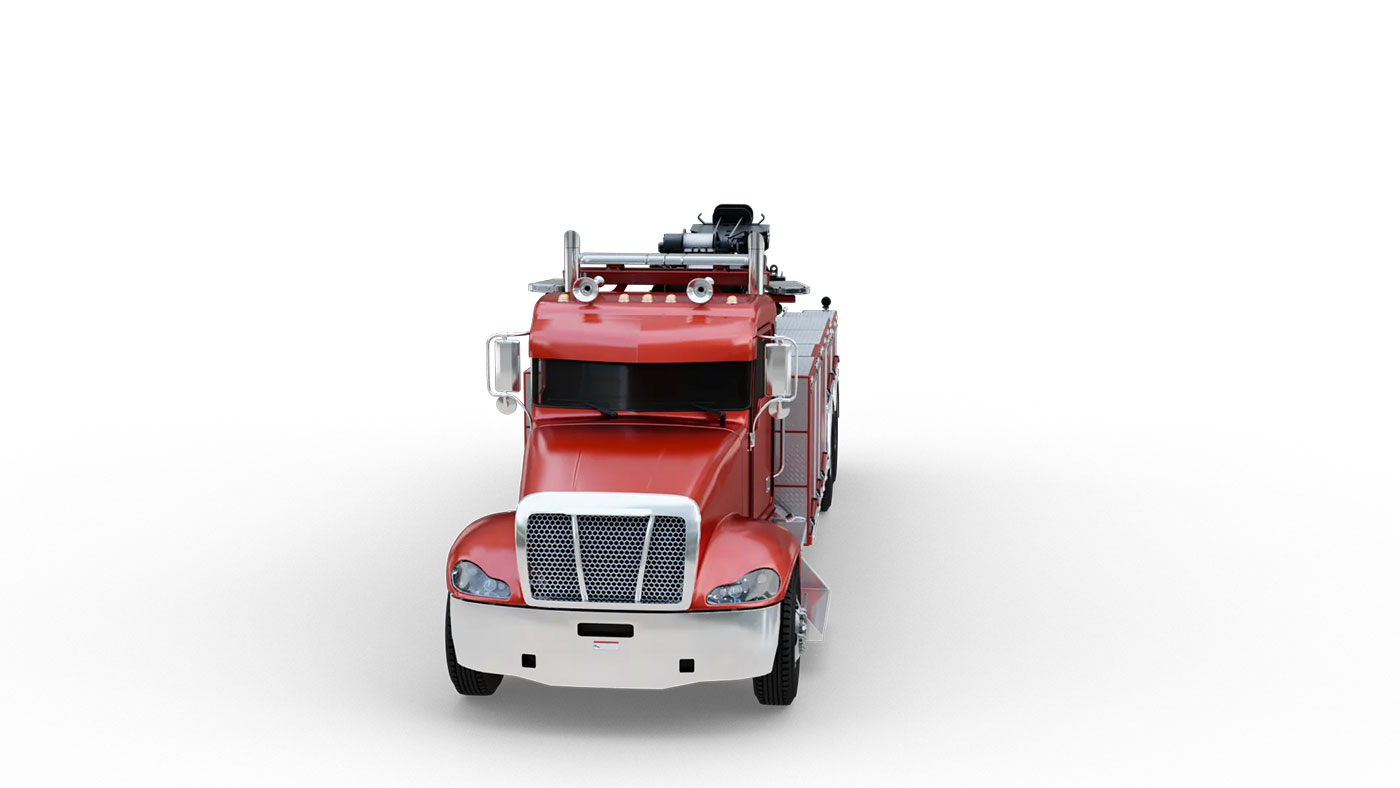

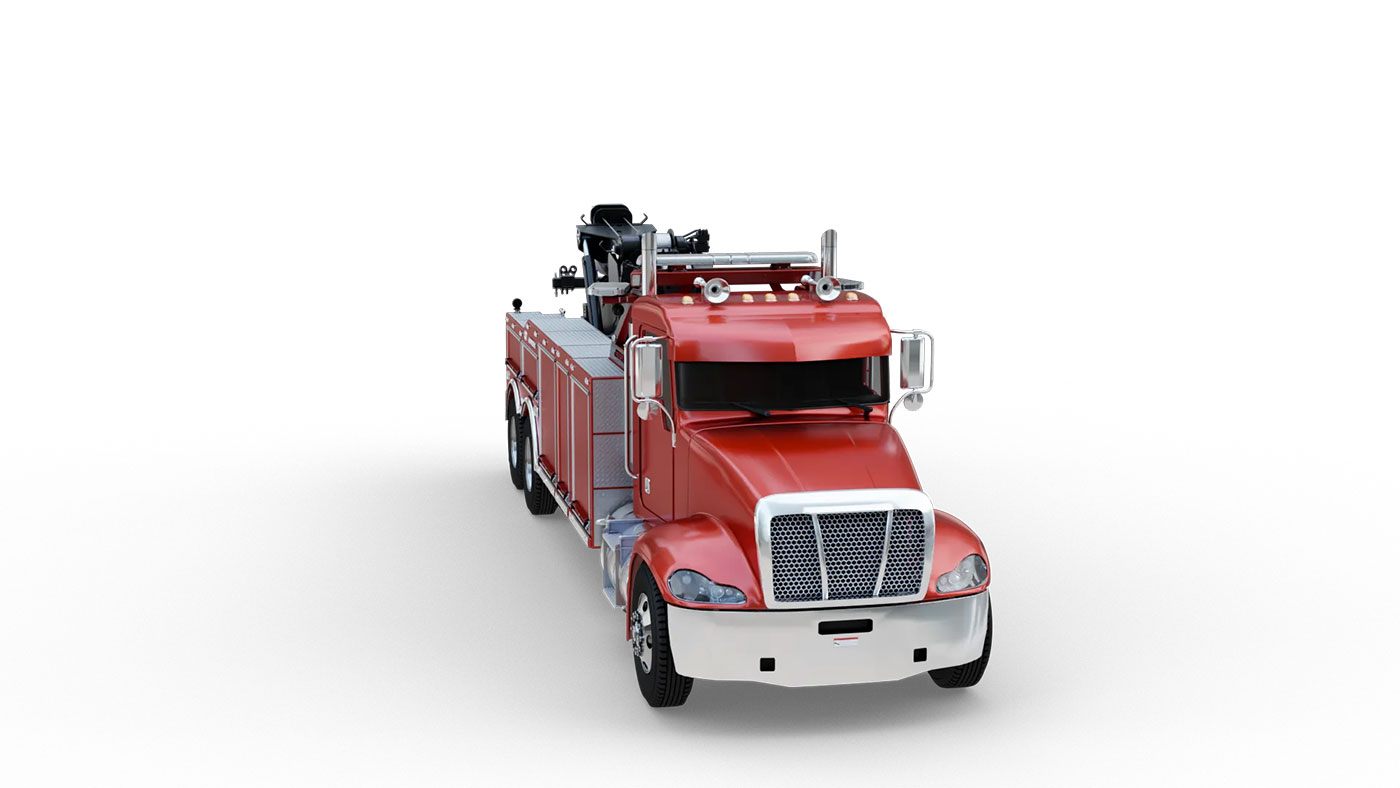

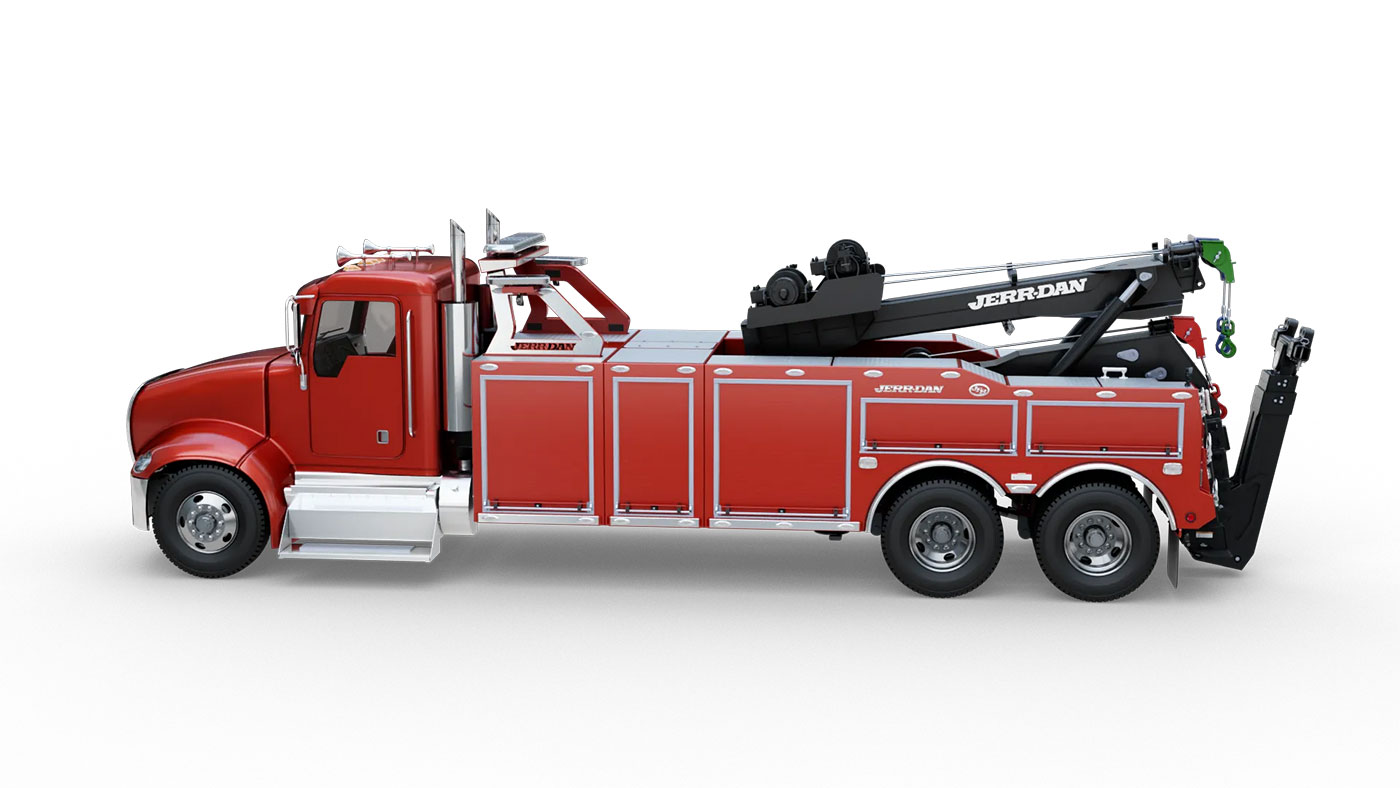

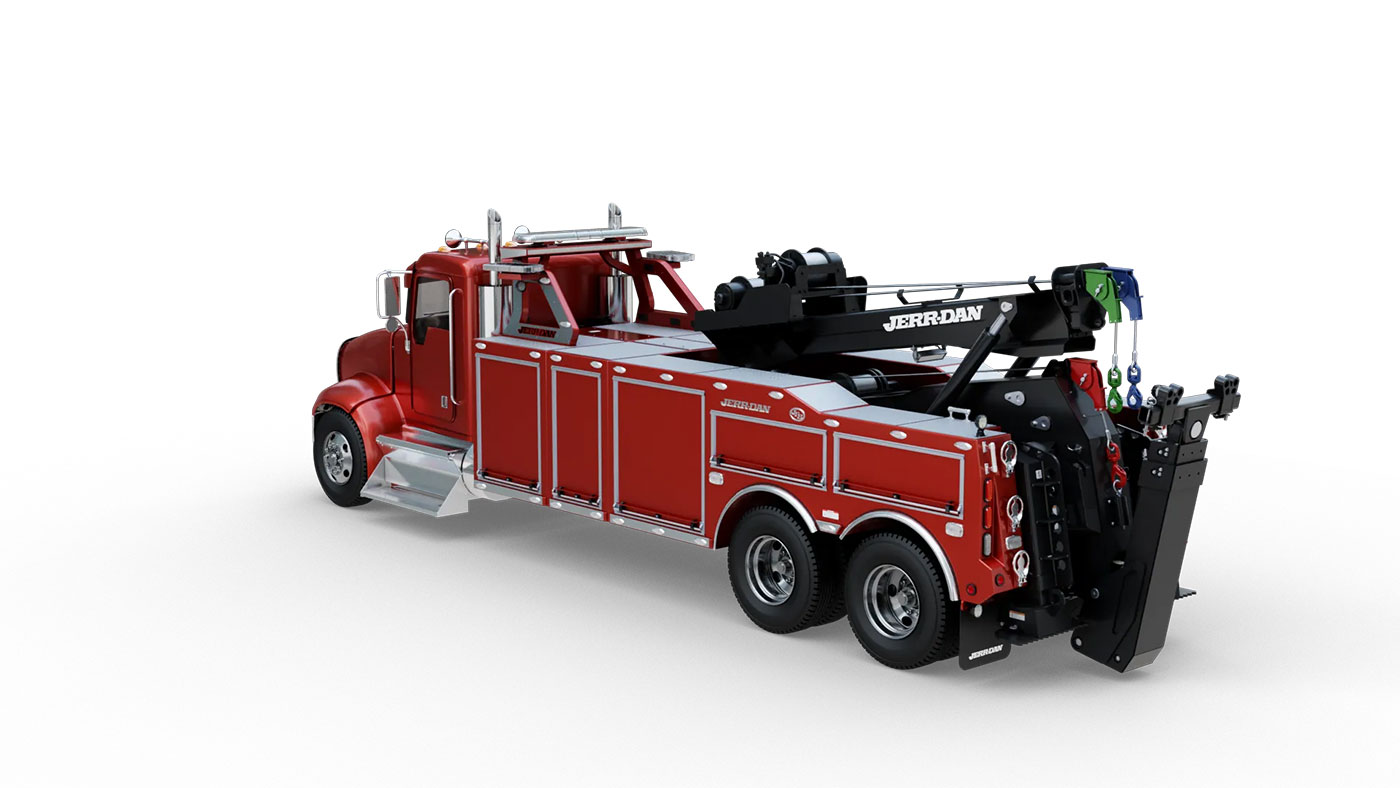

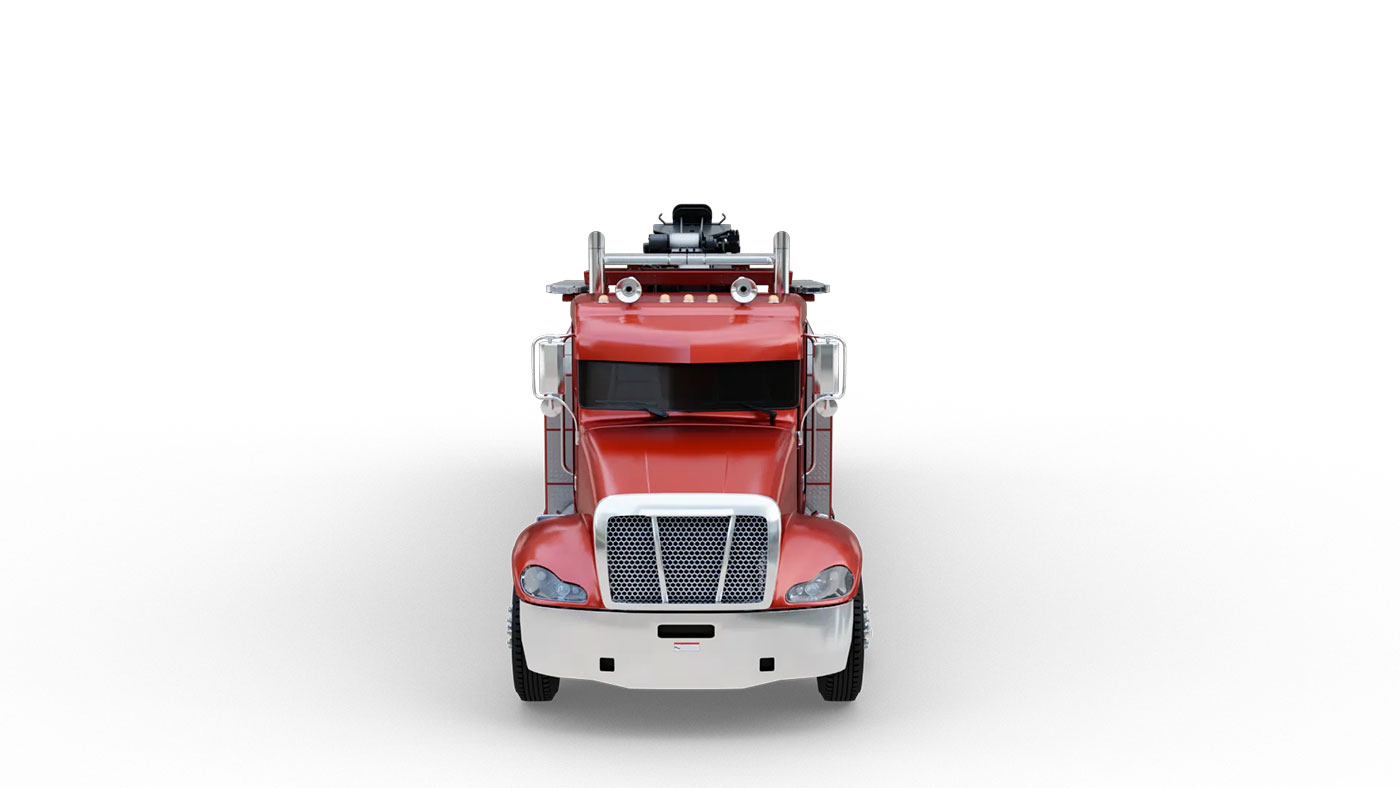

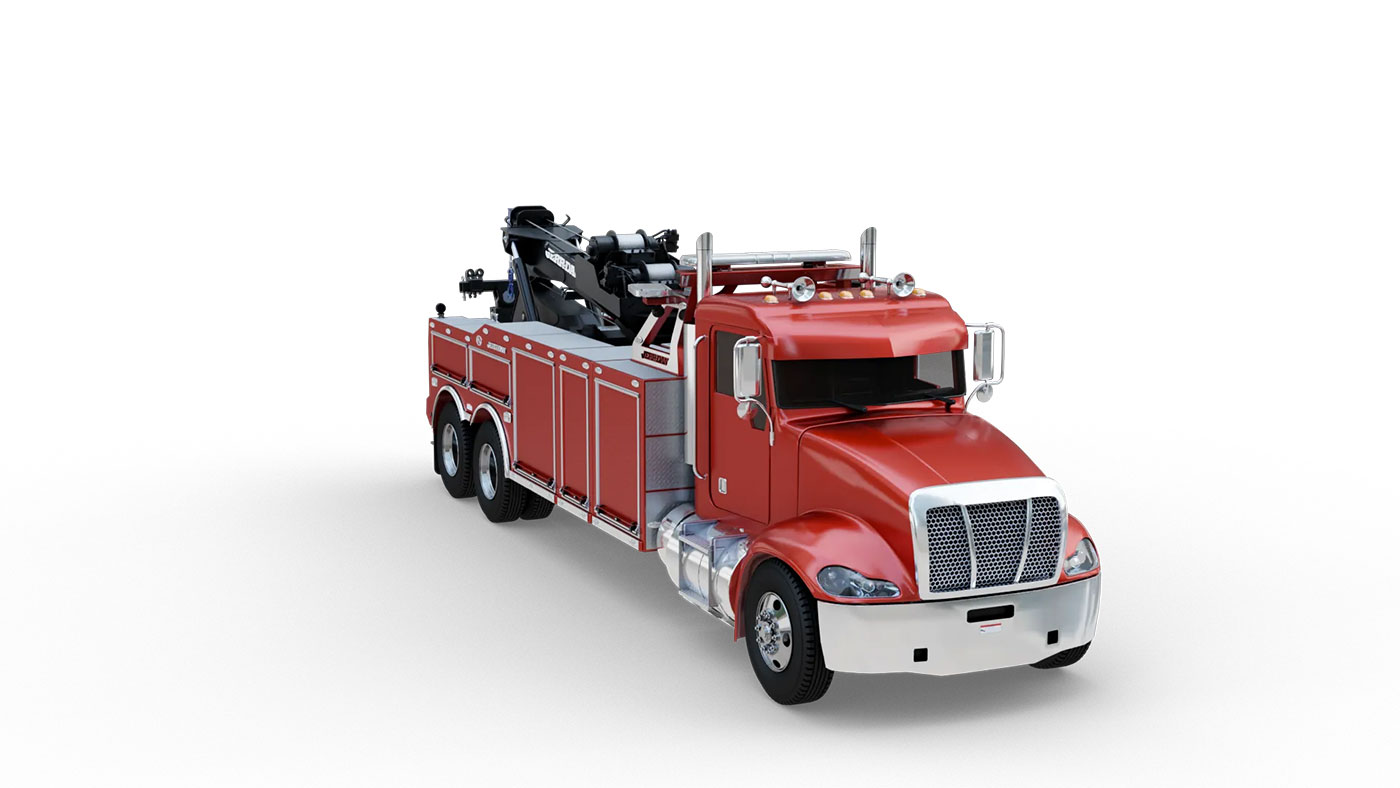

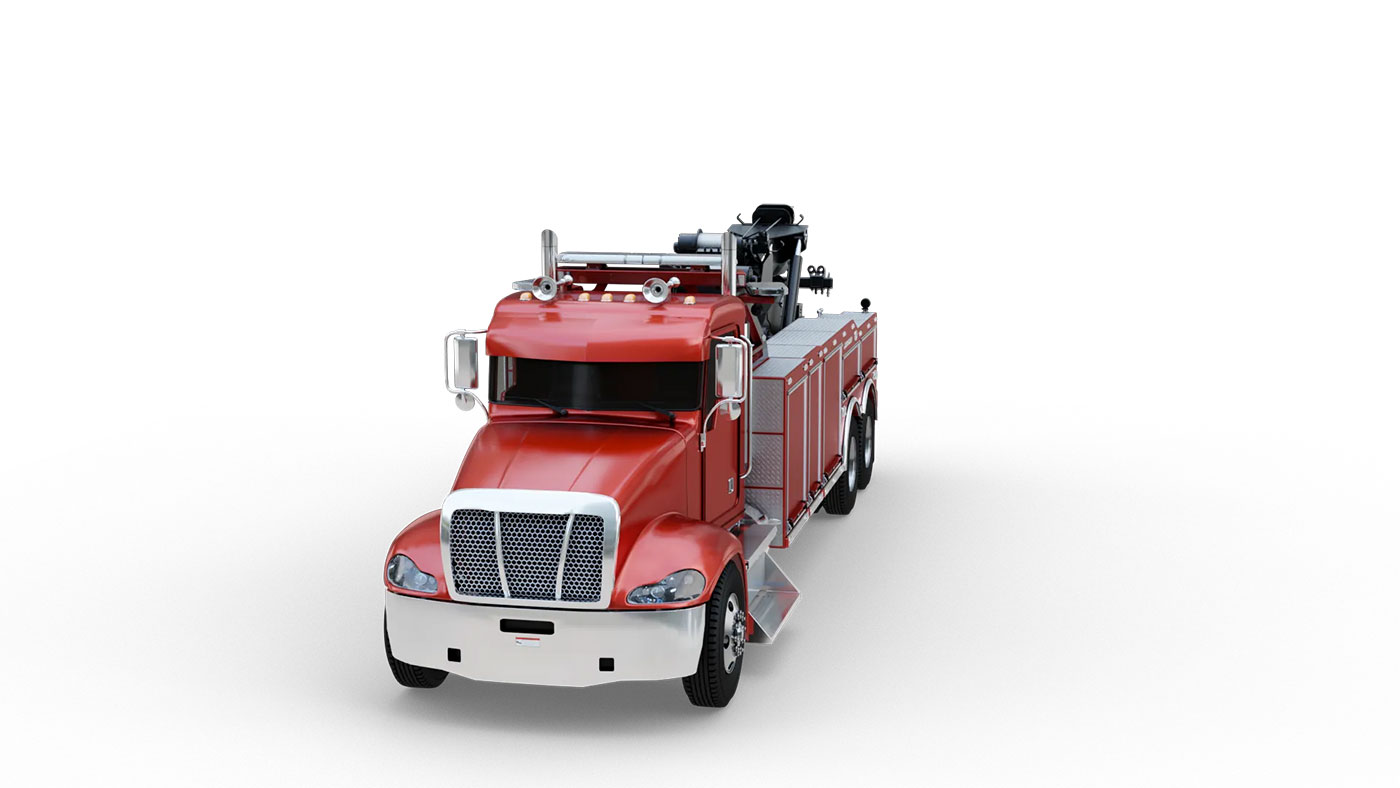

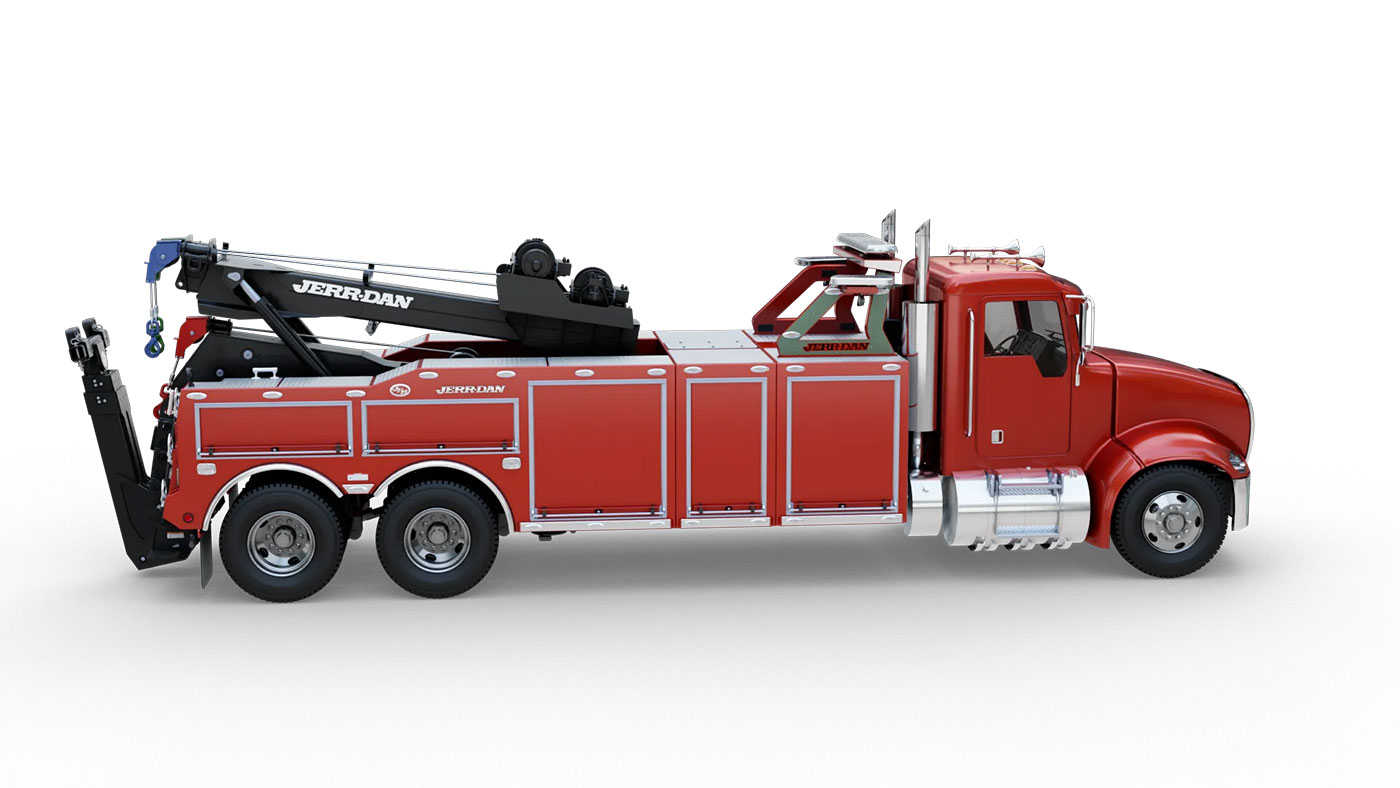

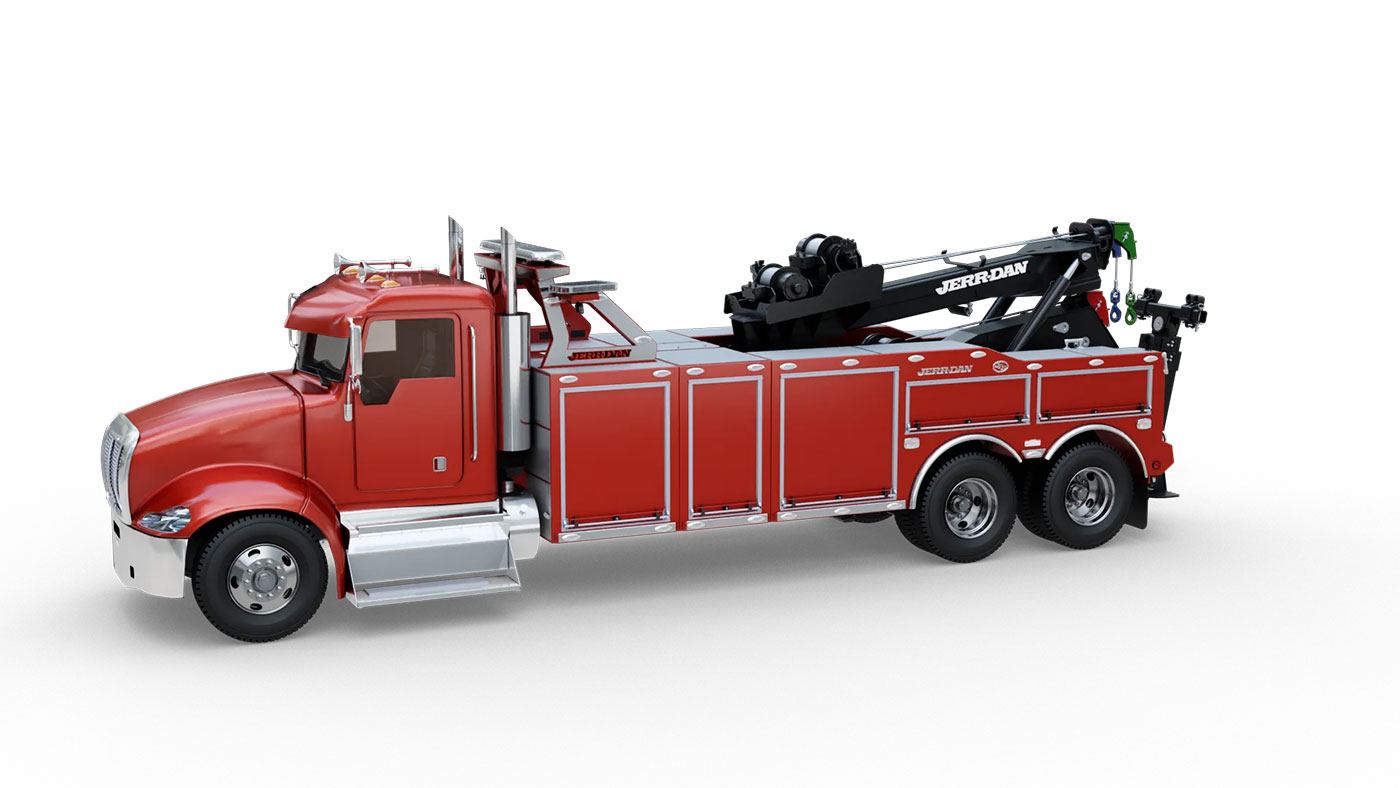

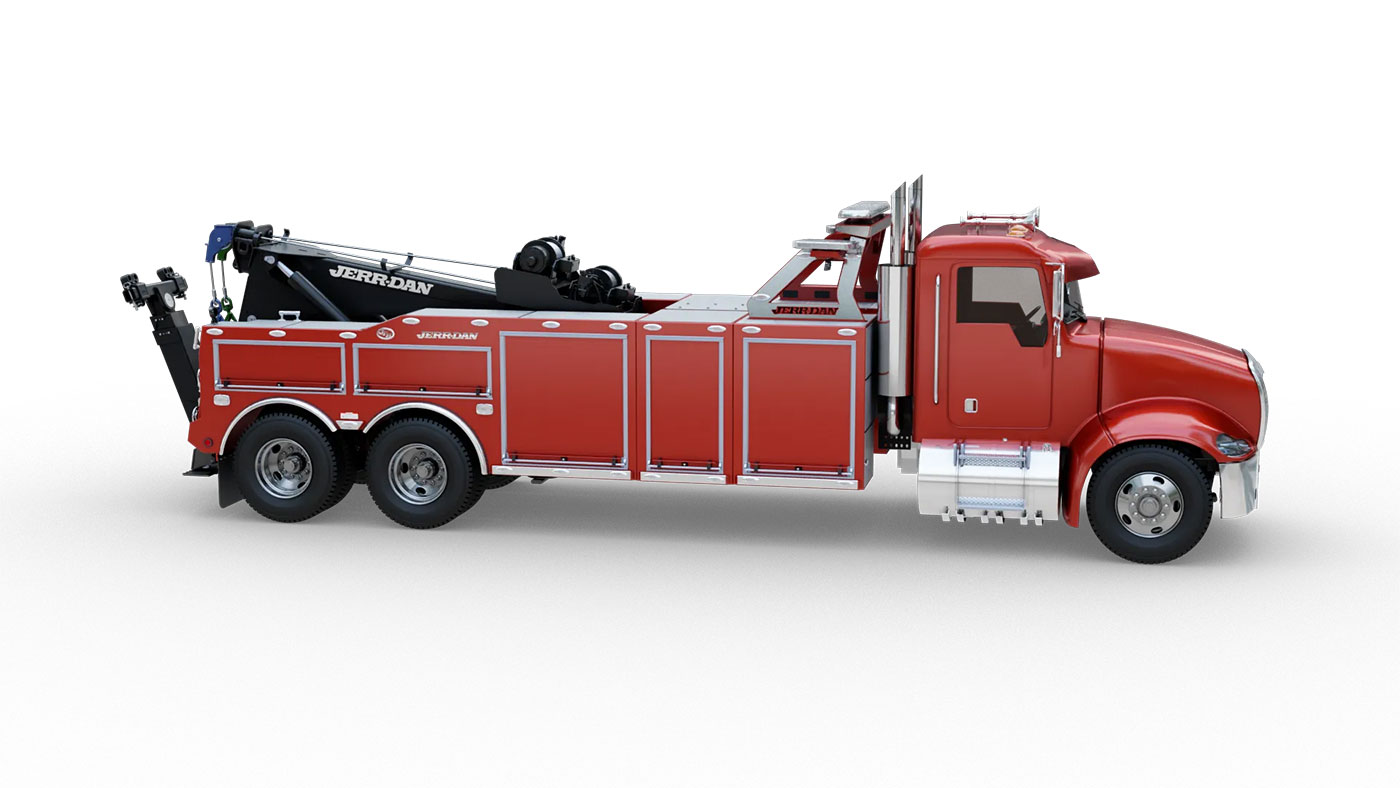

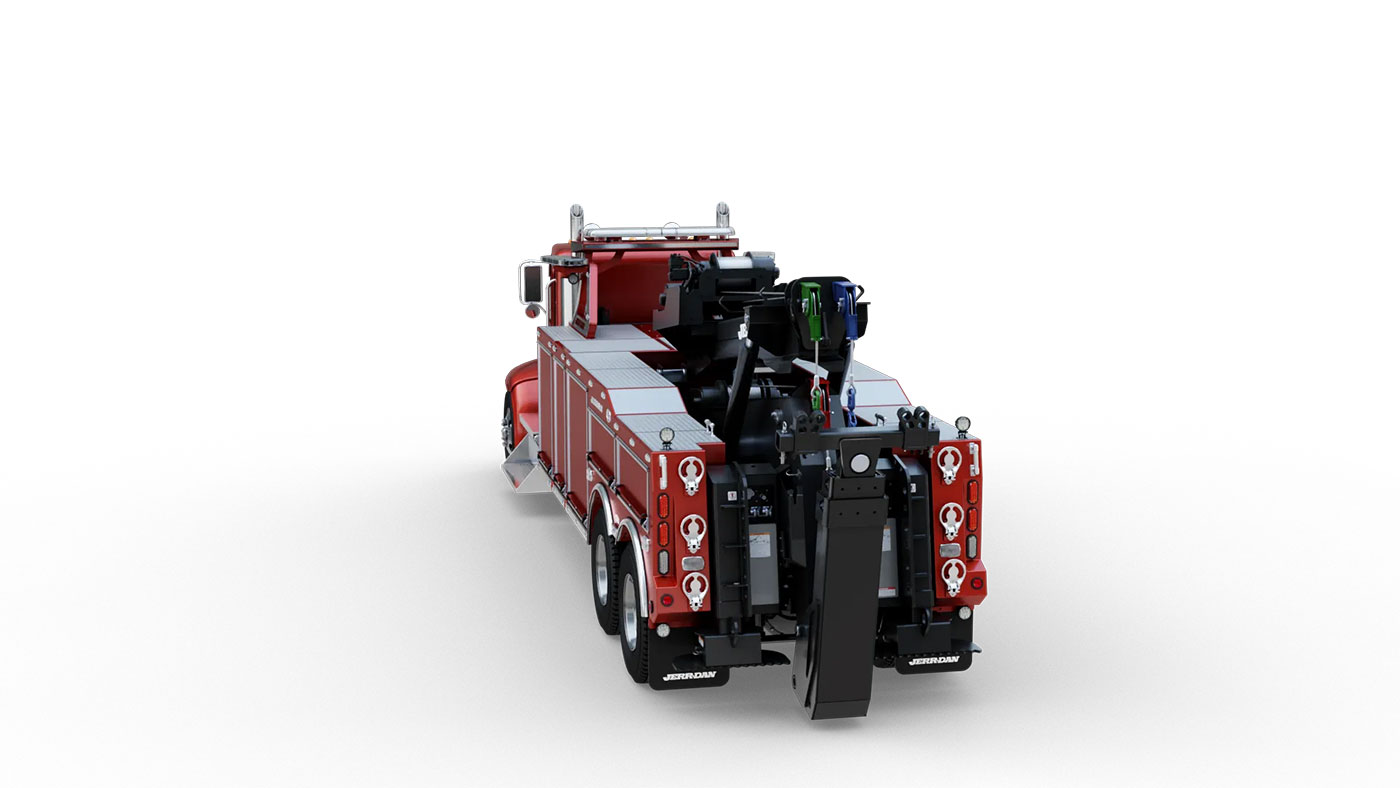

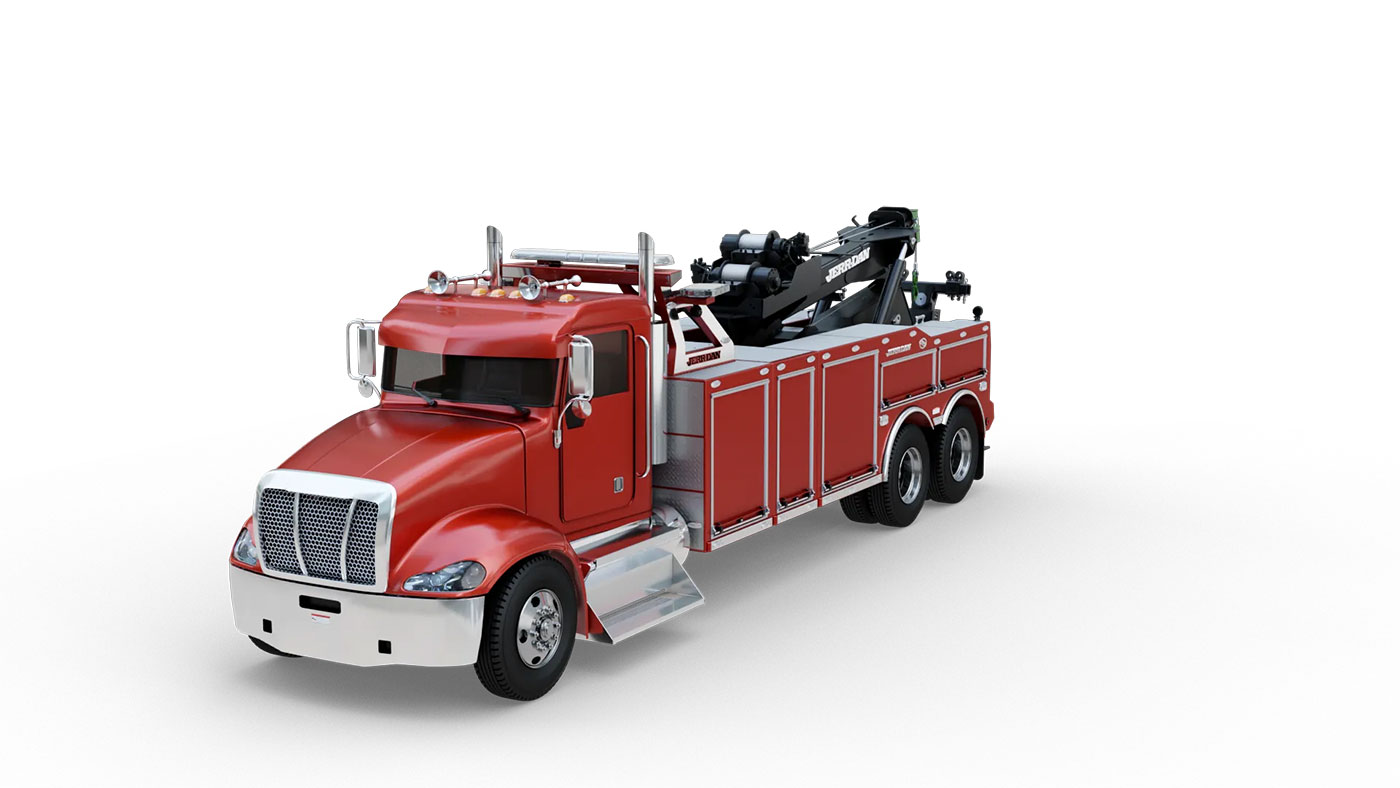

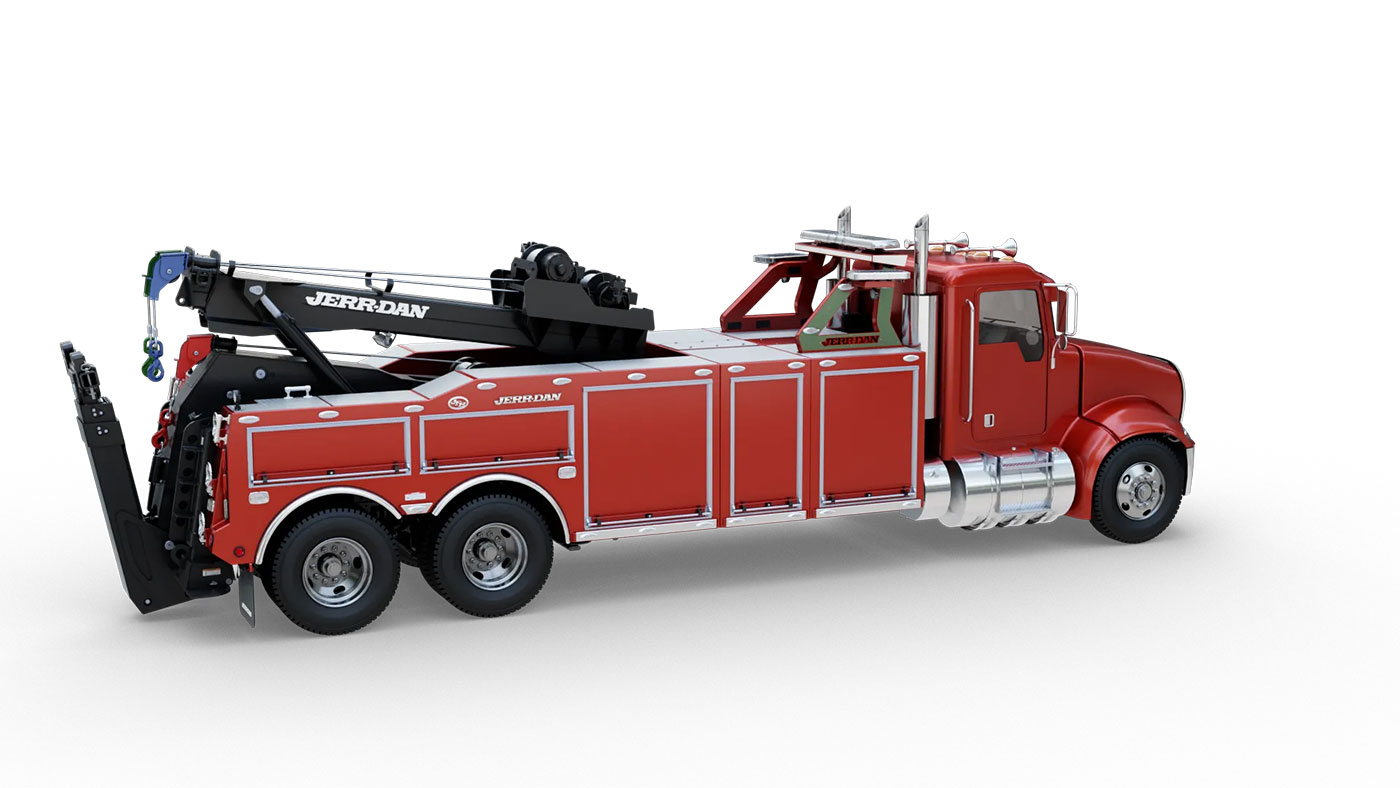

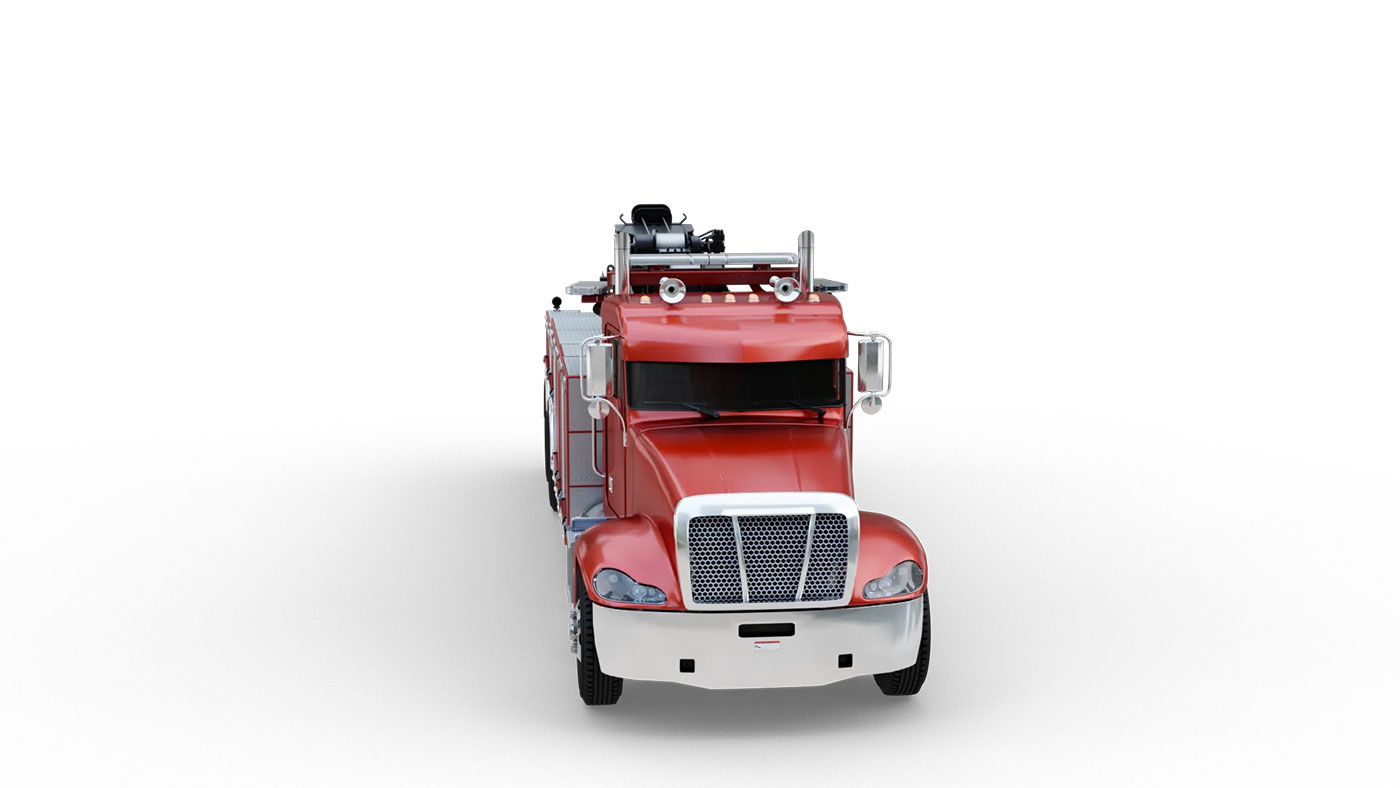

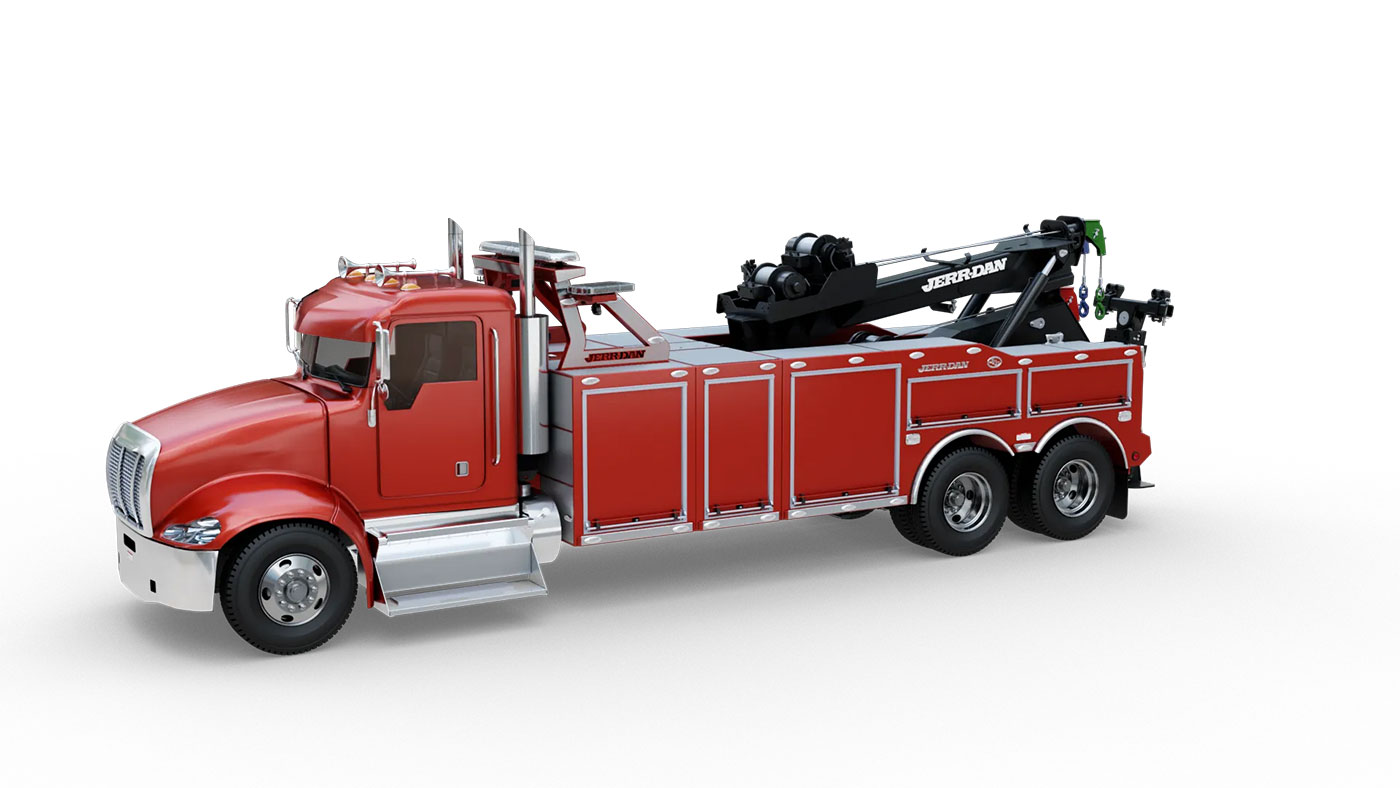

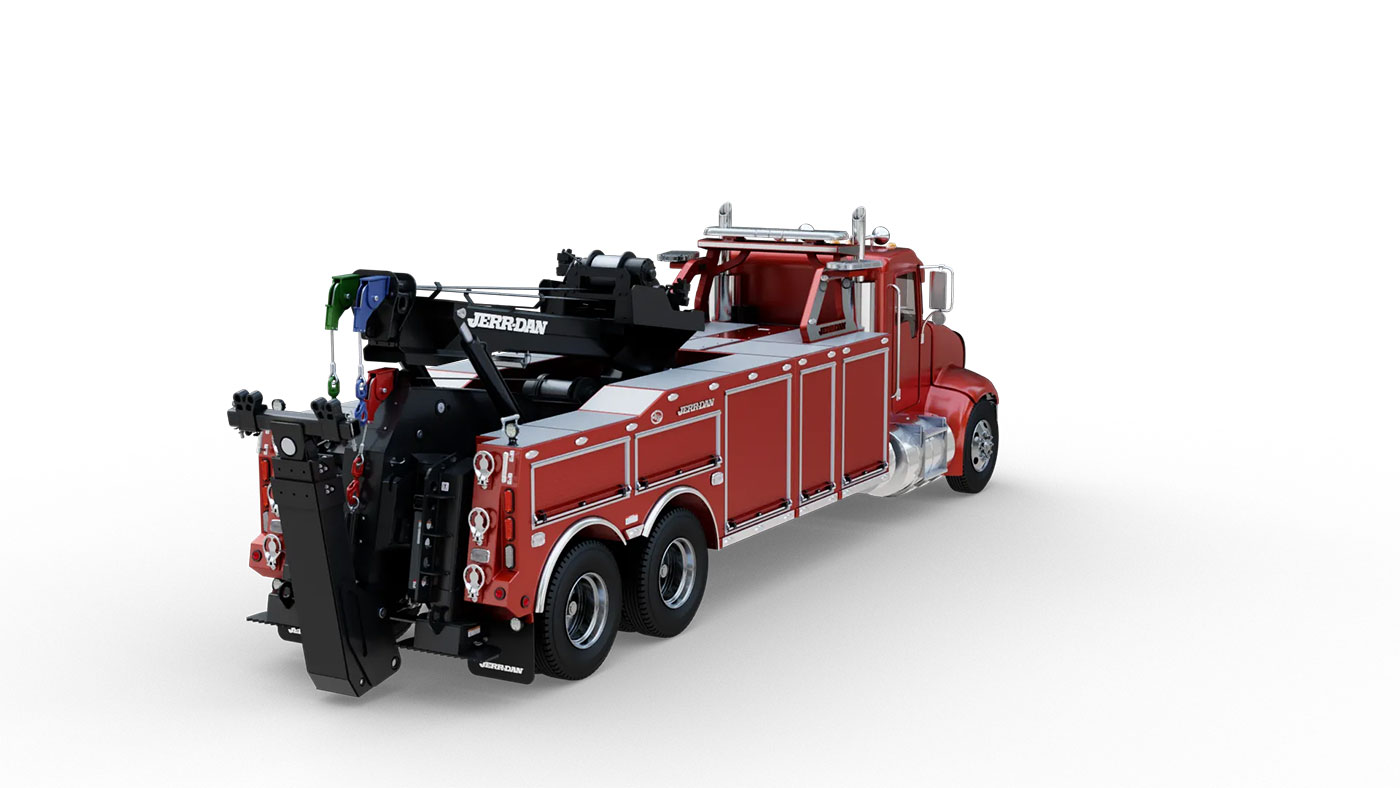

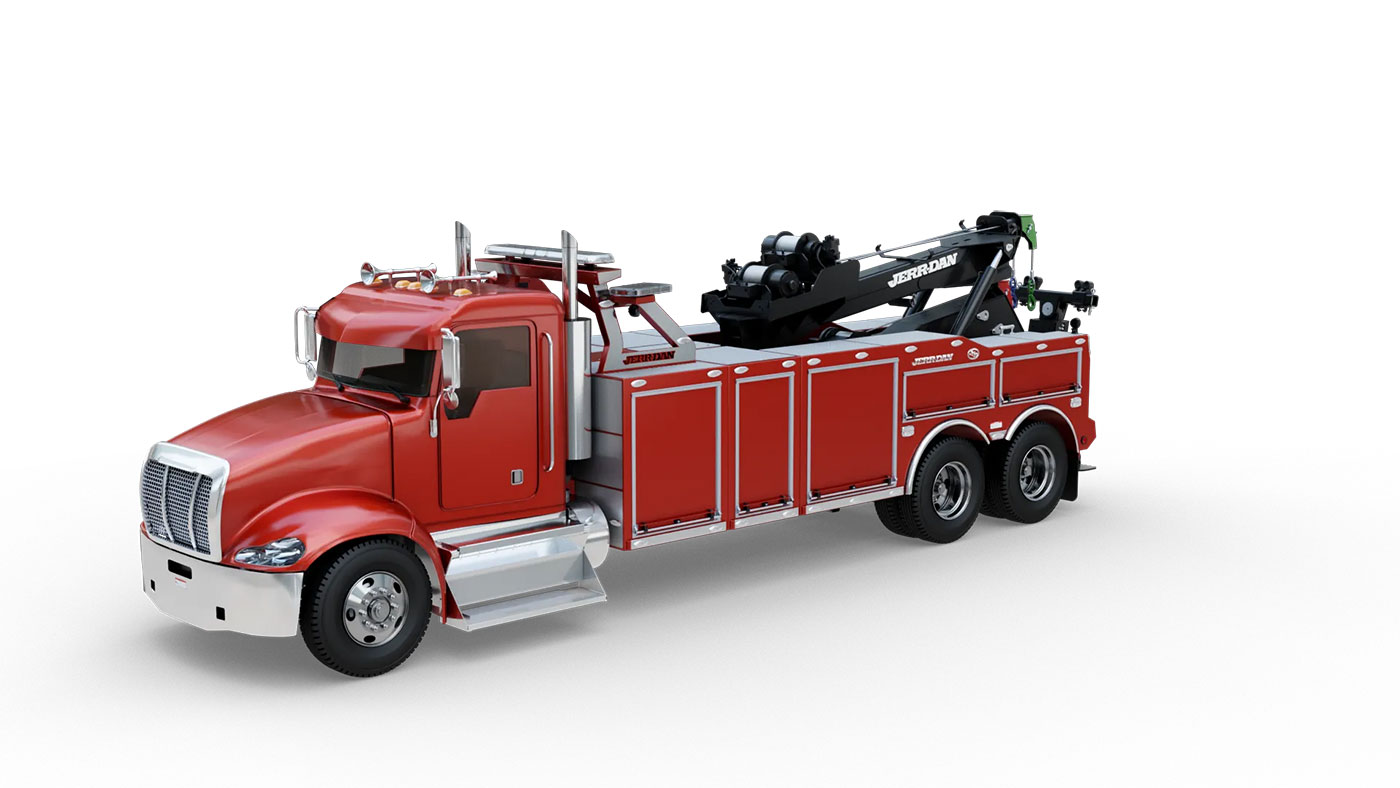

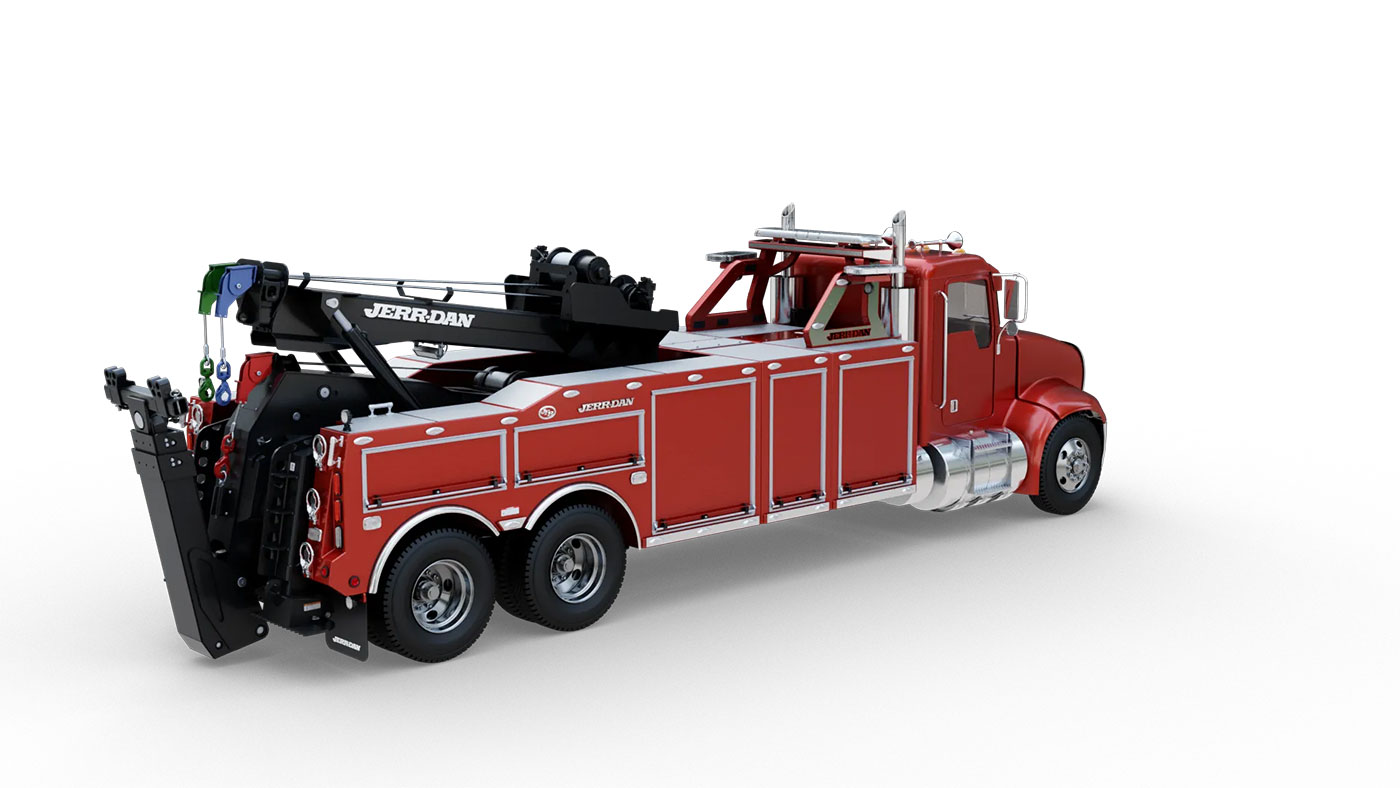

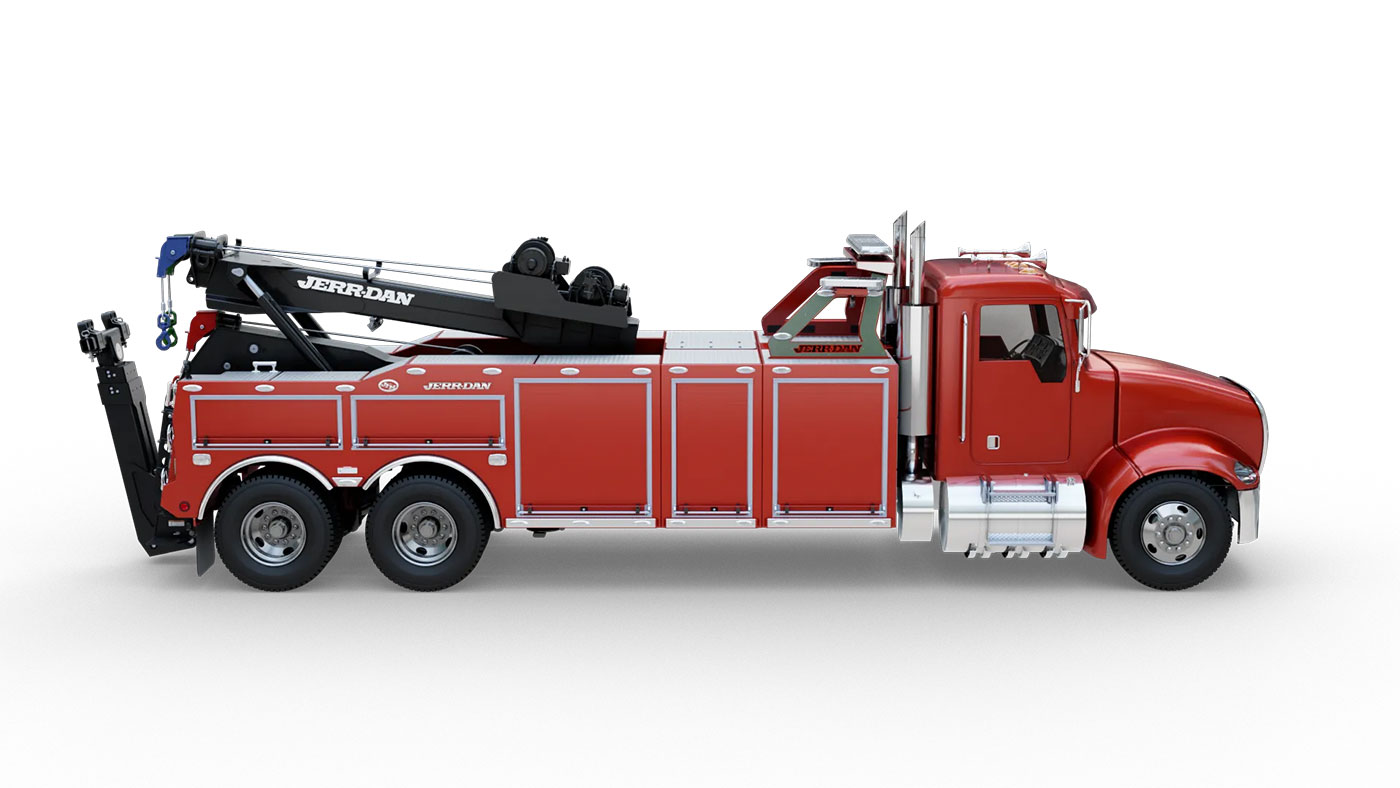

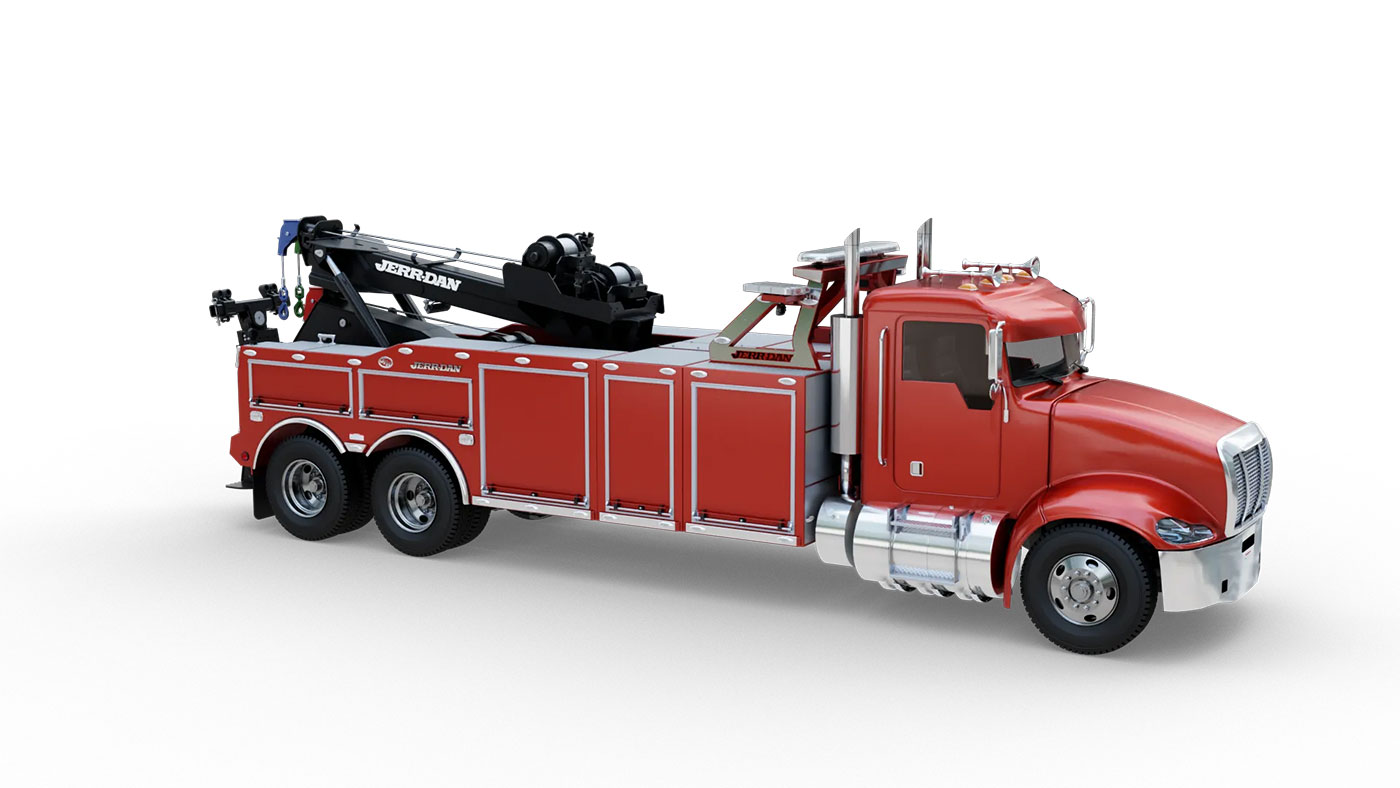

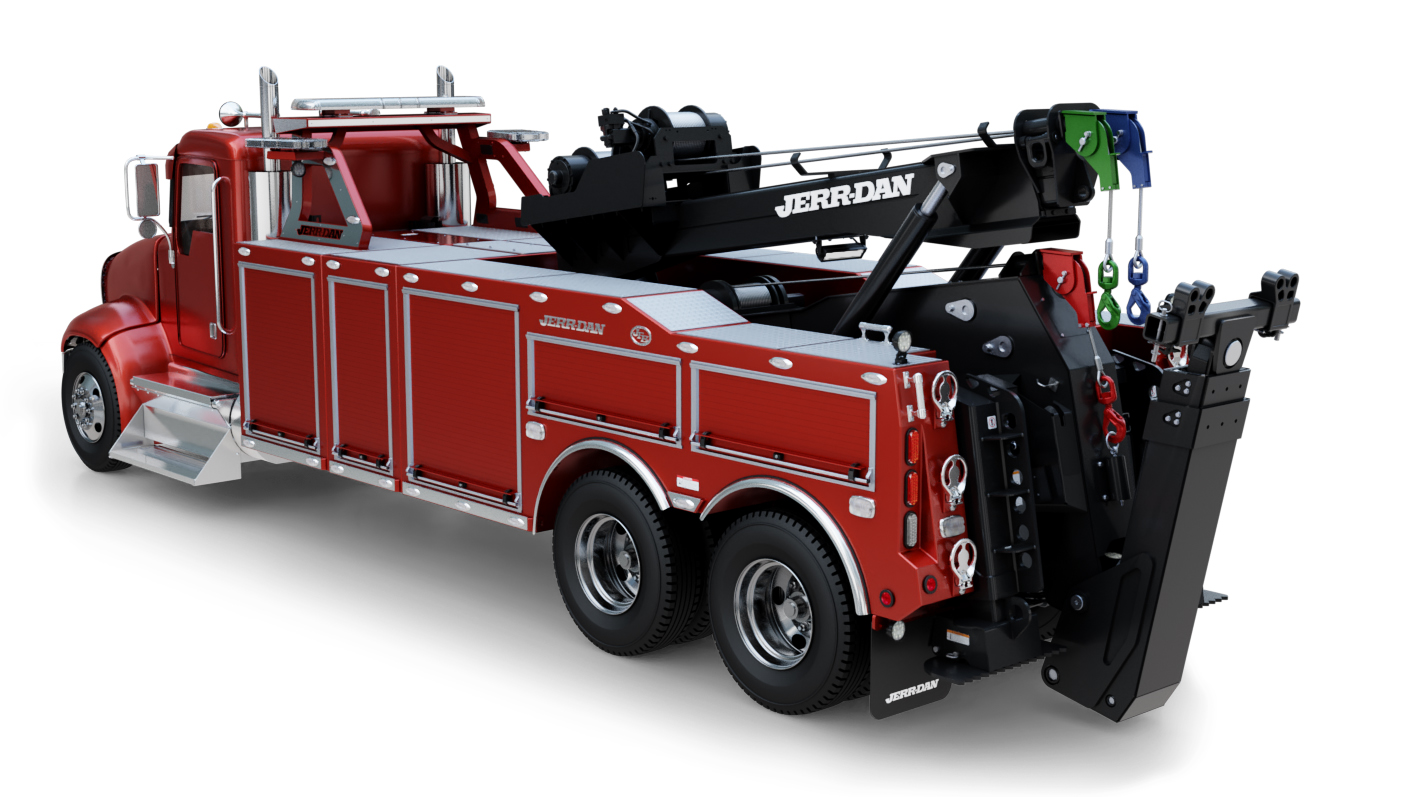

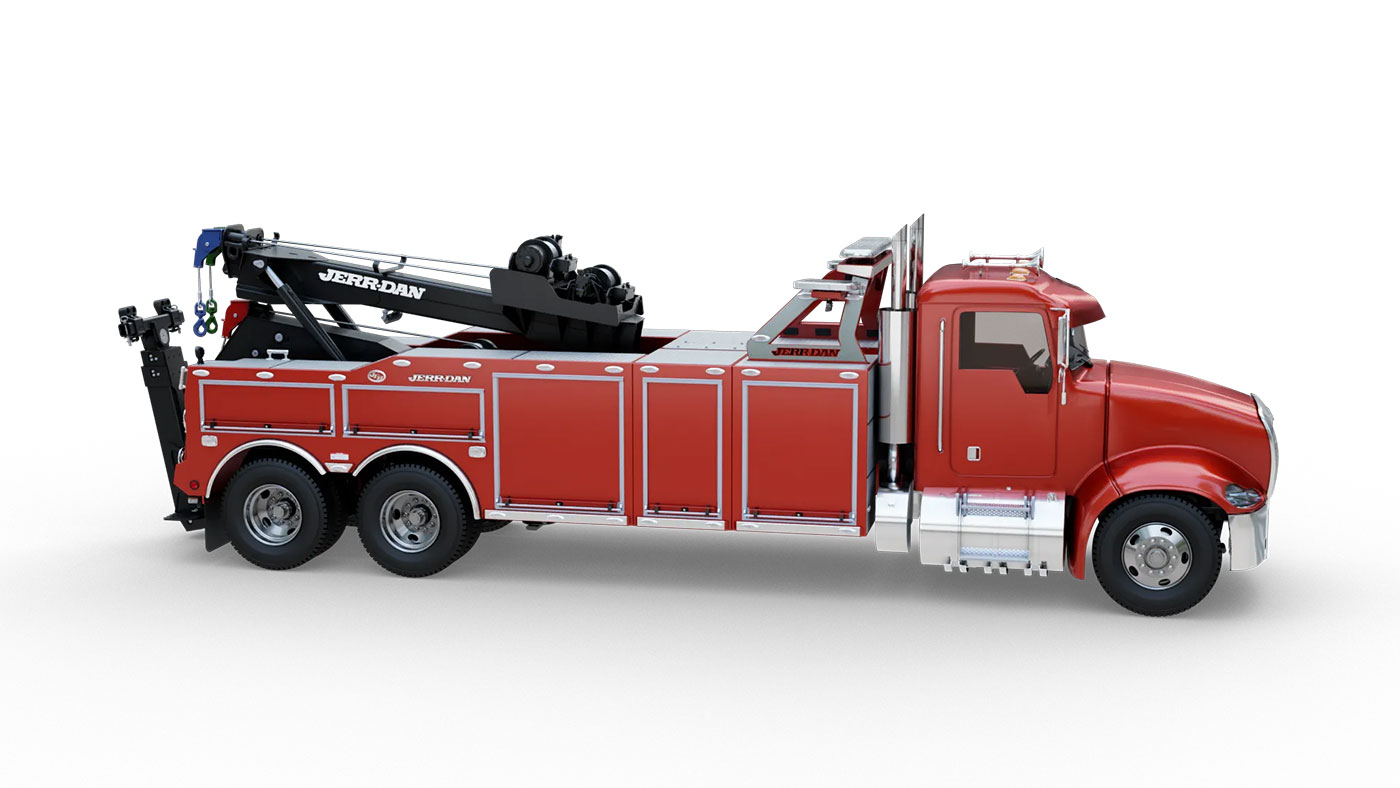

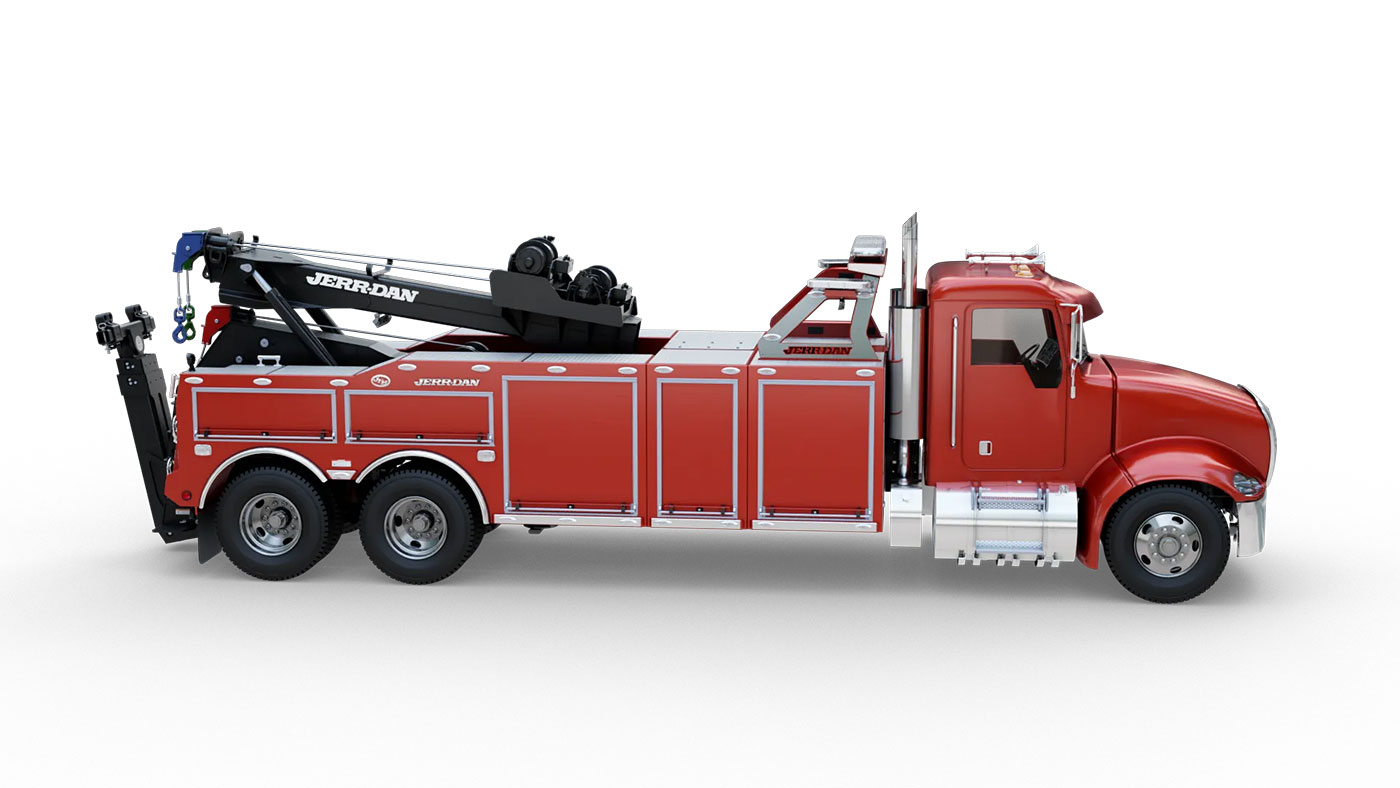

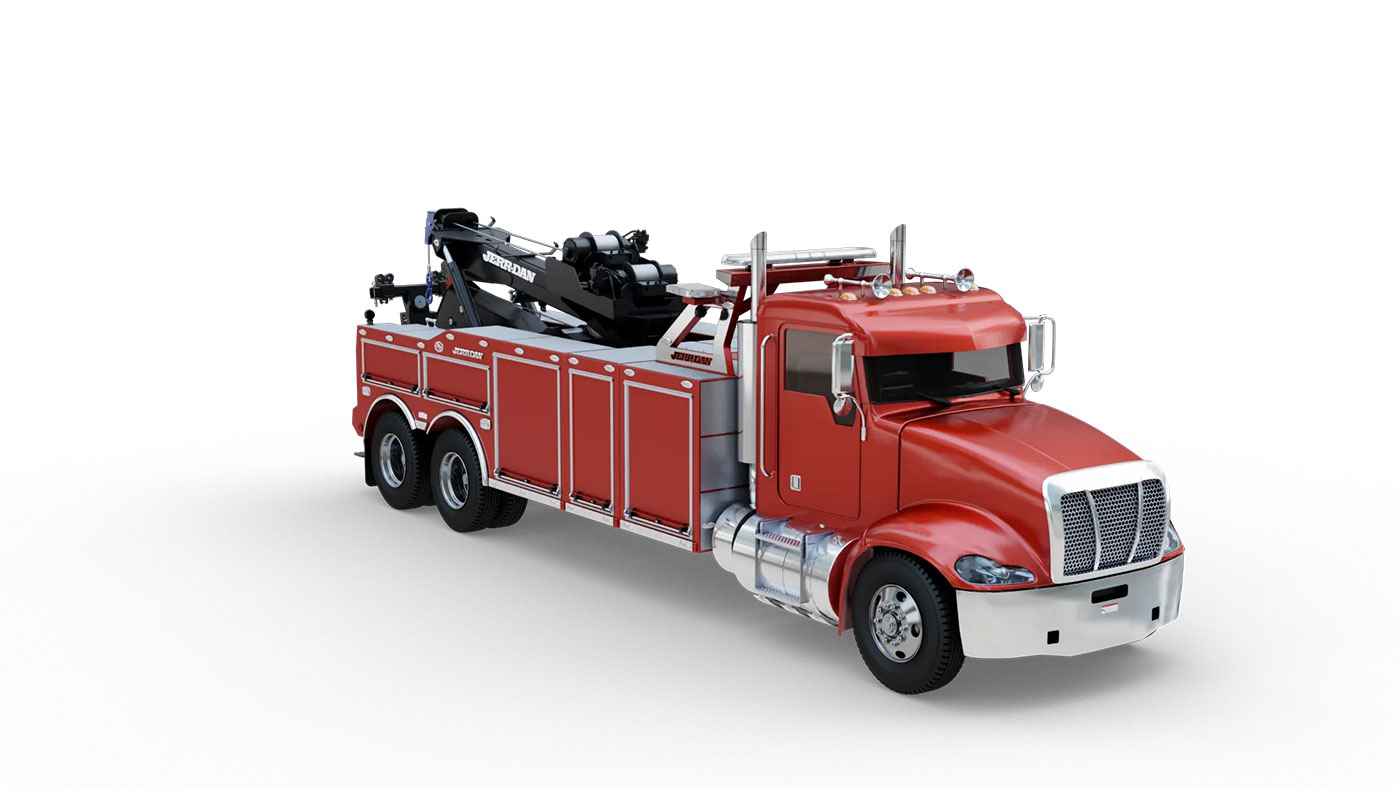

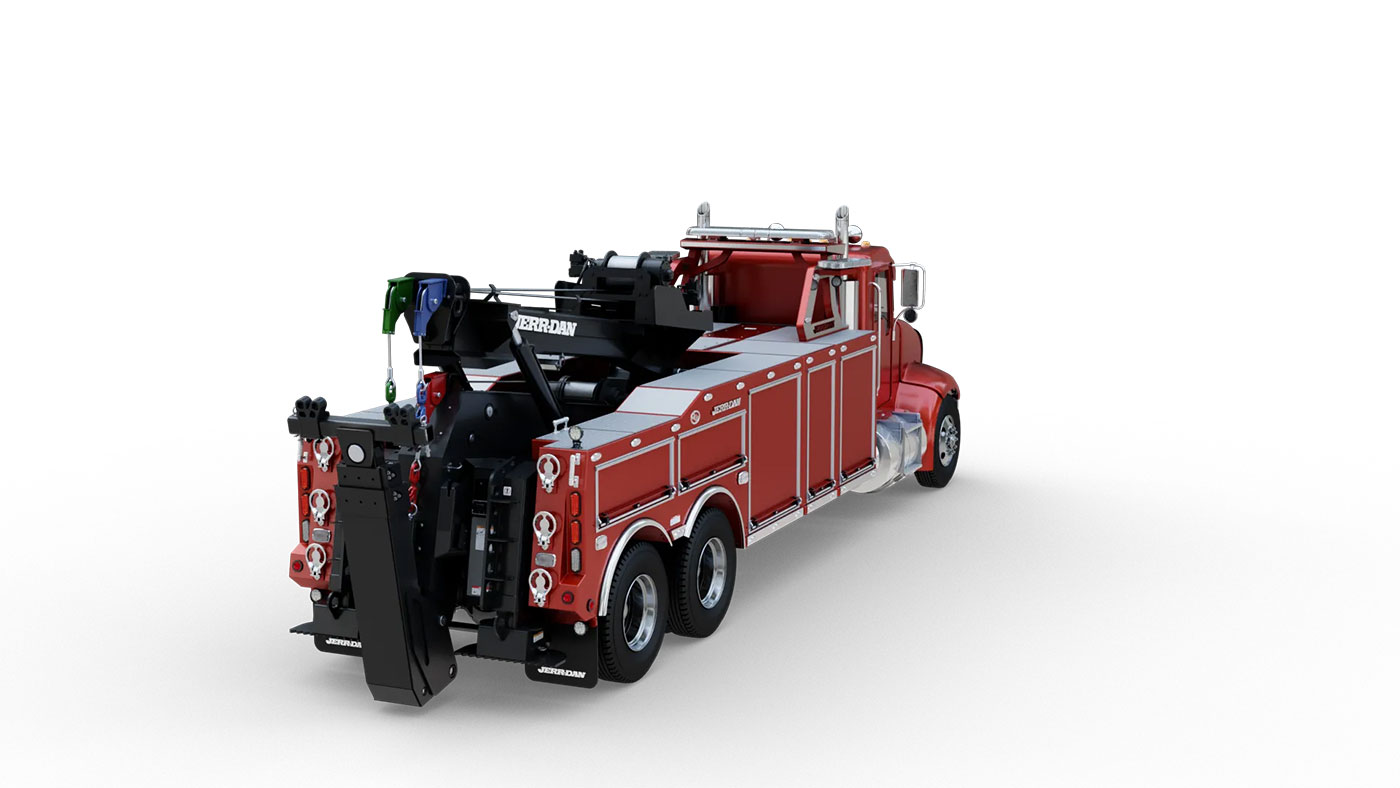

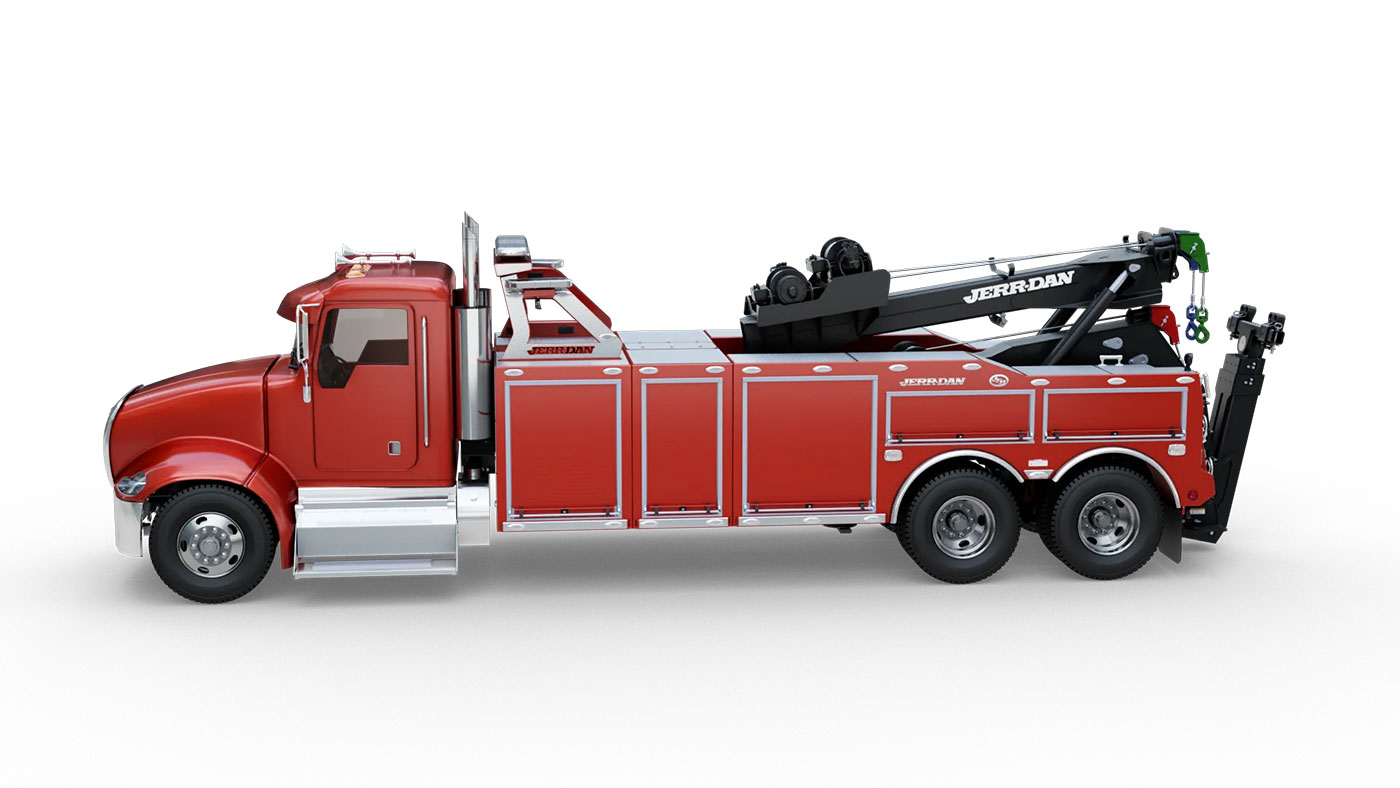

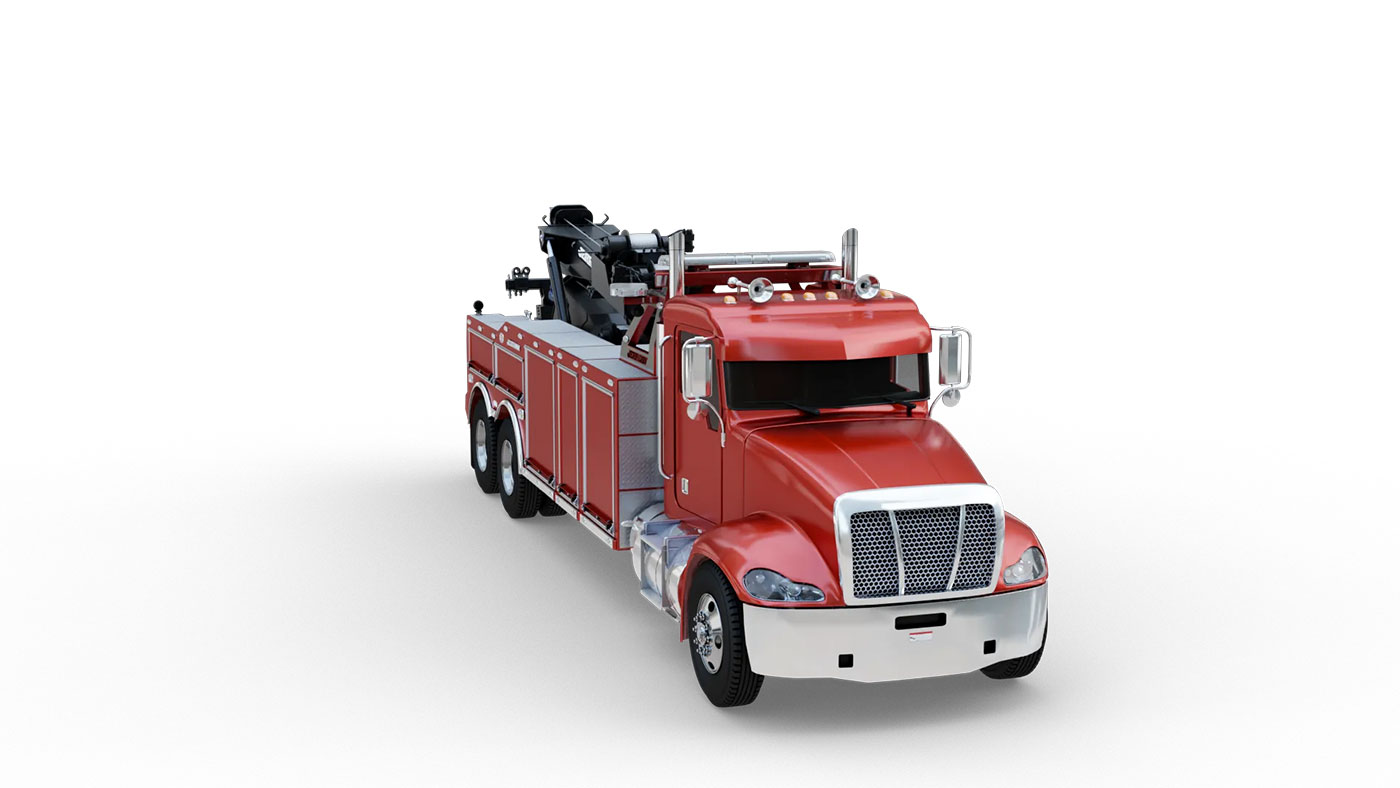

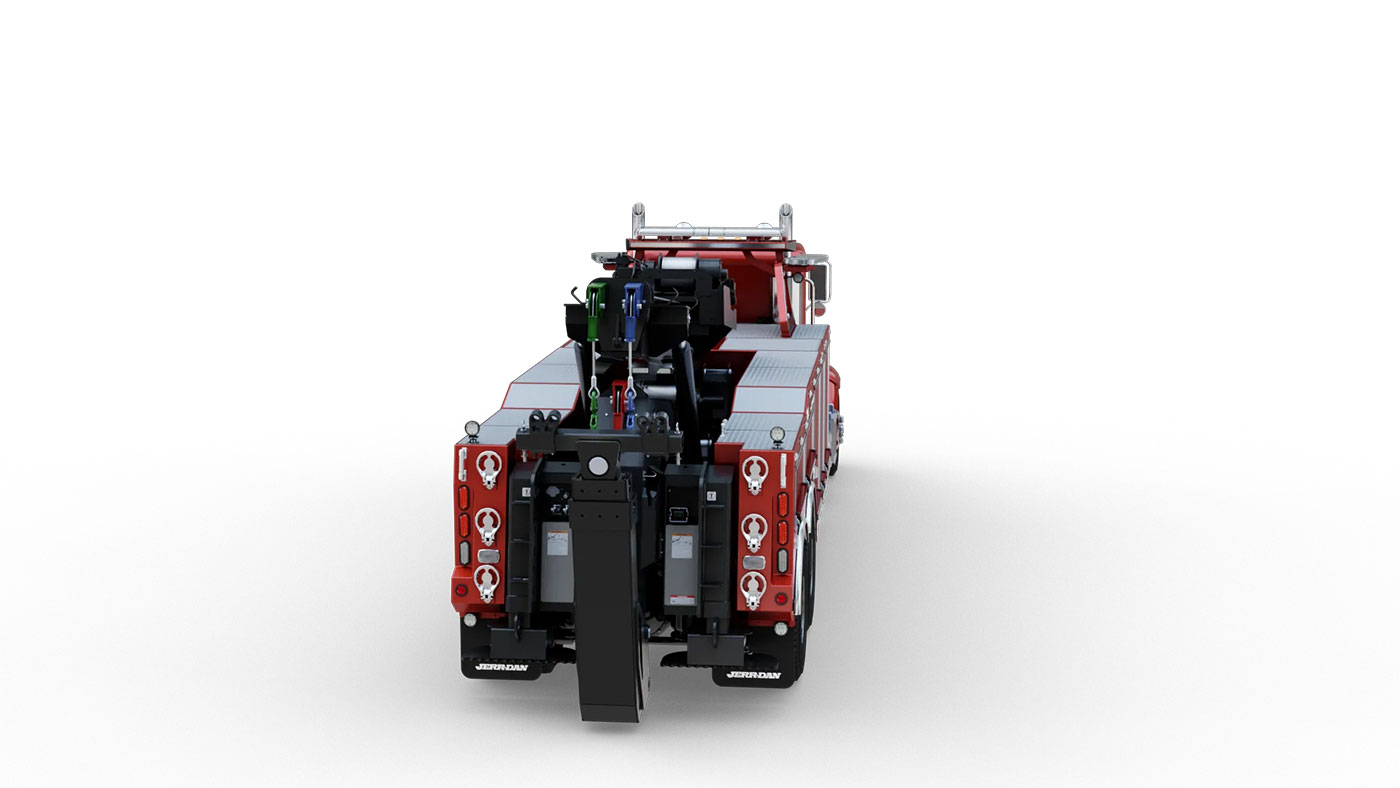

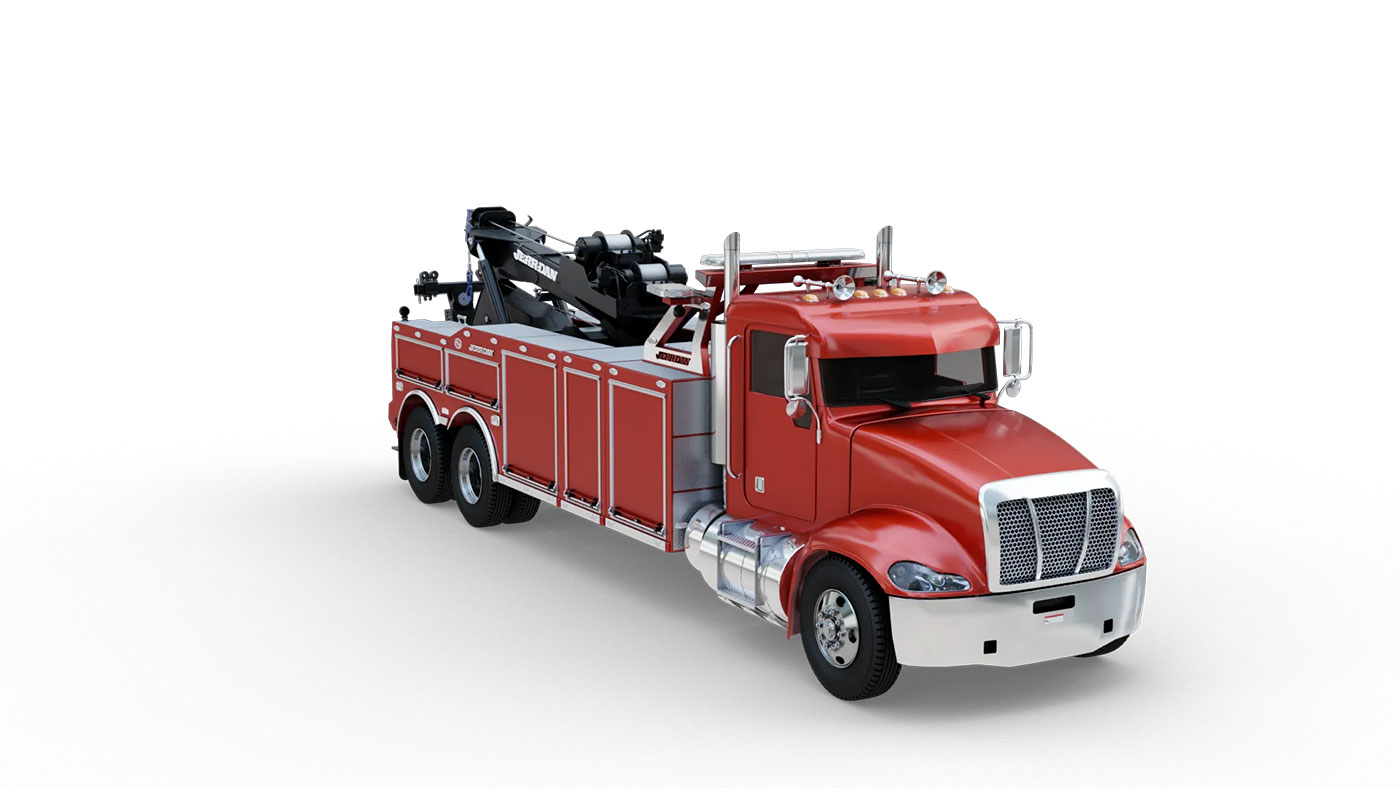

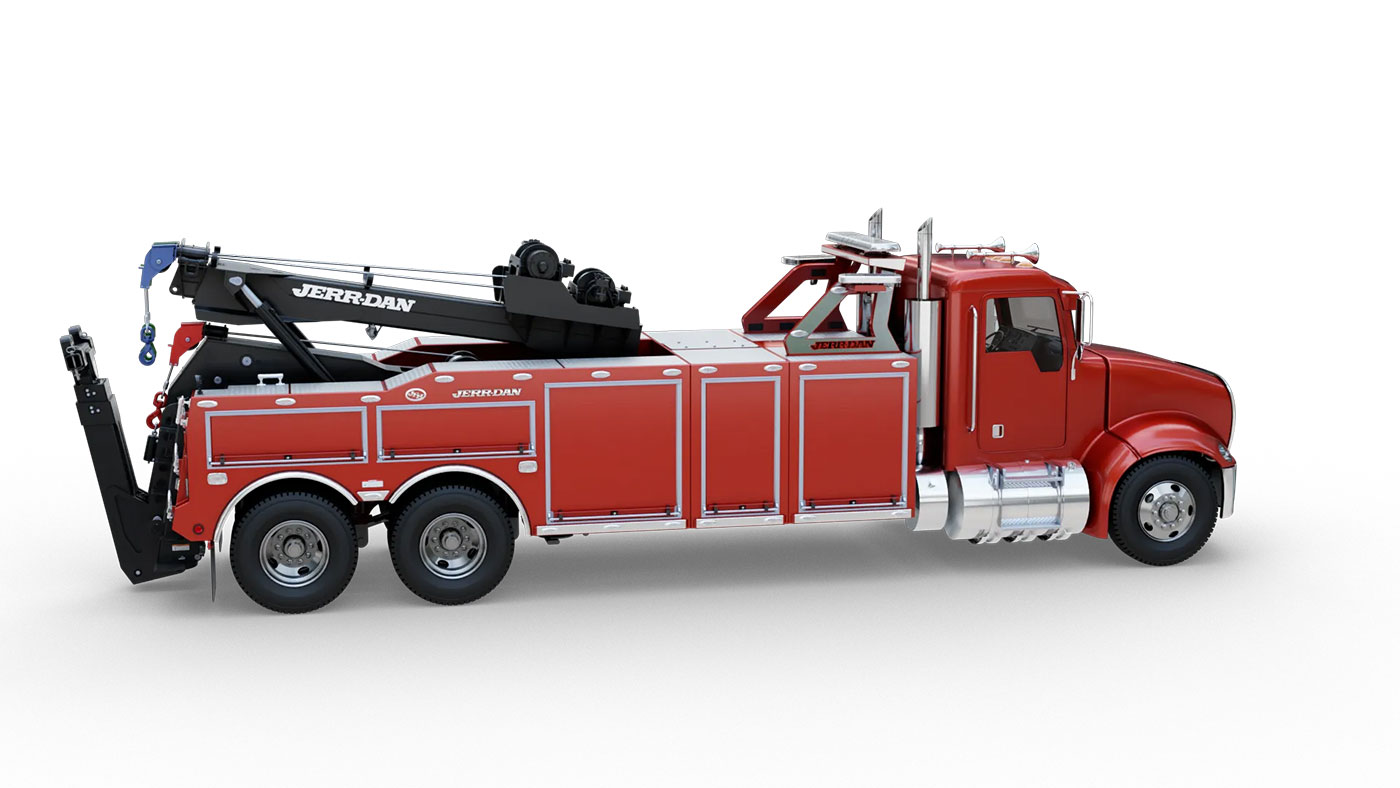

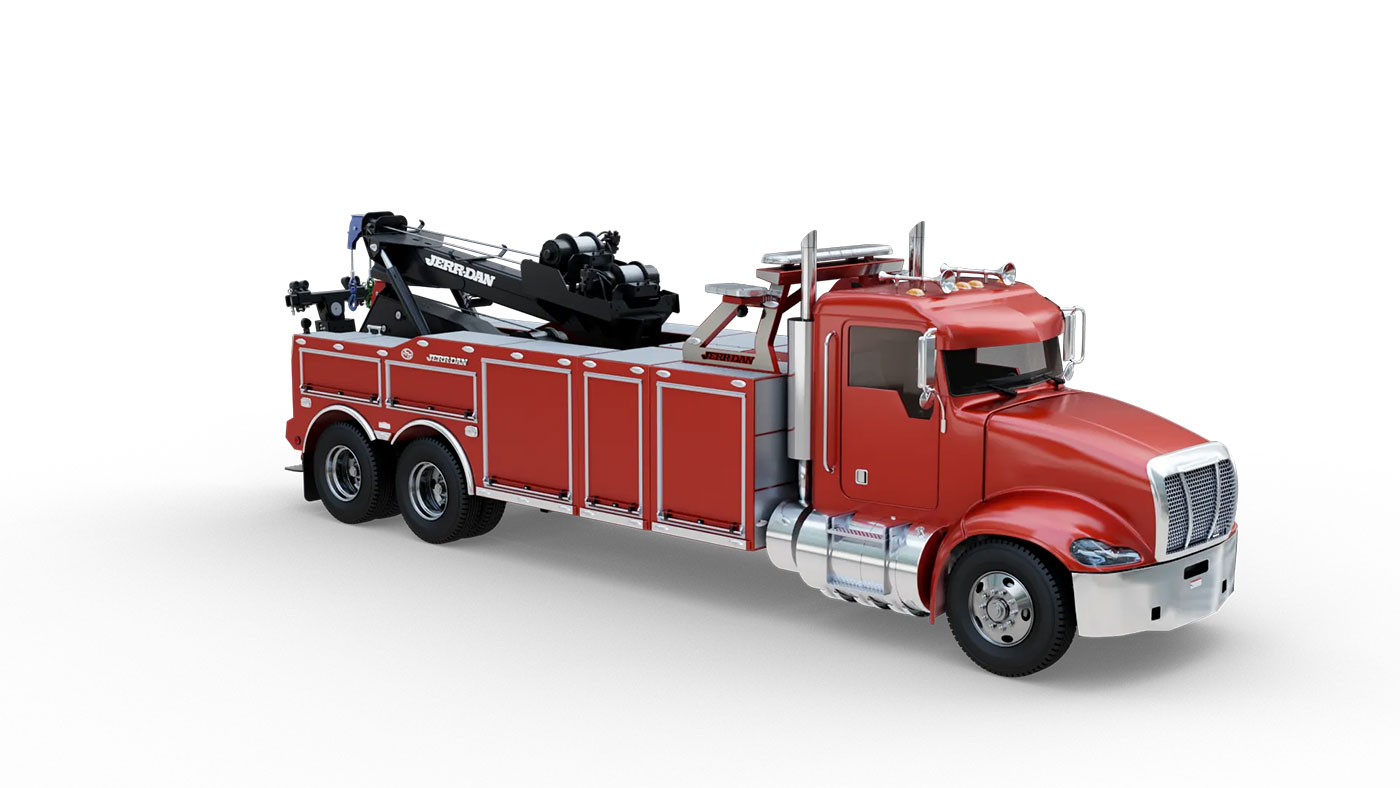

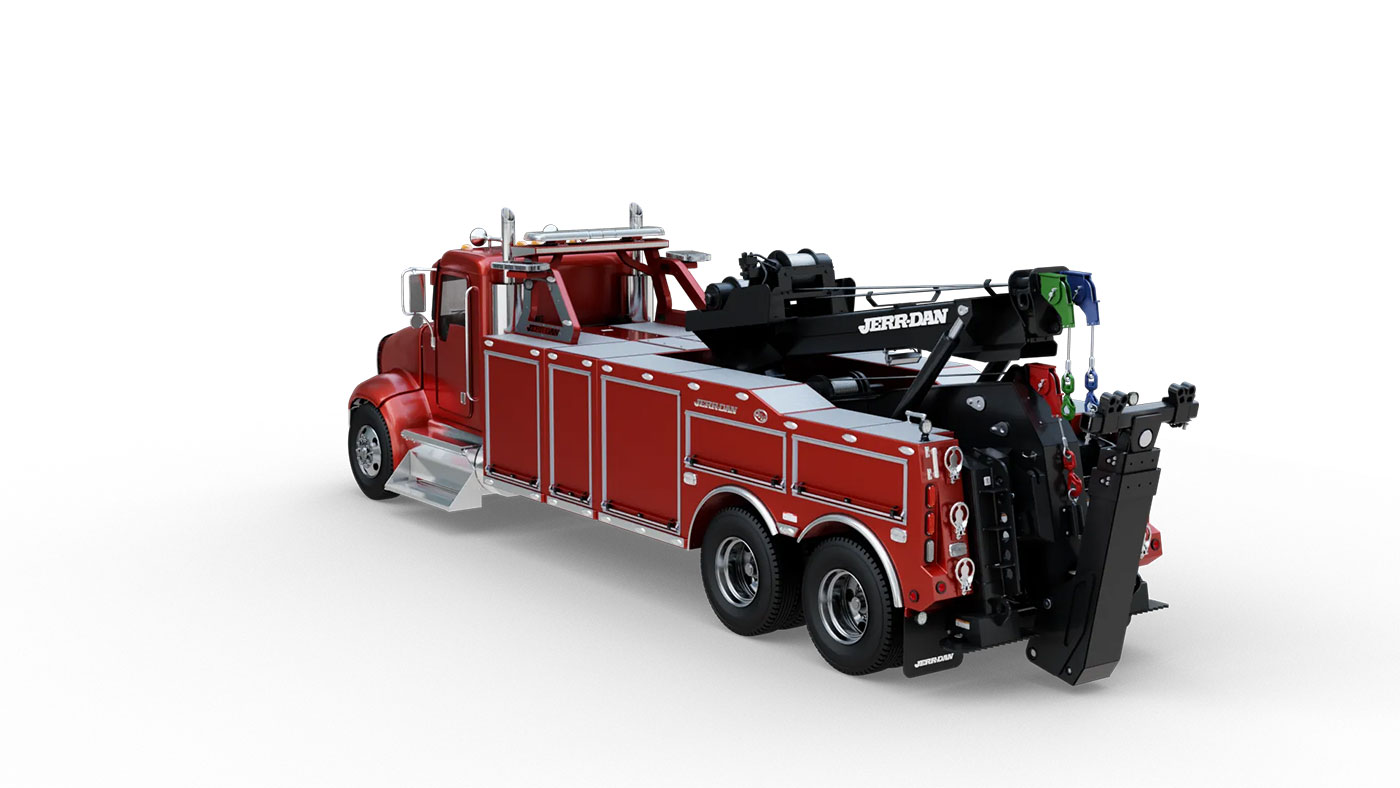

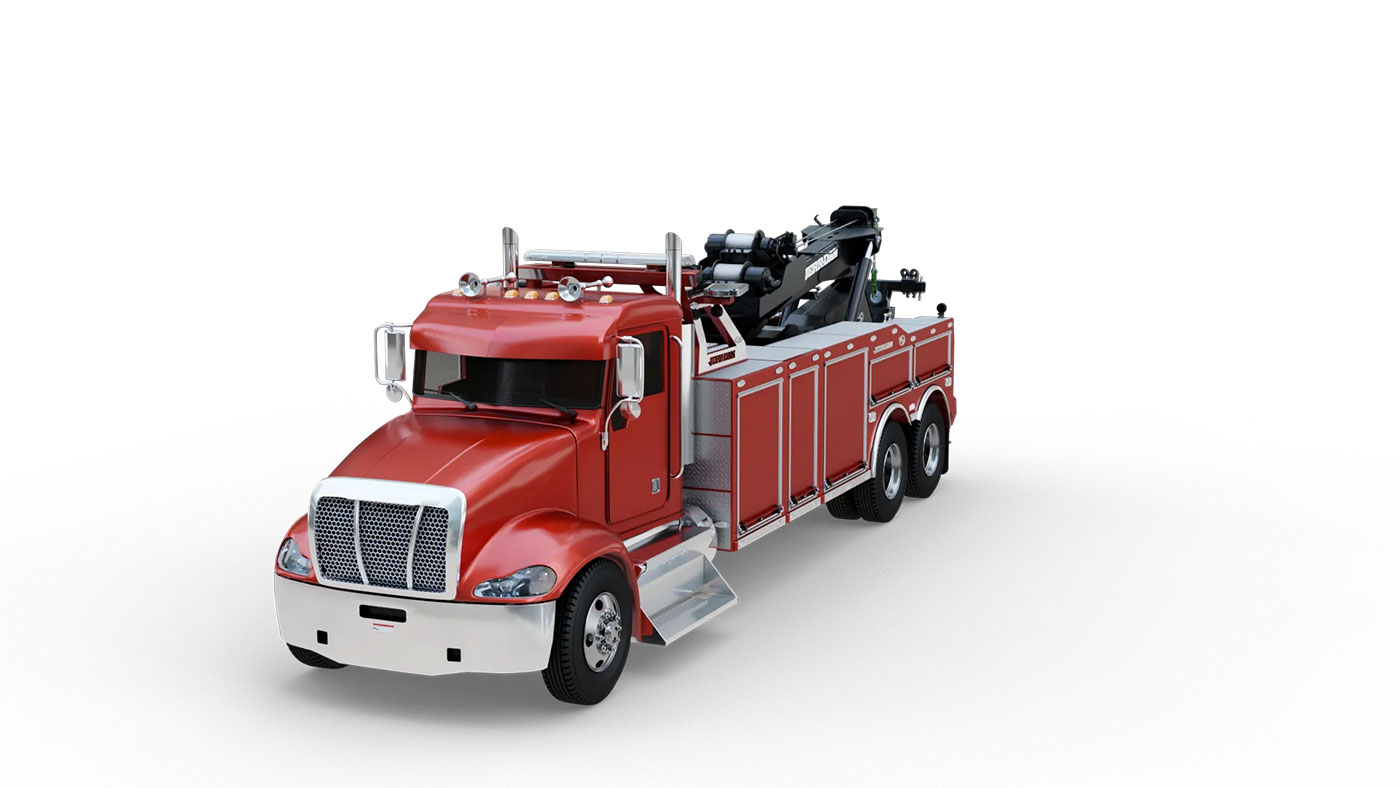

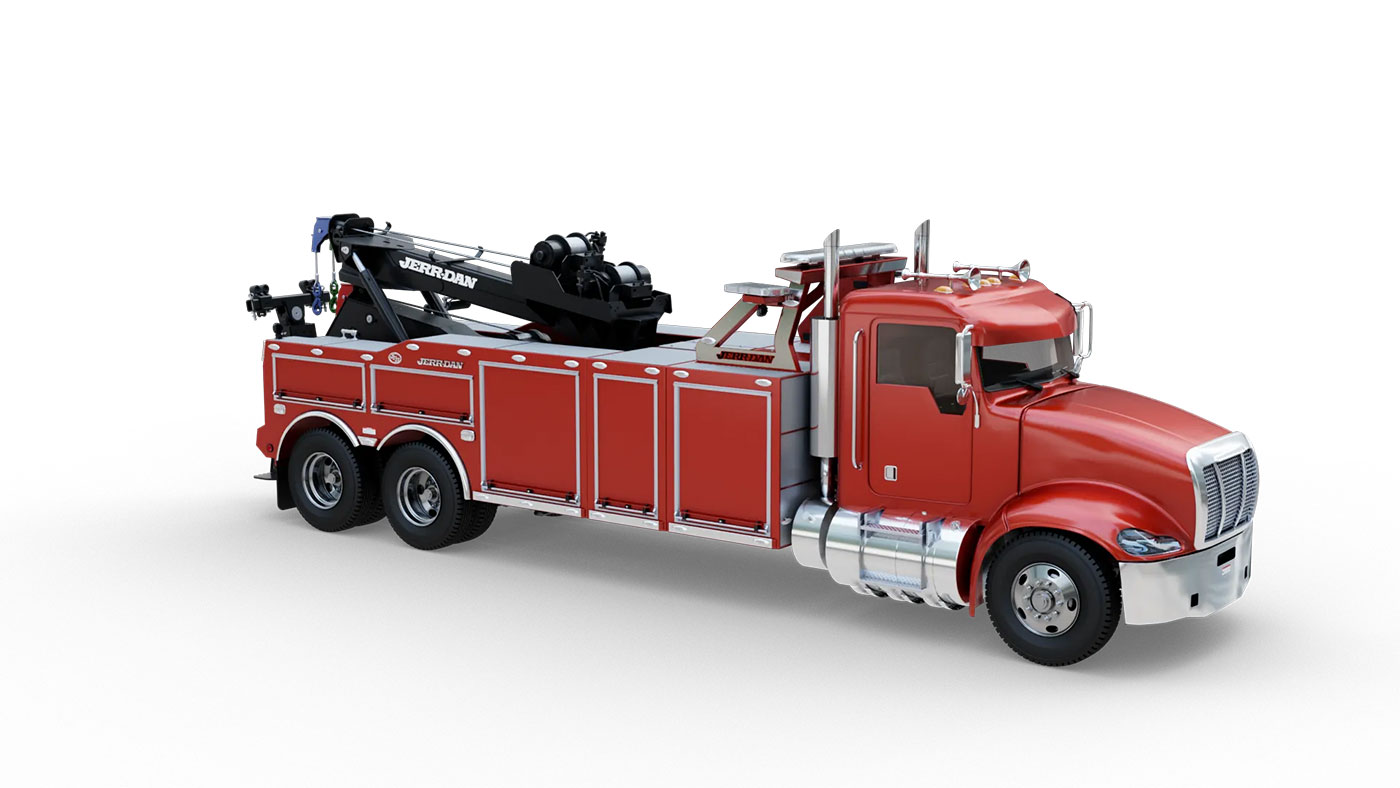

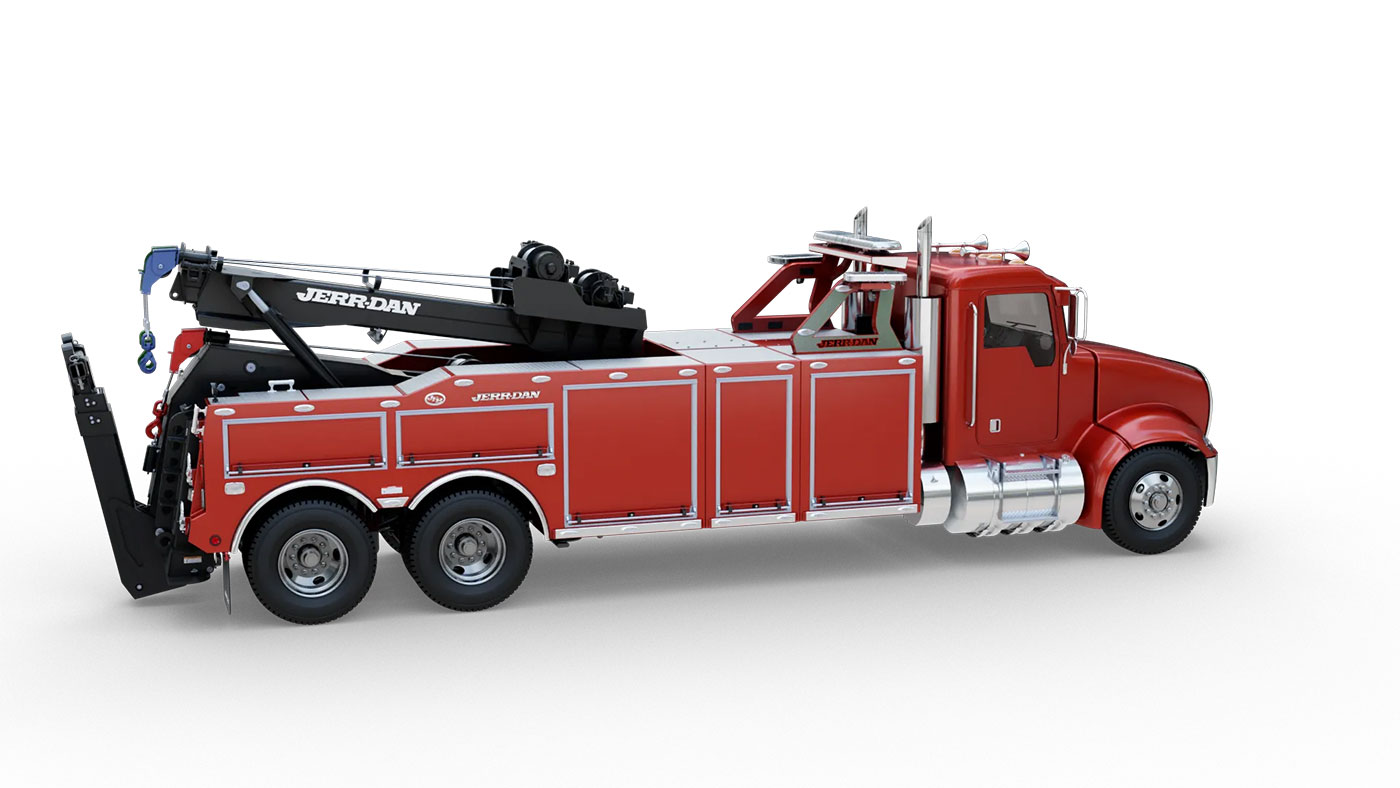

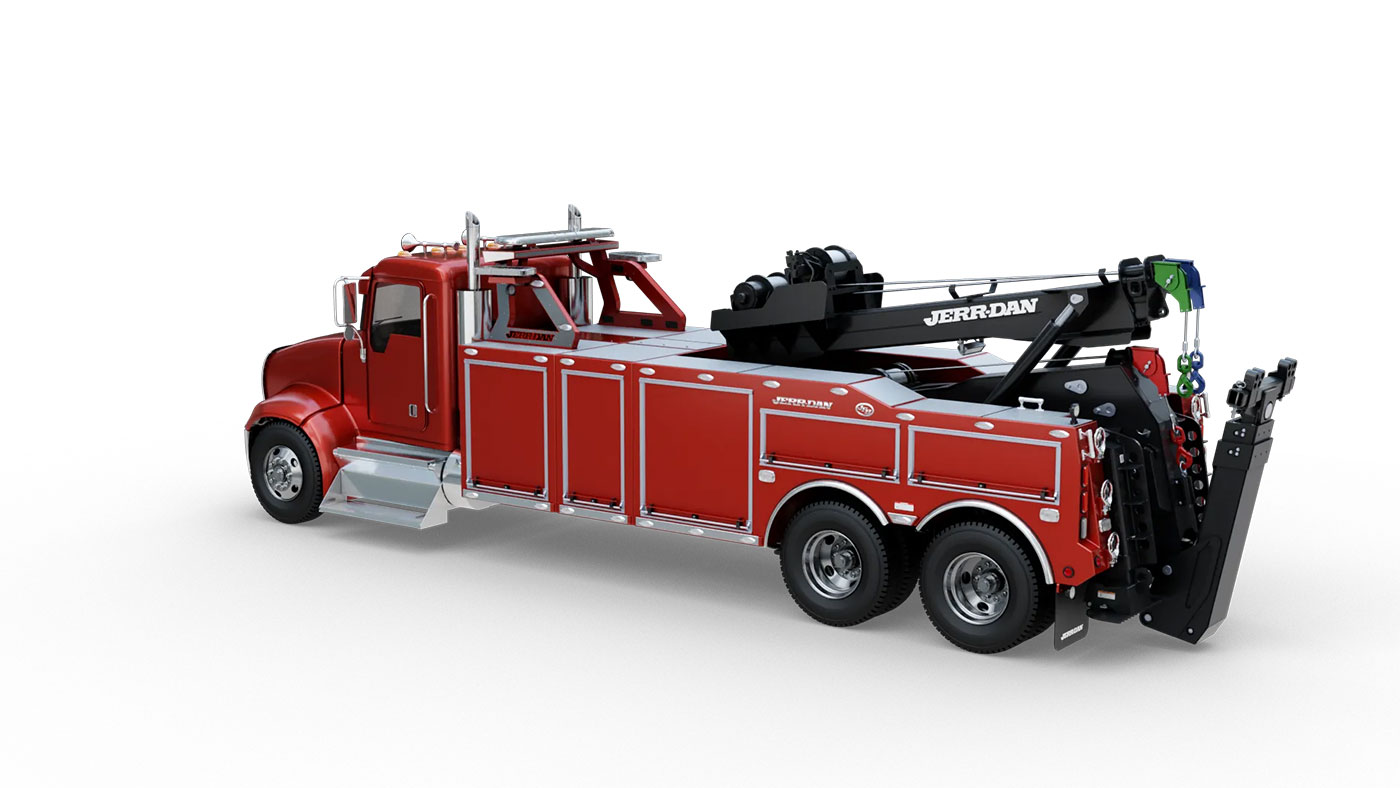

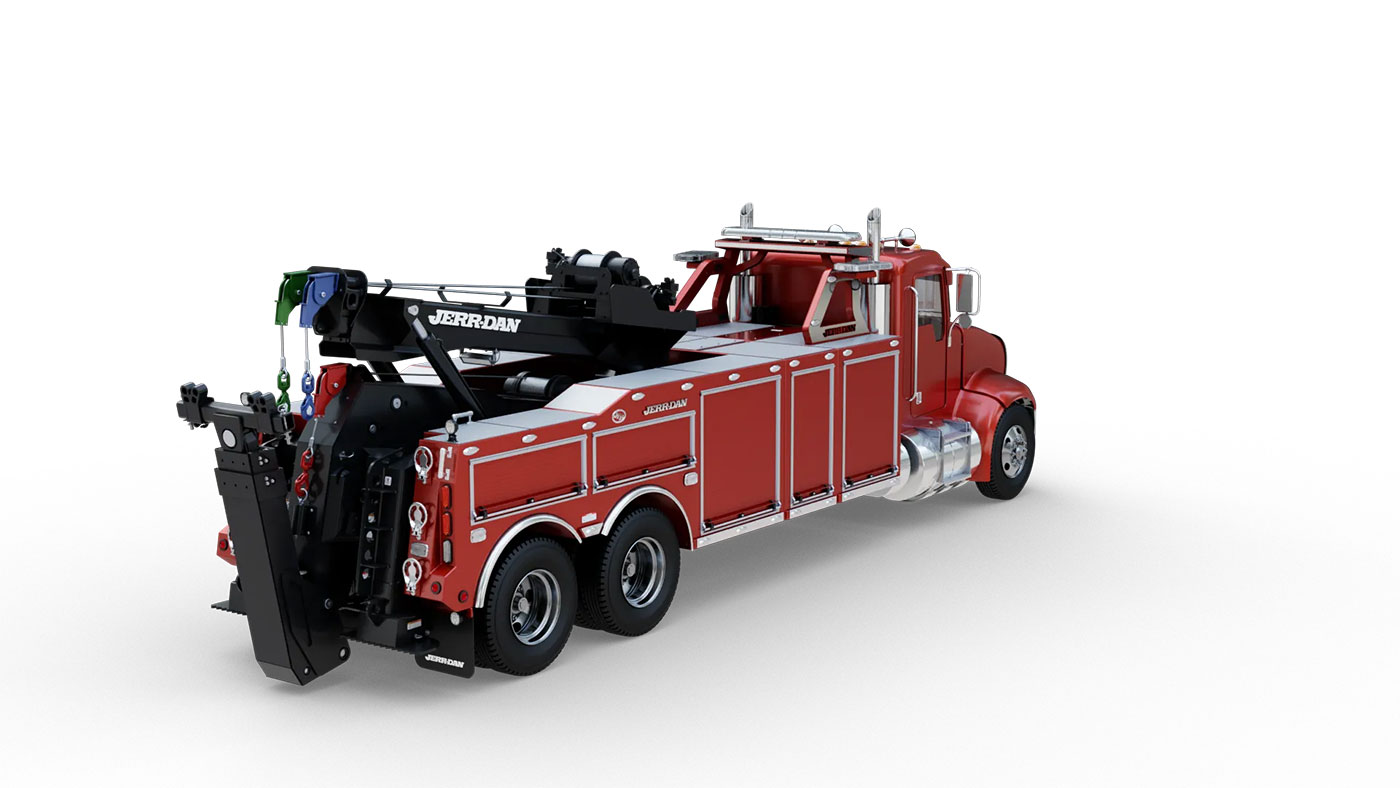

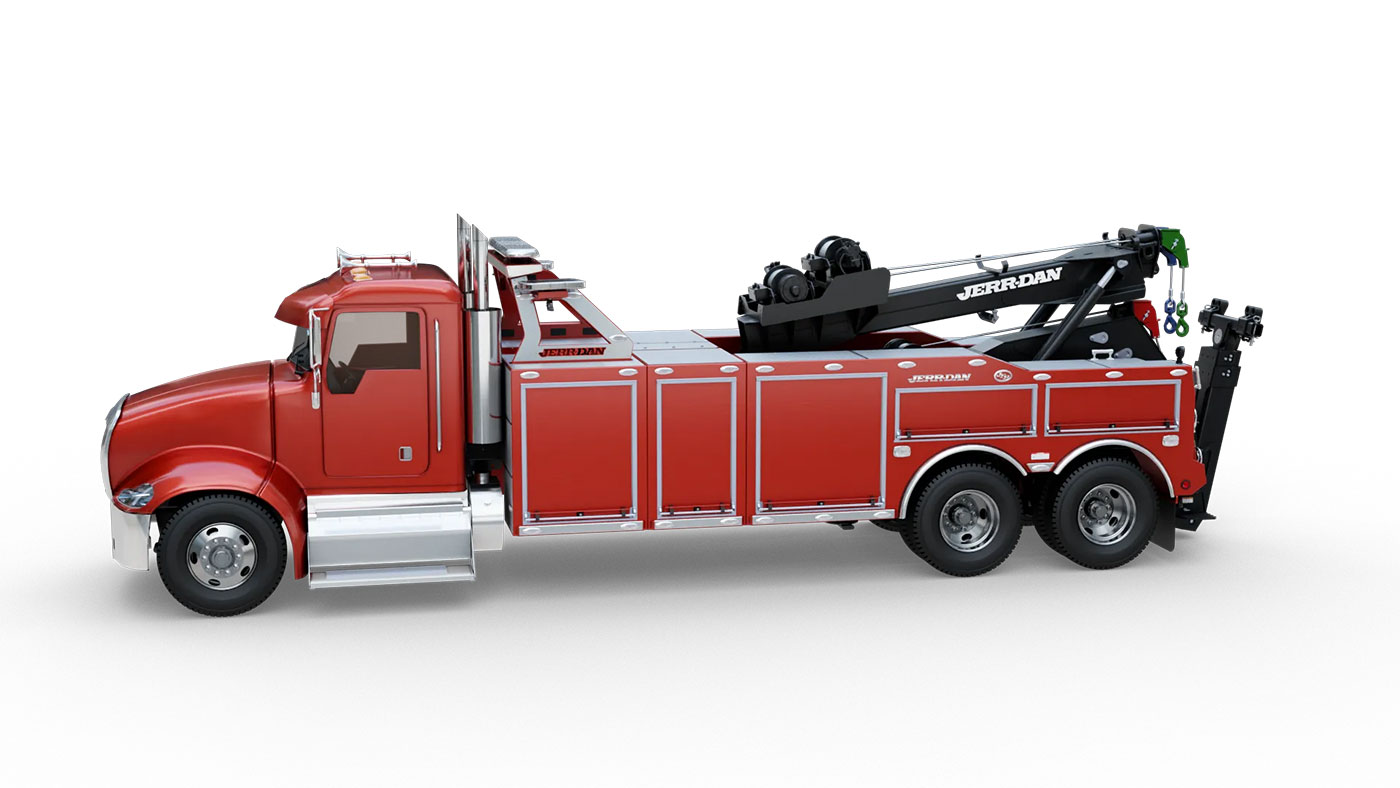

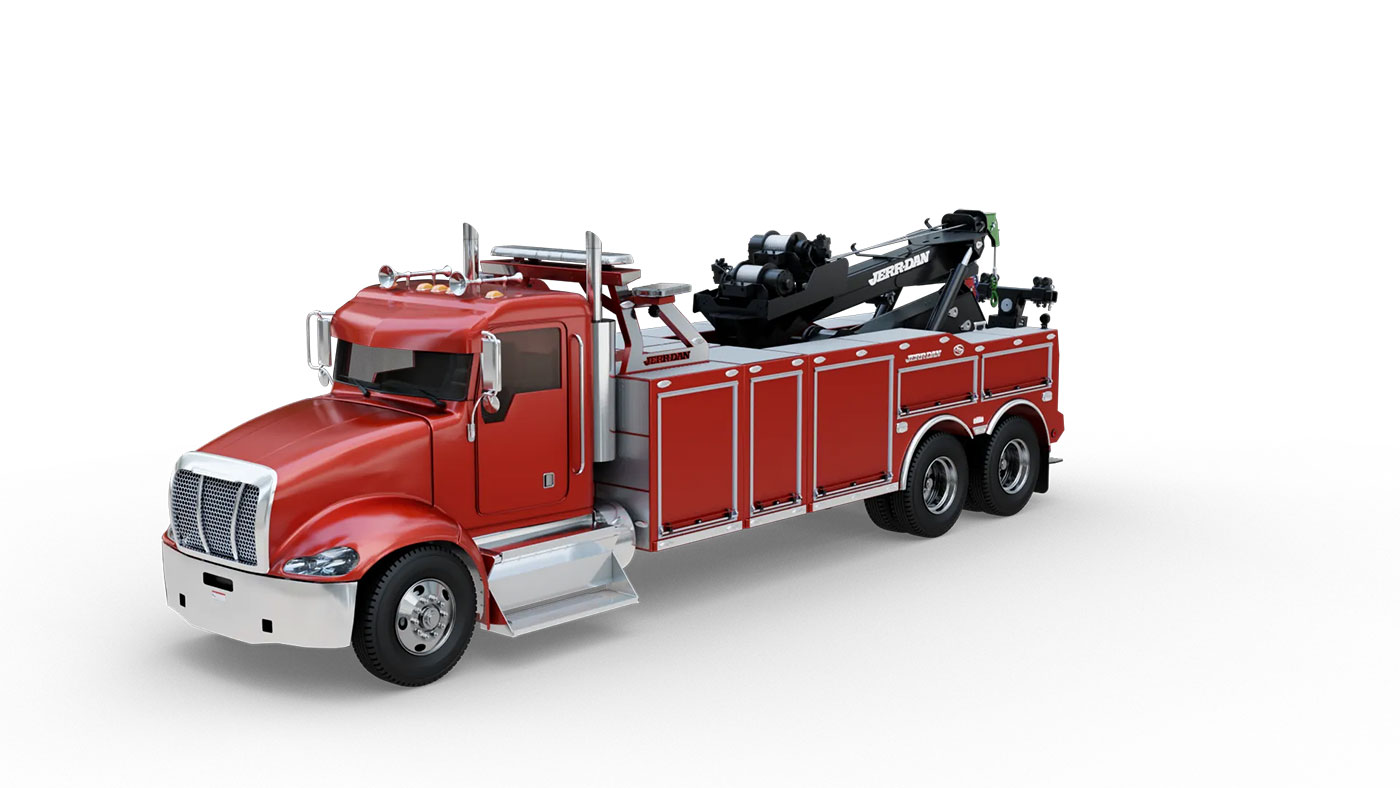

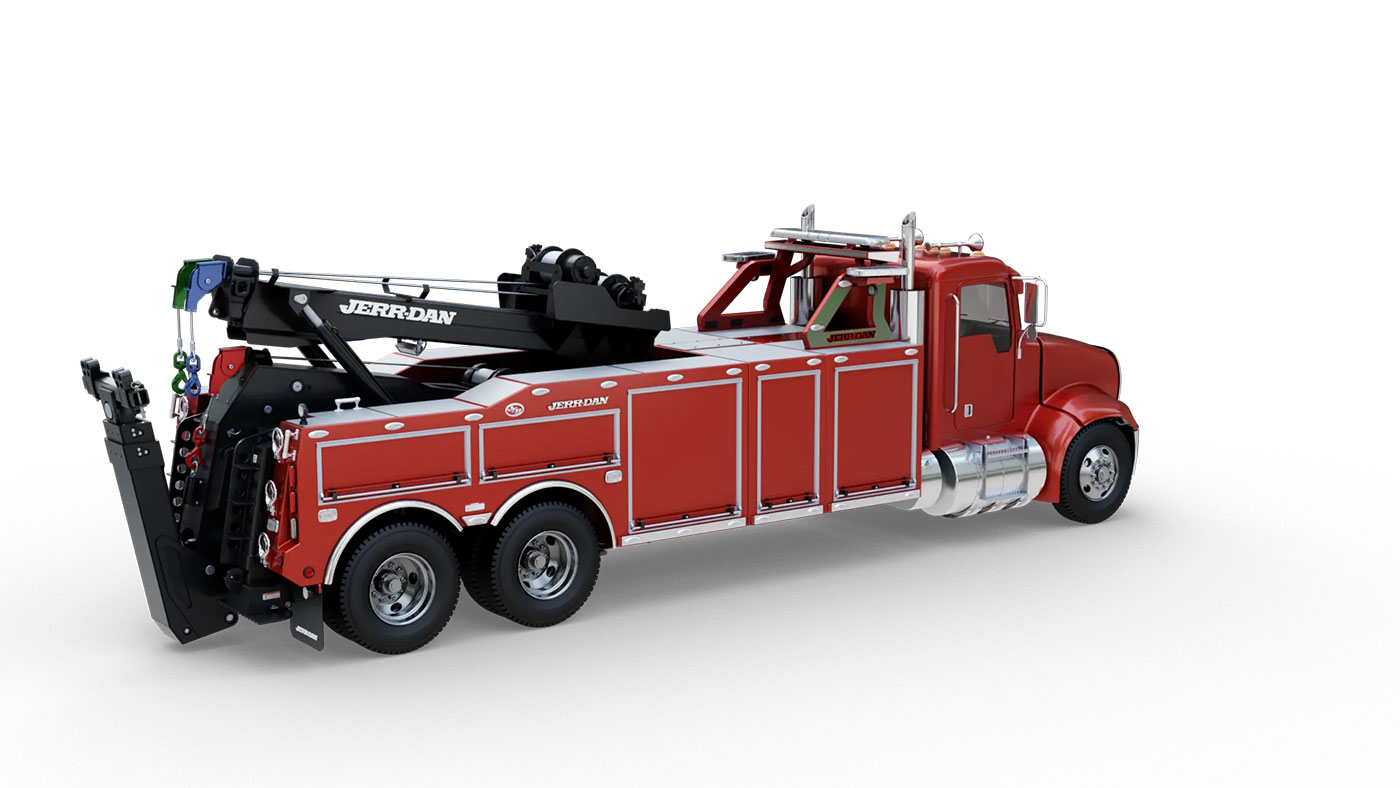

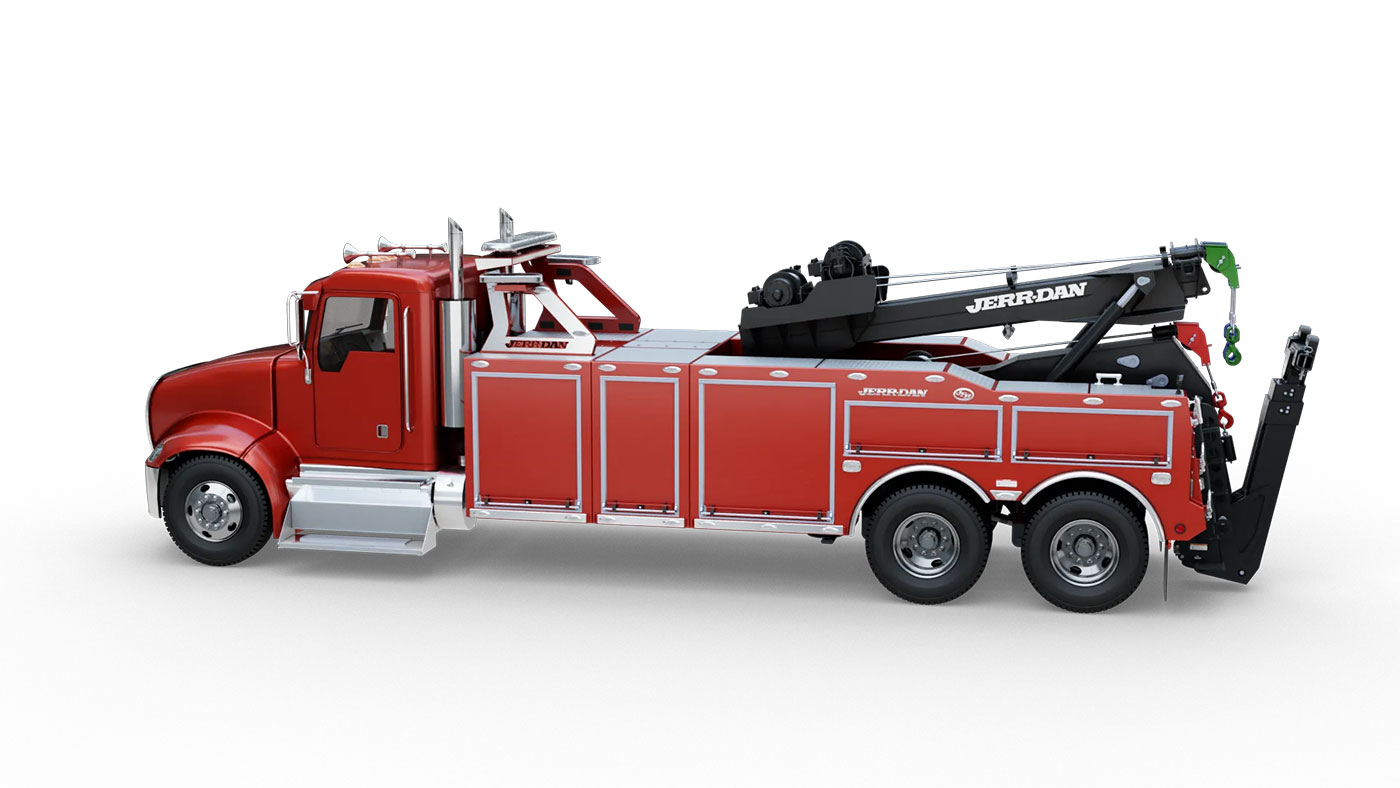

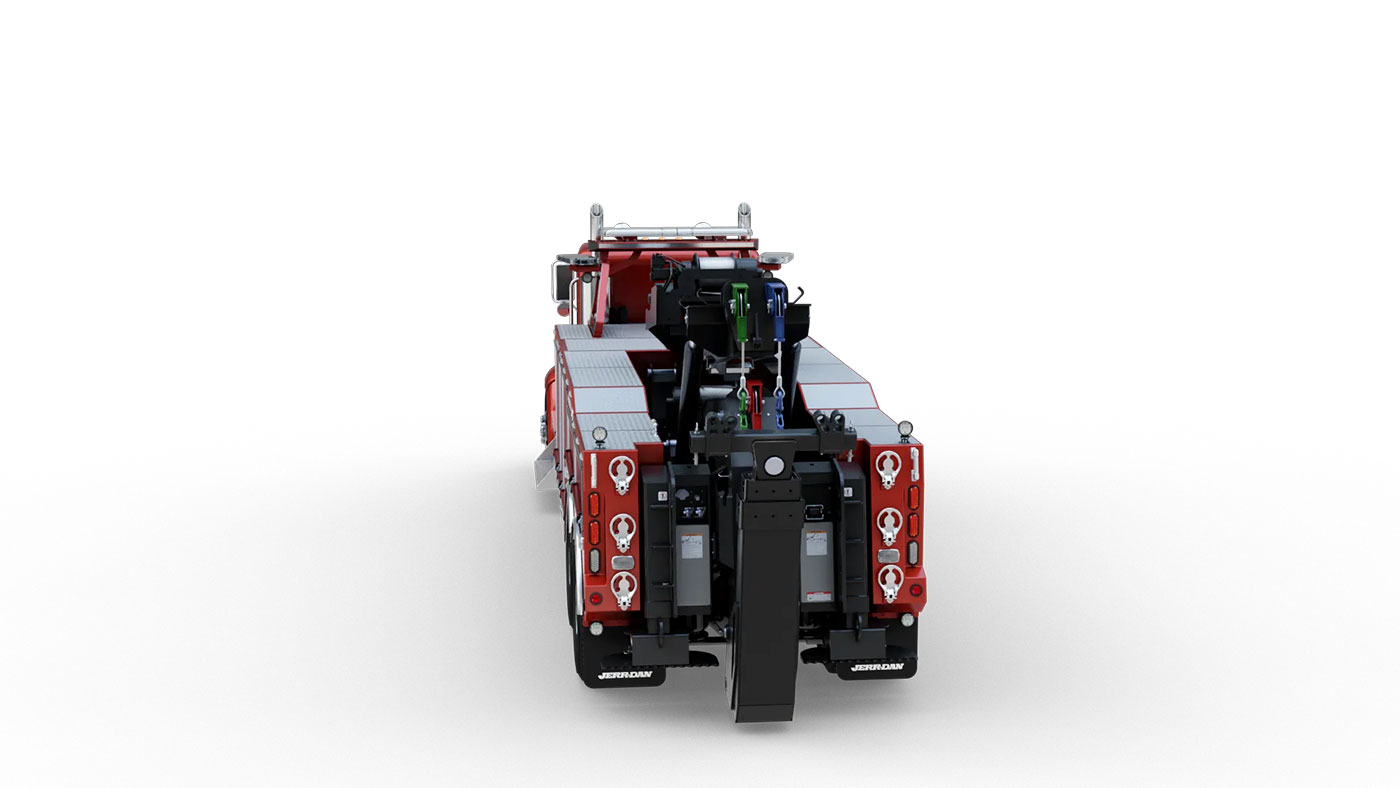

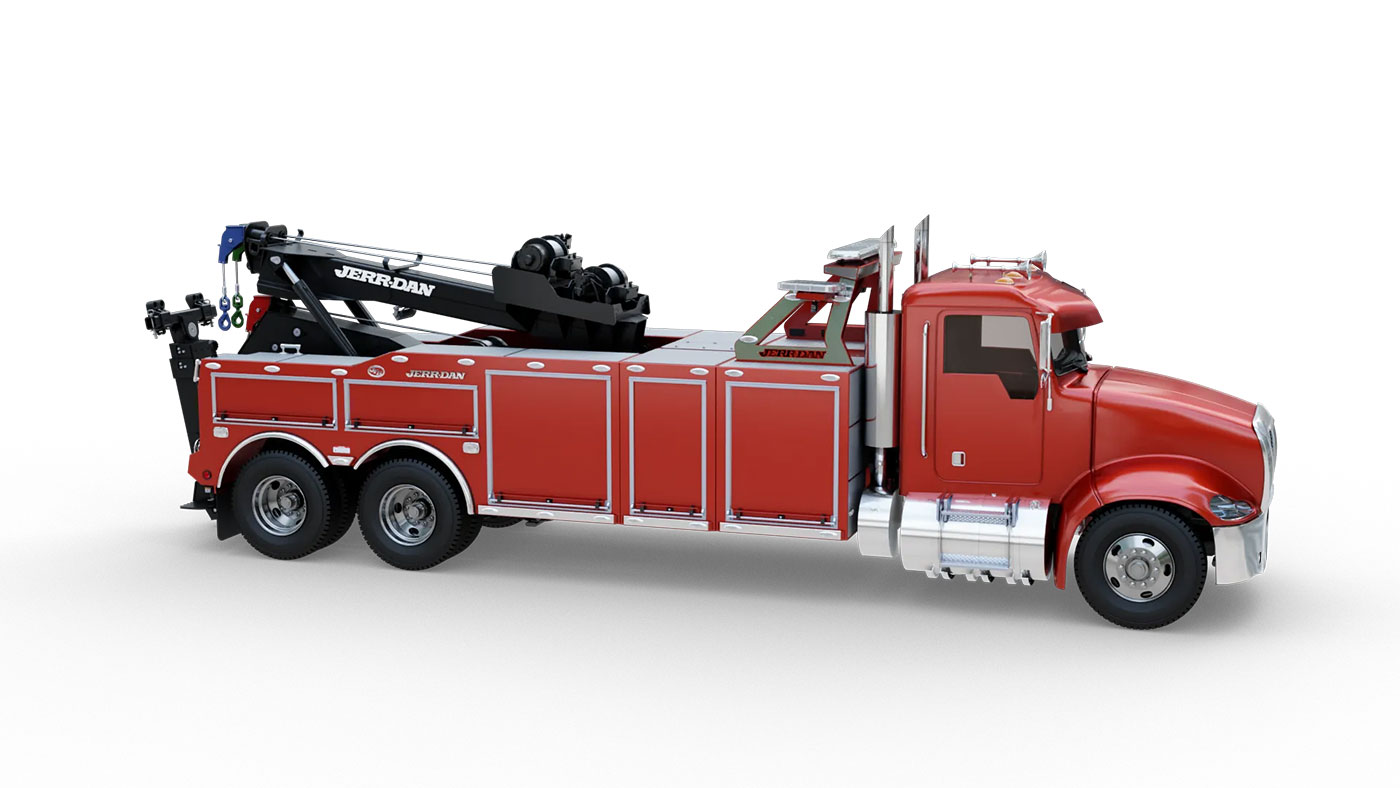

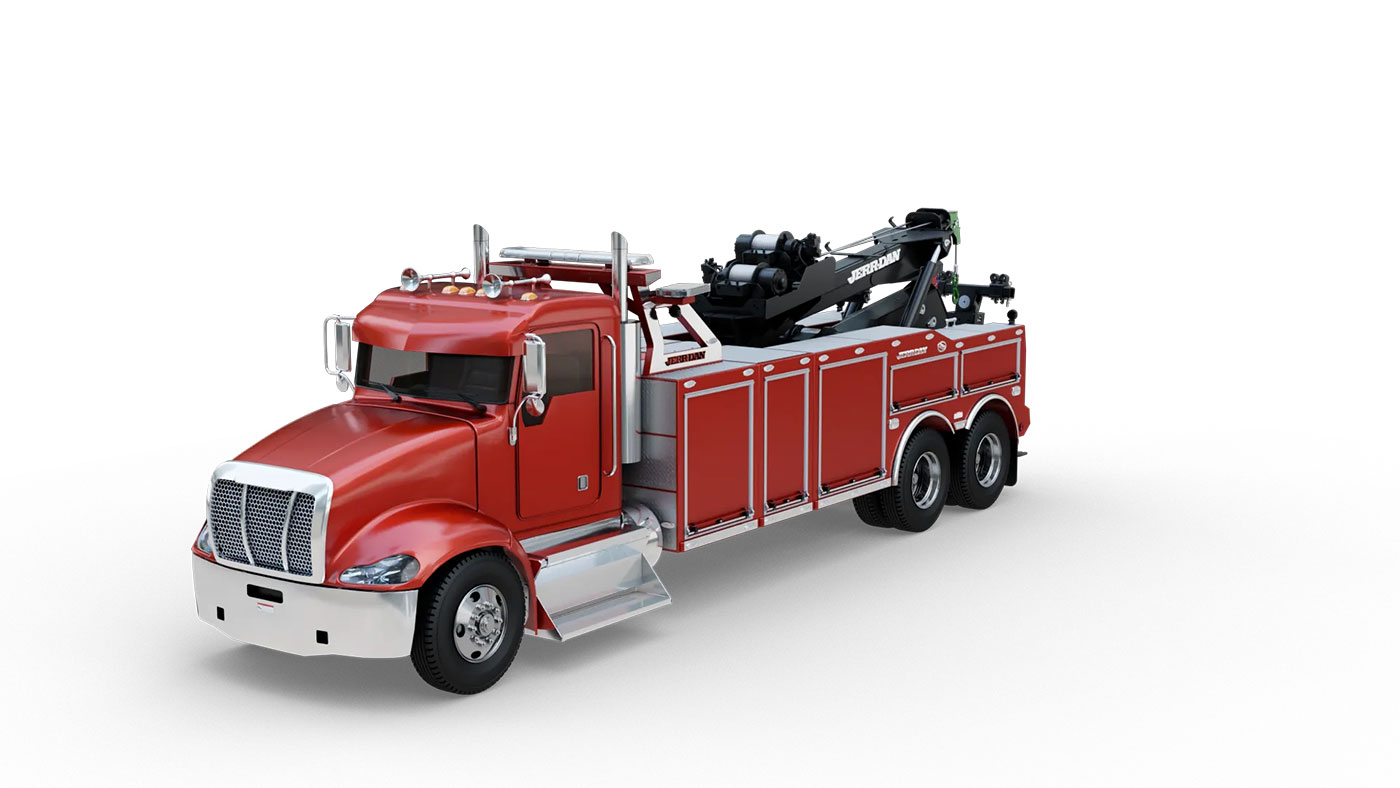

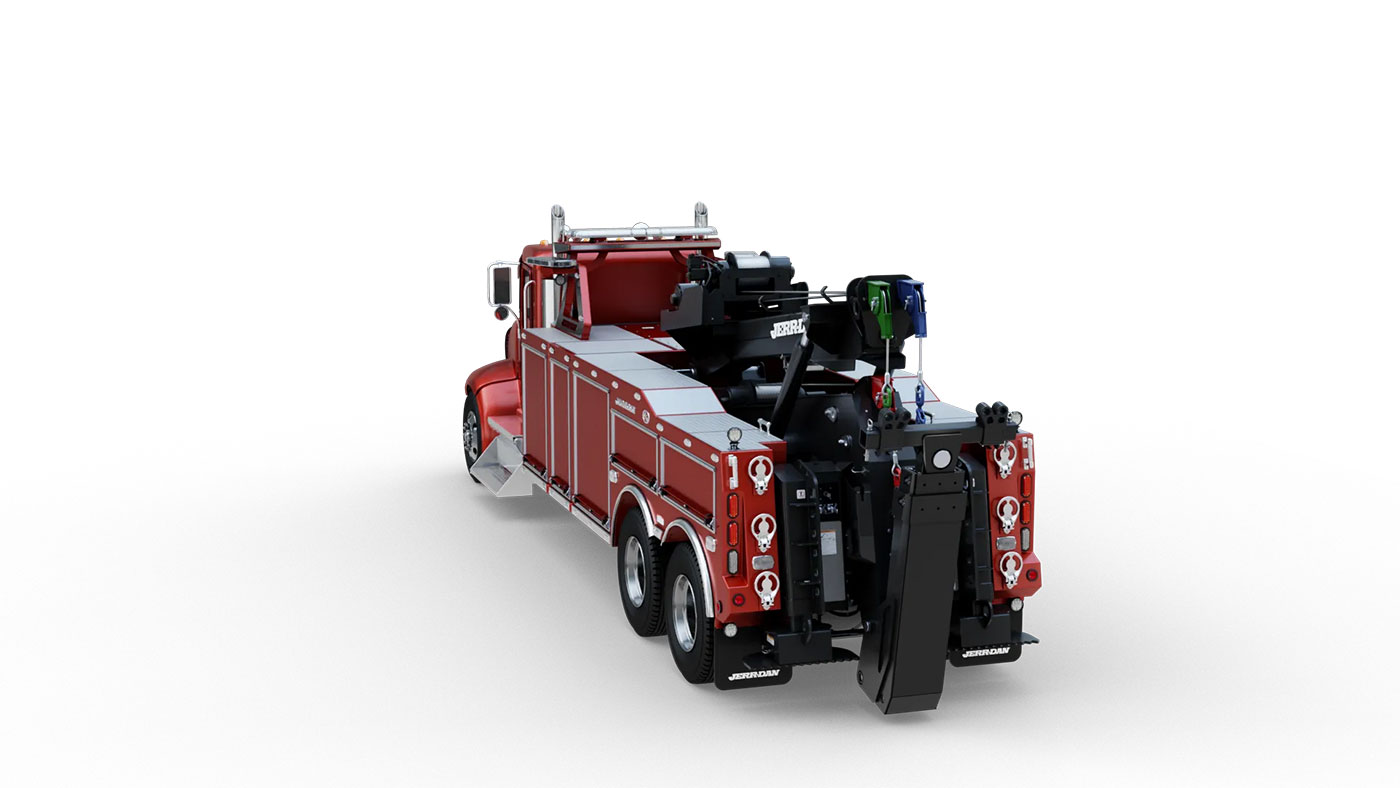

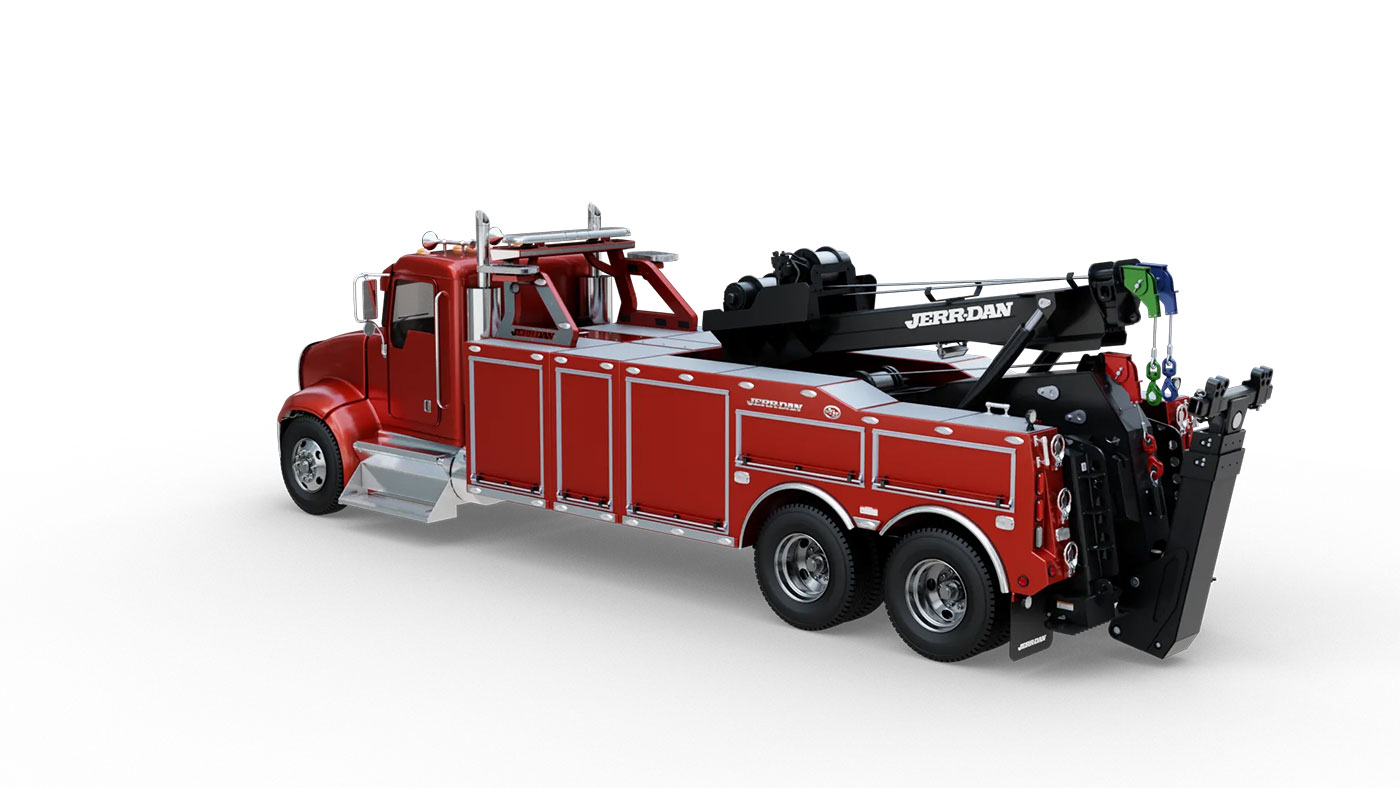

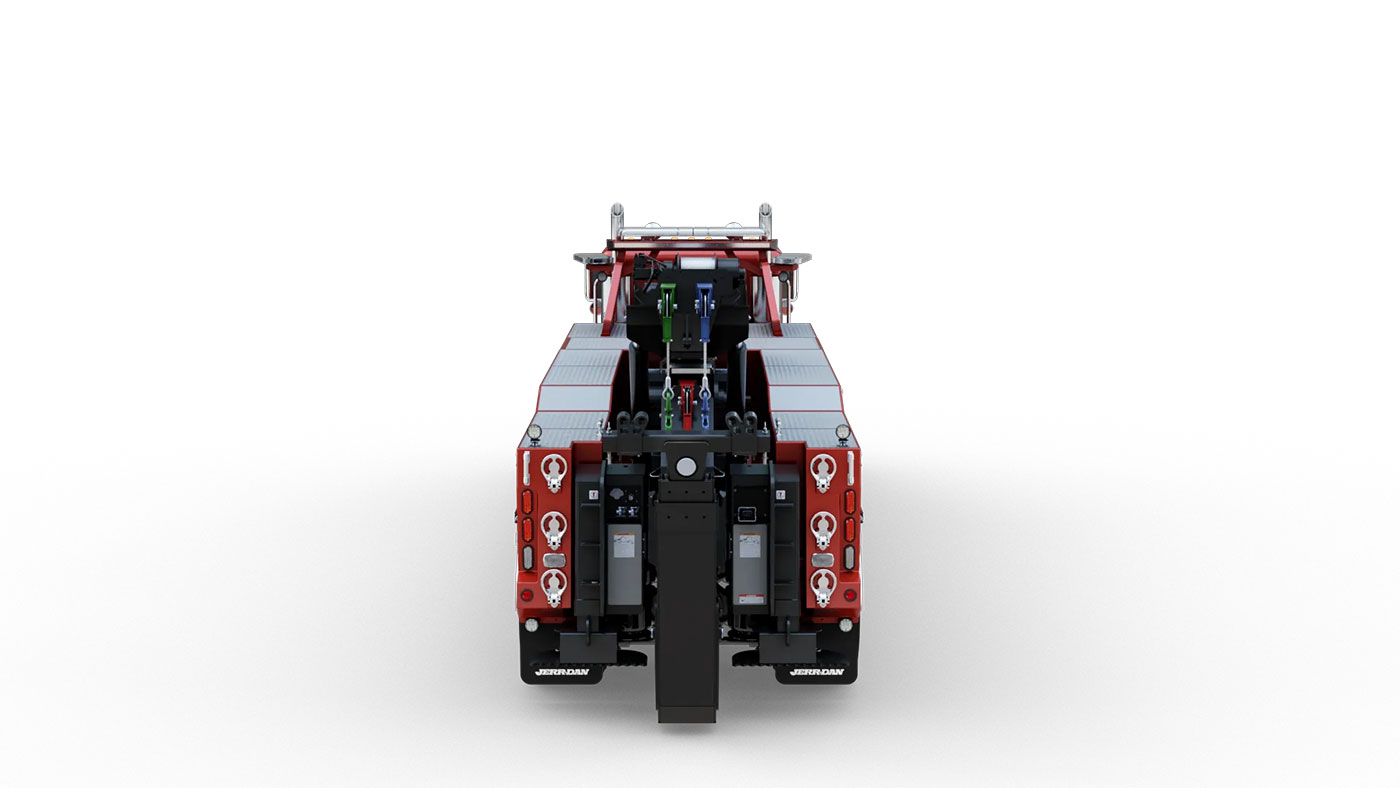

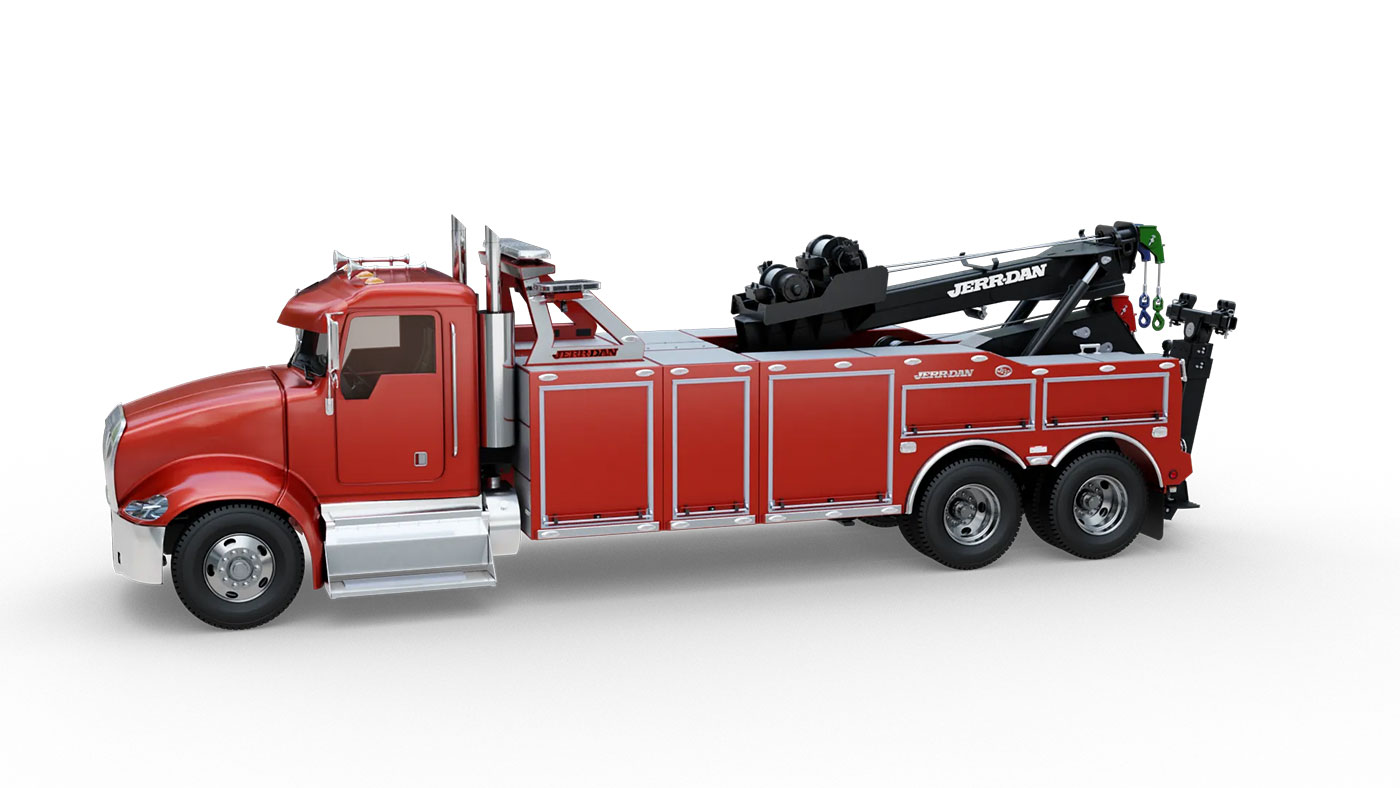

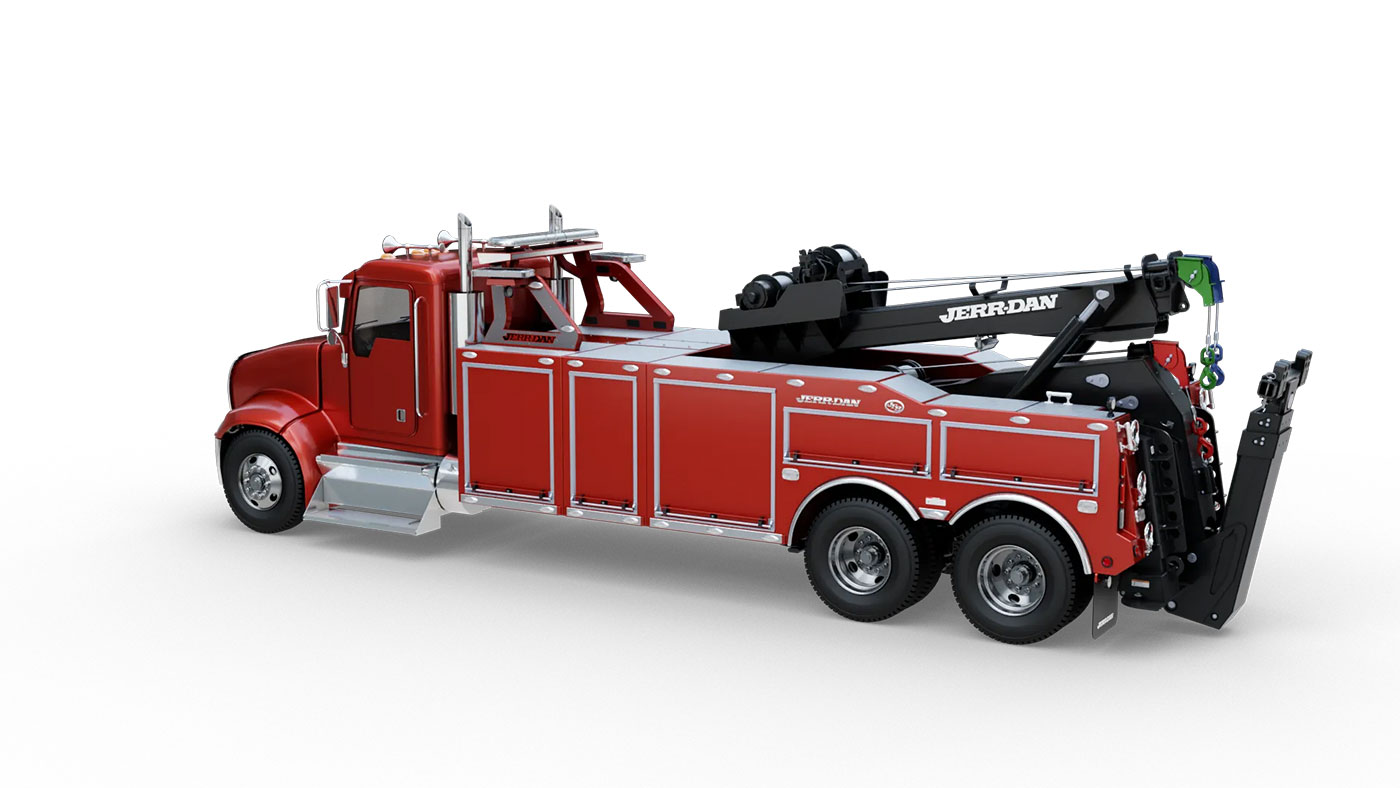

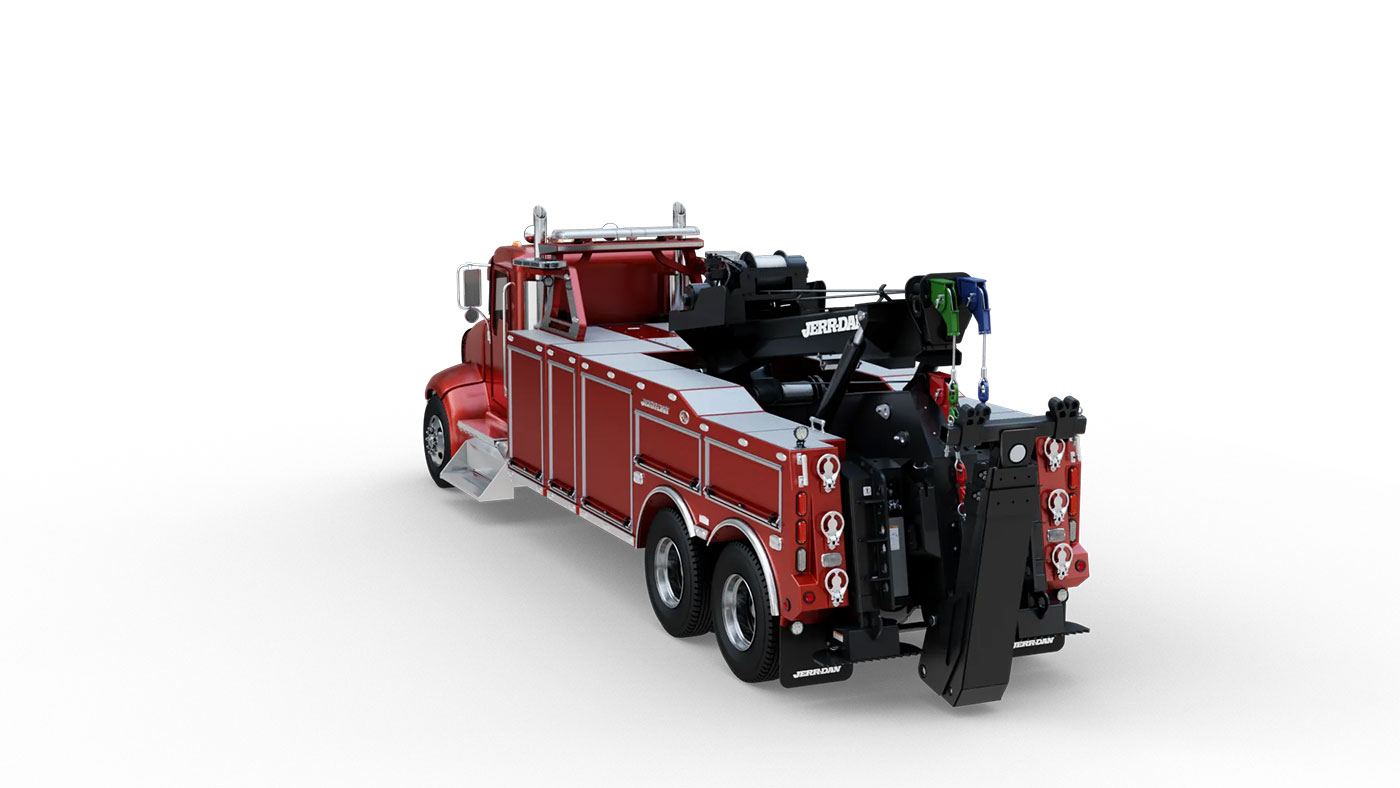

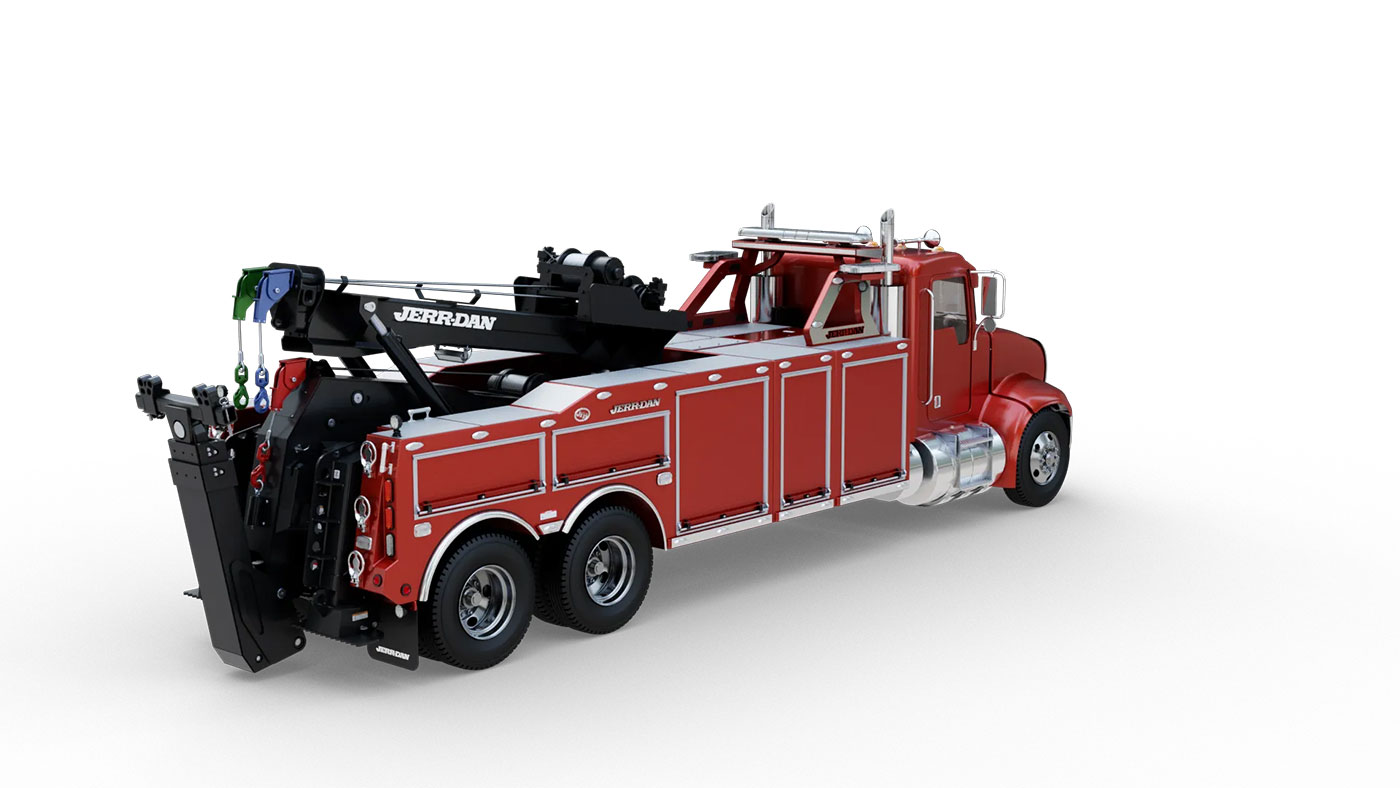

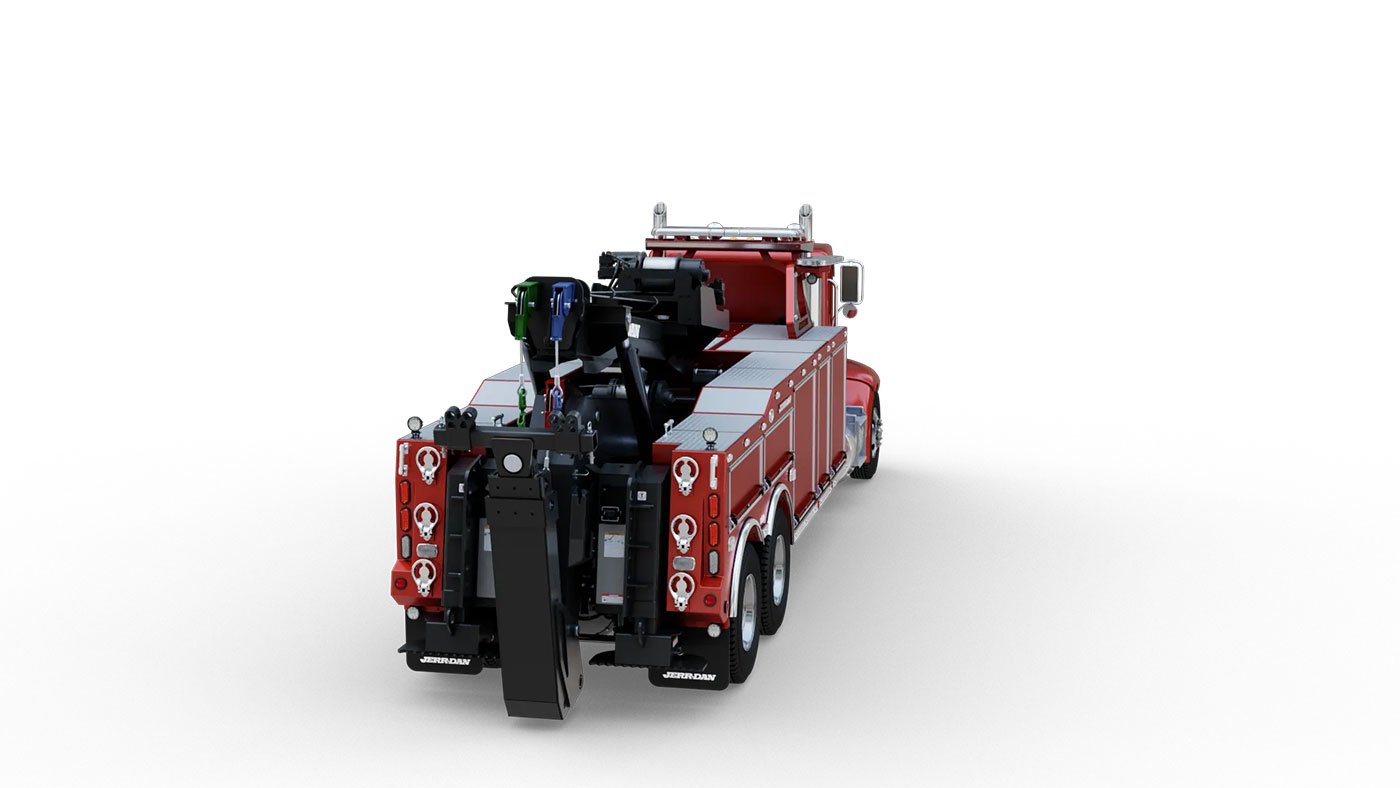

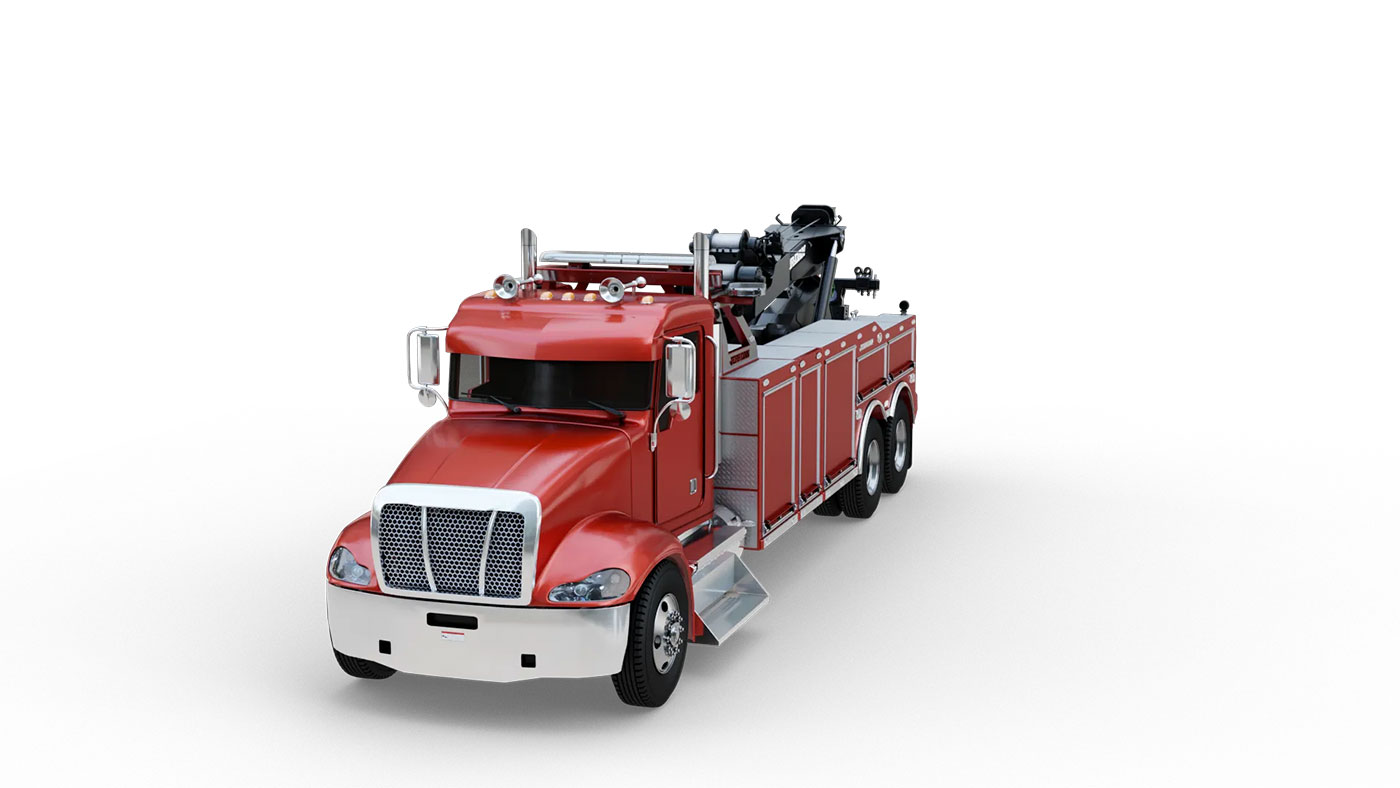

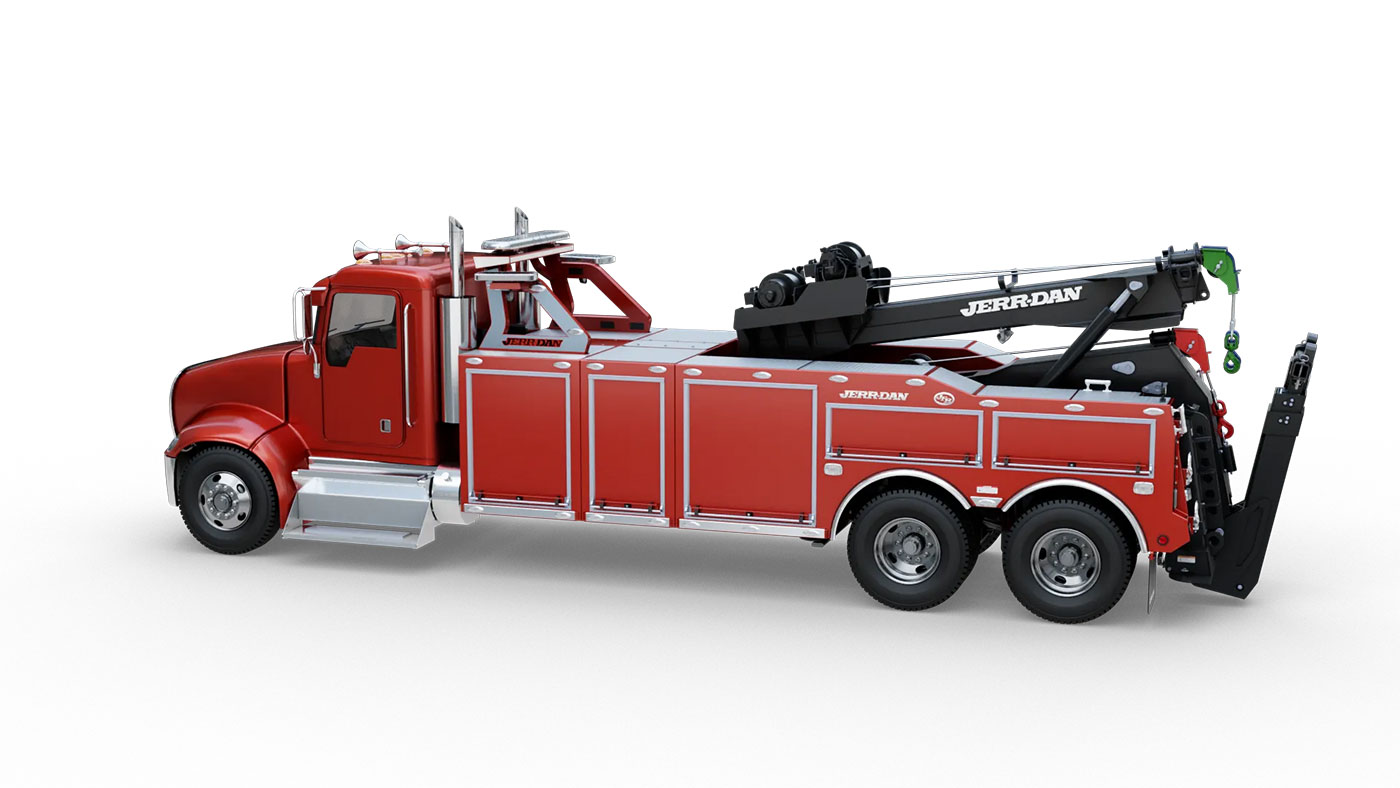

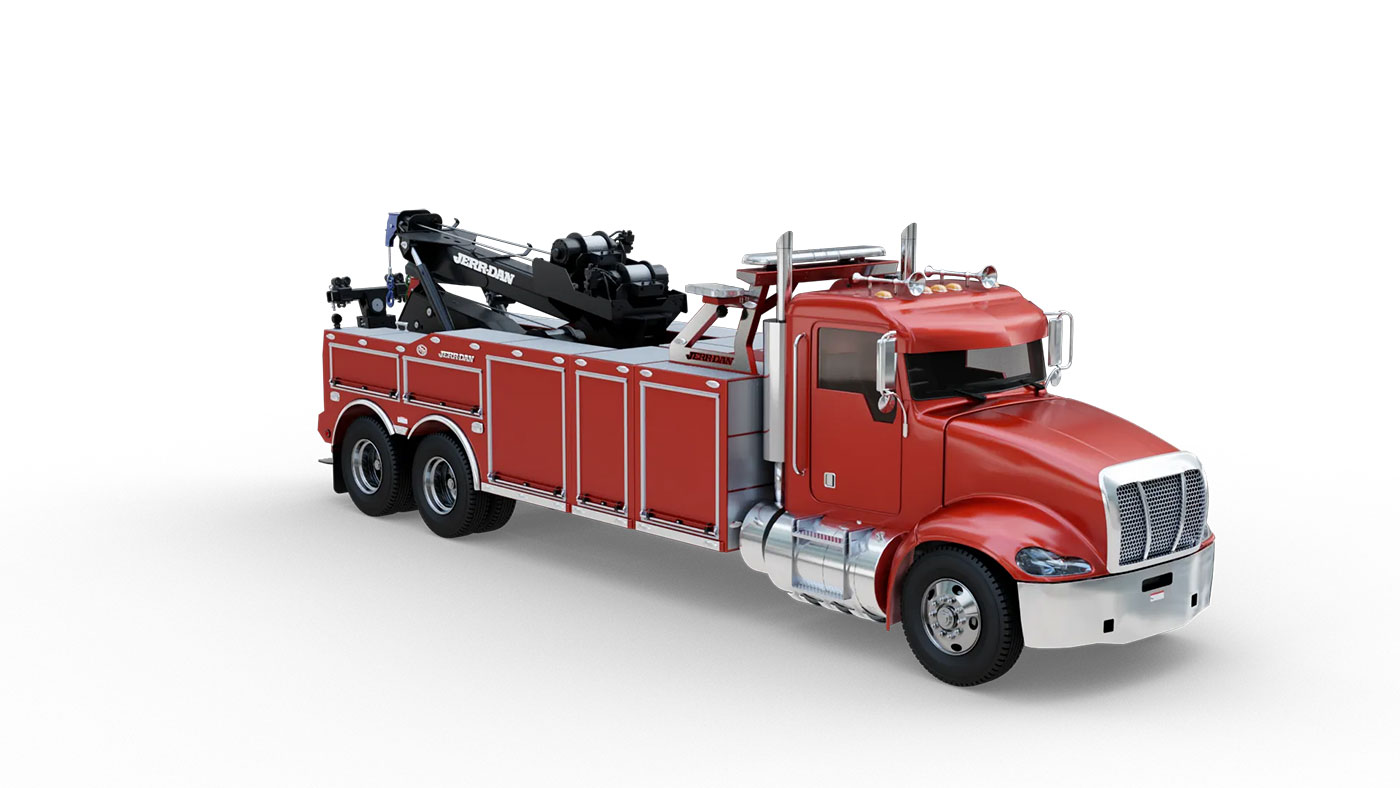

360 View

JD35 IND

Features

2-Stage Boom

JFB Body

Knee Boom

Tunnel Box

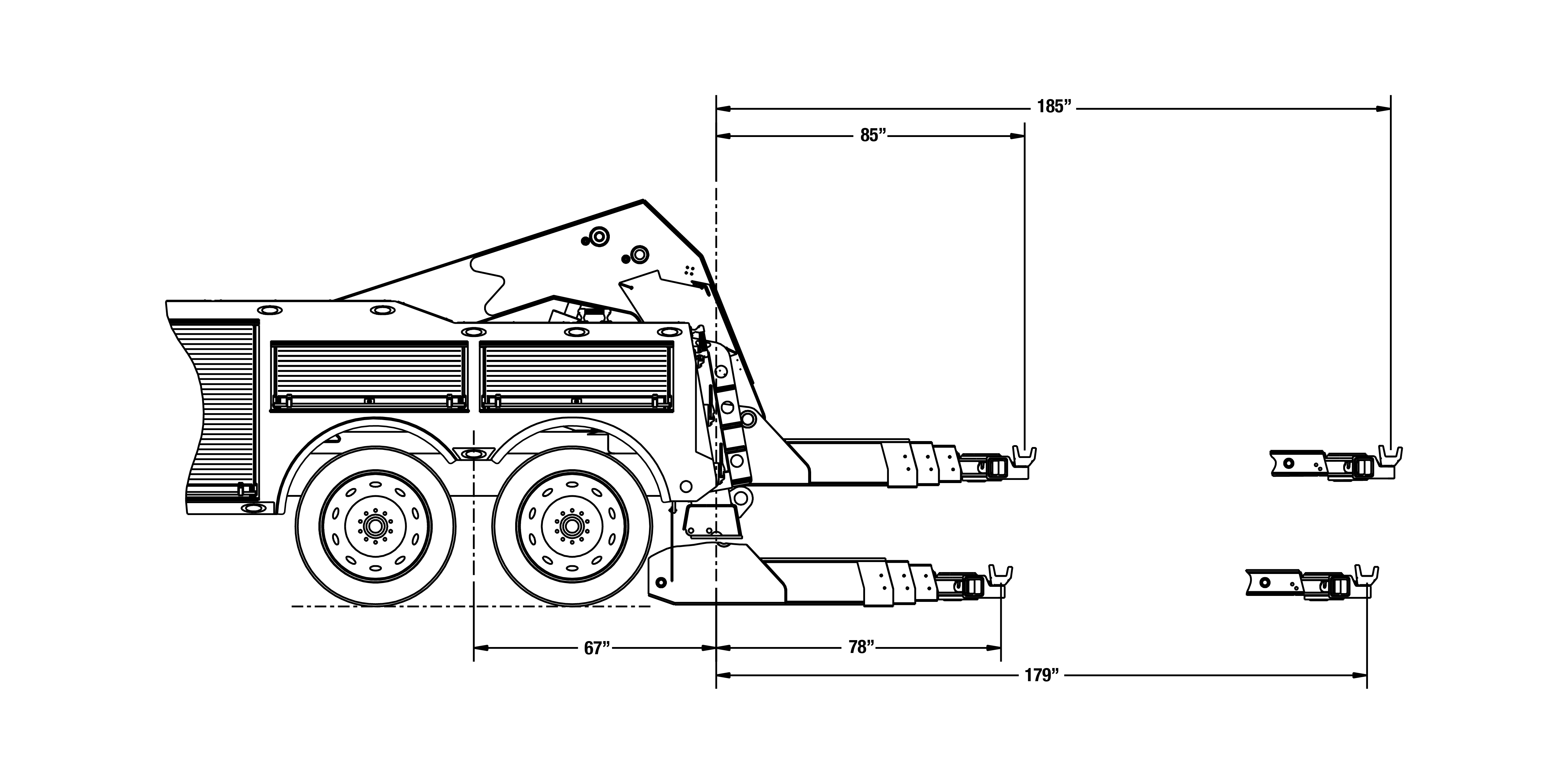

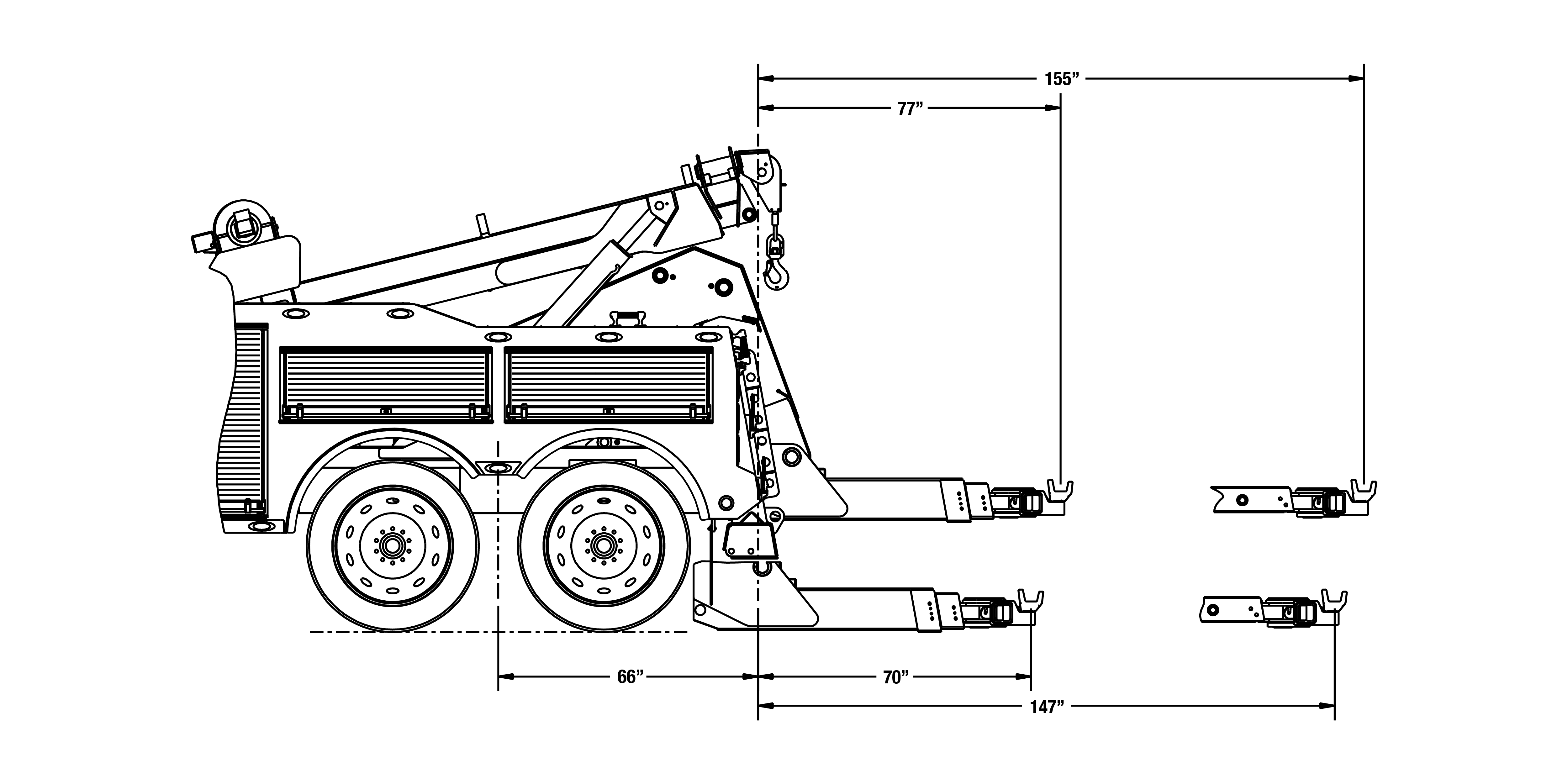

Dimensions

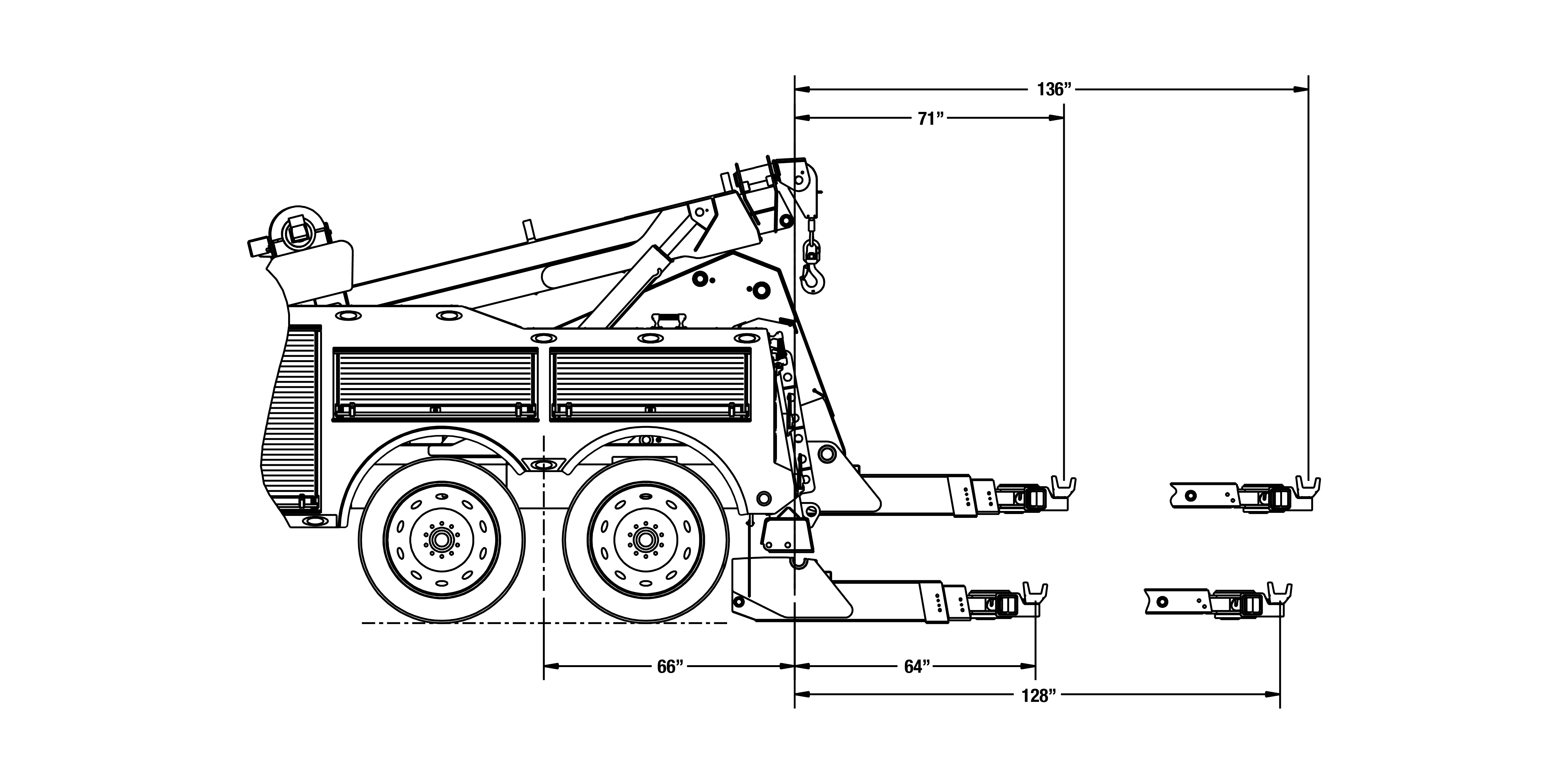

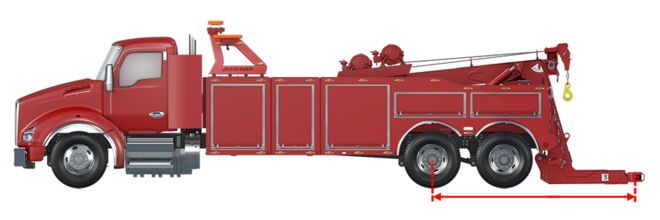

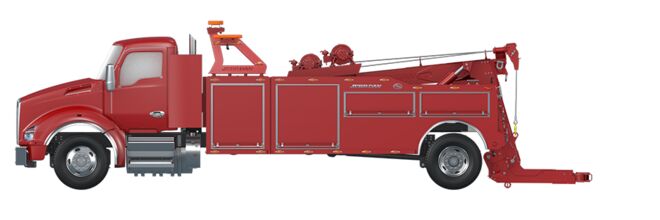

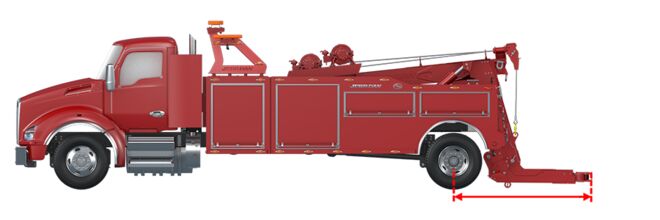

350 (3-Stage) Underlift: JD35 IND

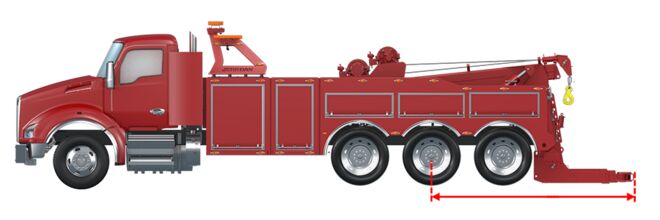

Reach Past Tailboard

350X (3-Stage) Underlift: JD35 IND

Reach Past Tailboard

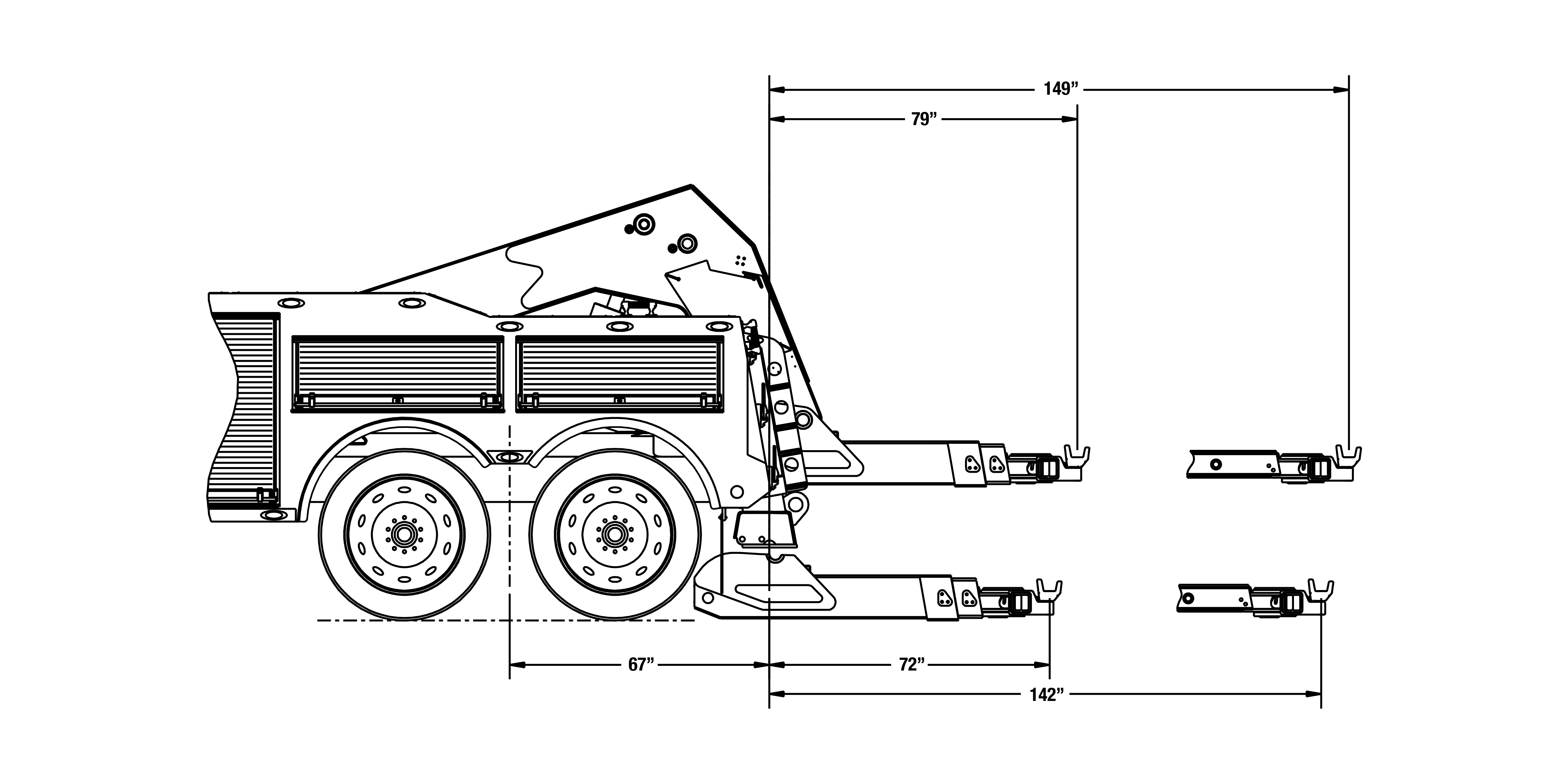

530 (3-Stage) Underlift: JD60 IND

Reach Past Tailboard

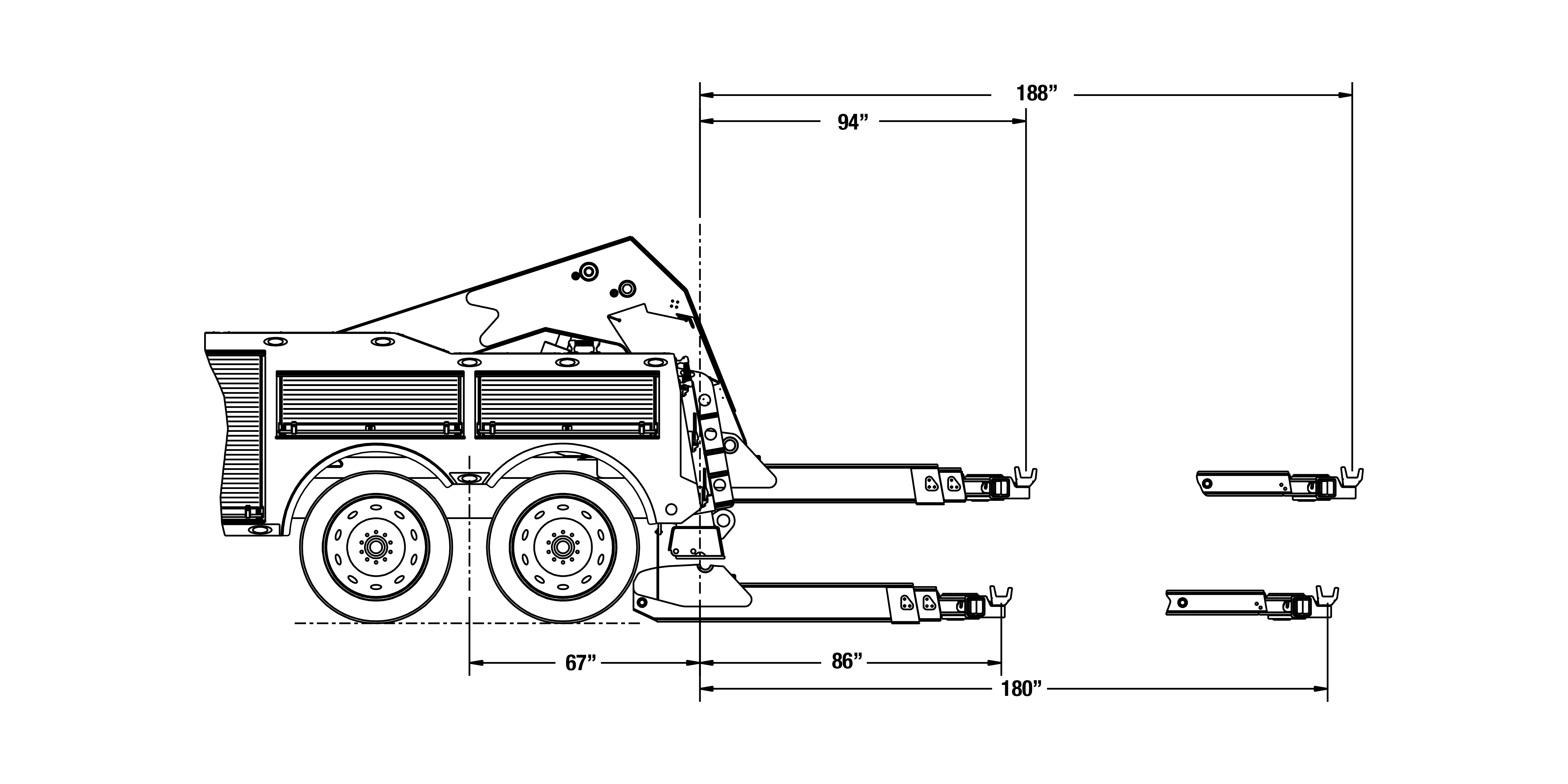

565 (3-Stage) Underlift: JD60 IND

Reach Past Tailboard

565 (4-Stage) Underlift: JD60 IND

Reach Past Tailboard

Options for Every Size Business

Jerr-Dan Financial Solutions (JDFS) offers quick, professional financing and competitive rates for leases and loans on new and used Jerr-Dan equipment. Whether you’re a one-unit operator or the owner of a large fleet, we can help you find a solution that works for you.

Learn more

JD35 IND

JD60 IND

Key Features

Boom: 70,000 lbs. Retracted Capacity

Boom: 120,000 lbs. Retracted Capacity

JFB Body is built with a Polypropylene Copolymer material that is High-Impact Resistant and Corrosion-Free

3-Stage Independent underlift w/knee boom with either 128 or 147 inches of reach, the HDUL offers optional drag winch with either 142, 180 or 179 inches of reach.

3-Stage Independent underlift w/knee boom that offers 142 or 181 inches of reach and a 4-Stage Independent underlift w/knee boom with 179 inches of reach

Recovery Boom

Rated Capacity at 30° Retracted

70,000 lbs.

120,000 lbs.

Rated Capacity at 30° Extended

22,000 lbs.

25,000 lbs.

Reach Past Tailboard Extended at 0°

132 in.

277 in.

Reach Past Tailboard Extended at 30°

87 in.

212 in.

Maximum Boom Angle

39 degrees

51 degrees

Maximum Hook Height

225 inches

424 inches

Winches and Wire Rope

Dual boom mounted planetary winches

35,000 lbs. each

50,000 lbs. each

Rated Working Load Limit 3/4" x 250' EIPS Galvanized

11,700 lbs.

16,800 lbs.

Underlift Drag Winch

Rated Working Load Limit 5/8" x 250' EIPS Galvanized

11,700 lbs.

Rated Working Load Limit 3/4" x 200' EIPS Galvanized

16,800 lbs.

350X Knee Boom Underlift

Rated Capacity Retracted

35,000 lbs.

Rated Capacity Extended

16,000 lbs.

Reach Past Tailboard- Retracted w/Forks

64 in.

Reach Past Tailboard- Extended w/Forks

147 in.

Positive Tilt

20 degrees

Negative Tilt

18 degrees

Maximum Tow Rating

80,000 lbs.

350 Knee Boom Underlift

Rated Capacity Retracted

35,000 lbs.

Rated Capacity Extended

16,000 lbs.

Reach Past Tailboard- Retracted w/Forks

64 in.

Reach Past Tailboard- Extended w/Forks

128 in.

Positive Tilt

20 degrees

Negative Tilt

18 degrees

Maximum Tow Rating

80,000 lbs.

530 Knee Boom Underlift (HDUL only)

Rated Capacity Retracted

53,000 lbs.

Rated Capacity Extended

17,000 lbs.

Reach Past Tailboard- Retracted w/Forks

72 in.

Reach Past Tailboard- Extended w/Forks

142 in.

Positive Tilt

12 degrees

Negative Tilt

18 degrees

Maximum Tow Rating

80,000 lbs.

565 Knee Boom Underlift (HDUL only)

Rated Capacity Retracted

56,500 lbs.

Rated Capacity Extended

17,600 lbs.

Reach Past Tailboard- Retracted w/Forks

86 in.

Reach Past Tailboard- Extended w/Forks

180 in.

Positive Tilt

13 degrees

14 degrees

Negative Tilt

17 degrees

16 degrees

Maximum Tow Rating

80,000 lbs.

565 (4-Stage) Knee Boom Underlift (HDUL only)

Rated Capacity Retracted

56,500 lbs.

Rated Capacity Extended

17,600 lbs.

Reach Past Tailboard- Retracted w/Forks

78 in.

Reach Past Tailboard- Extended w/Forks

179 in.

Positive Tilt

15 degrees

Negative Tilt

15 degrees

Maximum Tow Rating

80,000 lbs.

Chassis Requirements

Minimum GVW Rating

54,000 lbs.

64,000 lbs.

Minimum RBM per rail

3,250,000 in-lbs.

4,200,000 in-lbs.

Heavy Duty Carriers

Medium Duty Carriers

JD35IND_Sell_Sheet_Final (.pdf) ROTATOR_Sell_Sheet_Final (.pdf) JD60 IND Sell Sheet (.pdf)

Showing:

JD35IND_Sell_Sheet_Final (.pdf) ROTATOR_Sell_Sheet_Final (.pdf) JD60 IND Sell Sheet (.pdf)

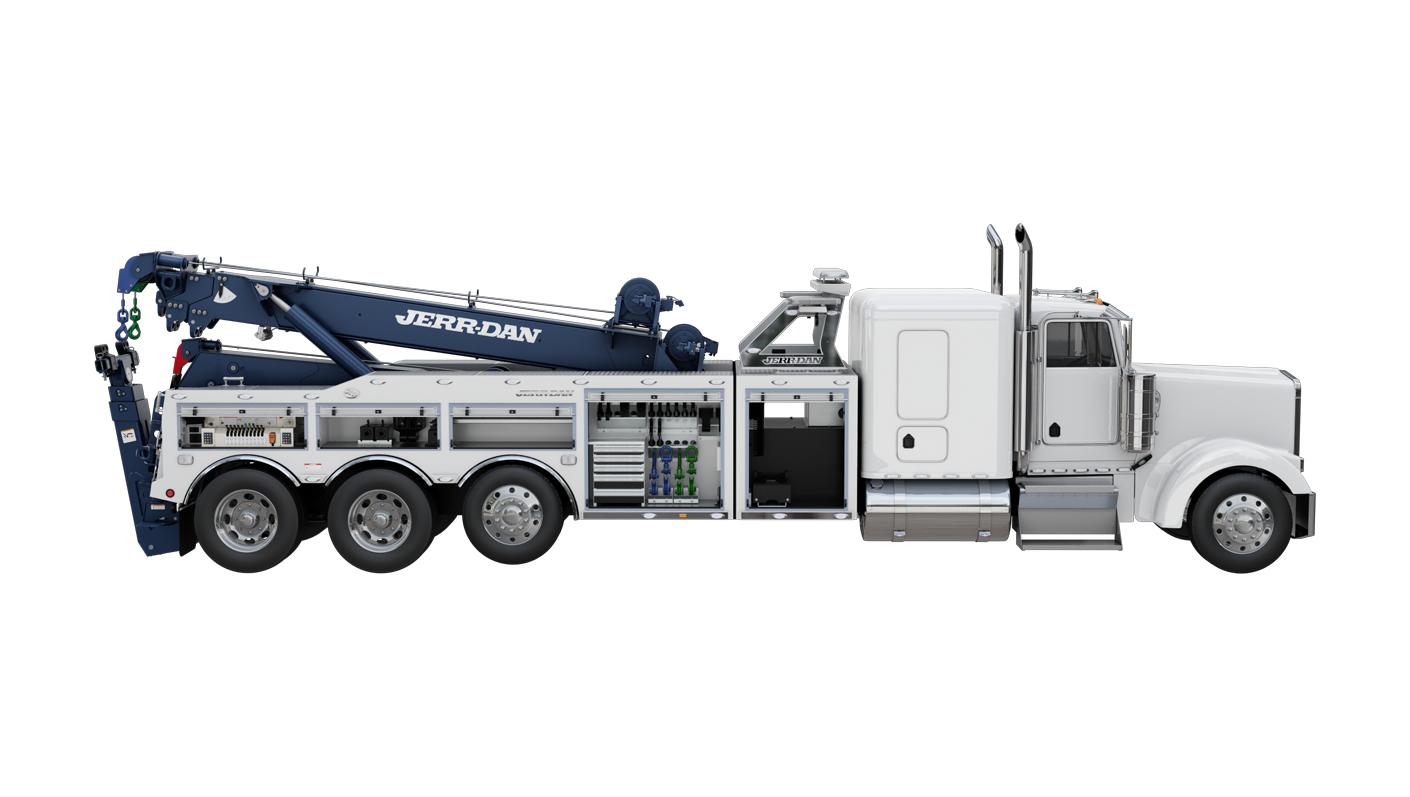

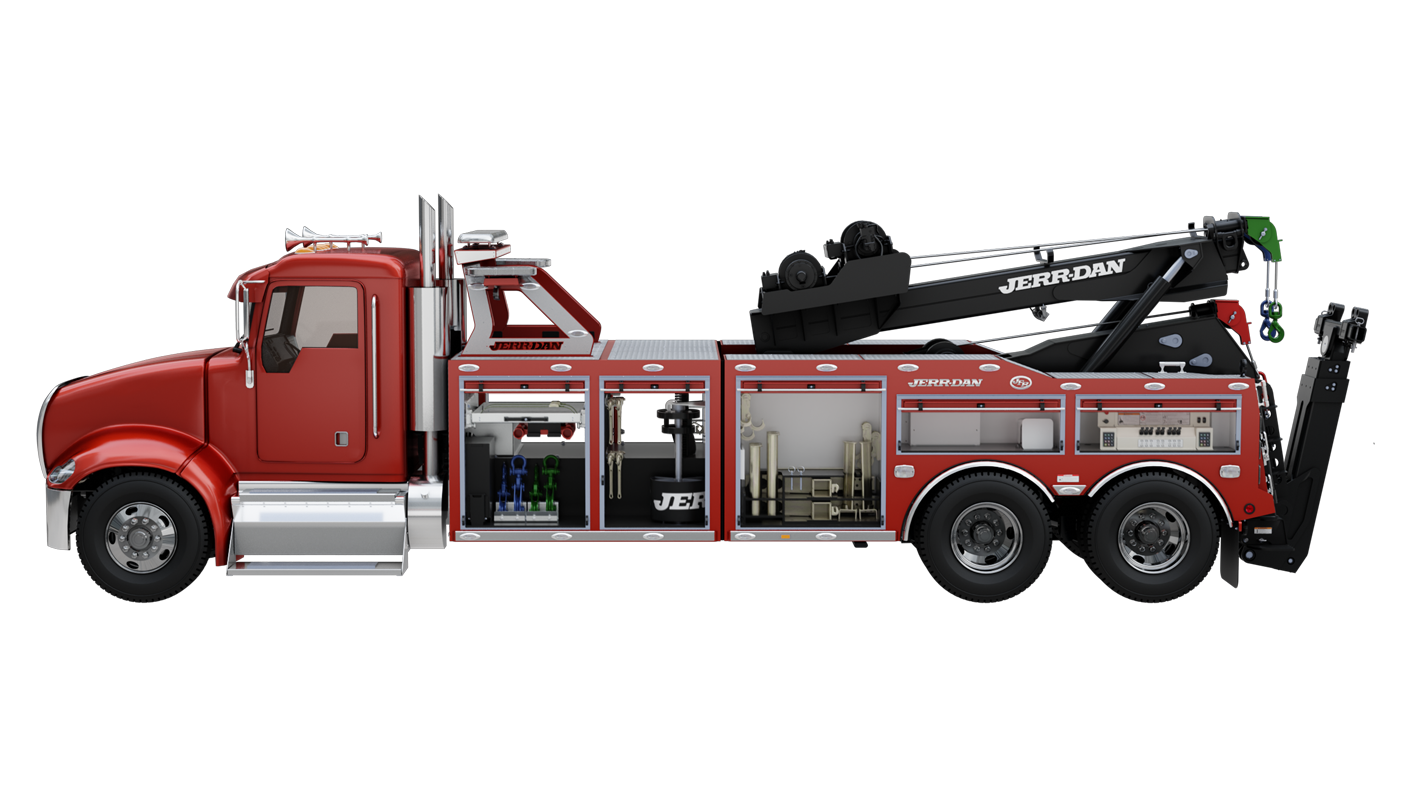

Storage Solutions

Every part has its place with new storage solutions from Jerr-Dan. Engineered to fit with the 2023 updated wrecker body design, choose the part storage package that fits your model.

Individual storage solution items can be purchased through your local Jerr-Dan distributor. Tools and rigging are not included with individual storage solution or storage solutions packages. Additional rigging packages are also available through your local Jerr-Dan distributor. Gold storage package shown below.

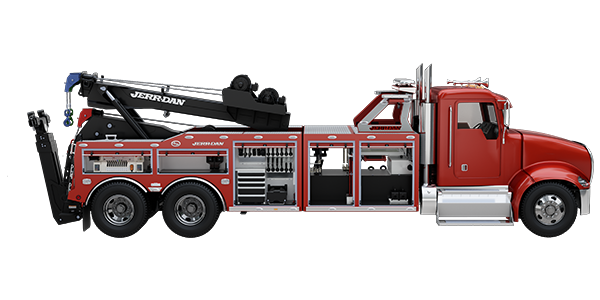

JD35 Independent Heavy Duty Wrecker

Parts Information	Gold	Silver	Bronze
Snatch Block Storage View Close
Chain Binder Storage
Shackle Rack
Stationary Shelf View Close
Tow Light Storage
Chain Bars
Tool Drawer
Shovel/Broom Storage
Bottle Jack Storage View Close
Spill Kit Storage
Stationary Chain Rack
Rotary Chain Rack
Ladder Storage View Close
Stay Dry Silo
Tilt Down Drawer View Close
Hand Tool Storage View Close

JD35 TANDEM AXLE

Tilt Down Drawer

Ladder Storage

Snatch Block Storage

JD35 TANDEM AXLE

Bottle Jack Storage

Stationary Shelf

Tool Storage

ADDITIONAL STORAGE SOLUTIONS

JD60 Independent Heavy Duty Wrecker

Parts Information	Gold	Silver	Bronze
Snatch Block Storage View Close
Chain Binder Storage
Shackle Rack
Stationary Shelf
Tow Light Storage
Chain Bars
Tool Drawer
Shovel/Broom Storage
Bottle Jack Storage View Close
Spill Kit Storage
Stationary Chain Rack View Close
Ladder Storage View Close
Stay Dry Silo
Hand Tool Storage View Close

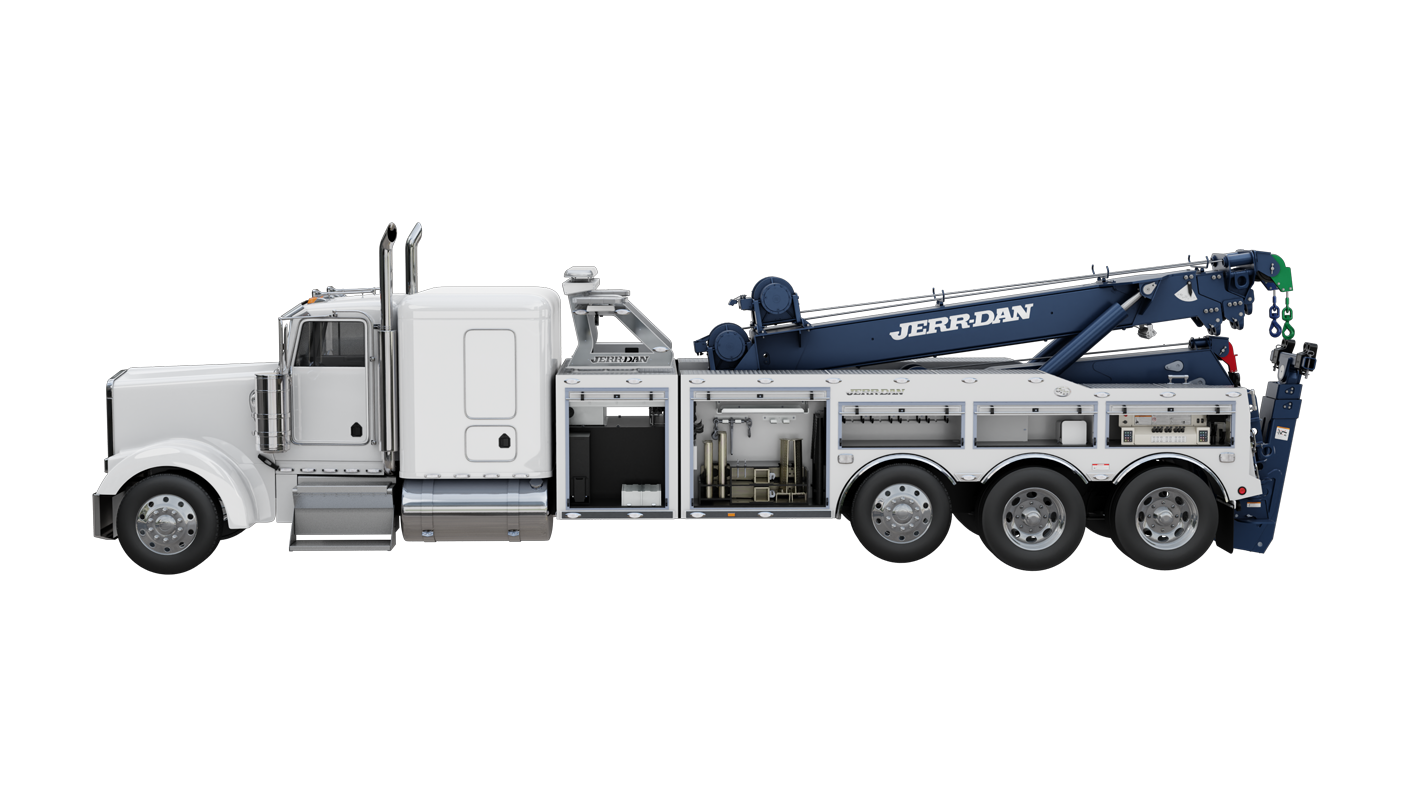

JD60 Tri-Axle with Counterweight

Chain Rack

Ladder Storage

JD60 Tri-Axle with Counterweight

Bottle Jack Storage

Snatch Block Storage

Tool Storage

ADDITIONAL STORAGE SOLUTIONS

Calculate & Compare Tow Performance

Is your vehicle optimized for the unique demands of your towing operation?

Calculating tow ratings requires considering wheelbase, front and rear axle weights along with retracted and extended overhang, The math can be complex, use this calculator to truly understand how much you can tow, either with one of our trucks or your current truck, and compare ratings to make sure you’re getting the right equipment for your towing needs.

Terms & Conditions

I understand and agree that my use of the Jerr-Dan Tow Performance Calculator is governed by Jerr-Dan’s Terms of Use and Privacy Policy. I have read and reviewed the terms and agree with and to abide by any statements, restrictions, limitations and requirements therein. I agree that I am solely responsible for any towing I may perform that uses information from or relies on the Jerr-Dan Tow Performance Calculator.

Calculation 1

1. Wheelbase		in
2. Steer Axle Weight		lbs
3. Drive Axle Weight		lbs
4. Drive Axle Weight Rating		lbs
5. Steer Axle Remaining Weight We recommend using at least 50% of the Steer Axle Rating.		%
6. Overhang		in

Compare

Add to Compare

Calculation 2

Axle Type
1. Wheelbase		in
2. Steer Axle Weight		lbs
3. Drive Axle Weight		lbs
4. Drive Axle Weight Rating		lbs
5. Steer Axle Remaining Weight We recommend using at least 50% of the Steer Axle Rating.		%
6. Overhang		in

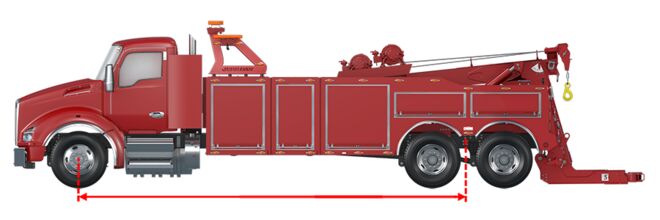

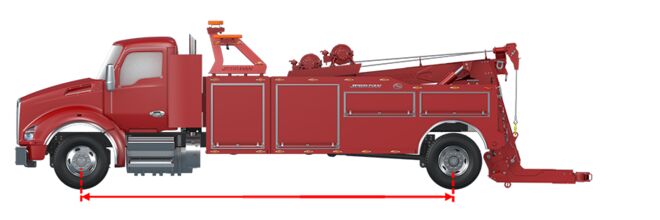

Wheelbase

Distance from centerline of the front axle to the centerline of the rear axle

Steer Axle Weight

Amount of weight applied to the front axle including the driver, fuel, and all equipment.

Drive Axle Weight

Amount of weight applied to the rear axle including all equipment.

Drive Axle Weight Rating

Weight capacity of the drive axle per the axle manufacturer.

Steer Axle Remaining Weight

Desired weight remaining on the towing vehicle’s steer axle when the load is lifted.

Overhang

Distance from centerline of the drive axle to the lift point.

Results

Tow Performance:
May exceed drive axle rating
Rear Axle Rating:
Rear Drive Axle(s) Weight:
